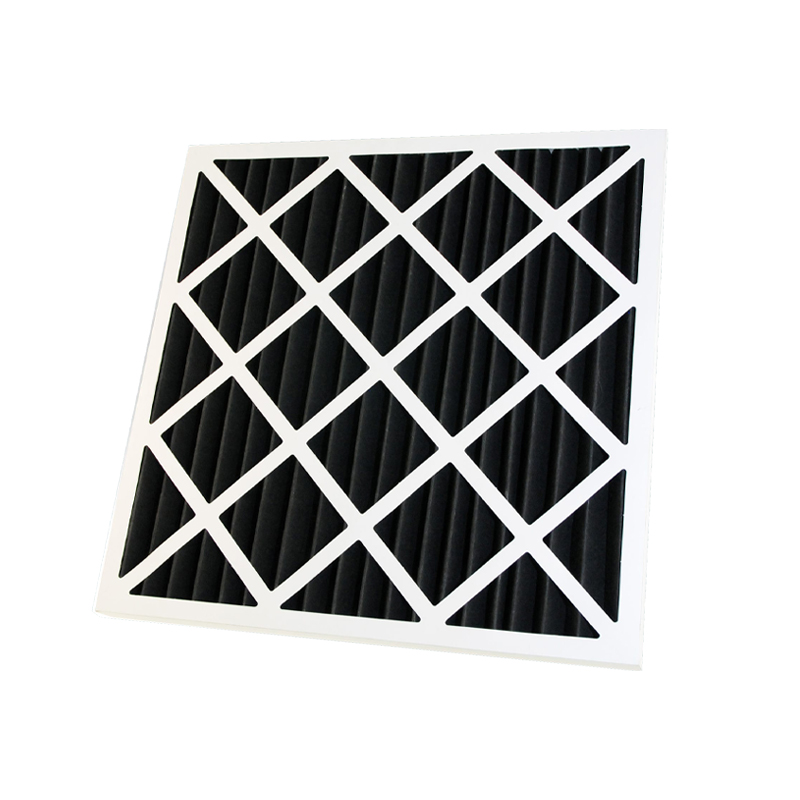

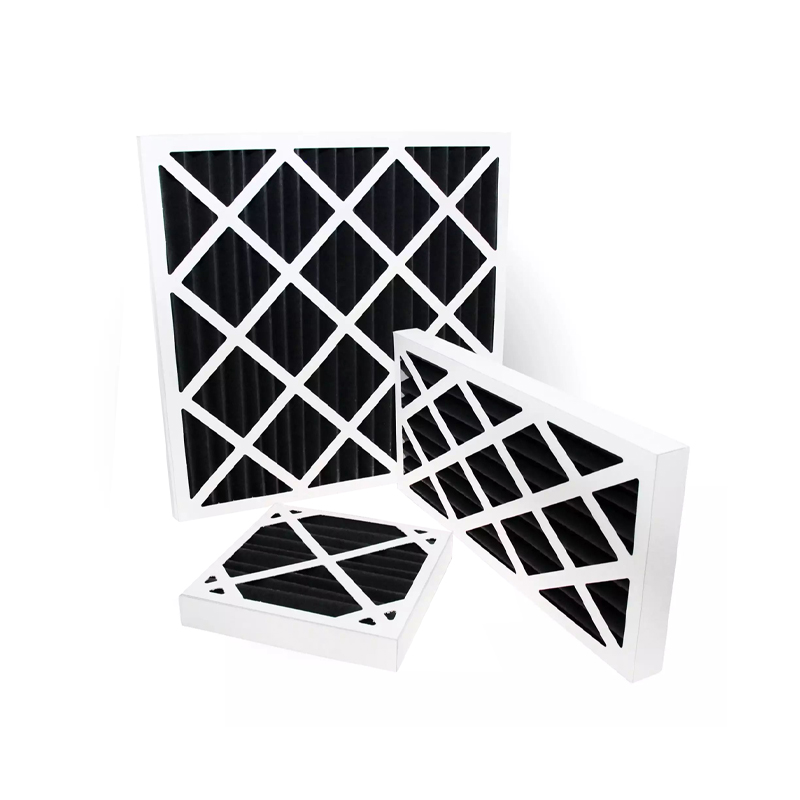

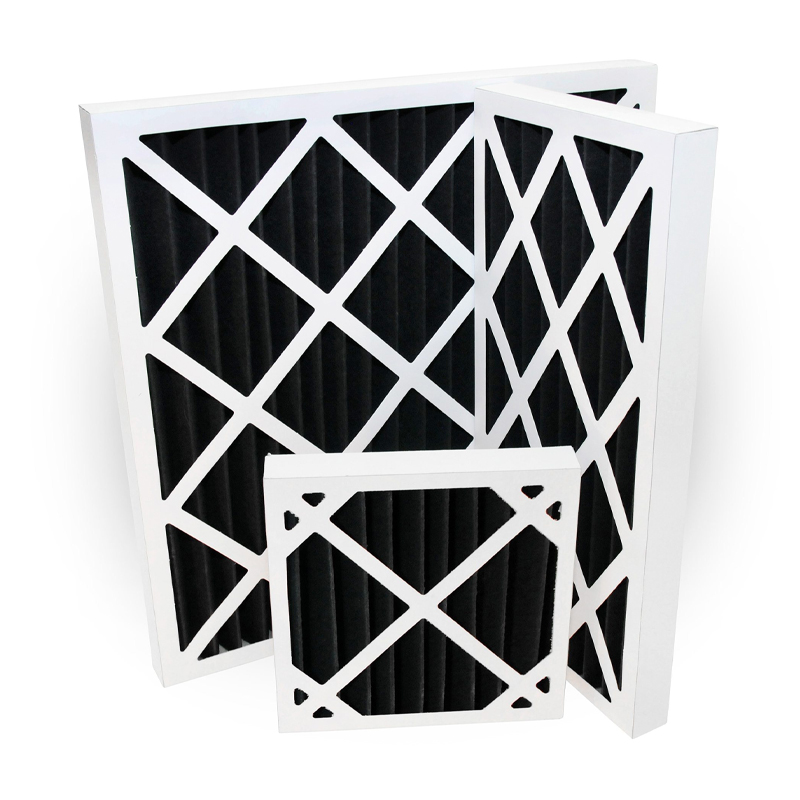

Activated Carbon Pleated Panel Air Filter

Introduction:

The activated carbon air filter is a device for removing pollutants and odours from the air, based on the principle of adsorption of activated carbon.

Activated carbon is a material with many small pores and voids that can adsorb molecules in gases and solutions. When air passes through an activated carbon air filter, pollutants and odor molecules are adsorbed onto its surface by activated carbon, thereby purifying the air. These pollutants and odor molecules include harmful gases, chemicals, smoke, odors, etc.

Activated carbon air filters typically consist of one or more activated carbon filtration layers. Each filter layer contains a large amount of activated carbon particles, which are usually relatively small. When air passes through the filter layer, pollutant molecules are adsorbed onto the surface of activated carbon particles, thereby eliminating pollutants in the air.

The adsorption effect of activated carbon is due to its large surface area and pore structure. These voids can provide more contact area, allowing activated carbon to adsorb more pollutant molecules. In addition, the surface of activated carbon also has some chemical properties, which can react with certain pollutant molecules to purify the air.

However, the effectiveness of activated carbon air filters is influenced by some factors. Firstly, the adsorption capacity of activated carbon is limited. When activated carbon particles become saturated, their adsorption effect will weaken. At this point, it is necessary to replace or regenerate the activated carbon particles. Secondly, activated carbon has different adsorption capabilities for different types of pollutants, so its effectiveness may vary depending on the type and concentration of pollutants.

In summary, activated carbon air filters utilize the adsorption effect of activated carbon to remove pollutants and odors from the air. The principle is that pollutant molecules in the air are adsorbed onto the surface of activated carbon, thereby purifying the air. This type of filter can effectively remove harmful gases and odors, providing a fresh and healthy air environment.

Technical parameters:

Application areas:

Activated carbon plate air filter has the features of large adsorption area, strong adsorption performance, high content of activated carbon, good ventilation performance, low resistance, long life and low cost.

• It can be widely used for air filtration in airports, hospitals (e.g. wards for patients with respiratory organ diseases), office buildings and other public places, and can effectively remove odours adhering to the air, while having the advantage of saving energy.

• Museums, archives, libraries and other places. Activated carbon plate air filters can also be used to effectively remove polluting gases such as hydrogen sulphide and nitrogen oxides from the air, and to protect collections from damage.

• In the central control room of chemical, petrochemical, iron and steel enterprises, activated carbon filters can be used to protect precision instruments from corrosive gases.

• Semiconductor and microelectronics manufacturing enterprises, the use of activated carbon plate filters can remove "molecular-level pollutants" to improve product quality and protect the health of personnel.

• Activated carbon filters are also used to reduce odours in laboratory animal rooms, improving the quality of laboratory animals and protecting the atmosphere.

About us:

Snyli Environmental Technology (Shandong) Co.,Ltd has been specialising in air filters for more than ten years, with advanced production equipment, strictly trained staff and perfect service processes, letting you enjoy an excellent purchasing experience!
