Introduction:
High Efficiency Filter Outlet HEPA Box is a kind of terminal filtration device, which is widely used in the purification and air-conditioning system of class 1,000, class 10,000 and class 100,000. It is of great significance to the purified air-conditioning system of medicine, health, electronics, chemical industry and other industries.

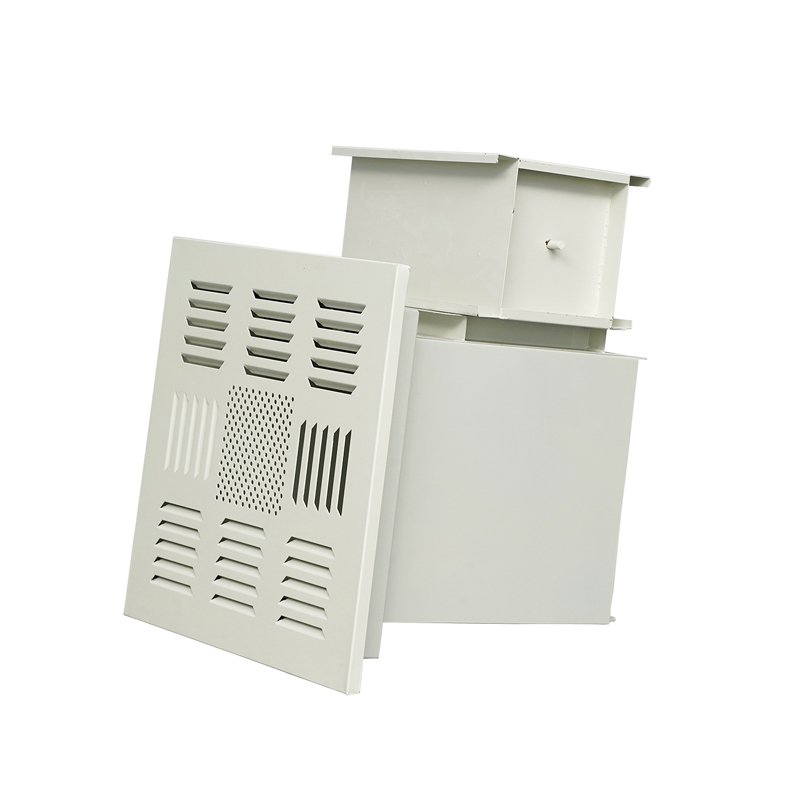

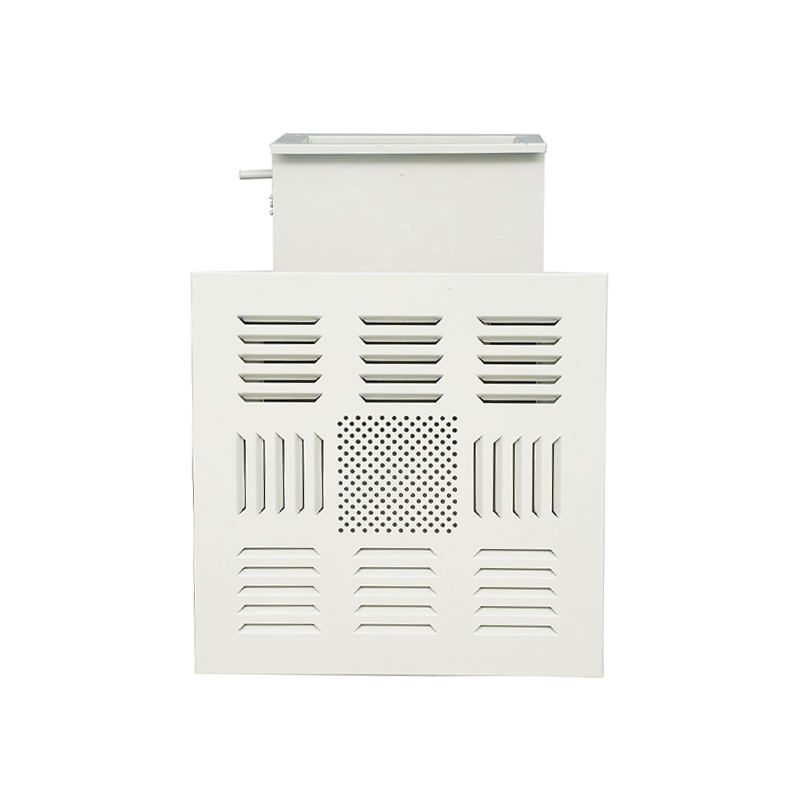

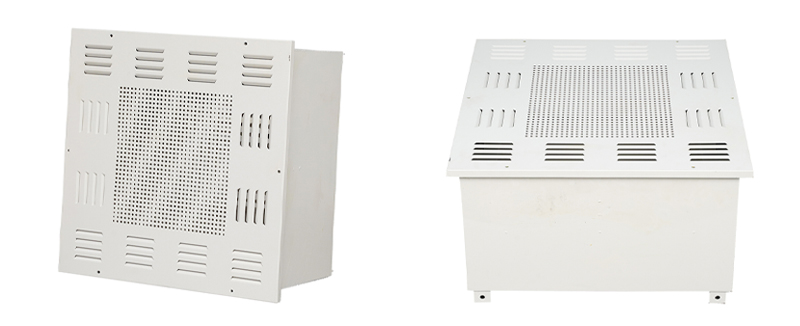

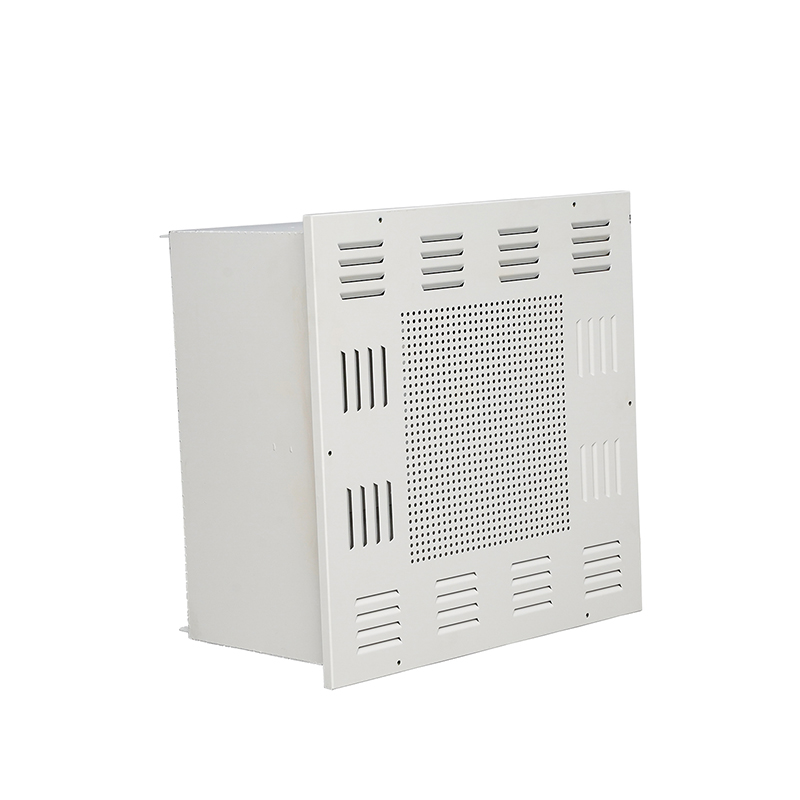

![High Efficiency Filter Outlet HEPA Box]( "High Efficiency Filter Outlet HEPA Box")
Common dimensions:
Model | Air flow (m³/h) | Top inlet duct type Box dimension(mm) | Side inlet duct type Box dimension(mm) | HEPA filter Dimension (mm) | Inlet duct Dimension (mm) |
GKF-5A | 500 | 465×465×280 | 465×465×450 | 400×400×95 (Top gel sealing ) | 200×200 |
GKF-10A | 1000 | 615×615×280 | 615×615×450 | 550×550×95 (Top gel sealing) | 200×320 |
GKF-15A | 1500 | 695×695×280 | 695×695×450 | 630×630×95 (Top gel sealing) | 250×320 |
GKF-20A | 2000 | 675×980×280 | 675×980×450 | 610×915×95 (Top gel sealing) | 250×500 |
GKF-5B | 500 | 500×500×280 | 500×500×450 | 430×430×90 (Side gel sealing) | 200×200 |
GKF-10B | 1000 | 680×680×280 | 680×680×450 | 610×610×90 (Side gel sealing) | 200×320 |
GKF-15B | 1500 | 985×680×280 | 985×680×450 | 915×610×90 (Side gel sealing) | 200×400 |
GKF-20B | 2000 | 1290×680×280 | 1290×680×450 | 1220×610×90 (Side gel sealing) | 200×500 |
GKF-30B | 3000 | 1290×985×280 | 1290×985×450 | 1220×915×90 (Side gel sealing) | 200×600 |
Features:
High efficiency filtration: the High Efficiency Filter Outlet HEPA Box adopts HEPA filter, which can effectively filter the dust particles in the air and meet the requirements of different clean room levels.
Uniform airflow distribution: the design of the diffuser plate makes the airflow reach uniform distribution in the process of sending out and improves the effect of air supply.
Compact and reliable structure: the High Efficiency Filter Outlet HEPA Box is made of high-quality materials, with compact structure and reliable sealing performance.
Convenient installation and maintenance: the High Efficiency Filter Outlet HEPA Box adopts replaceable filter design, which is easy to maintain and replace the filter.
Wide application: High Efficiency Filter Outlet HEPA Box is suitable for clean rooms of various levels and roof structures.
Applications:
High Efficiency Filter Outlet HEPA Boxes are used in a wide range of scenarios, including commercial buildings, offices, medical facilities, schools and industrial environments. They provide efficient, uniform and energy-saving air supply solutions that improve indoor air quality and provide a comfortable working and living environment. At the same time, the design and performance of high-efficiency air supply outlets are constantly being innovated and improved to meet changing needs and demands for air quality.
About us:
Snyli Environmental Technology (Shandong) Co., Ltd has always been strict with itself and constantly improving its ability. Through continuous endeavour, SNYLI is now mature in R&D technology and experienced in production, and is now a well-known air filtration products supplier in China.
SNYLI mainly supplies the following products: pre/medium/high efficiency air filters, auto roll air filters, PTFE HEPA air filters, activated carbon air filters, metal mesh air filters, nylon mesh air filters, pocket air filters, mini pleat air filters, deep pleat air filters, FFU, clean benches, clean booths, transfer windows, air showers, etc.
If you have related needs, please feel free to enquire! SNYLI is looking forward to cooperating with you!
