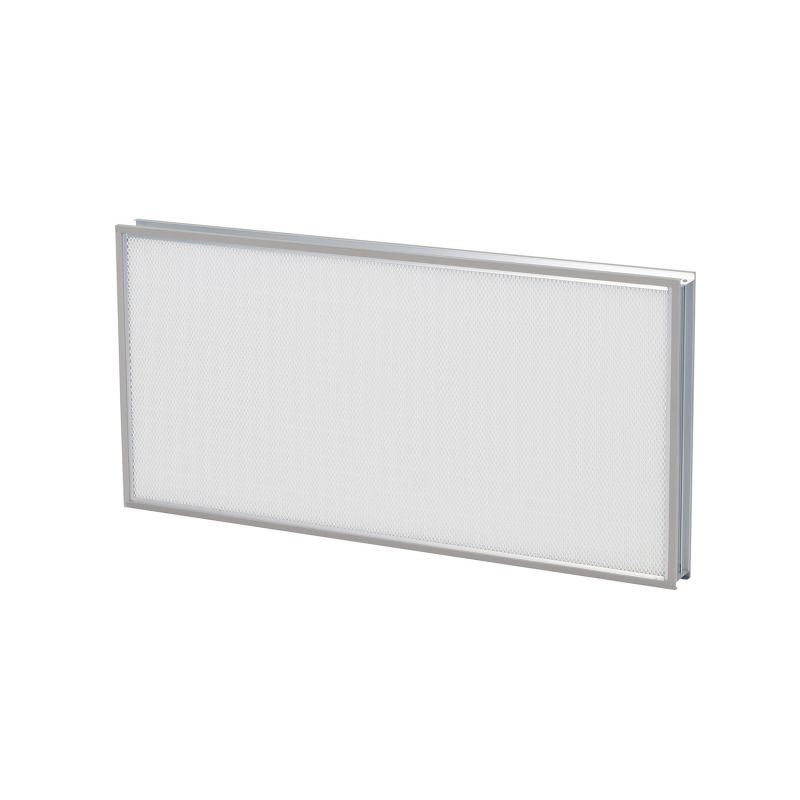

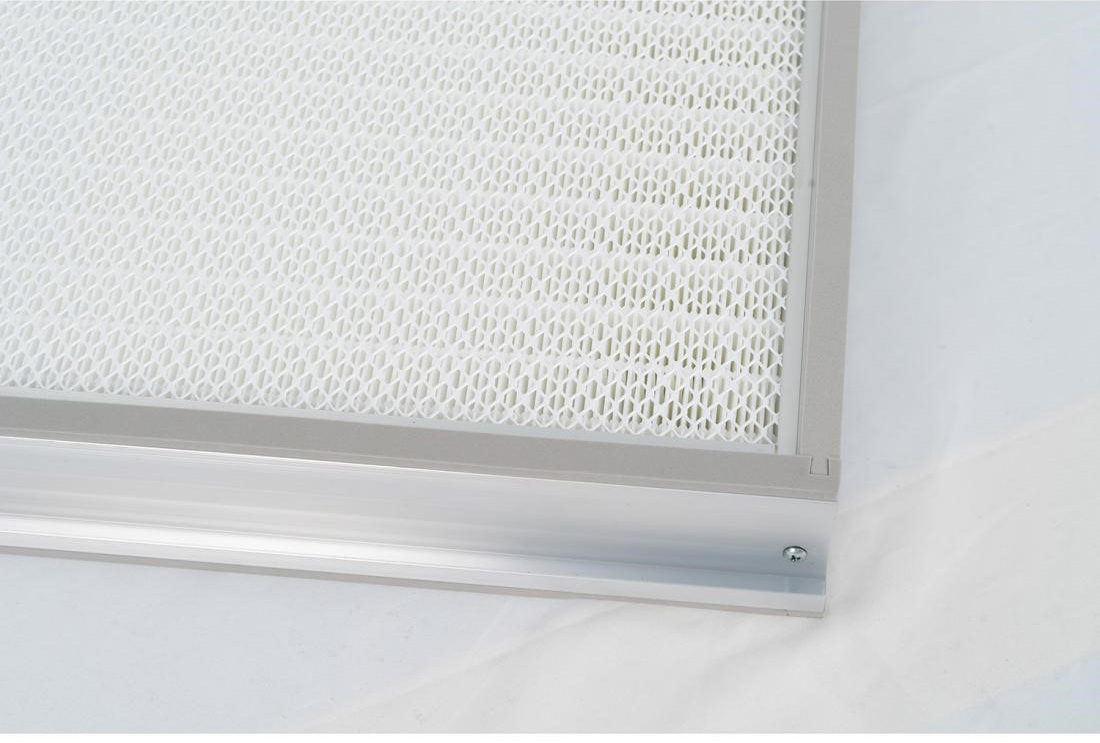

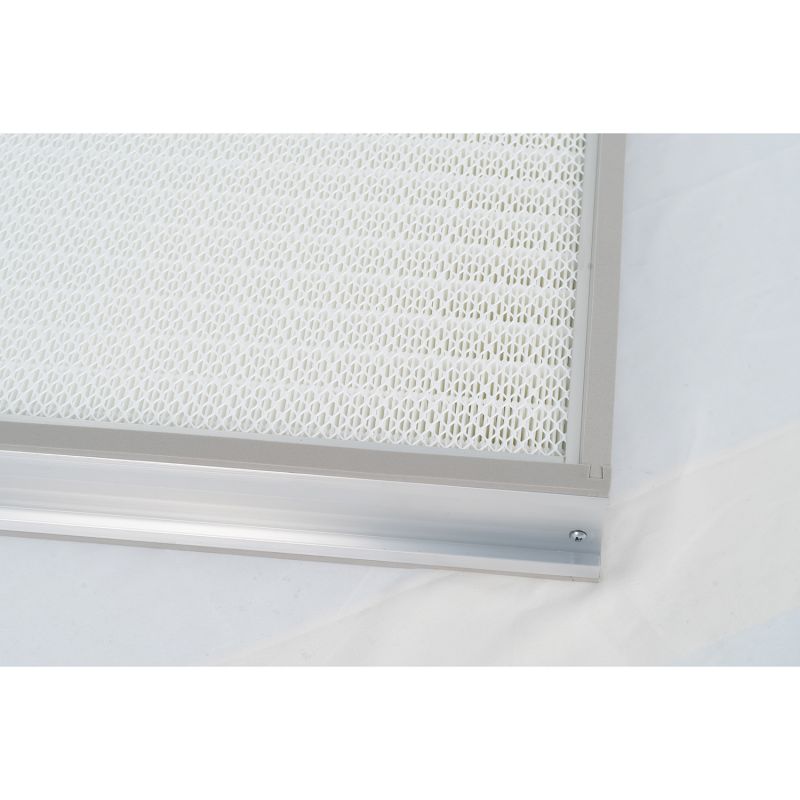

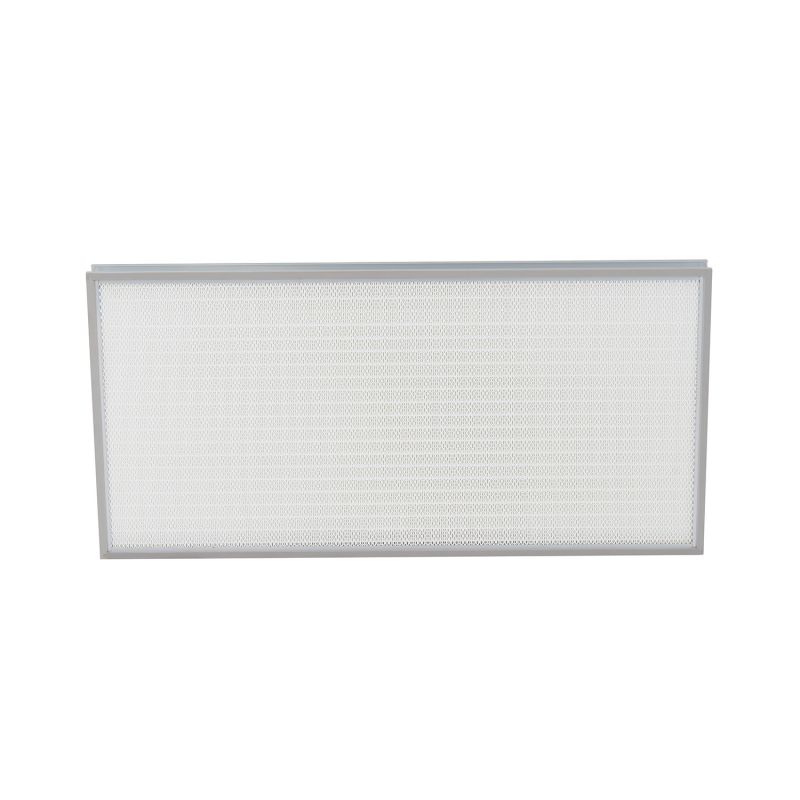

Mini Pleat Fiberglass HEPA Filter

Introduction:

The main purpose of the mini pleat hepa air filter is to capture particles of dust above 0.1um-0.3um and all kinds of airborne suspended matters, which is assembled with ultra-fine glass fibre filter media, hot melt adhesive as separator, and all kinds of frames with beautiful appearance, and compared with the deep pleat high efficiency filter, under the condition of the same air volume, it has the advantages of small volume, light weight, and controllability.

Characteristics:

Frame: Anodized aluminum

Media: Glass fiber

Efficiency:

H11 (EN 1822) / MERV 16 (ASHRAE 52.2)

MPPS:≥95% / DOP: ≥99.9%@0.3 μm

H13 (EN 1822) / MERV 17-18 (ASHRAE 52.2)

MPPS: ≥99.95% / DOP: ≥99.99%@0.3 μm

H14 (EN 1822) / MERV 19 (ASHRAE 52.2)

MPPS: ≥99.995% / DOP: ≥99.999%@0.3 μm

U15 (EN 1822)/MERV 20 (ASHRAE 52.2)

MPPS: ≥99.9995% / DOP: ≥99.9999%@0.12 μm

U16 (EN 1822)/MERV 20 (ASHRAE 52.2)

MPPS: ≥99.99995% / DOP: ≥99.99999%@0.12 μm

Separator: Hot melt

Gasket: EPDM

Max. Temperature: ≦ 70°C

Max. Humidity: ≦ 100% RH

Common dimensions:

Applications:

Mini Pleat Fiberglass HEPA Filters are widely used in electronics, semiconductors, precision machinery, pharmaceuticals, hospitals, food and other industries with high requirements for cleanliness in civil or industrial clean places of the terminal filtration; including super LSI manufacturing plant, semiconductor manufacturing plant, electronic force research centre, clean room, laminar flow equipment medicine, workbench and so on.

About us:

Snyli Environmental Technology (Shandong) Co.,Ltd has always insisted on putting customers' interests in the first place, since its establishment, SNYLI has gone through more than ten springs and autumns, and successfully established long-term co-operation with hundreds of domestic and foreign enterprises. In addition, SNYLI always adheres to the principle of advancing with the times, and has already obtained a number of R&D patents, and has been cooperating closely with industry associations, university research institutes, and third-party laboratories for a long time.

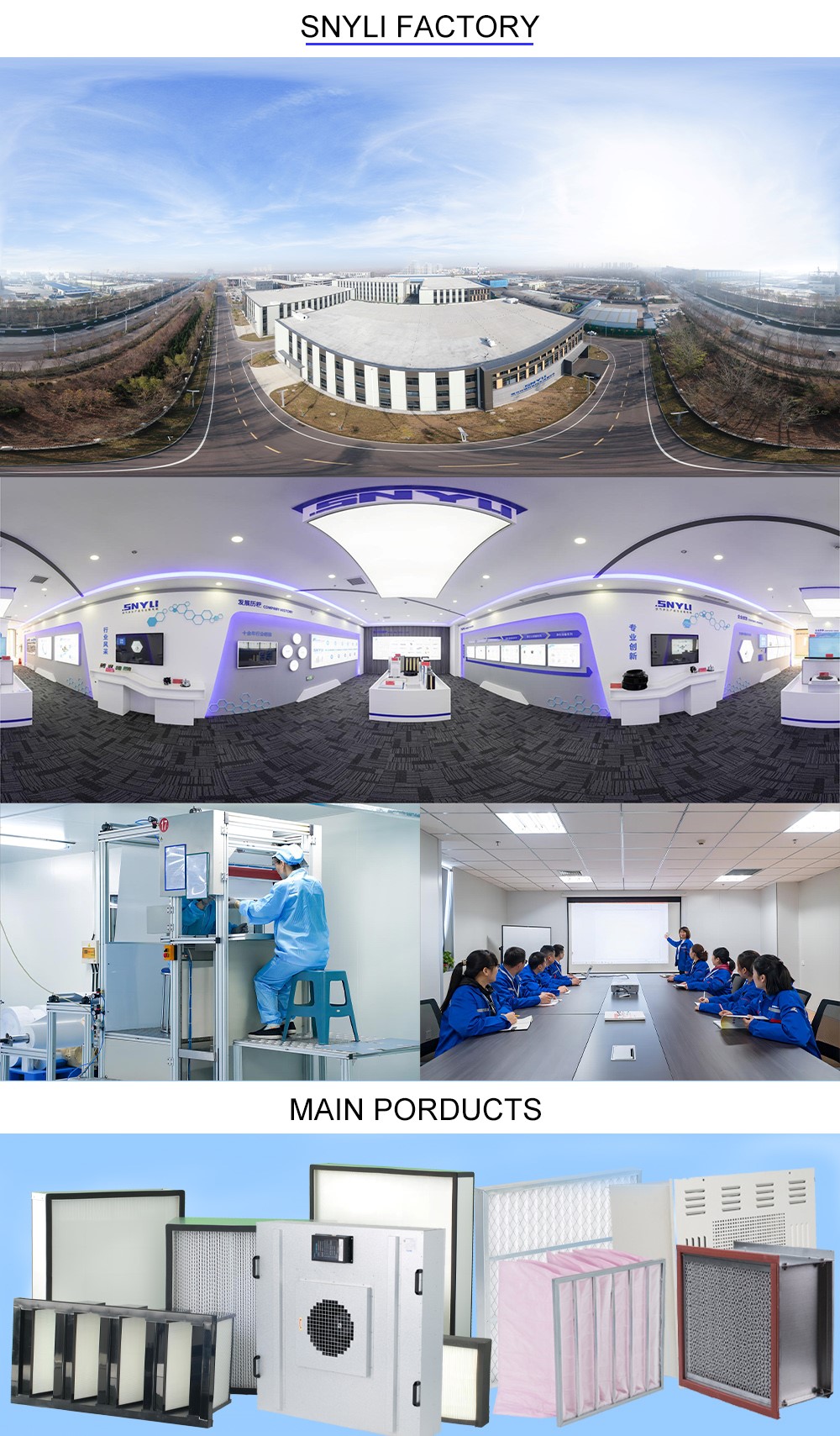

SNYLI's main products are listed below: FFU, air filters of all efficiency classes, gel seal air filter, chemical filter, auto roll air filter, filter media, air outlet, laminar flow hood, air shower, transfer window, clean shed, clean bench, provide indoor air quality control solutions, provide air quality control equipment OEM, etc.

Packaging & Shipping:

SNYLI has more than 20,000 square feet of factory in Liaocheng, keeping sufficient stock for regular models, and for customised sizes, we can also produce and ship the products within the time required by the customers.

Certificates:

SNYLI insists on keeping abreast of the times and sets up an independent R&D department to continuously pursue progress, and has now obtained many patents and ISO9001, CE and other certificates.

Why choose us:

1.We are a manufacturer, and we have reached long-term cooperation with many countries in Europe, America and Asia, and have rich export experience.

2.SNYLI has professional technicians to provide technical support for your customised products and provide you with suggestions according to the actual situation to ensure that the products meet your expectations.

3.Products Quality are Guaranteed with ISO9001 & CE Certificate. SNYL has more than 10 years of experience in the air purification industry and has many ISO and CE certificates.

4.Strong production strength, the factory covers an area of more than 20,000 square metres, short delivery time.
