Introduction:
Metal mesh air filter is a kind of air filter that can be used repeatedly. Its filter material adopts multiple expanded aluminium mesh or stainless steel mesh, and the outer frame is usually made of aluminium profile, galvanized plate, stainless steel and other materials. With the advantages of reasonable design, compact structure, easy to use, high filtration efficiency, not easy to burn, no static electricity, etc., it is widely used in the field of air purification.

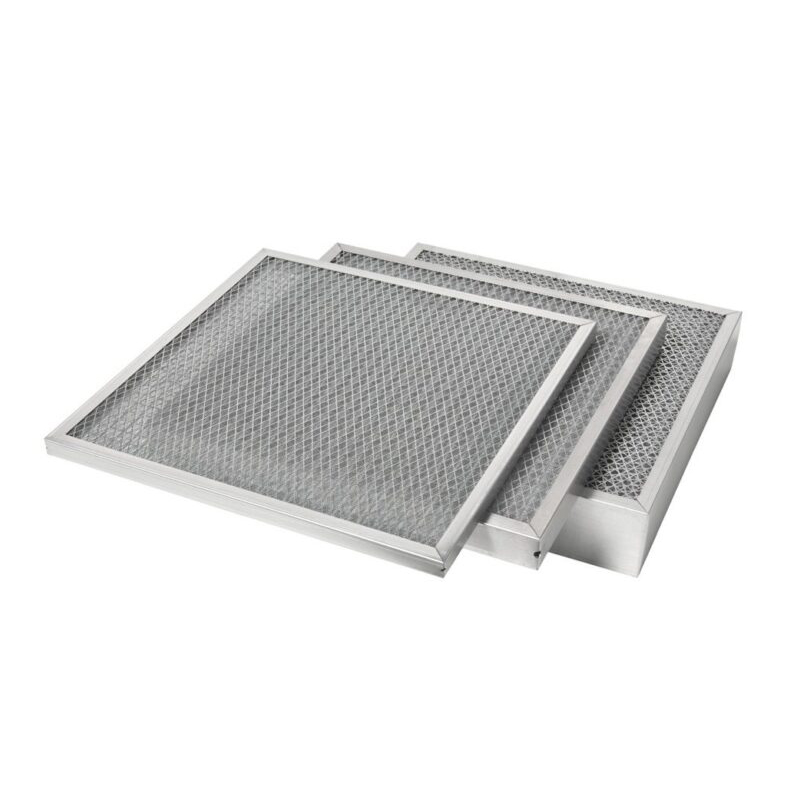

![HVAC Metal Wire Mesh Pre Panel Air Filter]( "HVAC Metal Wire Mesh Pre Panel Air Filter")
The design principle of metal mesh air filter is based on the principle of physical filtration, i.e., filtering airborne particles, dust and other pollutants by means of blockage and interception. Multiple sheets of expanded aluminium or stainless steel mesh are used as the filter material, rolled into a wavy shape, and stacked and arranged with each other to form a multi-level structure, which increases the filtering area of the filter and improves the filtration efficiency.
Common dimensions:
Size (mm) | CMH | I.N.P (Pa) | F.N.P (Pa) | Filter object (μm) | EFF. (%) | Layers | Filtration Class |
595*595*21 | 2100/4200 | <15/45 | <200 | ≥10 | ≥70% | 3 | G2 |
495*495*21 | 1500/3000 | <15/45 | <200 | ≥10 | ≥70% | 3 | G2 |
295*595*21 | 1100/2200 | <15/45 | <200 | ≥10 | ≥70% | 3 | G2 |
595*595*25 | 2100/4200 | <15/45 | <200 | ≥10 | ≥70% | 5 | G2 |
495*495*25 | 1500/3000 | <15/45 | <200 | ≥10 | ≥70% | 5 | G2 |
295*595*25 | 1100/2200 | <15/45 | <200 | ≥10 | ≥70% | 5 | G2 |
595*595*46 | 2100/4200 | <15/45 | <200 | ≥10 | ≥70% | 7 | G2 |
495*495*46 | 1500/3000 | <15/45 | <200 | ≥10 | ≥70% | 7 | G2 |
295*595*46 | 1100/2200 | <15/45 | <200 | ≥10 | ≥70% | 7 | G2 |
Advantages:
1. Repeated use: the metal mesh air filter adopts rewashable filter material, avoiding the need for repeated replacement of traditional paper filter material filters and reducing costs.
2. Long life: adopting filter material and frame material with good high temperature and corrosion resistance, it has a long life.
3. High filtration efficiency: the multi-layered structure increases the filter area, and the filter material can effectively filter particles, dust and other pollutants in the air.
4. Not easy to burn: the metal mesh material itself is not easy to burn, which can improve safety performance.
5. Does not generate static electricity: the metal mesh material can effectively inhibit the generation of static electricity, to avoid the impact of static electricity on transistors, fluorescent lamps and other electronic products.
Features:
1. Customizable: metal mesh air filters can be custom-designed according to different requirements to meet customers' individual needs.
2. Easy to clean: metal mesh air filter has rewashable filter material, which is easy to clean and has a long service life.
3. Environmental protection and energy saving: the adoption of reusable filter material avoids the waste brought by disposable filters and has good environmental protection and energy saving benefits.
4. Wide range of applications: metal mesh air filters are widely used in air purification, industrial production, medical and health care industries. Especially in some special places, such as operating theatres and production workshops, the application effect of metal mesh air filters is more prominent.
Applications:
Metal mesh air filter is mainly used in the following fields:
1. Industrial production: metal mesh air filters are widely used in production workshops in the fields of chemical industry, food, electronics, pharmaceuticals, etc. The filter can effectively filter particles, dust and other pollutants.
2. Medical and health care: metal mesh air filters are widely used in operating theatres, infection wards and other places in hospitals, and the filter media can effectively filter viruses, bacteria and other harmful microorganisms.
3. Public places: metal mesh air filters are widely used in public places, such as cinemas, conference rooms, libraries and other places, which can improve air quality and protect people's health.
4. Electronic products: metal mesh air filters are also widely used in electronic product production lines, such as transistors, fluorescent lamps and other products in the production workshop, which can effectively inhibit the generation of static electricity and guarantee the production effect and quality.
To sum up, metal mesh air filter is an excellent air filter with the advantages of repeated use, long service life, high filtration efficiency, not easy to burn, no static electricity, etc. It is widely used in the fields of industrial production, medical and health care, public places and electronic products. In the future, with the development of science and technology and the improvement of people's requirements for air quality, the application range of metal mesh air filter will be gradually expanded and more widely used.
