Introduction:
Primary Filtration Nylon Mesh Filter is a kind of coarse dust filter, which is widely used in all kinds of air filtration systems in construction, electronics, chemical industry, pharmaceuticals and other fields. It is mainly used to filter large particles in the air, and can effectively reduce the impact of airborne dust, smoke and odour on people's health.
Frame: | Aluminium alloy |
Media: | Woven Polyamide monofilament fiber |
Design: | Panel |
Std. EN779: 2012: | G1,G2 |
Maximum temperature: | 80ºC |
Maximum relative humidity: | 100% |
Customized size: | Available |
Application: | Suitable as pre-filter in ventilation systems of office buildings, conference rooms,hospitals,shopping malls ,gymnasium,airports and other huge civil architectures as well as pre-filter in gerneral factories of clean rooms. |

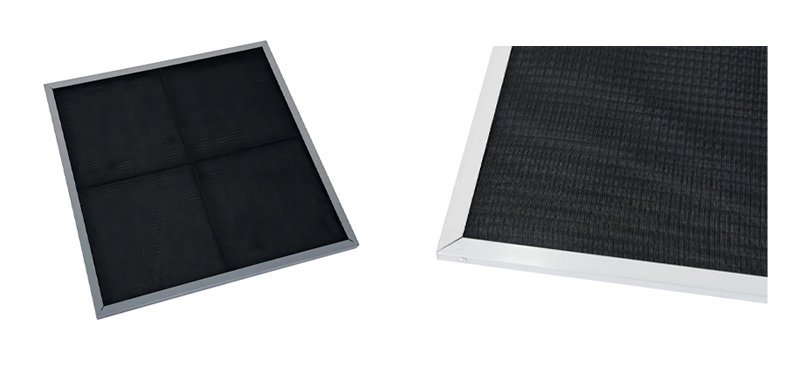

![Primary Filtration Nylon Mesh Filter]( "Primary Filtration Nylon Mesh Filter")
Common dimensions:
Exterior size(mm)
(Width*Height*Depth) | Rated air
volume(m³/h) | Initial pressure loss
under rated air volume(Pa) |
2 layers | 4 layers |
493*493*10 | 2400 | 35 | 63 |
493*595*10 | 2850 | 35 | 63 |
595*595*10 | 3400 | 35 | 63 |
290*595*21 | 1700 | 35 | 63 |
493*493*21 | 2400 | 35 | 63 |
595*595*21 | 2850 | 35 | 63 |
290*595*46 | 3400 | 35 | 63 |
493*493*46 | 1700 | 35 | 63 |
493*595*46 | 2850 | 35 | 63 |
595*595*46 | 3400 | 35 | 63 |
Special specification can be customized. |
Features:
High ventilation and low resistance.
Tight filter screen design can ensure the filtering efficiency of the filter media.
Resistant to high temperature, moisture, acid and alkali, it can be used stably for a long time in the harsh environment.
Repeatable cleaning and use, long life, cost-effective.
The filter media is made of monofilament fibre textile filter media, which can effectively remove coarse particles in the air.
Applications:
Primary Filtration Nylon Mesh Filter is widely used in all kinds of air filtration systems in construction, electronics, chemical industry, pharmaceuticals and other fields.
Primary Filtration Nylon Mesh Filter is mainly used to filter large particles in the air, and can effectively reduce the impact of airborne dust, smoke and odour on people's health. In addition, it can also be used in oil, natural gas, chemical, metallurgy and other industrial fields of environmental protection air purification system, play the role of coarse filtration.
About us:
Snyli Environmental Technology (Shandong) Co.,Ltd focuses on the research and development and production of air filtration products, with a number of R & D patents, ISO/CE certificates are available, looking forward to working with you!
