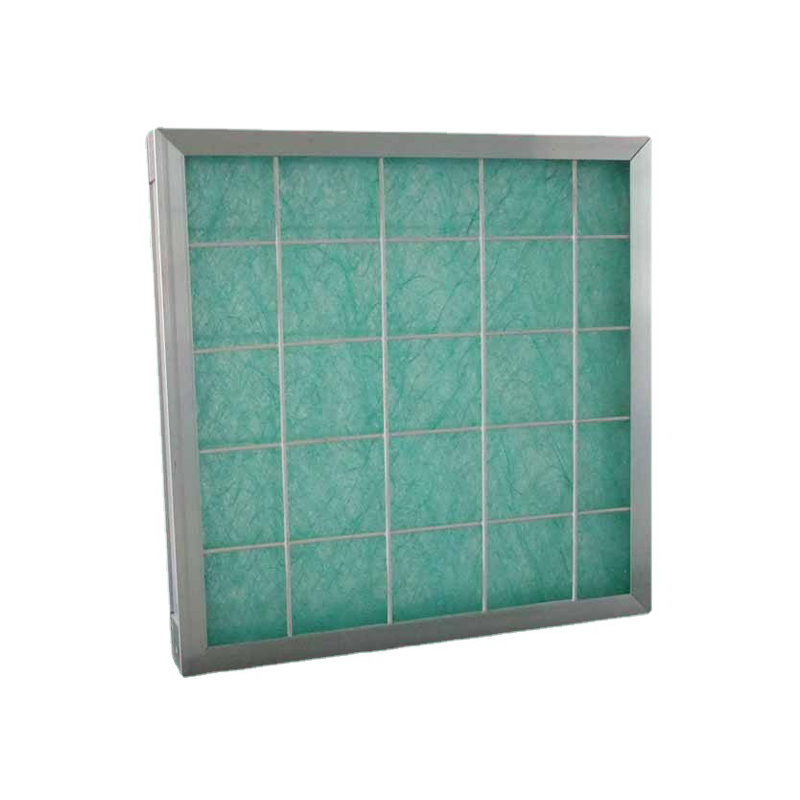

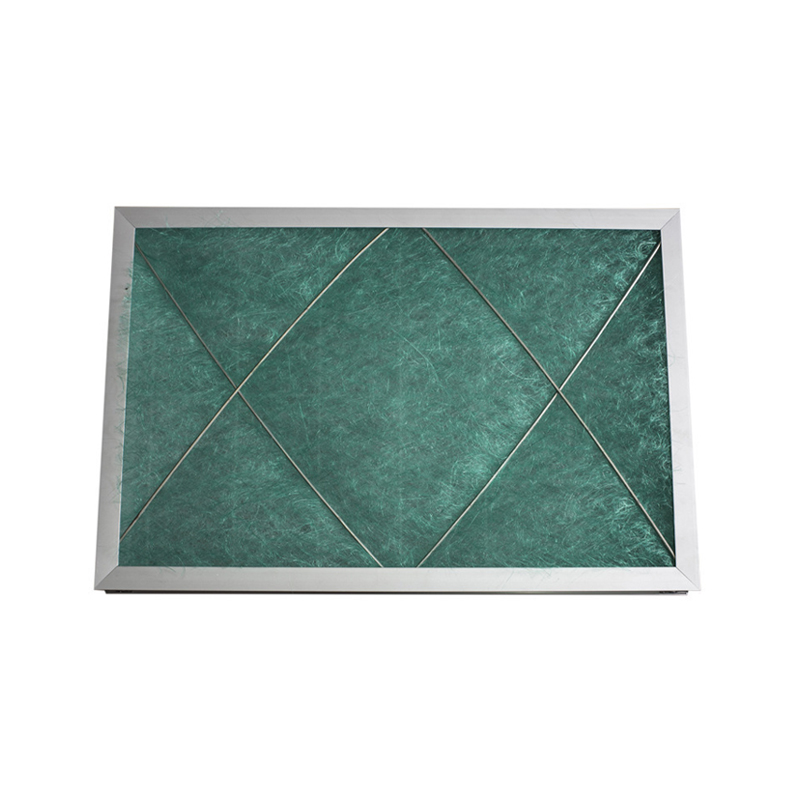

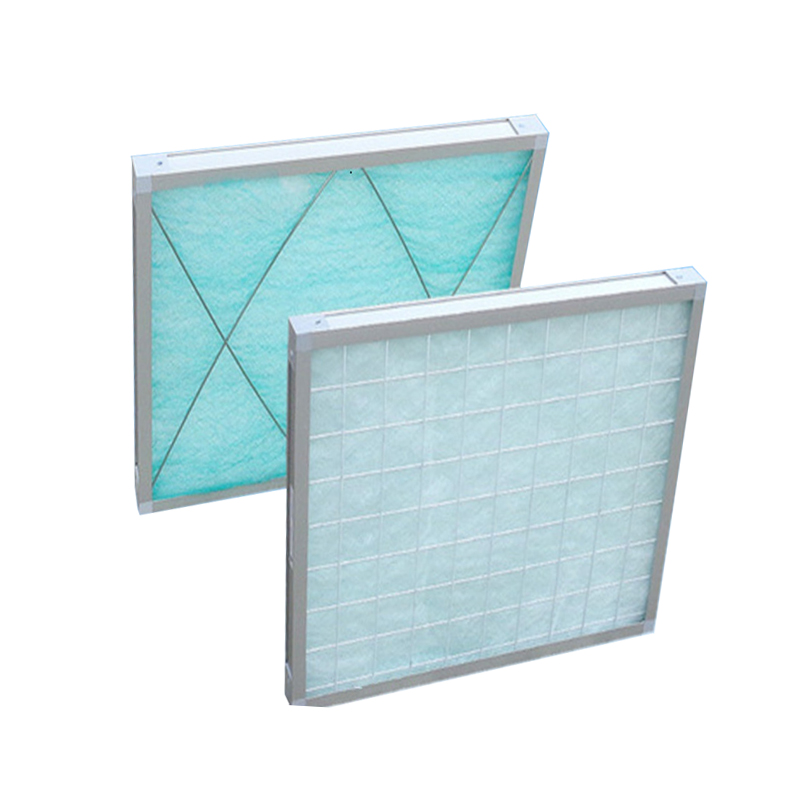

Spray Paint Booth Air Filter

Advantage:

1, large air permeability. The green and white glass fibre air filter has a large air permeability, which can ensure the ventilation effect of the room, thus better guaranteeing the working environment of the baking paint room.

2, small resistance. Small resistance will not have a negative impact on the work of the paint booth.

3, Good filtration effect, can easily filter out the pollutants in the air.

4, long service life, easy to replace, not only can reduce maintenance costs, but also to ensure the efficiency of the paint booth.


Product Details

Introduction:

The Spray Paint Booth Air Filter is a kind of filter used to filter particles, bacteria, soot, smoke and other pollutants in indoor air. The filter is made of high-efficiency glass long-fibre cotton, which has the advantages of large air permeability and low resistance, and can effectively filter out the pollutants in the air, thus ensuring a clean and hygienic working environment in the spray paint room.

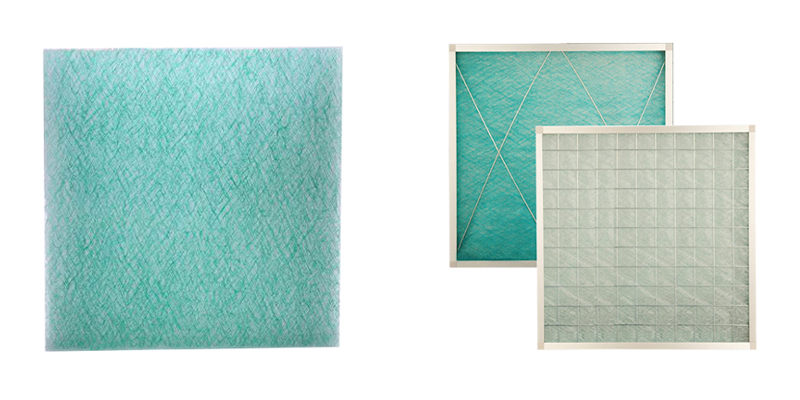

Green-White Fiberglass Filter media is a highly efficient filter material with fine channels and a large surface area that easily filters out paint mist and other contaminants from the air.

Spray Paint Booth Air Filter

Common dimensions:

External Dimensions

(mm)

Rated air volume

(m3/h)

Initial pressure loss

(Pa)

290*595*46

3400

135

490*595*46

2000

135

595*595*46

1500

85


Features:

1, High-efficiency filtration: Spray Paint Booth Air Filter adopts high-efficiency glass long-fibre cotton, which can easily filter out the pollutants in the air.

2, Large air permeability: the filter's large air permeability can ensure indoor ventilation, thus better ensuring the working environment of the paint booth.

3, Small resistance: the resistance of Spray Paint Booth Air Filter is very small, which will not have a negative impact on the work of the paint booth.

4, Long service life: Spray Paint Booth Air Filter has a long life, easy to replace and other characteristics, not only can reduce maintenance costs, but also to ensure the efficiency of the paint booth.


Applications:

Widely used in automobile manufacturing, machinery manufacturing, paint manufacturing, electronic manufacturing and other fields. In these fields, the working environment of the paint booth is very demanding, and it is necessary to use efficient filters to filter the pollutants in the air, so as to ensure the cleanliness and hygiene of the working environment, and to avoid the safety accidents and environmental pollution.


About us:

Snyli Environmental Technology (Shandong) Co.,Ltd is a well-known air filtration products enterprise with factory located in Liaocheng City, Shandong Province and international trade department located in Jinan City, Shandong Province, which owns a number of R&D patents, has ISO/CE certificates, samples are available for customer inspection. We sincerely welcome your enquiry!
