Mini Pleat Gasket Filter

Advantages:

1.High filtration efficiency: Made with ultra-fine glass fiber material, minipleat panel hepa filter with fiberglass compliant with EN1822 and GB/T 13554 standards, ensuring the cleanliness of the downstream environment.

2.Excellent sealing performance: Minipleat hepa with glassfiber utilizes a proprietary polyurethane sealing process to ensure almost zero leakage. A liquid tank sealing option is available to meet the high sealing requirements of P3 laboratories, pharmaceutical factories, and similar environments.

Contact Now E-Mail Telephone WhatsApp

Product Details

Introduction:

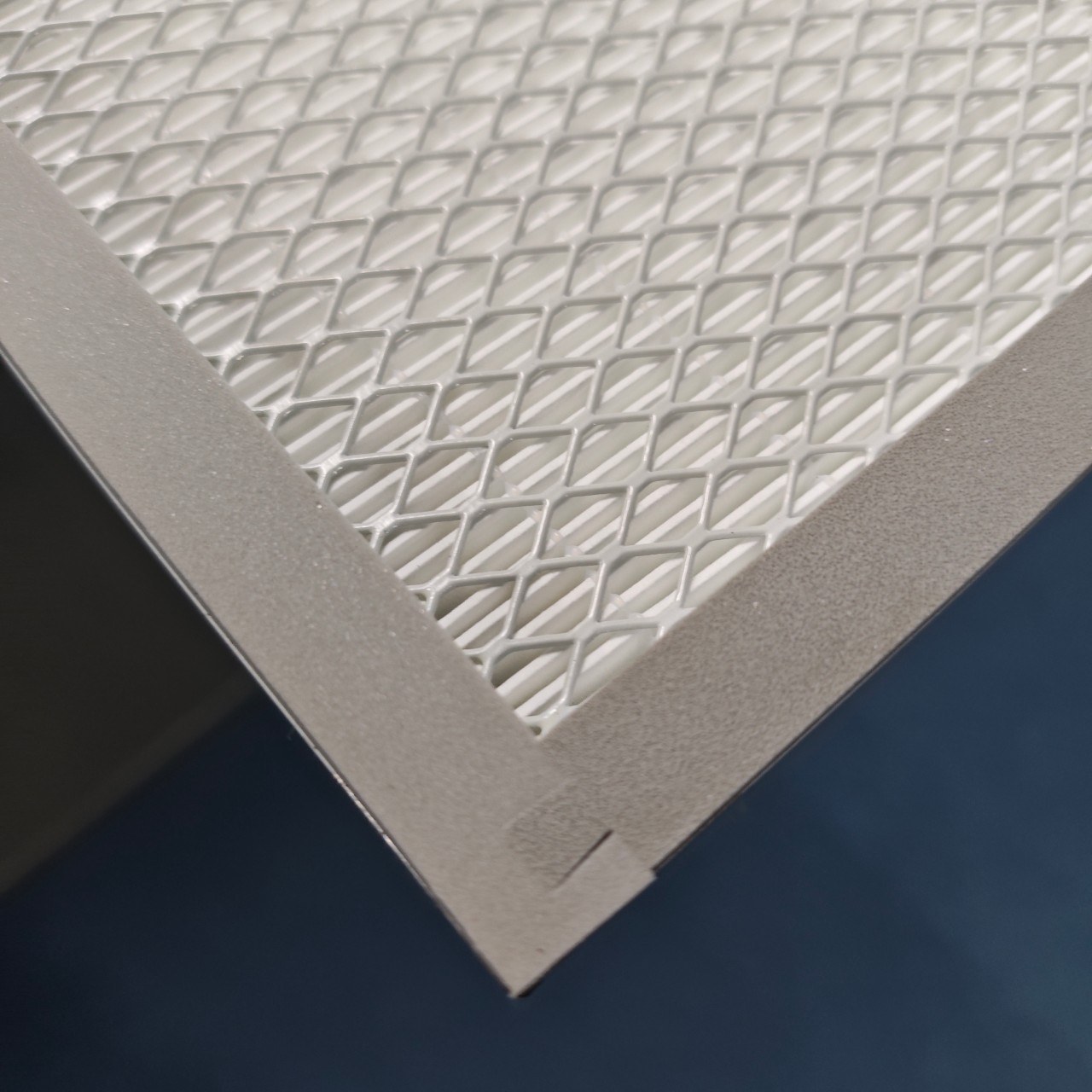

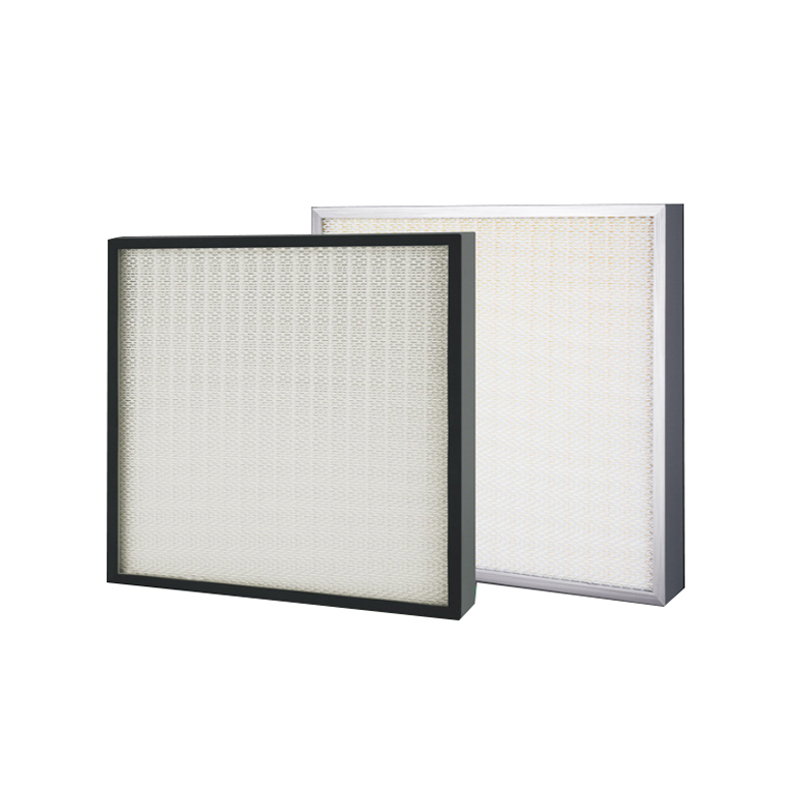

Hepa filter with mini pleat primarily serves to capture ultrafine particles, acting as the final filtration stage in various filtration systems. It provides a clean air environment for industries with high air quality needs, such as electronics, pharmaceuticals, and bioengineering. Use hot melt adhesive as a separator for the fiberglass filter, forming a V-shaped structure that enhance the effective filtration area. The outer frame of minipleat hepa is made of high-quality aluminum alloy.

Mini Pleat Gasket Filter has become the preferred choice for most customers due to its compact structure, excellent filtration performance, and lower pressure drop. It has widely replaced traditional deeppleat hepa filters, except in certain situations that require high-temp resistance and specific safety standards.

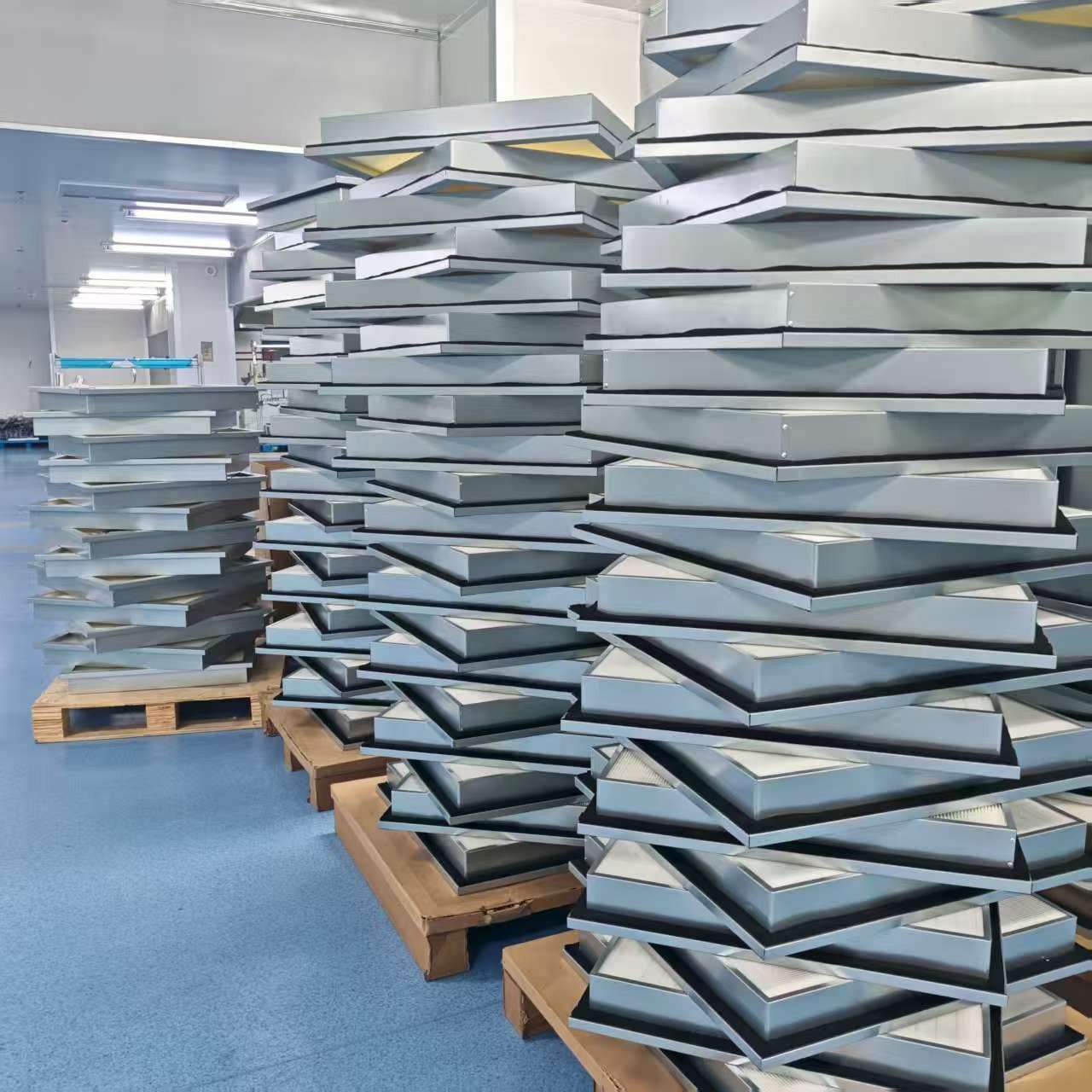

Mini Pleat Gasket Filter

Common Model:

Nominal size	Actual size W×H×D(mm)	Air flow (m³/h)	Initial pressure drop(Pa)	Final pressure drop(Pa)
20×20×3	484×484×70	630	249Pa Face velocity 0.85m/sec	500Pa *Proposed value
25×25×3	630×630×70	1100	249Pa Face velocity 0.85m/sec	500Pa *Proposed value
23×47×3	570×1170×70	1000	110Pa Face velocity 0.45m/sec	220Pa *Proposed value
47×47×3	1170×1170×70	2100	110Pa Face velocity 0.45m/sec	220Pa *Proposed value
20×20×4	484×484×90	630	220Pa Face velocity 0.85m/sec	440Pa *Proposed value
25×25×4	630×630×90	1100	220Pa Face velocity 0.85m/sec	440Pa *Proposed value
23×70×4	570×1170×90	1000	98Pa Face velocity 0.45m/sec	100Pa *Based on FFU performance
70×70×4	1170×1170×90	2100	98Pa Face velocity 0.45m/sec	100Pa *Based on FFU performance

Features:

1.Ultra-High Efficiency & Energy Savings

Achieve HEPA H13/H14 efficiency (99.97%-99.995% on 0.3µm particles) without separators, reducing airflow resistance. Lower energy consumption cuts operational costs – perfect for sustainable HVAC systems and green building projects.

2.Maximized Airflow & Low Pressure Drop

Advanced pleating technology ensures uniform airflow distribution and minimal pressure drop. Ideal for data center cooling, cleanroom ventilation, and commercial HVAC where energy efficiency matters.

3.Durable & High-Capacity Design

Made with high quality glass fiber media (highly moisture-resistant), ensuring long service life in harsh conditions. High dust holding capacity reduces filter change frequency, lowering maintenance costs.

4.Wide Compatibility & Easy Installation

Fits standard AHU (Air Handling Unit) frames and is ISO 16890 compliant. Quick installation boosts project efficiency.

5.Critical Applications & Global Certifications

Essential for pharmaceutical cleanrooms, hospital isolation rooms, biotech labs, and electronics manufacturing. Certified by EN 1822, ASHRAE 52.2, and FDA GMP standards, meeting international indoor air quality demands.

6.Cost-Effective Long-Term Solution

Combines pre-filtration efficiency with extended lifespan, offering lower TCO (Total Cost of Ownership).

Mini Pleat Gasket Filter

How to choose and use:

When selecting a Mini Pleat Gasket Filter, it is essential to consider the filter's performance and replacement cycle, which depend on parameters such as filtration efficiency, airflow, and initial resistance.

Different applications require hepa panel filters with varying levels of efficiency.

The lifespan of the filter of minipleat depends on the environment; understanding the approximate lifespan based on the actual usage environment can help us provide you with a suitable filter purchasing plan.

Applications:

In the semiconductor and electronics industry, intercepting tiny dust particles protects precision circuits and improves product yield.
In hospitals and laboratories, Mini Pleat Gasket Filters with fiberglass effectively filters bacteria and viruses, ensuring environmental safety.
In food and cosmetics production settings, it ensures hygiene and complies with health and safety standards.

About us:

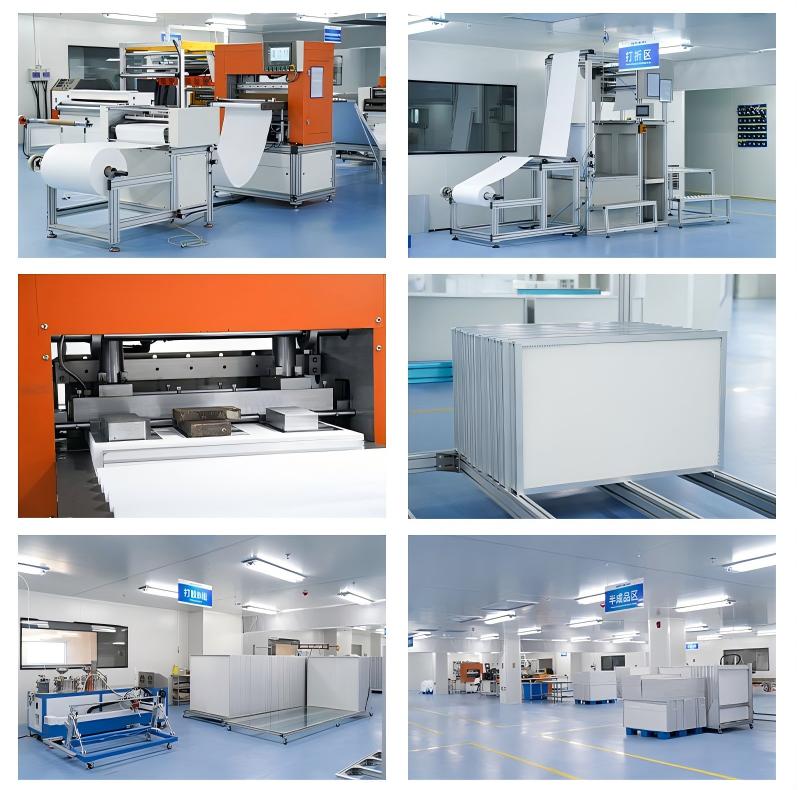

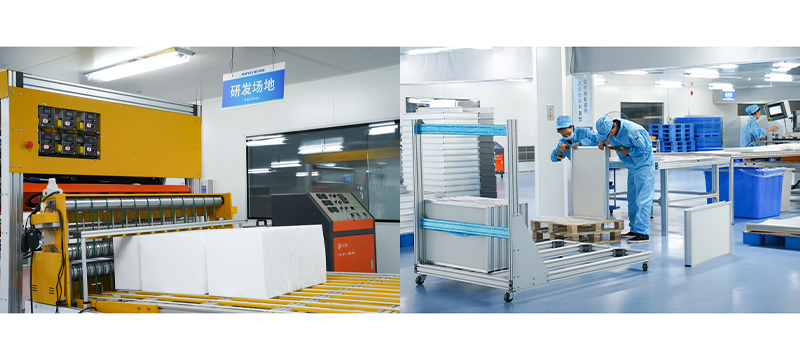

SNYLI factory is located in Liaocheng City, Shandong Province, China, with several independent clean production workshops, including FFU workshop, primary filter workshop, bag filter workshop, HEPA filter workshop and so on.Has years of experience in production and sales, providing personalized product design and manufacturing solutions for both domestic and international clients, as well as offering high level after-sales services.

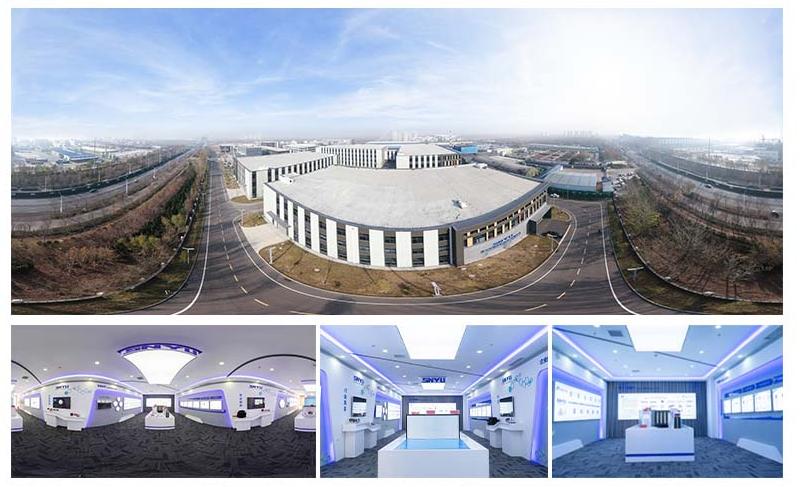

SNYLI Factory
