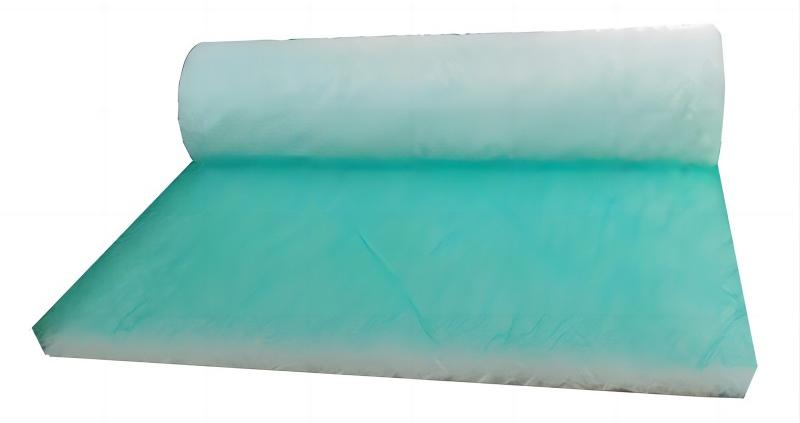

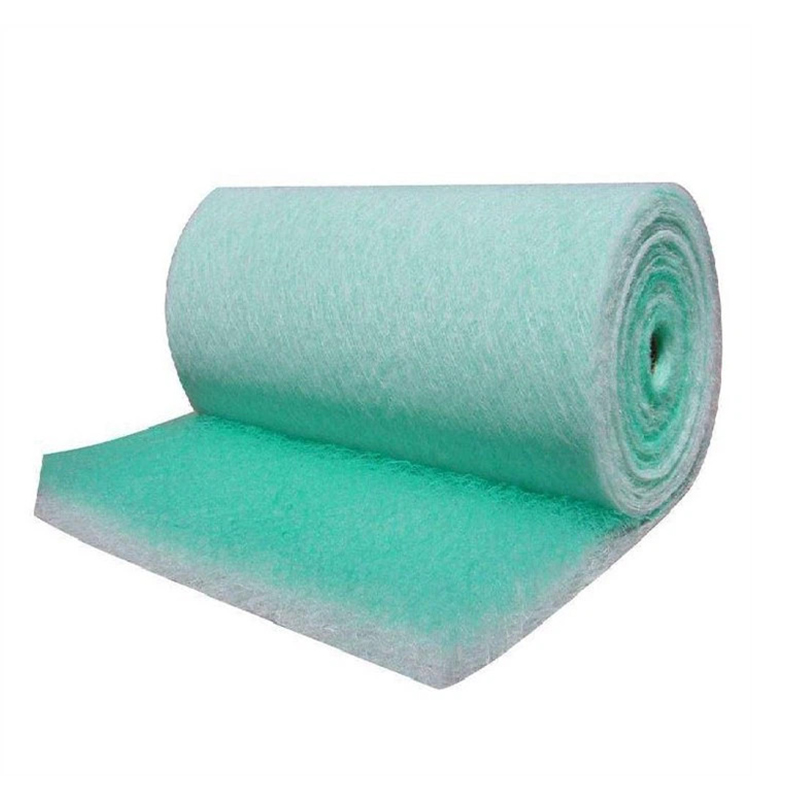

Fiberglass Pre Air Filter Media

Fiberglass Pre Air Filter Media, is mainly made of various kinds of thick and thin, long and short glass fibers through a special processing technology.

Fiberglass Pre Air Filter Media is widely loved for its stable performance, high temperature resistance, high efficiency and large capacity, and long service life.


Product Details

Introduction:

Fiberglass Pre Air Filter Media with stable performance, with high reliability, high flame retardancy, high adsorption rate, high tolerance, long life is widely used in the air purification industry, in which the surface treatment and coating industry is the most widely used glass fiber filter cotton industry.

Fiberglass Pre Air Filter Media


Dimensions:

Model

SN-50/60

SN-100

Avg.arrestance(acc.EN779)

92%~96%

97%~99%

Initial pressure drop

15Pa

20Pa

Final pressure drop

250Pa

280Pa

Air velocity

0.7-1.75m/s

0.7-1.75m/s

Maximum Dust Capacity

3200-3600g/m2

3600-4900g/m2

Temp.resistance, const

170℃

170℃

Temp.short peaks

190℃

190℃

Common thickness

50/60mm

100mm

Roll sizes standard

0.8*20,1.0*20,2.0*20

0.8*20,1.0*20,2.0*20

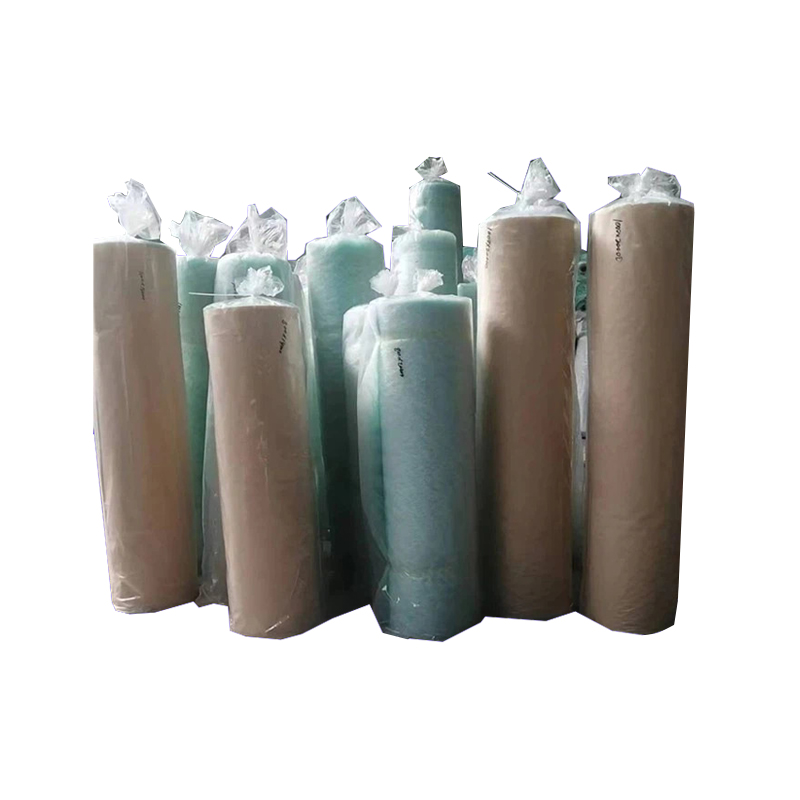

 Note: Can provide in rolls or cut into other sizes. Support customization.


Process Characteristics:

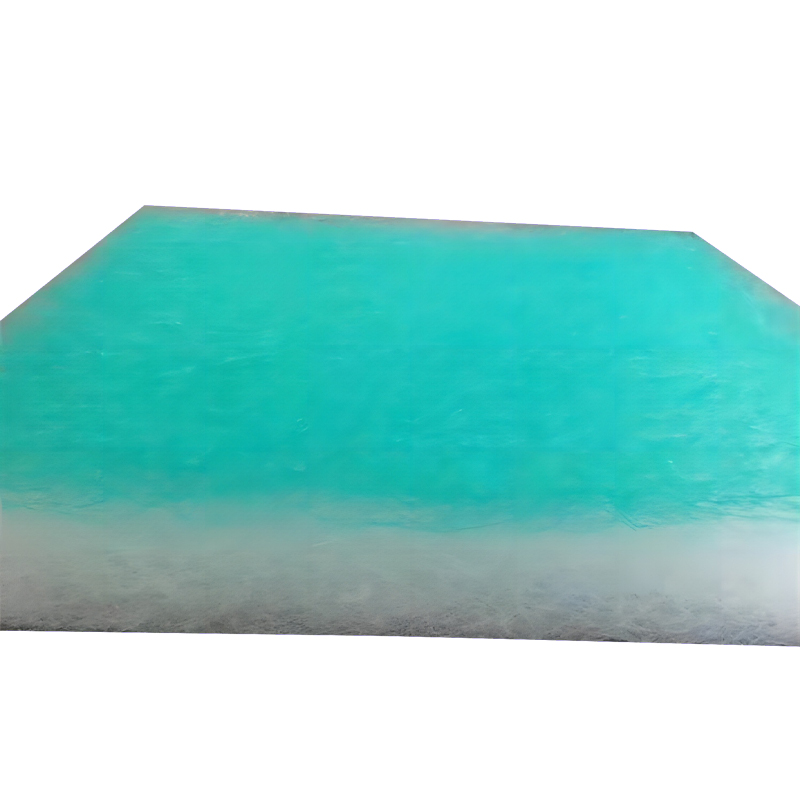

The inlet side is white, the outlet side is green. Flame retardant, can withstand temperature 170℃. Humidity resistance, can reach 100%. Low compression properties keep the paint mist felt shape unchanged, making its filtering fibers completely conducive to storing oil mist dust.


Our strengths:

  • Producer of raw materials. Our own production, quality assurance, affordable price. Meanwhile, we provide professional air filtration solutions.

  • Strong technical strength. We have high-end technical talents and first-class production equipment.

  • Strong customization strength. We provide customized service and can provide samples for you to test.

  • Perfect product testing system. Strict quality inspection standards make us always unchanging requirements.

  • Perfect after-sales service system. One-stop service experience and regular customer return visits make you worry-free after-sales.

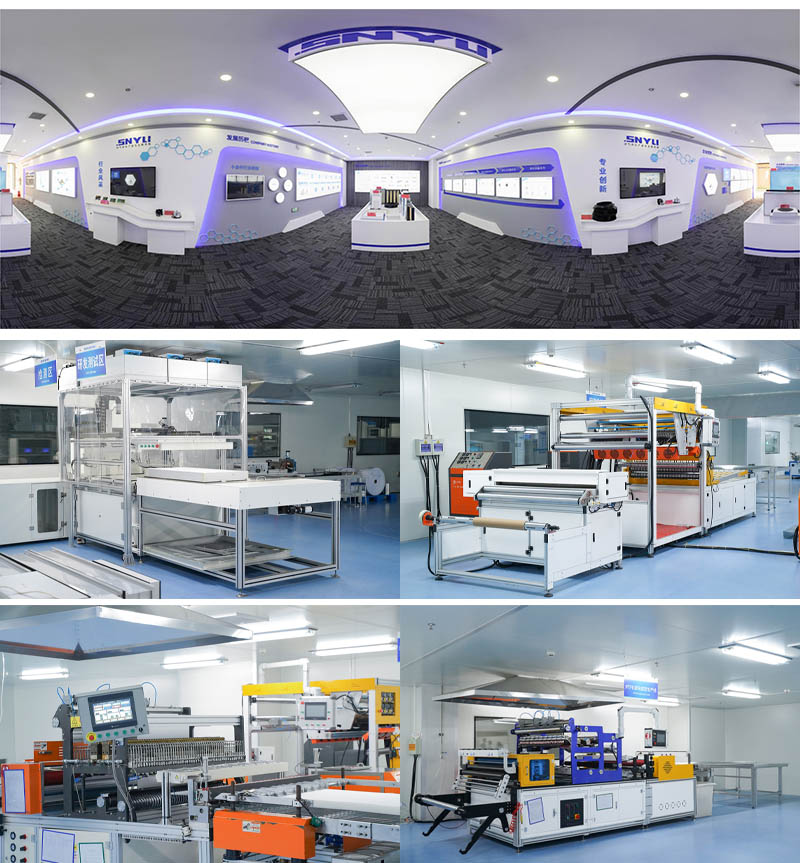

Snyli Environmental Technology (Shandong) Co.,Ltd
