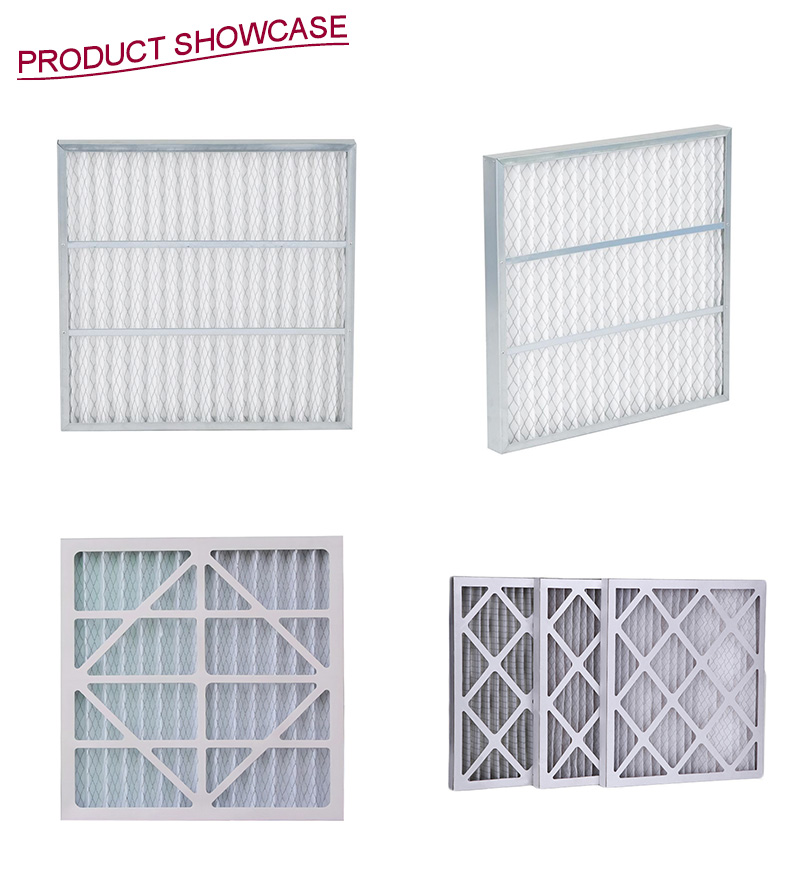

Pleated Panel Filter with Wire Mesh

Pleated Panel Filter with Wire Mesh is a primary filtration device commonly used in air conditioning and ventilation systems. It increases the filtration area to enhance the dust holding capacity and filtration efficiency (usually for particles larger than 5μm, with efficiency grades G1-G4).

The surface mesh design enhances the stability of the filter material and extends its service life.

Its advantages include low wind resistance, easy replacement and economy, and it is widely used in the pre-filtration stage of commercial buildings, industrial plants and other scenarios.

Contact Now E-Mail Telephone WhatsApp

Product Details

Product Introduction

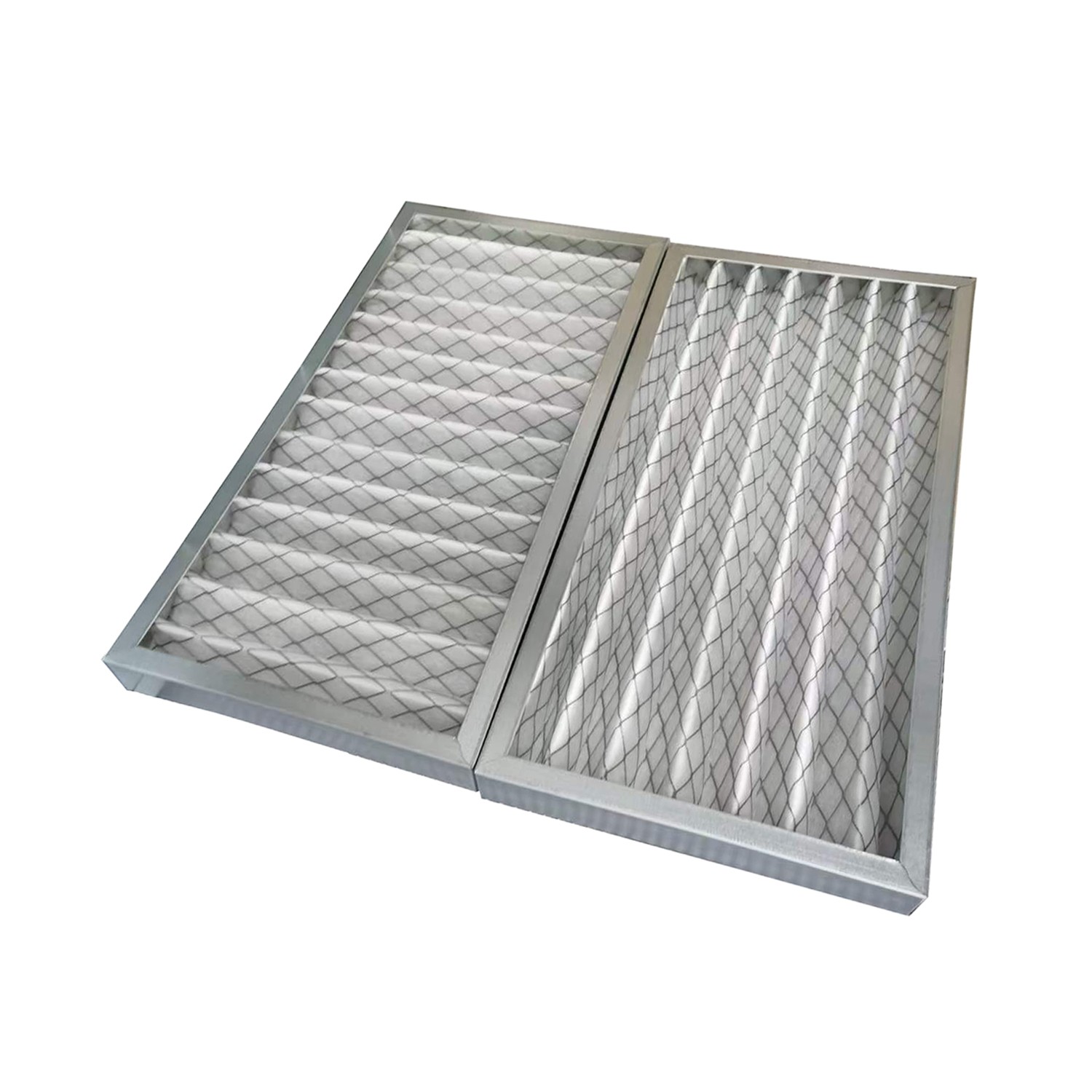

Pleated panel filter with wire mesh is made of high-quality synthetic fiber media,covered with a wire mesh for protection and enhancing structural stability.

The pleated design increases the filtration area,reduces initial pressure drop,and extends service life.The wire mesh reinforces the filter media, preventing collapse under pressure and ensuring consistent airflow.It offers easy installation, simple maintenance, and excellent cost-effectiveness.

Frame	Cardboard/Aluminium/Galvanized
Filter media	Polyester fibre
Protection net	Single or double side painted mesh available
Sealant	Polyurethane
Max. Temperature	80℃
Max. Relative Humidity	99% RH Rec.

Pleated Panel Filter with Wire Mesh

Common Model

Nominal size	Actual size W×H×D(mm)	Air flow (m³/h)	Initial pressure drop(Pa)
Nominal size	Actual size W×H×D(mm)	Air flow (m³/h)	G3	G4	F5
12×24×2	290×595×45	1700	55	63	75
20×24×2	493×595×45	2850	55	63	75
24×24×2	595×595×45	3400	55	63	75
12×24×4	290×595×95	1700	50	56	67
20×24×4	493×595×95	2850	50	56	67

Advantages

1.Large Filtration Area

The pleated design greatly expands the media surface area, enhancing dust-holding capacity and extending service life.

2.Low Initial Pressure Drop

Optimized pleated structure ensures smooth airflow, maintaining high efficiency with low initial pressure drop.

3. Enhanced Structural Stability

The wire mesh layer secures the media, preventing deformation or damage under high airflow conditions.

4. Easy Installation and Maintenance

Standardized frame sizes allow it easy to install in a wide range of HVAC systems.Durable media resists shedding, making maintenance simple.

5.Cost-Effective

Reasonable production cost, long service life, and low total operating cost.

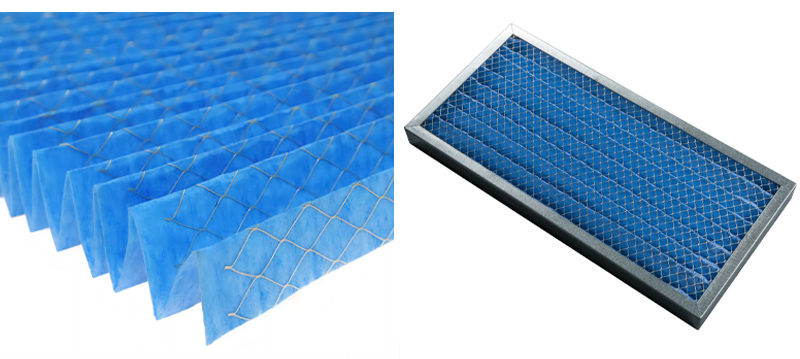

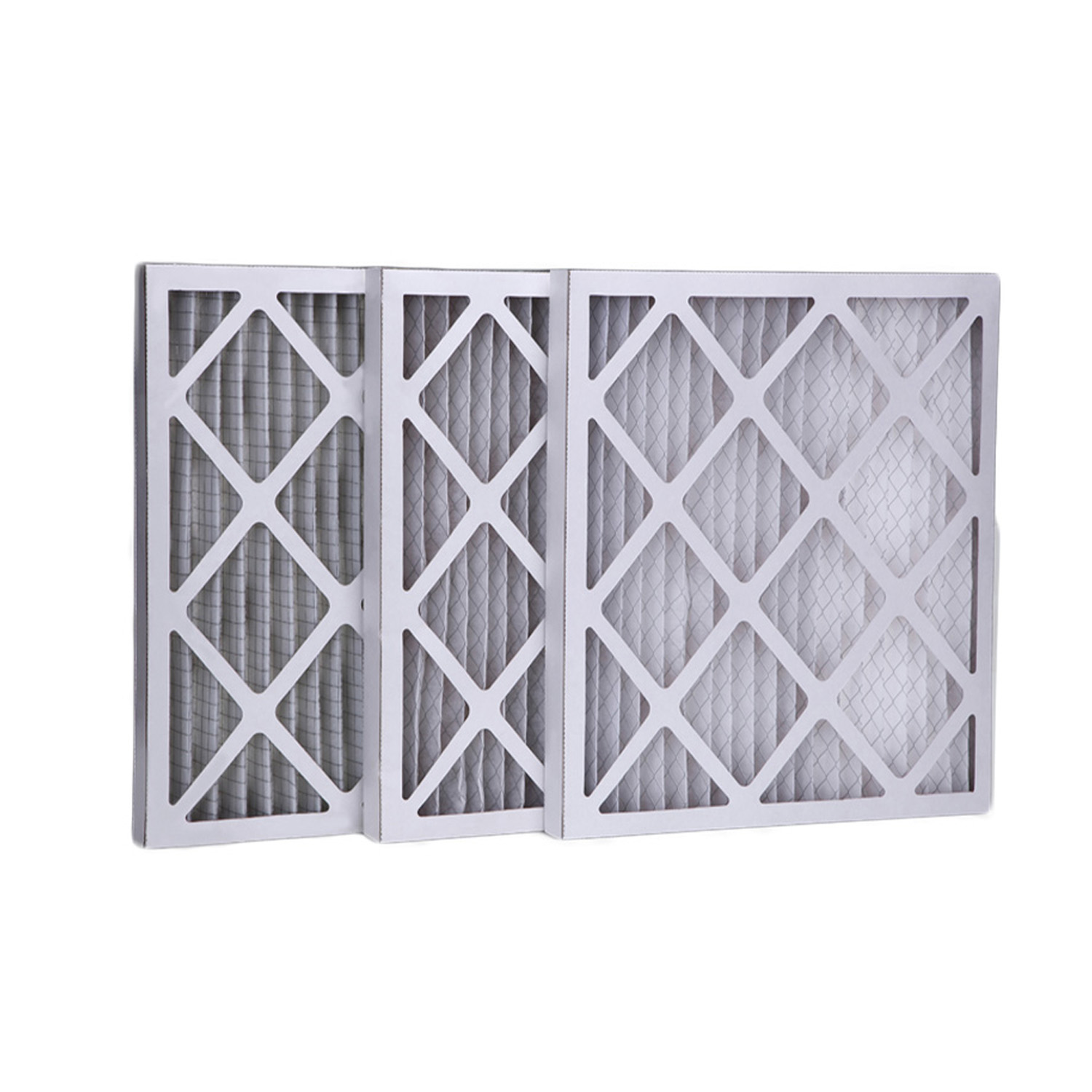

Pleated panel filter

Applications

1.HVAC Systems

Provides primary or medium filtration in air conditioning and ventilation systems to remove dust and particles from the air.

2.Industrial Dust Removal Equipment

Captures large particulate matter generated during manufacturing to protect downstream high-efficiency filters or equipment.

3.Cleanrooms & Production Workshops

Used as pre-filtration in electronics, pharmaceuticals, and food industries to ensure air quality.

4.Painting & Coating Systems

Blocks airborne particles to prevent defects in coating surfaces.

Pleated panel filter applications
