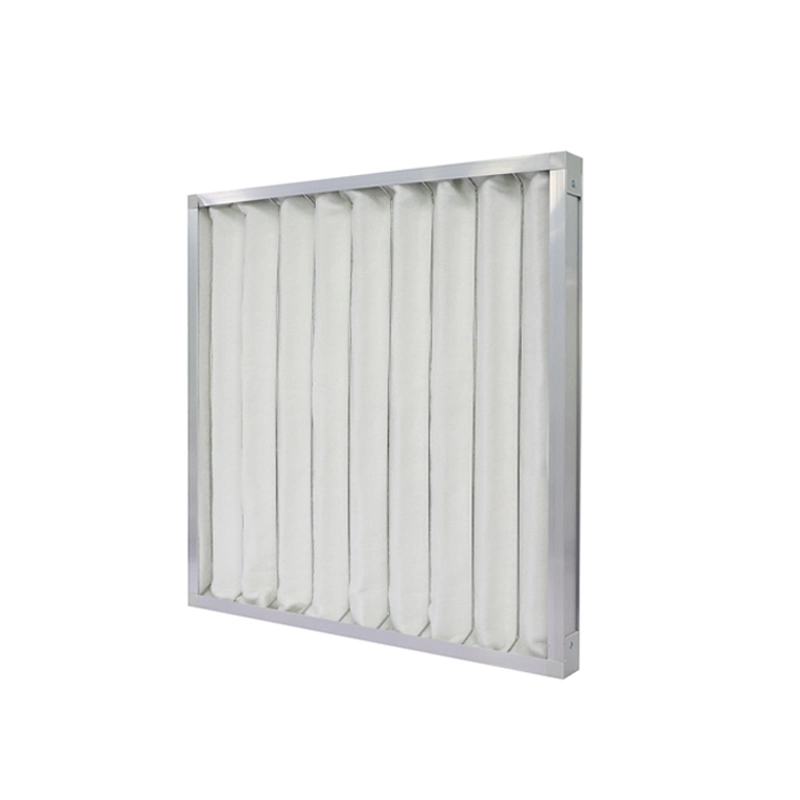

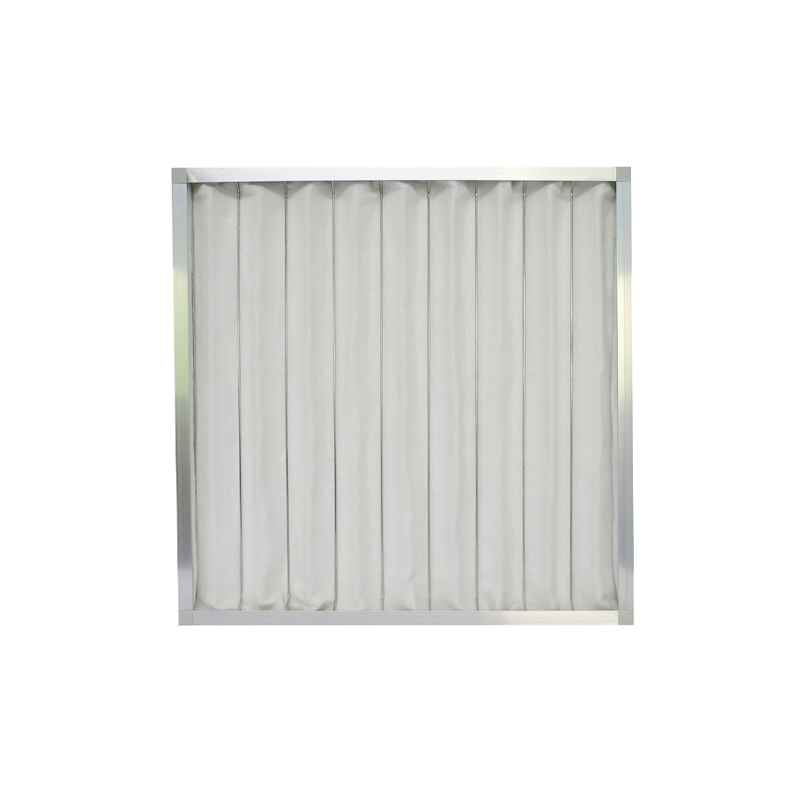

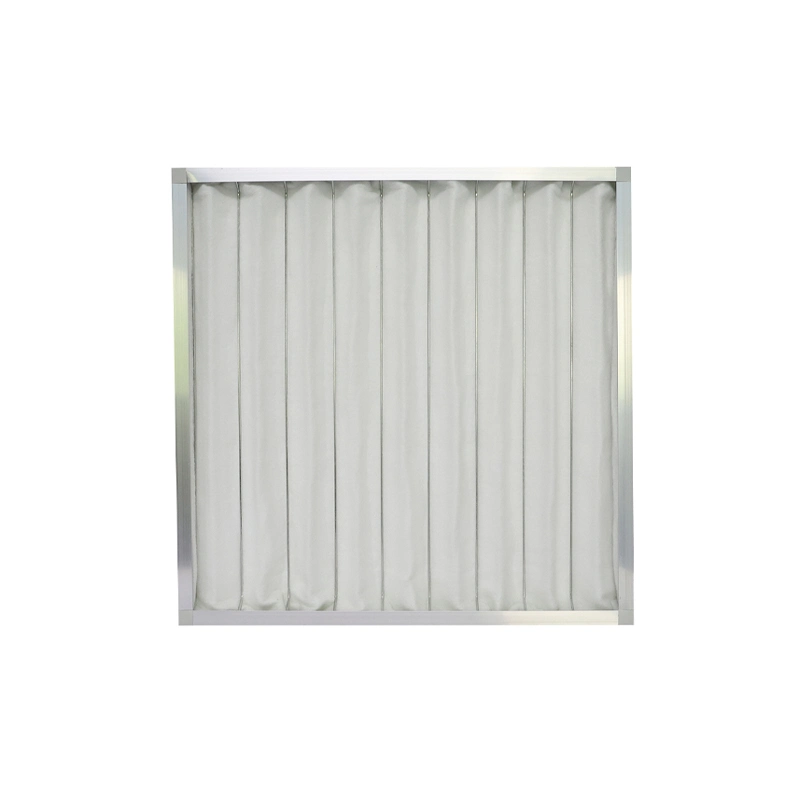

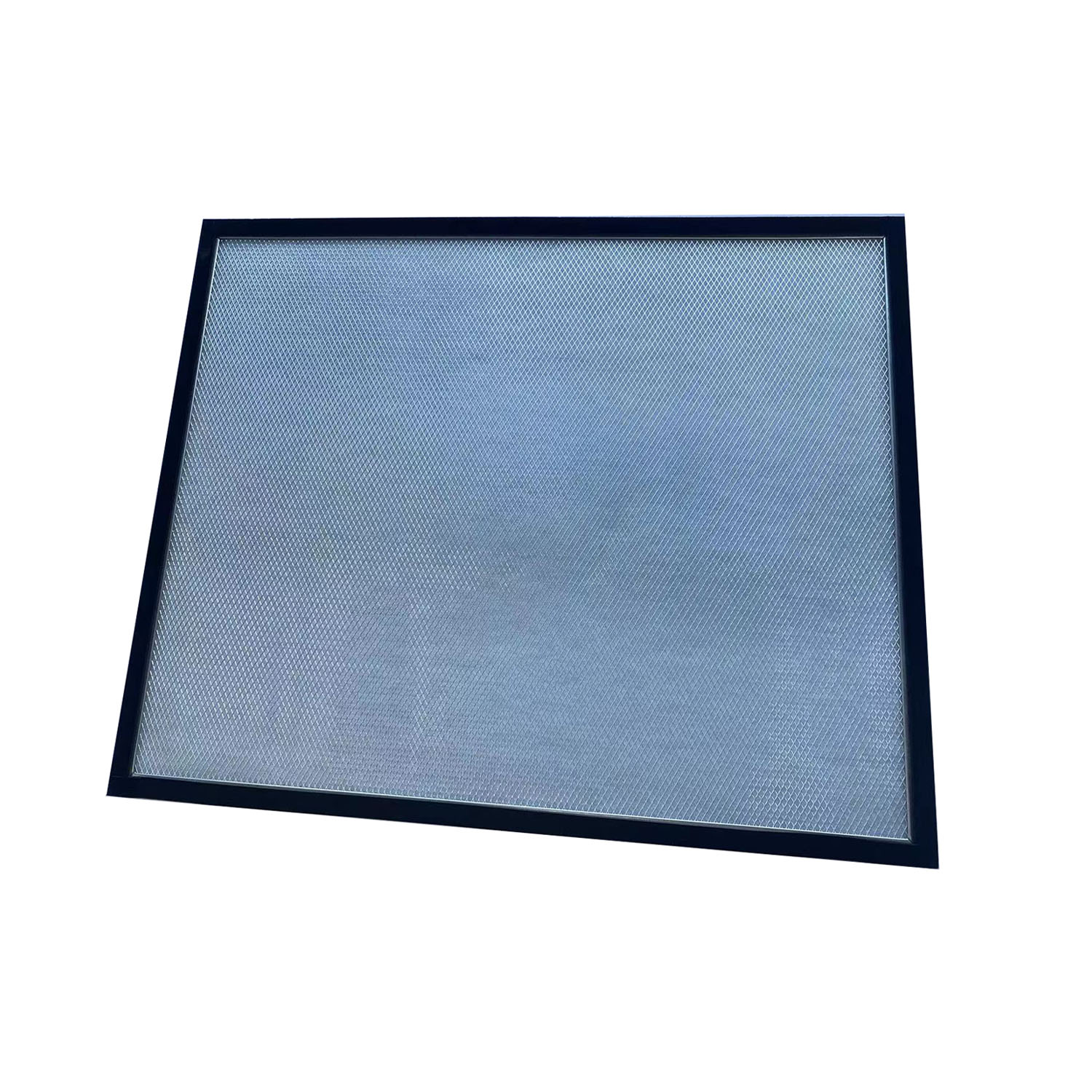

Reusable Air Filter HVAC

Advantages:

1. Reusable

The filter cotton can be washed with water or vacuumed for cleaning to restore its filtration performance and reduce replacement costs.

2. Low wind resistance and high dust holding capacity

Low initial pressure, making it suitable for high-volume air systems.

3. Economical and durable

Compared with disposable primary filters, the long-term usage cost is lower.

4. Protect the back-end devices

Effectively intercept large particles and extend the service life of medium and high-efficiency filters and air conditioning units.

Product Details

Introduction:

Reusable Air Filter is a reusable air filtration device used for filtration in air conditioning systems, ventilation equipment, or the front end of clean rooms.

It is mainly used to intercept large particles of dust, hair, fibers and other pollutants in the air, protecting the subsequent medium and high-efficiency filters and extending their service life. Due to its washable feature, it can reduce operating costs and is suitable for occasions where regular maintenance of the primary filter is required.

Frame

Galvanized steel /Aluminium alloy /Stainless steel

Media

Polyester synthetic fiber

Design

Panel

Std. EN779: 2012

G3,G4,F5

Maximum temperature

98℃

Maximum relative humidity

100%

Customized size

Available

Reusable Air Filter HVAC

Common dimensions

Model

Actual size

W×H×D(mm)

Air flow(m³/h)

Initial P.D.(Pa)

G3

G4

F5

CG3B-17KX-ZM10A

290×595×10

1700

73

89

--

CG3B-28KX-ZM10C

493×595×10

2850

73

89

--

CG3B-34KX-ZM10D

595×595×10

3400

73

89

--

CG3B-17KX-ZM21A

290×595×21

1700

73

89

129

CG3B-24KX-ZM21B

493×493×21

2400

73

89

129

CG3B-28KX-ZM21C

493×595×21

2850

73

89

129

CG3B-34KX-ZM21D

595×595×21

3400

73

89

129

CG3B-17KX-ZM46A

290×595×46

1700

65

78

110

CG3B-28KX-ZM46C

493×595×46

2850

65

78

110

CG3B-34KX-ZM46D

595×595×46

3400

65

78

110

CG3B-17KX-ZM96A

290×595×96

1700

58

67

92

CG3B-28KX-ZM96C

493×595×96

2850

58

67

92

CG3B-28KX-ZM96D

595×595×96

3400

58

67

92

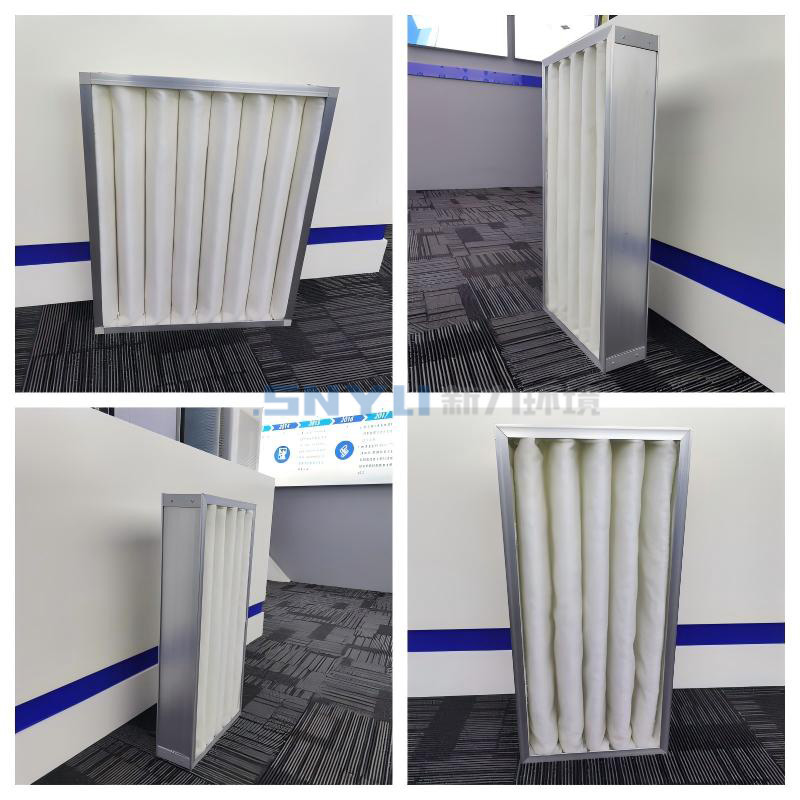

Washable pre filter

Features:

The washable pre filter is economical, environmentally friendly and has good filtering capacity. It is particularly suitable for dusty environments or ventilation systems that need to operate for a long time.

1. Reusable

It can be washed and reused about three times..

2. Environmental protection and energy conservation

Reducing waste filter materials and lowering the burden of garbage disposal is in line with the concept of sustainable development.

3. Protect the back-end devices

Effectively block large particles and extend the service life of medium and high-efficiency filters as well as air conditioning units.

4. Flexible adaptation

Reusable HVAC Filter can be used in conjunction with various air conditioning units and fresh air units, and has strong compatibility.


Applications:

Reusable Air Filter is an economical and environmentally friendly pre-filtering solution, suitable for environments that require long-term operation and have a lot of dust. Its reusable feature makes it widely popular in industrial, commercial and cleanroom systems, effectively reducing operation and maintenance costs while ensuring air quality.

1. Commercial buildings

Fresh air systems and central air conditioning pre-filtration for office buildings, shopping malls and hotels.

2. Industrial field

Dust pre-filtration in painting workshops, welding workshops and food processing plants.

3. Cleanroom system

As the primary protection for clean air conditioning, reusable air filter extends the service life of HEPA filters.

4. Medical Care and laboratories

Front-end filtration of ventilation systems in hospitals and PCR laboratories.

5. Household and commercial air purification equipment

The washable primary filter layer of some air purifiers and fresh air machines.

Applications

About SNYLI

Snyli Environmental Technology (Shandong) Co., Ltd was founded in 2010, after more than ten years of deep ploughing, SNYLI has a group of loyal customers in the field of air purification. The excellent product quality and perfect service experience have attracted a large number of customers at home and abroad to sign long-term cooperation agreements with us.
