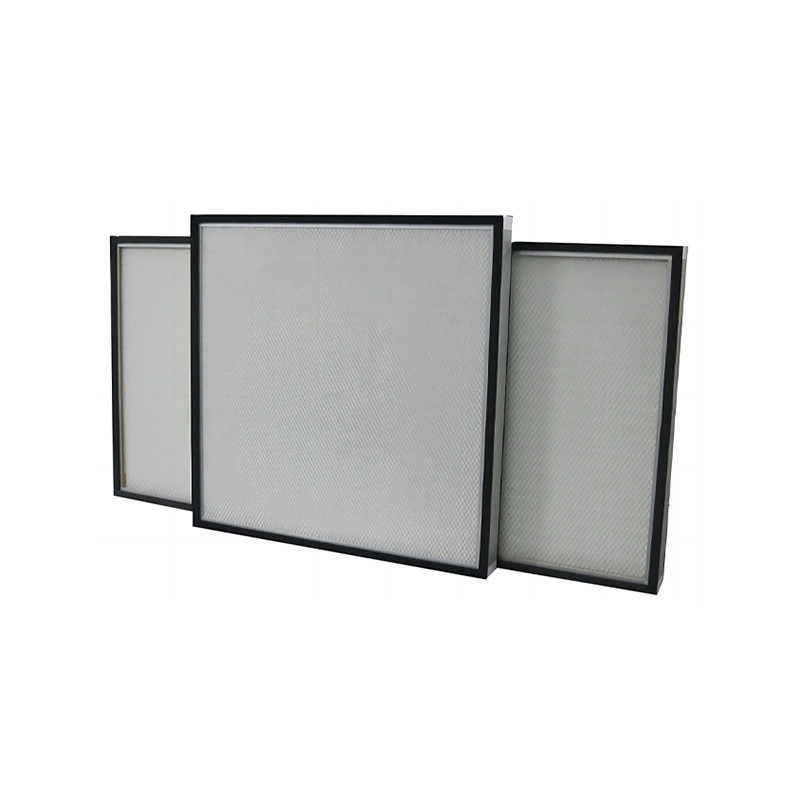

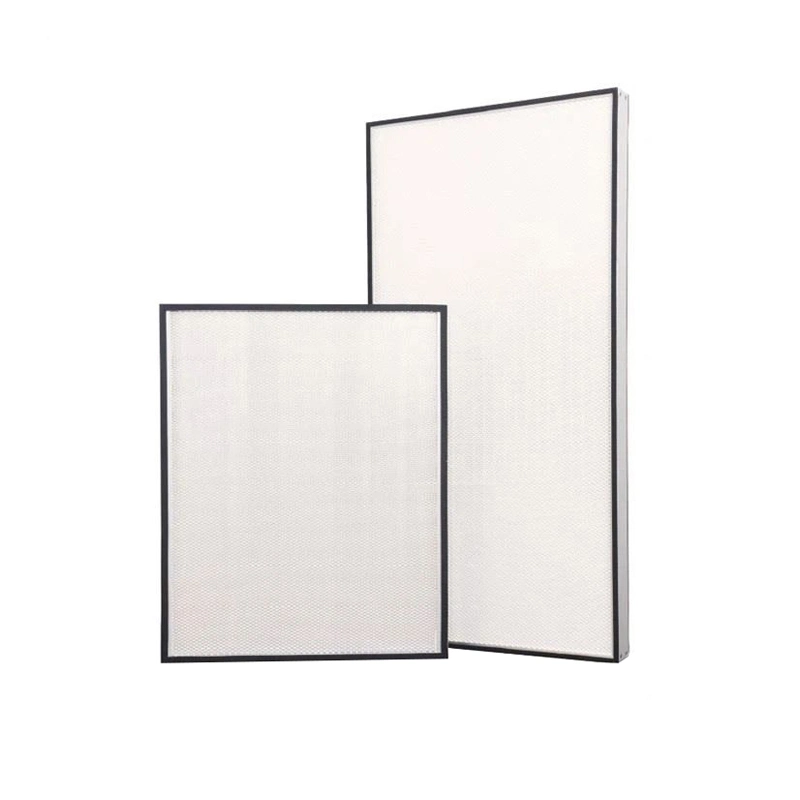

Mini Pleat ULPA Panel Air Filter

Advantages:

1.High efficiency filtration, energy saving. High-quality glass fibre or PTFE filter media, effectively filtering fine particles in the air, purifying air quality.

2.Reasonable design. Mini pleated design increases the area of filter material, reduces energy consumption and saves cost.

3. Aluminium profile outer frame, with good mechanical stability, not easy to deform and rupture, plays a good role in the effect of air filtration and safety guarantee.

4. Environmental protection. The filter material does not contain any harmful substances, nor does it pollute the environment or cause harm to the human body.

Contact Now E-Mail Telephone WhatsApp

Product Details

Introduction:

Mini Pleat ULPA Panel Air Filter is a kind of filter using ultra-fine glass fibre or PTFE as the filter material, assembled in an aluminium profile frame. The pleated structure can increase the filtration area, reduce energy consumption, save cost and improve filtration efficiency.

Frame	Anodized aluminum
Header	Box type / Single header / Double header
Media	Microfiberglass, PTFE
Separator	Hot-melt adhesives
Gasket	EPDM
Max. Temperature	≦ 250°C
Max. Humidity	≦ 100% RH

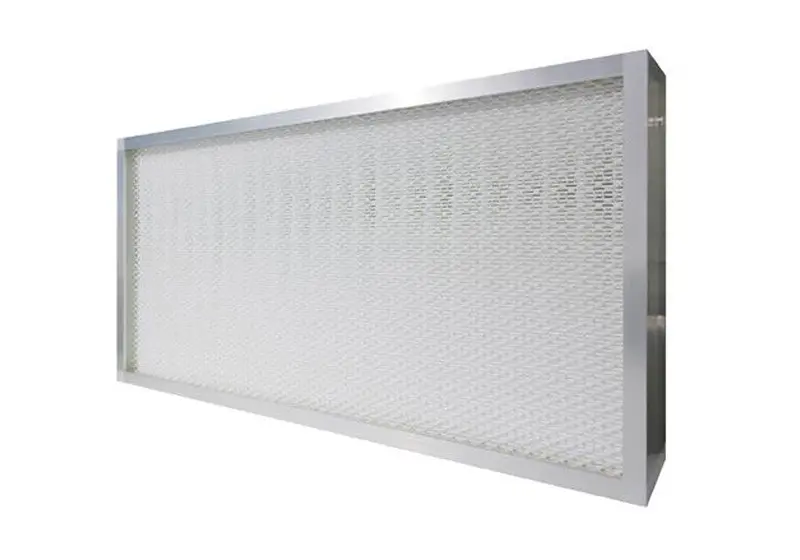

Mini Pleat ULPA Panel Air Filter

Common dimensions:

Size (mm)	CMH	I.N.P (Pa)	F.N.P (Pa)	Filter object (μm)	EFF. (%)	Filtration Class	Filtration Area (m2)
30561050	350/700	<160/295	<300/500	0.12	99.9995≤E<99.9997	U15	3.85
61061050	650/1300	<160/295	<300/500	0.12	99.9995≤E<99.9997	U15	7.44
122061050	1200/2400	<160/295	<300/500	0.12	99.9995≤E<99.9997	U15	14.59
30561050	350/700	<175/320	<300/500	0.12	99.9997≤E<99.99997	U16	3.85
61061050	650/1300	<175/320	<300/500	0.12	99.9997≤E<99.99997	U16	7.44
122061050	1200/2400	<175/320	<300/500	0.12	99.9997≤E<99.99997	U16	14.59

Performance Characteristics:

1.High efficiency filtration. Using ultra-fine glass fibre as the filter material, it can effectively filter out particles, organics, viruses, bacteria, etc. in the air, so as to purify the air and improve the air quality.

2.Mini pleated structure. The use of dense pleated structure increases the filtration area, improves the filtration efficiency, reduces energy consumption and lowers the cost.

3. Easy to use. The outer frame is generally made of aluminium profile, which occupies relatively small space and is easy to use.

4. Excellent durability and life.

5. Environmental protection and energy saving. The material does not contain harmful substances, will not cause pollution to the environment and human body, play a good role in environmental protection and energy saving.

Applications:

Mini pleated ULPA air filter is a high-tech environmental protection product, which can effectively purify the air and improve air quality. Its application advantages lie in high efficiency filtration, dense pleated structure, ease of use, durability and wide range of application.

It is widely used in air purification system in the following fields:

1. Medical and health care: used in hospital operating rooms, sterile rooms and other environments that require strict purification.

2.Biopharmaceutical: In the pharmaceutical industry, filtration of dust, bacteria, viruses, cells, etc. is required.

3. Electronic manufacturing: in the electronic industry need to filter fine particles.

4. Aerospace: Air purification is required in the aerospace field to prevent dust from contaminating electronic equipment.

5. Automotive Manufacturing: Air purification is needed in the automotive industry to improve the effectiveness of automotive air conditioning.

About us:

Snyli Environmental Technology (Shandong) Co.,Ltd has rich experience in R&D and production, and can provide various specifications of air filter products with many national patents and strong technical strength. As a source manufacturer, SNYLI has multiple advantages, if you have related needs, welcome to inquire.

Snyli Environmental Technology (Shandong) Co.,Ltd
