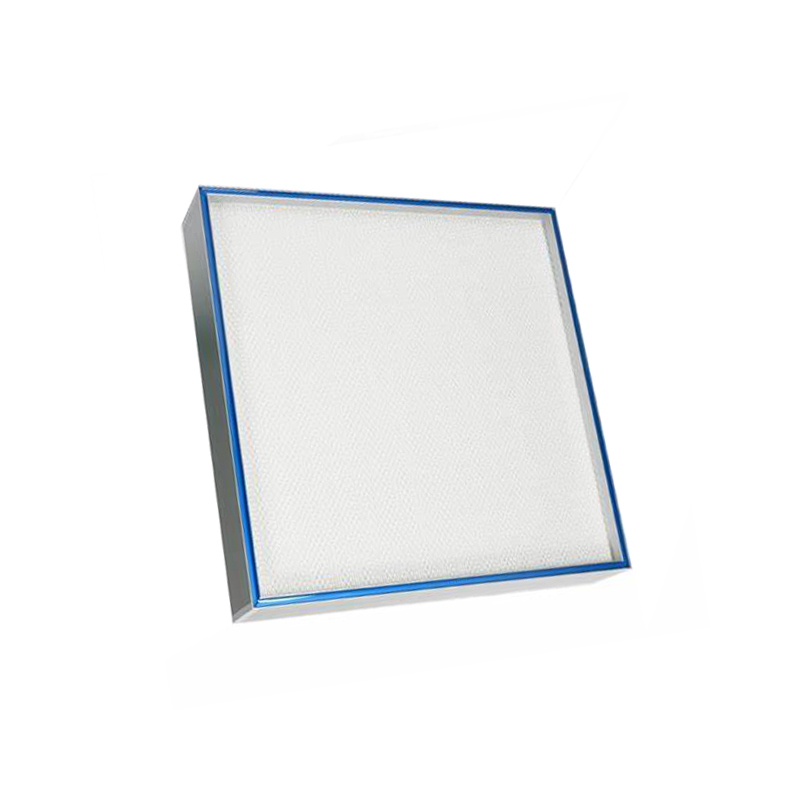

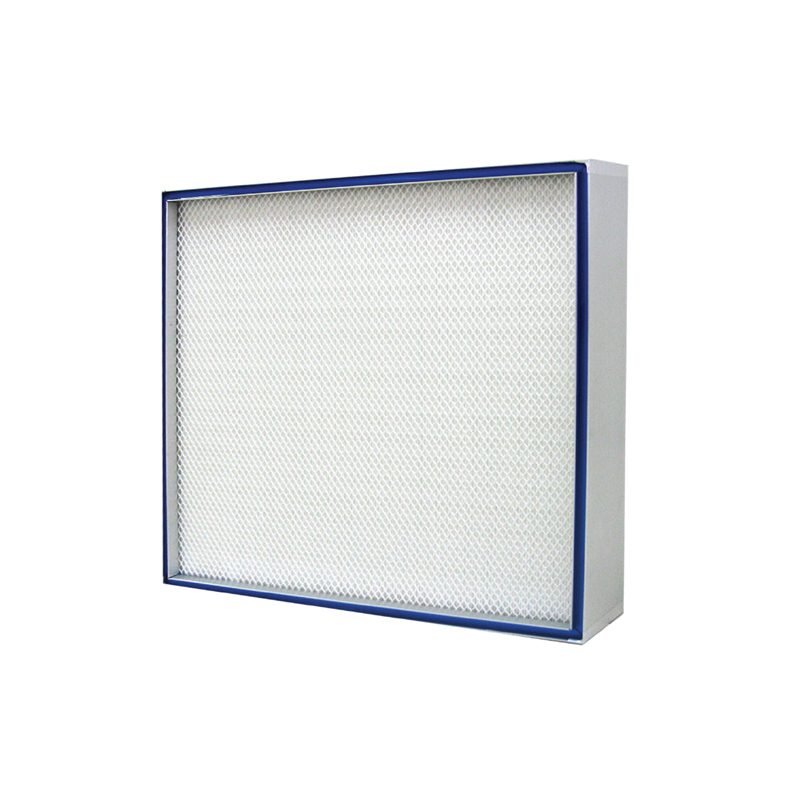

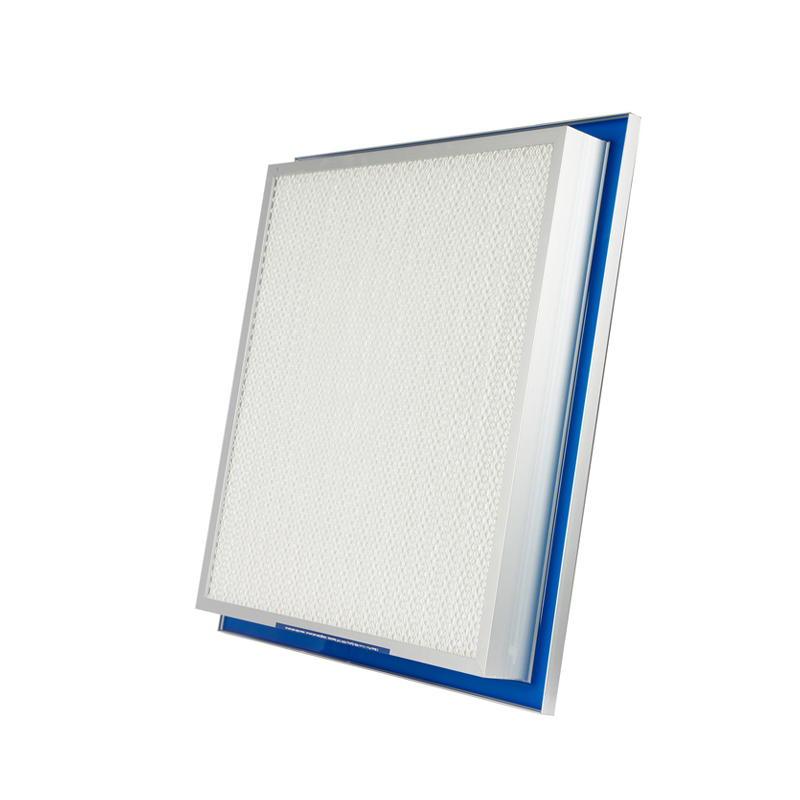

HVAC System Gel Seal Mini Pleat ULPA Filter

Advantages:

1. High filtration efficiency: ultra-fine glass fibre as filter media, which can filter out particles of 0.12 micron and above, the filtration efficiency is up to 99.995%.

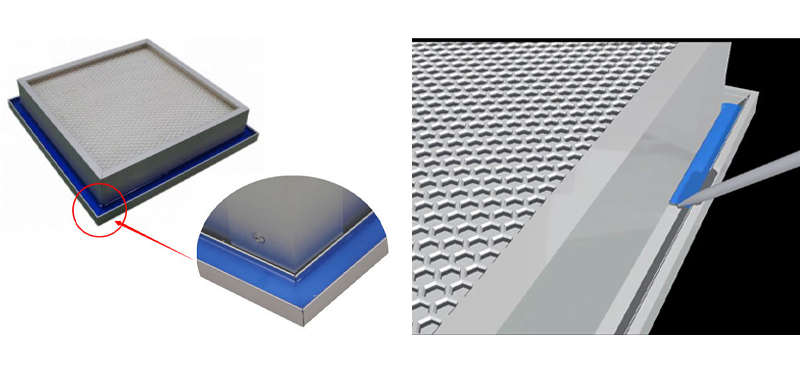

2. High reliability: in the design process, the gel seal ULPA air filter adopts aluminium profile outer frame and PU gel filling, which makes it have excellent pressure resistance and reliability.

3. HEPA filter with various shapes: gel seal ULPA air filters are available in two types: side sealing and top sealing, which can be selected according to different space and application requirements.

Contact Now E-Mail Telephone WhatsApp

Product Details

Introduction:

Gel seal ULPA air filters use aluminium profiles as the outer frame, ultra-fine glass fibres as the filter media, and a liquid tank filled with PU gel. With the advantages of high reliability and high filtration efficiency, this filter is especially suitable for DOP test and on-site leakage inspection in the workplace, and is applicable to the control of 0.12 micron particles in cleanrooms and purification equipment.

Frame material:	Galvanized sheet/Stainless Steel/Aluminium sheet/Anodized aluminum profile
Separator:	Hot melt adhesive
Media:	Ultra fine glass fiber
Sealant:	Urethane gel sealant
Std. EN1822:2009 :	U15/U16
Maximum temperature:	70ºC
Maximum relative humidity:	100%
Customized size:	Available
Media guard:	Baking finish steel screen,aluminum screen
Efficiency:	99.9995% at 0.12μm(U15); 99.99995% at 0.12μm(U16) (DOP/PSL/PAO particle counting method)
Application:	Mainly used in terminal filtration of electronics, Bio,pharmaceutical industries,hospitals,,FFU,Laminar flow devices,and other clean room equipments.

HVAC System Gel Seal Mini Pleat ULPA Filter

Common dimensions:

Liquid Tank Type	Frame thickness (mm)	Rated resistance(Pa)				Rated surface wind speed(m/s)
Liquid Tank Type	Frame thickness (mm)	H13	H14	U15	U16	0.45
Top Gel Seal	81	105	110	120	140
	94	90	95	105	125
	104	75	80	90	110
Side Gel Seal	69	105	110	120	140
Side Gel Seal	93	75	80	90	110

Performance characteristics:

1.High filtration efficiency. It can filter out particles of 0.12μm and above.

2.Long service life. Adopting sturdy metal frame, high quality glass fibre filter material and PU gel-filled liquid tank, it has a long service life.

3. Small size. Gel seal design, easy to install and operate.

Applications:

Gel Seal Mini Pleat ULPA Filters have a wide range of applications and are widely used in industries such as medical, biopharmaceutical, food processing, and electronics factories. It is particularly suitable for air purification occasions, and can effectively filter out airborne particles, moulds, bacteria and other tiny pollutants to ensure air quality.

Installation Notes:

With the advantages of high efficiency, reliability and easy installation, Gel Seal Mini Pleat ULPA Filters can effectively ensure an air-purified environment and are widely used in various industries. In the process of installation and use, attention needs to be paid to the protection and maintenance of the filter to achieve a better filtration effect.

1. During installation, avoid causing damage to the filter element, otherwise it will affect the filtering effect.

2. Choose a suitable installation location during installation to avoid affecting normal operation.

3. During installation, carefully check the connection piping to ensure that it is firmly installed to avoid air leakage.
