Introduction:
Pocket air filters consist of several components, mainly including the outer frame, filter media and bracket. The outer frame is usually made of galvanised iron, aluminium alloy or stainless steel, which has good corrosion resistance and durability. The filter media is generally made of synthetic fibre non-woven fabric, which can effectively filter tiny particles and prevent secondary pollution. The bracket is used to fix the filter media and keep the effective space in the filtration area.

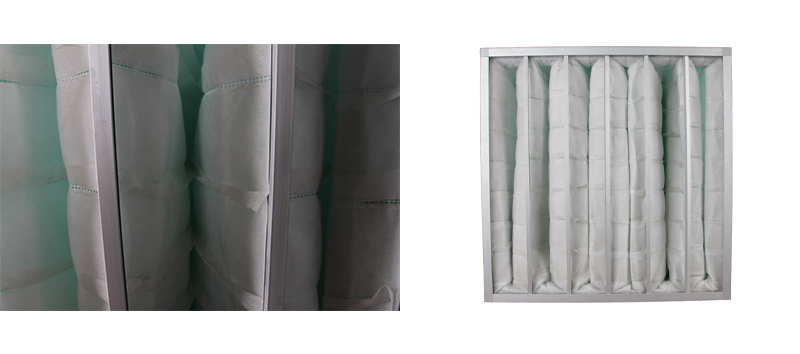

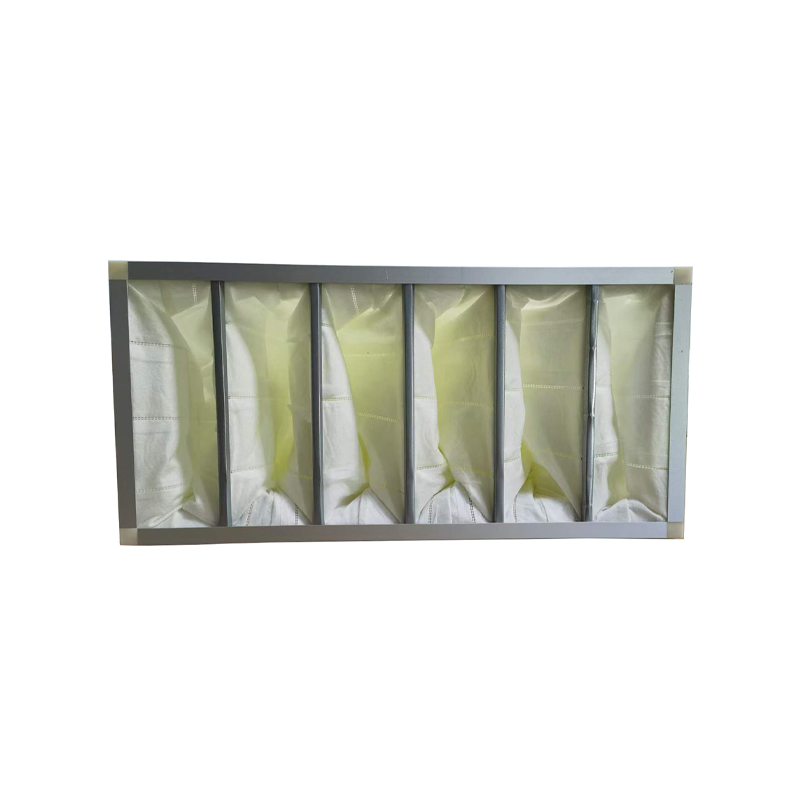

![Medium Efficiency Non-Woven Fabric Pocket Air Filter Medium Efficiency Non-Woven Fabric Pocket Air Filter]()
Common dimensions:
Nominal Size (inches)
| Actual Size (mm) | Bags
| Filtration area (m2) | Air flow /initial resistance (m3/h / Pa) | Efficiency EN779 |
Width
| Height
| Depth
|
24 x 24 x 15 | 592 | 592 | 380 | 8 | 3.6 | 1950 / 40
| 2450 / 50
| 3200 / 70 | F5 |
20 x 24x 15 | 490 | 592 | 380 | 6 | 2.7 | 1500 / 40
| 2350 / 50
| 2850 / 70 | F5 |
12 x 24x15 | 287 | 592 | 380 | 3 | 1.4 | 950 / 40
| 1080 / 50
| 1500 / 70 | F5 |
20x 20x 15 | 490 | 490 | 380 | 5 | 2.0 | 1150 / 40
| 1650 / 50
| 2180 / 70 | F5 |
20 x 16 x 15 | 490 | 390 | 380 | 4 | 1.6 | 850 / 40
| 1450 / 50
| 2150 / 70 | F5 |
12x 12 x 15 | 287 | 287 | 380 | 2 | 0.44 | 350 / 40
| 400 / 50
| 650 / 70 | F5 |
24 x 24 x 19 | 592 | 592 | 480 | 8 | 4.6 | 2150 /40 | 2850 / 50 | 3400 / 70 | F5 |
20 x 24x 19 | 490 | 592 | 480 | 6 | 3.4 | 1800 / 40
| 2600 / 50 | 3050 / 70 | F5 |
12 x 24x19 | 287 | 592 | 480 | 3 | 1.7 | 1050 /40
| 1350 / 50
| 1700 / 70 | F5 |
20x 20x 19 | 490 | 490 | 480 | 5 | 2.35 | 1350 /40
| 1850 / 50
| 2350 / 70 | F5 |
20 x 16 x19 | 490 | 390 | 480 | 4 | 1.5 | 1050 /40 | 1650 / 50
| 2350 / 70 | F5 |
12x 12 x 19 | 287 | 287 | 480 | 2 | 0.5 | 450 /40 | 500 / 50
| 850 / 70 | F5 |
24 x 24 x 21 | 592 | 592 | 534 | 8 | 4.74 | 2380 /40
| 3200 / 50
| 4200 / 70 | F5 |
20 x 24x 21 | 490 | 592 | 534 | 6 | 4.3 | 2150 /40
| 2850 / 50
| 3200 / 70 | F5 |
12 x 24x 21 | 287 | 592 | 534 | 3 | 1.8 | 1250 / 40 | 1500 / 50
| 1950 / 70 | F5 |
20x 20x 21 | 490 | 490 | 534 | 5 | 2.5 | 1550 / 40
| 2280 / 50
| 2500 / 70 | F5 |
20 x 16 x 21 | 490 | 390 | 534 | 4 | 1.6 | 1250 / 40
| 1850 / 50 | 2650 / 70 | F5 |
12x 12 x 21 | 287 | 287 | 534 | 2 | 0.6 | 500 / 40
| 650 / 50
| 950 / 70 | F5 |
24 x 24 x25 | 592 | 592 | 600 | 8 | 5.7 | 2650 / 40 | 3600 / 50
| 4500 / 70 | F5 |
20 x 24x 25 | 490 | 592 | 600 | 6 | 4.3 | 2450 / 40
| 3100 / 50
| 3800 / 70 | F5 |
12 x 24x25 | 287 | 592 | 600 | 3 | 2.2 | 1450 / 40
| 1700 / 50
| 2100 / 70 | F5 |
20x 20x 25 | 490 | 490 | 600 | 5 | 2.94 | 1700 / 40
| 2450 / 50
| 2950 / 70 | F5 |
Performance Characteristics:
High filtration efficiency, can effectively remove airborne particles and microorganisms.
Large filtration area. The design and construction of pocket air filters are very suitable for large-scale and long-time operation.
Good abrasion resistance, able to withstand certain high temperature and high humidity environment.
Applications:
Pocket air filters are widely used in ventilation systems and air filtration in various industries. They are usually used as the first or second stage filter in indoor air treatment to ensure the cleanliness of indoor air.
It is also widely used in industrial, medical, pharmaceutical, food and printing industries, where it can effectively prevent airborne contaminants, such as dust and bacteria, from entering the production environment, thus protecting human health and work safety.
About us:
Snyli Environmental Technology (Shandong) Co., Ltd has rich experience in production, has signed long-term cooperation agreements with more than a hundred domestic and foreign enterprises, deeply trusted by customers.ISO/CE certificate is the proof of SNYLI's strength, and a number of R & D certificates silently proved to the world that we have always been in the same progress with the times. If you need air filtration products, please feel free to discuss with us!
