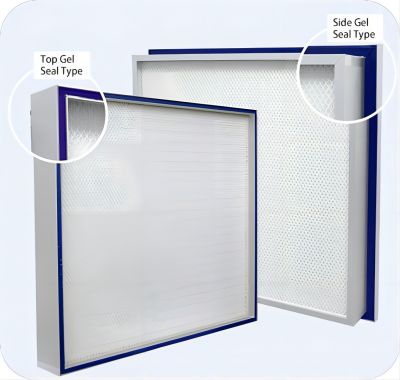

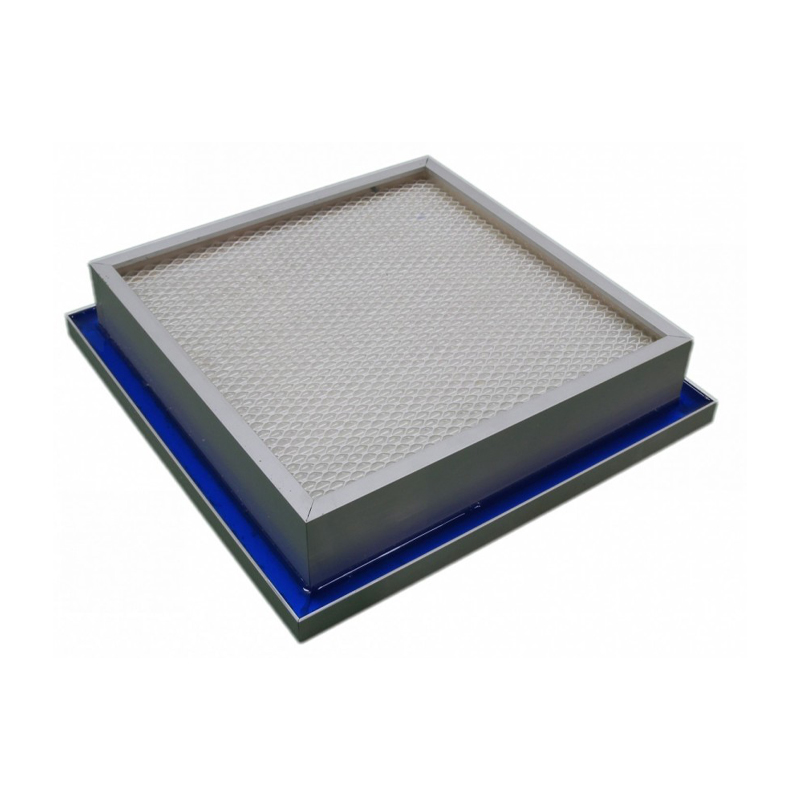

Gel Seal ULPA Fiberglass Media Air Filter

Introduction:

Gel Seal ULPA air filter is a kind of mini pleat air filter, which is a more ideal terminal filter for industrial and biological cleanrooms, and also a more ideal supporting filter for other purification equipments, with the features of low resistance, high efficiency, light weight, easy installation, and so on.

Structure:

• Filter material: ultra-fine glass fibre;

• Separator: hot melt adhesive;

• Sealant: special sealant for liquid tank (polyurethane);

• Frame: aluminium profile with anodized surface;

• Others: double-sided spraying diamond-shaped mesh.

Standard dimensions and performance parameters:

Features:

• Beautiful appearance, good sealing performance, easy installation, light weight, thin thickness, high filtration efficiency;

• It has the characteristics of large filtering area, long service life and low resistance;

• The flange is injected with special liquid tank sealant, this adhesive is permanent self-adhesive, after curing it is an elastic gel, which can form an airtight and airtight sealing effect in the aluminium tank, and is usually used in conjunction with the knife holder.

Strengths:

1. Gel seal design ensures complete sealing.

2. Liquid tank adhesive sealing design, excellent chemical stability, corrosion resistance, anti-mould, not easy to breed bacteria and moderate hardness. Even after repeated disassembly and installation, it can still maintain good sealing after a period of time.

3. Strict Material Selection, Extremely Low Chemical Volatility

4. All parts of the filter are made of materials with extremely low chemical volatility to meet the requirements of conventional cleanrooms and air filtration equipment.

5. Compact structure, easy to install and replace

6. The filter frame is generally made of aluminium profiles. Phosphorus-free polyurethane adhesive seals the waterproof and flame-retardant glass fibre cartridge separated by hot sol, supplemented by surface protection mesh, gaskets and other components. Compact structure, small and light, easy to install and replace.

7. No divider structure, low resistance, good energy saving

8. Special designed hot melt adhesive is used to separate the filter paper to ensure the same and reasonable spacing between the filter paper. The filter paper can be fully utilised to achieve the advantage of even wind speed and low resistance.

9. Testing efficiency according to EN1822 to ensure efficiency

10. According to EN1822 standard, we use PMS laser timer and PSL test particles to test the efficiency of air filters using MPPS (Most Penetrating Particle Size) method to ensure that the efficiency of air filters meets the standard requirements.

Applications:

Widely used in demanding clean room, large area vertical laminar flow, pharmaceuticals, hospitals, food hygiene, 100-level laminar flow hoods and microbiological and other high-level sealed space purification end.

Air filters are more and more recognised for improving air quality and ensuring people's health, and have been widely used. For example, pharmaceutical, food and other industries are inseparable from all kinds of filters. SNYLI is becoming more and more well-known in the air purification industry with high-quality products and perfect service.
