Introduction:
Pre Pleated Air Filters are a common type of air filter that is mainly used to remove airborne particles and impurities to improve indoor air quality. This type of filter usually adopts a mesh-covered structure, and the filtering effect is realized by the filtering material covered on the mesh support.
| Structure |
|---|
Frame | Usually made of aluminum alloy, galvanized steel or cardboard frame, used to fix and support the overall structure of the filter. |
Filter media | The filter material covered on the grid support, mostly synthetic fibers, has better filtration effect and air circulation. |
Support grid | The grid structure covering the surface of the filter media, used to support the filter material to maintain a stable filtration effect. |
Auxiliary parts | Such as sealing strips, also known as gaskets, used to ensure the overall sealing of the filter, generally optional 3mm EVA or 5mm EPDM. |
With simple structure and easy installation and replacement, the primary efficiency pleated filter is suitable for general air filtration occasions, such as offices, shopping malls, homes and so on. By replacing the filter regularly, it can effectively maintain a clean environment, reduce the concentration of airborne particles and improve indoor air quality.

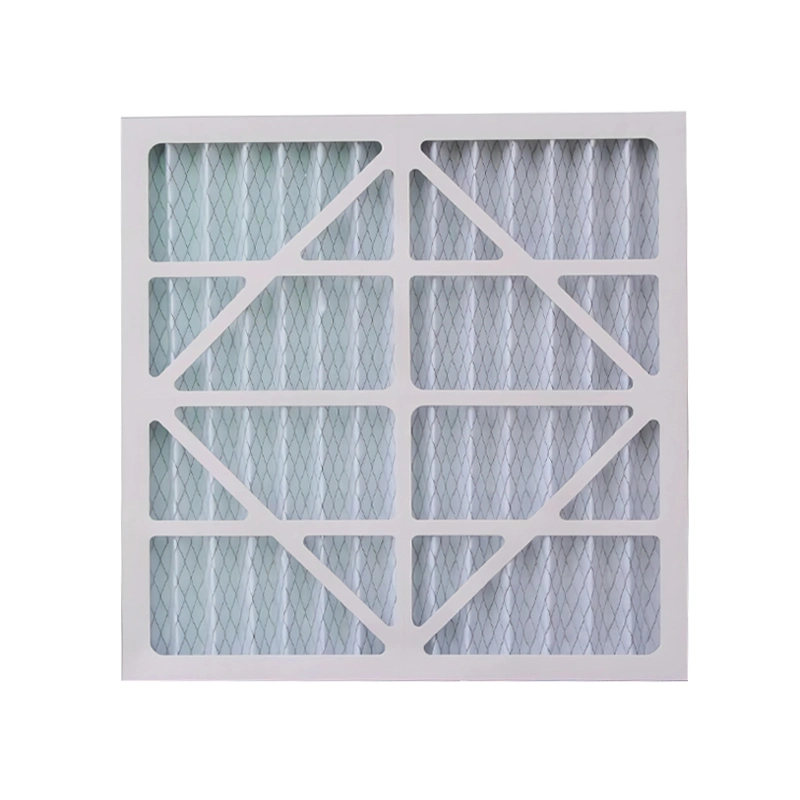

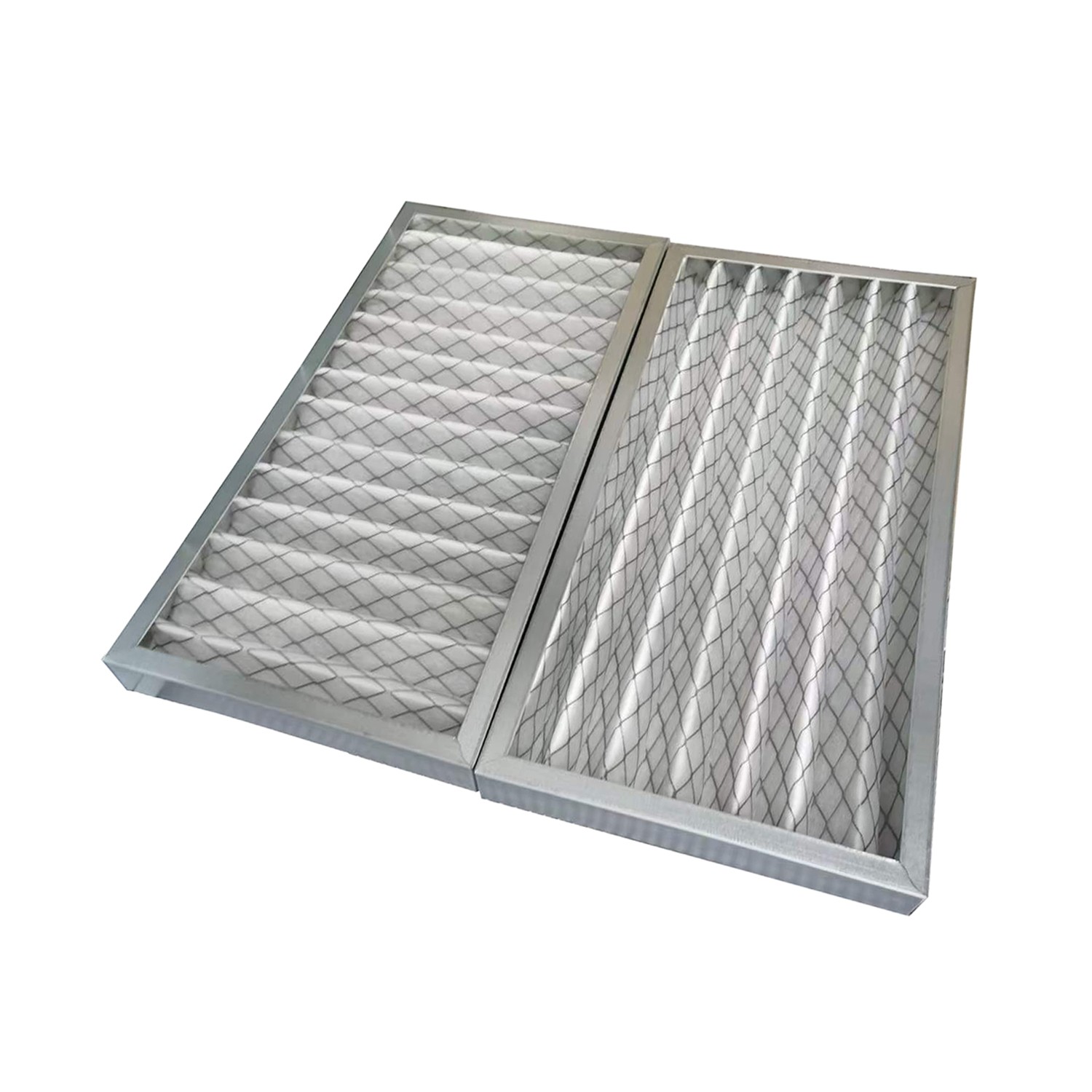

![Pre Pleated Air Filter]( "Pre Pleated Air Filter")
| General performance parameters |
|---|
Frame | Cardboard / Aluminium / Galvanized steel |
Media | Pleated polyester synthetic fiber |
Media support | None / Metal mesh |
Sealant | Polyurethane |
Design | Panel |
Std. EN779:2012 | G1,G2,G3,G4,F5 |
Maximum temperature | 80℃ |
Maximum relative humidity | 99% |
Customized size | Available |

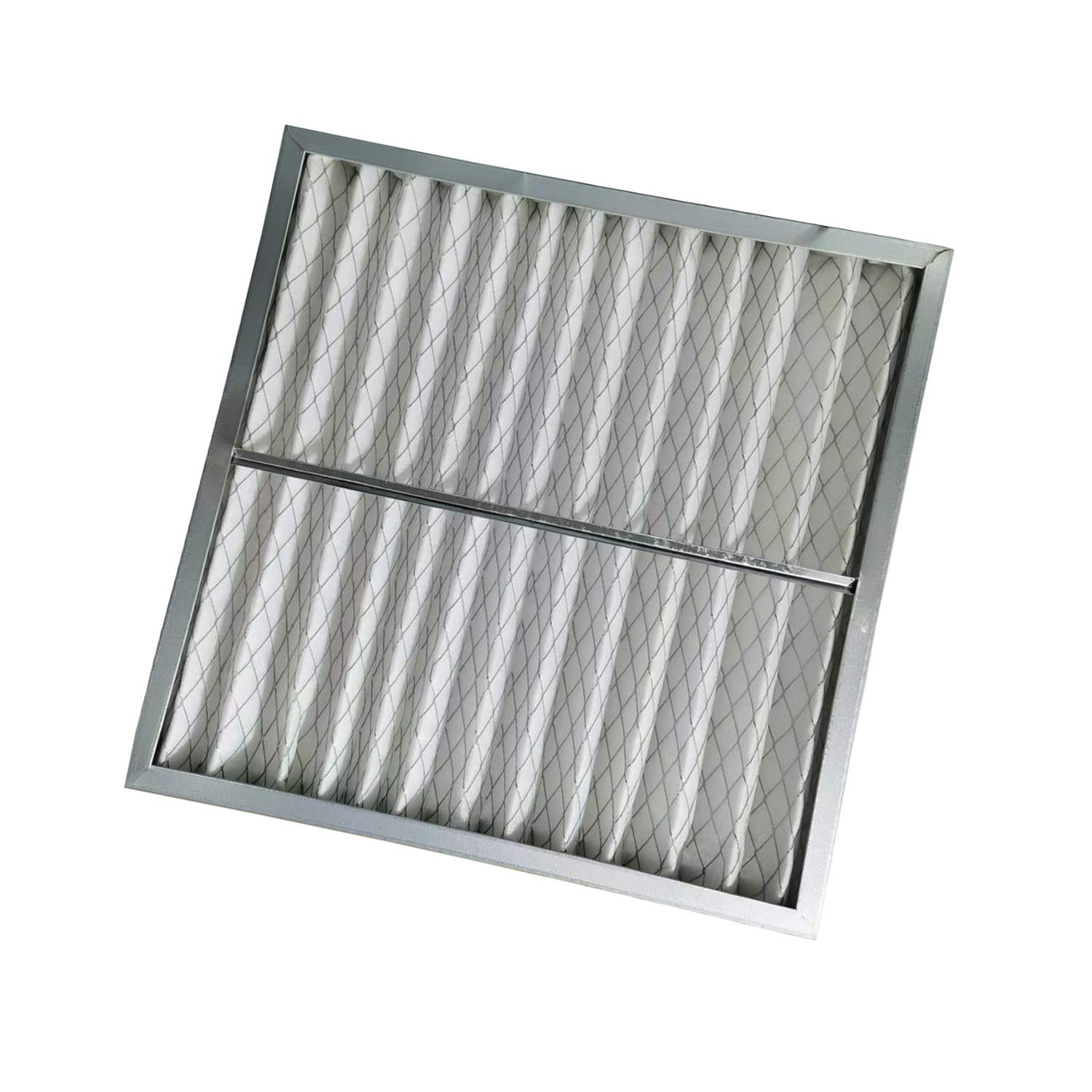

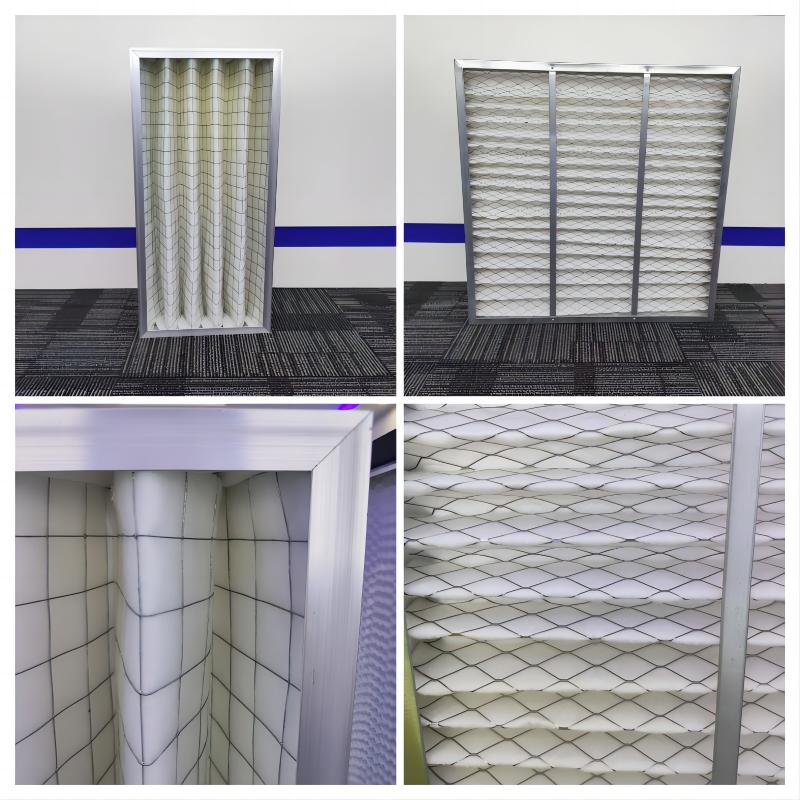

![Pre Pleated Air Filter]( "Pre Pleated Air Filter")
Common dimensions:
Nominal size W×H×D ( in.) | Actual size W×H×D ( mm) | Filter Rating (EN779:2012) | Air flow (m³/h) | Initial P.D. (Pa) | Recommended Final P.D.(Pa) |
24x24x1 | 595x595x22 | G4 | 1700 | 28 | ≤ 200 |
12x24x1 | 290x595x22 | 846 | 28 |
20x24x1 | 495x595x22 | 1420 | 28 |
20x20x1 | 496x496x20 | 1180 | 28 |
20x25x1 | 495x622x20 | 1480 | 28 |
24x24x2 | 595x595x45 | 1700 | 22 |
12x24x2 | 290x595x45 | 846 | 22 |
20x24x2 | 495x595x45 | 1420 | 22 |
20x20x2 | 495x496x45 | 1180 | 22 |
20x25x2 | 495x622x45 | 1480 | 22 |
24x24x4 | 595x595x95 | 1700 | 16 |
12x24x4 | 290x595x95 | 846 | 16 |
20x24x4 | 495x595x95 | 1420 | 16 |
20x20x4 | 495x495x95 | 1180 | 16 |
20x25x4 | 495x622x95 | 1480 | 16 |
★Many frame options and dimensions are available on request. |
Performance features:
1. Effective filtration: the primary efficiency panel covered mesh pleated filter can effectively capture large particles, dust, particles and other impurities in the air, improve filtration efficiency and improve indoor air quality. |
2. Low resistance: high-quality synthetic fiber filter media and the design of pleated mesh cover ensure the filtration effect while reducing the resistance to the air system and maintaining better air circulation.
|
3. High load capacity: the structural design of the primary efficiency panel mesh-covered filter is sturdy and can withstand high air flow and load, suitable for all kinds of ventilation systems and air conditioning systems.
|
4. Long service life: high-quality synthetic fiber filter media and sturdy frame structure make the filter have a long service life, which can reduce the frequency and cost of replacement.
|
5. Environmental protection and energy saving: the primary efficiency panel pleated filter can effectively purify the air, protect the equipment from pollution, and at the same time reduce the load of air-conditioning equipment, reduce energy consumption, in line with the requirements of energy saving and environmental protection.
|
| 6. Easy maintenance and replacement: with simple structure and easy installation, it is easy to carry out regular maintenance and replacement to ensure that the performance of the filter continues to be efficient. |
Overall, the pre pleated air filter has the performance characteristics of high-efficiency filtration, low resistance, high load capacity, long service life, environmental protection and energy saving, easy maintenance, etc. It is suitable for most of the occasions with general air filtration requirements.
Application prospects:
With excellent performance characteristics, the pre pleated air filter can be used individually in occasions with low clean demand, and it can also be used as a pre-filter at the front of the HEPA filter, so it has a very broad application prospect:
1. Commercial buildings and offices: Primary efficiency panel air filters are suitable for air conditioning systems in commercial buildings and offices, which can effectively filter dust, particles and pollutants in the air, improve indoor air quality, and protect the health of employees and customers. |
2. Medical and health institutions: In medical and health institutions, such as hospitals, clinics and other places, the primary panel filter can help reduce the concentration of microorganisms, bacteria and viruses in the air, provide a cleaner and more hygienic air environment, and help prevent cross-infection.
|
3. Industrial production: In some industrial production places, the primary efficiency panel filter can be used in air treatment equipment to filter particles and harmful substances in industrial exhaust air, protect the production equipment, and ensure the cleanliness and safety of the production environment.
|
4. Families and homes: Families and homes can also install the primary efficiency panel air filter for air conditioning systems or air purification equipment, to help remove dust, pollen, allergens and other harmful substances in the indoor air, to improve the comfort of the living environment.
|
From a comprehensive point of view, the primary panel air filter can provide clean and healthy air environment for different industries and places, which meets people's needs for comfort, safety and environmental protection, so the application prospects are very promising.
![Applications of Pre Pleated Air Filter]( "Applications of Pre Pleated Air Filter")
About us:
Snyli Environmental Technology (Shandong) Co.,Ltd has always insisted on putting customers' interests in the first place, since its establishment, SNYLI has gone through more than ten springs and autumns, and successfully established long-term co-operation with hundreds of domestic and foreign enterprises. In addition, SNYLI always adheres to the principle of advancing with the times, and has already obtained a number of R&D patents, and has been cooperating closely with industry associations, university research institutes, and third-party laboratories for a long time.
SNYLI is committed to the field of dust-free purification, and has rich experience and deep technical strength in this industry. If you have such needs, please feel free to enquire!
