Introduction:
With the industrial development and urban expansion, the concentration of harmful gases in the atmosphere increases, people's demand for pure air is increasing, and the demand for chemical filters is also gradually increasing. Current chemical filters are mostly activated carbon air filters, which are mainly used to remove chemical air pollutants from the air.

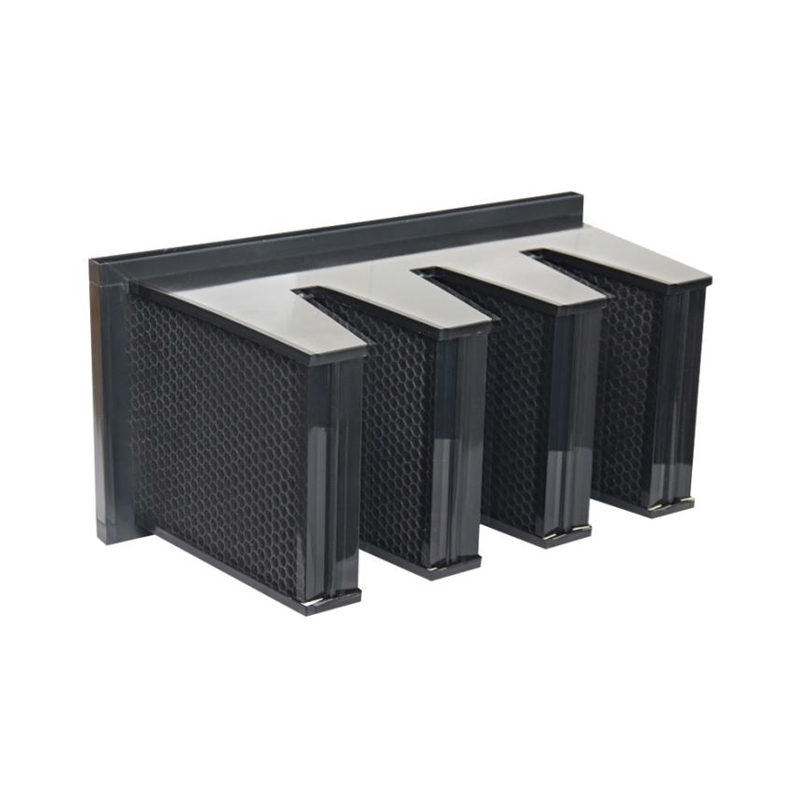

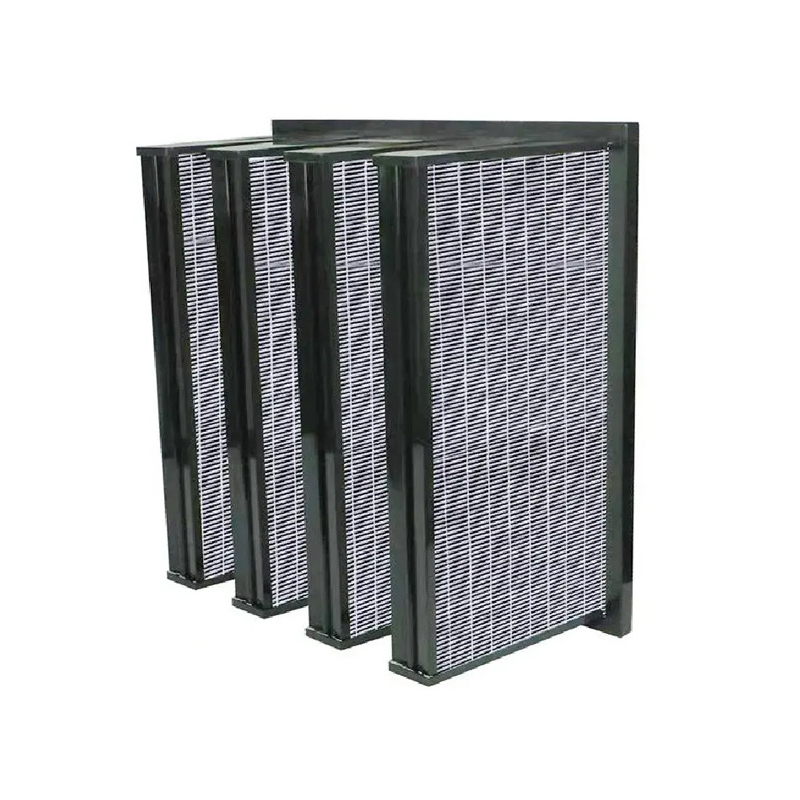

V-Bank Activated Carbon Pleated Chemical Air Filters use highly adsorbable activated carbon particles as filter material, with a highly developed microporous structure, large adsorption capacity, fast adsorption speed and good purification effect, and are used for removing odourous gases and gas phase pollutants of higher density.
![V-Bank Activated Carbon Pleated Chemical Air Filter]( "V-Bank Activated Carbon Pleated Chemical Air Filter")
Common dimensions:
Size (mm) | CMH | I.N.P (Pa) | Comprehensive adsorption Rate (%) | CTC (%) | Benzene (%) | Deodorizing Performance (30mins) | Frame material | Structure |
592*592*292-4V | 2000/3400 | <55/90 | >90% | >50% | >60% | >95% | Plastic | Single flange |
592*492*292-4V | 1500/2800 | <55/90 | >90% | >50% | >60% | >95% | Plastic | Single flange |
592*287*292-4V | 1000/1800 | <55/90 | >90% | >50% | >60% | >95% | Plastic | Single flange |
610*610*292-5V | 2600/4200 | <55/90 | >90% | >50% | >60% | >95% | Galvanized | Single flange |
610*610*292-4V | 2000/3400 | <55/90 | >90% | >50% | >60% | >95% | Galvanized | Single flange |
610*305*292-4V | 1000/1700 | <55/90 | >90% | >50% | >60% | >95% | Galvanized | Single flange |
610*610*292-5V | 2600/4200 | <75/120 | >90% | >50% | >60% | >95% | Galvanized | Box |
610*610*292-4V | 2000/3400 | <85/130 | >90% | >50% | >60% | >95% | Galvanized | Box |
610*305*292-4V | 1000/1700 | <95/140 | >90% | >50% | >60% | >95% | Galvanized | Box |
Features:
The features of V-Bank Activated Carbon Pleated Chemical Air Filters are mainly reflected in the following aspects:
Firstly, its filtration efficiency is high and it can effectively remove harmful chemicals in the air.
Secondly, it has a long service life and is not easy to be worn, aged and deformed.
Thirdly, this filter has low maintenance cost and only requires regular replacement of the activated carbon filling.
Applications:
V-Bank Activated Carbon Pleated Chemical Air Filters are applicable to a wide range of industries, including microelectronics, nuclear industry, pharmaceutical, chemical, environmental protection, light industry and other industries.
In microelectronics and nuclear industry, its use is mainly to ensure the purity of the machine room.
In the pharmaceutical and chemical fields, the filter can be used to filter harmful substances in pharmaceutical raw materials, but also can be used to purify the air of industrial exhaust.
In the field of environmental protection, its main use is to remove odours, smoke and toxic gases from indoor air.
In light industry, the filter is used to filter harmful gases from dryers, spray booths and chimneys.
About us:
Snyli Environmental Technology (Shandong) Co., Ltd has been researching in the field of air purification for more than 10 years and owns a number of R&D patents. Since the development of foreign trade business in 2021, a continuous stream of foreign customers began to trust SNYLI and take SNYLI as the preferred supplier. We know that this trust is not easy to come by, so we treat the R&D and production of our products more and more rigorously in order to provide our customers with high quality services.
