Mini Pleated Medium Efficiency Air Filter

Advantages:

1. Low air resistance. Unique design minimises resistance, ensures smooth air flow and improves air filtration efficiency.

2.Easy installation. Mini pleated air filter is small in shape and easy to install, which can filter more air under lower pressure and has good adaptability.

3. Simple maintenance, reducing maintenance costs.

4.Environmental friendly and healthy. It can effectively block harmful particles, such as dust, smoke, bacteria, viruses, etc., which ensures people's health and environmental cleanliness to a certain extent.

Product Details

Introduction:

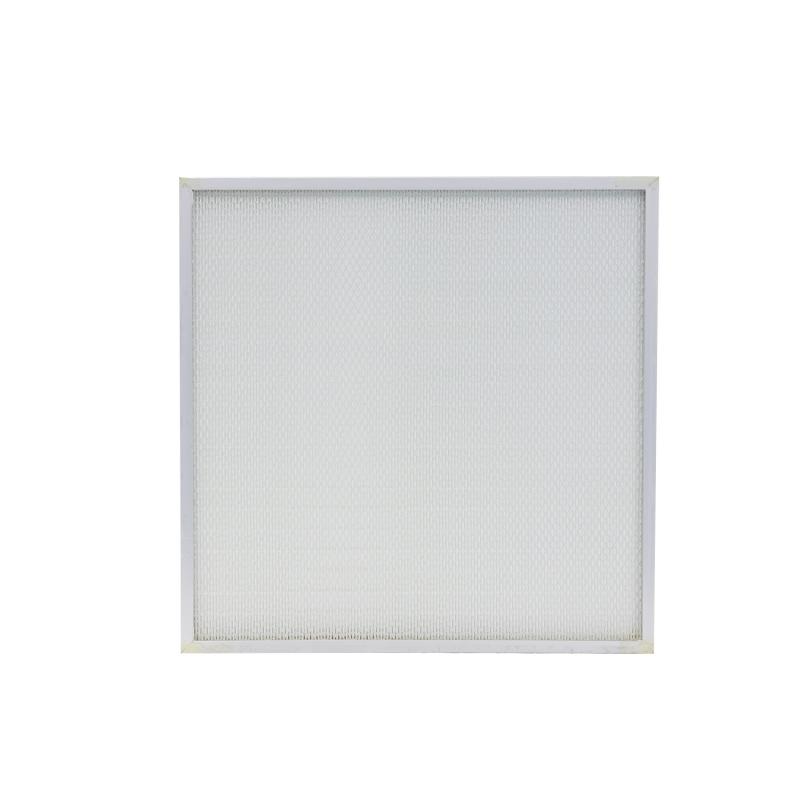

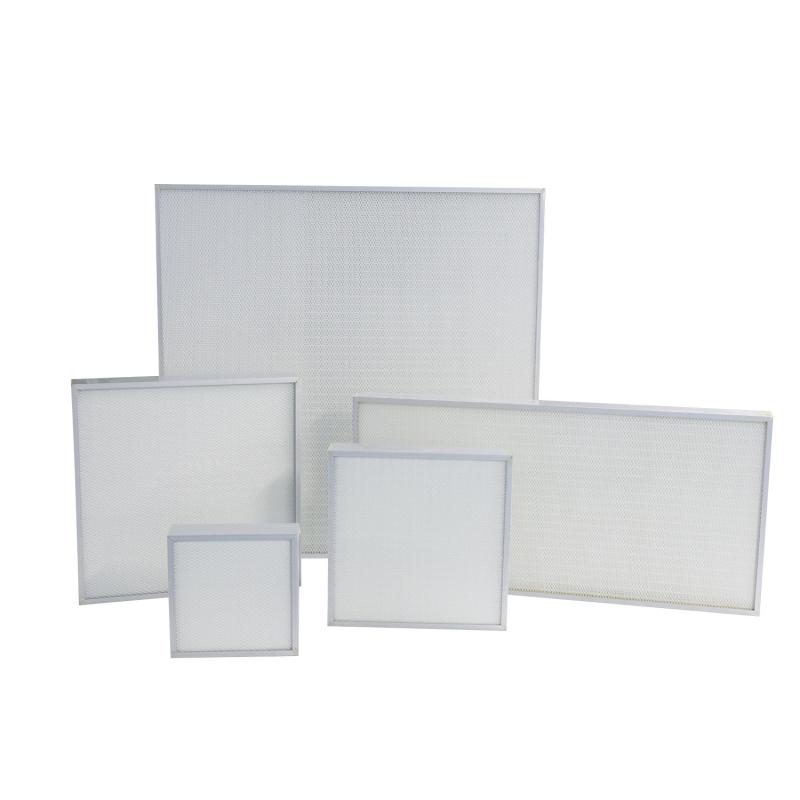

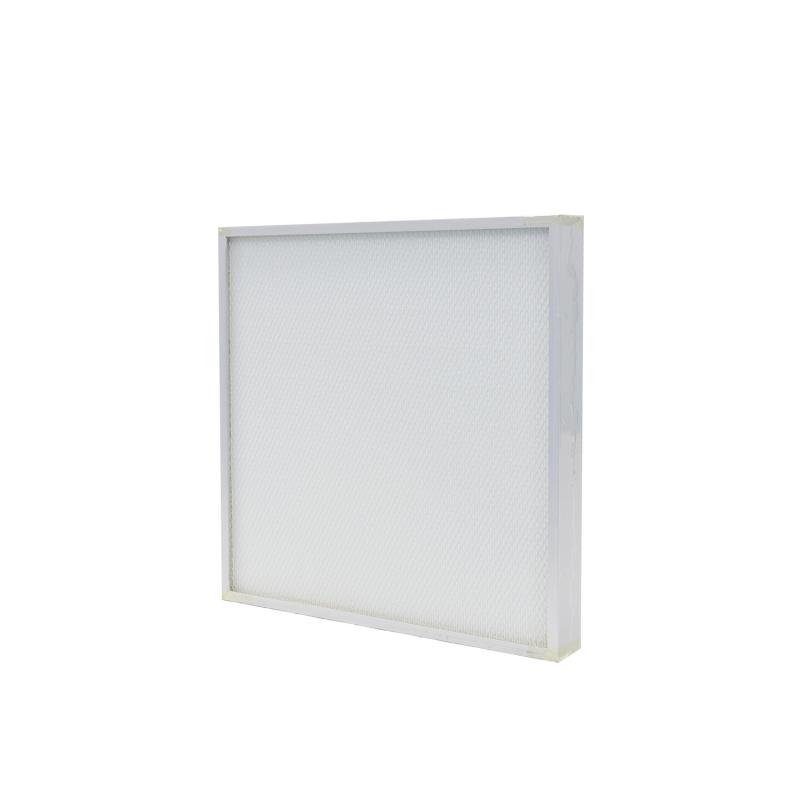

Mini Pleated Medium Efficiency Air Filter is a kind of high-efficiency and reliable air filter, its outer frame is made of galvanised iron or aluminium alloy, and the filter material is generally made of high-quality glass fibre, with a maximum temperature resistance of 70℃.

Mini Pleated Medium Efficiency Air Filter is a kind of filter which has been improved and carefully designed through years of technology.

Mini Pleated Medium Efficiency Air Filter

Common dimensions:

Nominal Size

WxHxD (in.)

ActualSize

WxHxD (in.)

Filter Rating

(EN779:2012)

Air flow (m³/h)

 Initial P.D (Pa)

Rec.Final P.D

(Pa)

12×24×2

287×592×50

M5

1450

65

350

24×24×2

592×592×50

2900

65

350

12×24×2

305×610×50

1600

65

350

24×24×2

610×610×50

3200

65

350

24×24×4

592×592×96

2900

60

350

24×24×4

610×610×96

3200

60

350

12×24×2

287×592×50

M6

1450

75

350

24×24×2

592×592×50

2900

75

350

12×24×2

305×610×50

1600

75

350

24×24×2

610×610×50

3200

75

350

24×24×4

592×592×96

2900

70

350

24×24×4

610×610×96

3200

70

350

12×24×2

287×592×50

F7

1450

120

350

24×24×2

592×592×50

2900

120

350

12×24×2

305×610×50

1600

120

350

24×24×2

610×610×50

3200

120

350

24×24×4

592×592×96

2900

90

350

24×24×4

610×610×96

3200

90

350

12×24×2

287×592×50

F8

1450

160

350

24×24×2

592×592×50

2900

160

350

12×24×2

305×610×50

1600

160

350

24×24×2

610×610×50

3200

160

350

24×24×4

592×592×96

2900

105

350

24×24×4

610×610×96

3200

105

350


Performance Characteristics:

1.Efficient filtration: mini pleated medium efficiency air filter has high efficiency filtration performance, which can effectively filter dust, smoke, bacteria, viruses and other harmful particles.

2. Stable performance: the filtration efficiency of the mini pleated medium efficiency air filter is stable and has a long service life, and the filtration precision will not be reduced due to the length of time it is used.

3. Low resistance: the unique design of the mini pleated medium efficiency air filter has low flow resistance and smooth air flow, which ensures the filtration efficiency without affecting the normal operation of the ventilation system.

4. Low maintenance cost: mini pleated medium efficiency air filters have low maintenance cost and can be used many times, only need to replace the filter material.


Applications:

Mini pleated medium efficiency air filter is an effective and practical air filter, which has a good competitive advantage in the filter market. With its unique design, stable performance and low maintenance cost, it is able to exert a better filtration effect in different application environments. It can meet the needs of different customers and give full play to its application value, providing a healthier and more comfortable environment for people's life and work.

Mini pleated medium efficiency air filter can filter a large number of pollutants and reduce the content of harmful substances in the air, which can ensure people's health and environmental cleanliness. It is suitable for industrial and commercial areas, hospitals, schools, public buildings and all kinds of plants with ventilation systems and other application environments.

Mini Pleated Medium Efficiency Air Filter

About us:

Snyli Environmental Technology (Shandong) Co.,Ltd is mainly engaged in all kinds of air filtration products, and is a supplier with independent R&D capability and production capacity in northern China. Main Products: air filters of all filtration classes,clean bench,clean booth,pass box,air shower, etc.
