Introduction:
Mini-Pleat Medium Efficiency Air Filters are used in general ventilation systems, where they are durable and inexpensive. Glass fiber filter paper is also a common material for this filter, the filter performance it makes is relatively stable, the filtration effect is good, the filtration efficiency is relatively stable, the suction effect is good, and the noise is particularly small in the process of use.

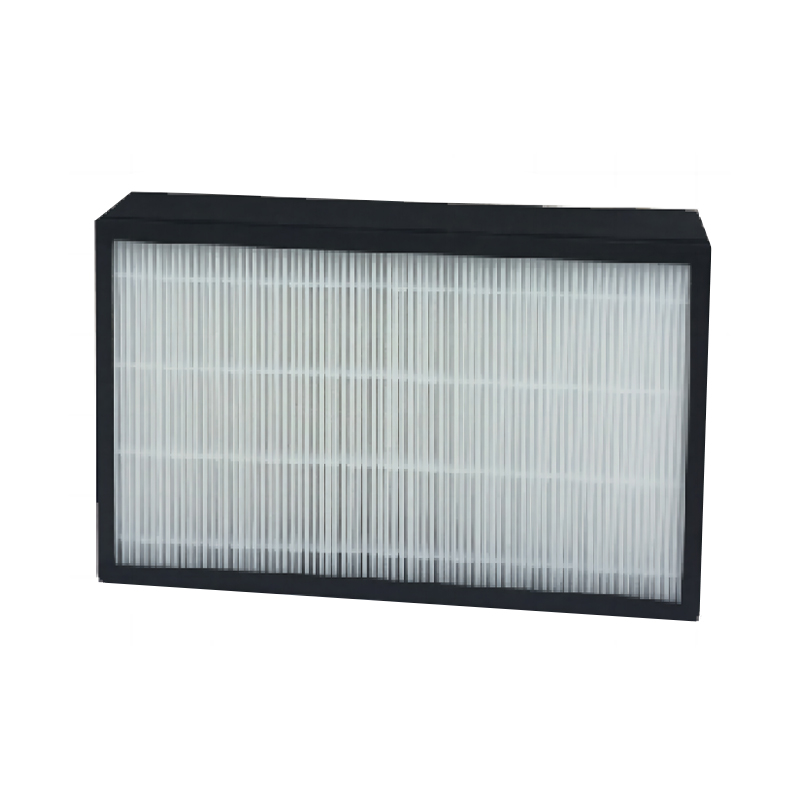

![Mini-Pleat Medium Efficiency Air Filter]( "Mini-Pleat Medium Efficiency Air Filter")

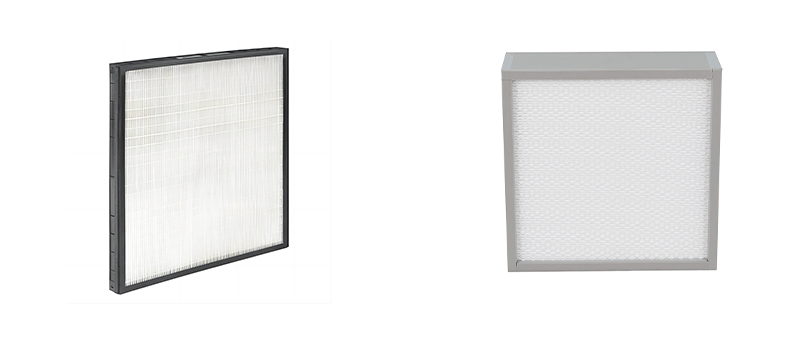

The outer frame of the medium efficiency densely pleated air filter is usually a galvanized iron frame or an aluminum frame, and the filter material is generally glass fiber. However, it can be customized according to the specific requirements of customers.
Parameters:
Nominal Size WxHxD (in.) | ActualSize WxHxD (in.) | Filter Rating (EN779:2012) | Air flow (m³/h) | Initial P.D (Pa) | Rec.Final P.D (Pa) |
12×24×2 | 287×592×50 | M5 | 1450 | 65 | 350 |
24×24×2 | 592×592×50 | 2900 | 65 | 350 |
12×24×2 | 305×610×50 | 1600 | 65 | 350 |
24×24×2 | 610×610×50 | 3200 | 65 | 350 |
24×24×4 | 592×592×96 | 2900 | 60 | 350 |
24×24×4 | 610×610×96 | 3200 | 60 | 350 |
12×24×2 | 287×592×50 | M6 | 1450 | 75 | 350 |
24×24×2 | 592×592×50 | 2900 | 75 | 350 |
12×24×2 | 305×610×50 | 1600 | 75 | 350 |
24×24×2 | 610×610×50 | 3200 | 75 | 350 |
24×24×4 | 592×592×96 | 2900 | 70 | 350 |
24×24×4 | 610×610×96 | 3200 | 70 | 350 |
12×24×2 | 287×592×50 | F7 | 1450 | 120 | 350 |
24×24×2 | 592×592×50 | 2900 | 120 | 350 |
12×24×2 | 305×610×50 | 1600 | 120 | 350 |
24×24×2 | 610×610×50 | 3200 | 120 | 350 |
24×24×4 | 592×592×96 | 2900 | 90 | 350 |
24×24×4 | 610×610×96 | 3200 | 90 | 350 |
12×24×2 | 287×592×50 | F8 | 1450 | 160 | 350 |
24×24×2 | 592×592×50 | 2900 | 160 | 350 |
12×24×2 | 305×610×50 | 1600 | 160 | 350 |
24×24×2 | 610×610×50 | 3200 | 160 | 350 |
24×24×4 | 592×592×96 | 2900 | 105 | 350 |
24×24×4 | 610×610×96 | 3200 | 105 | 350 |
Advantages:
Compared with ordinary filters, with pleated filters, fewer filters can be used under the same air volume, reducing costs, reducing installation space, and saving installation time.
The filter is made of ultra-fine, moisture-resistant, fire-resistant fiberglass material, and the hot melt adhesive guarantees the same pleated spacing, guaranteeing better airflow through with less resistance, and the same pleated spacing makes full use of the depth filter material, guaranteeing greater capacity.
The principle of filtration is adsorption, which is conducive to environmental protection and waste disposal.
Applications:
Mini-Pleat Medium Efficiency Air Filter is mainly used in central air conditioning or all kinds of factories with ventilation systems, in places where air purification and cleanliness requirements are not high, the air treated by the medium air filter can be directly sent to users.
Mini-Pleat Medium Efficiency Air Filter is widely used in central air conditioning ventilation system, pharmaceutical, hospital, electronics, food and other industrial purification, medium air filter can also be used as the front end of the high efficiency air filter, in order to reduce the load of the high efficiency air filter, extend its service life.
About us:

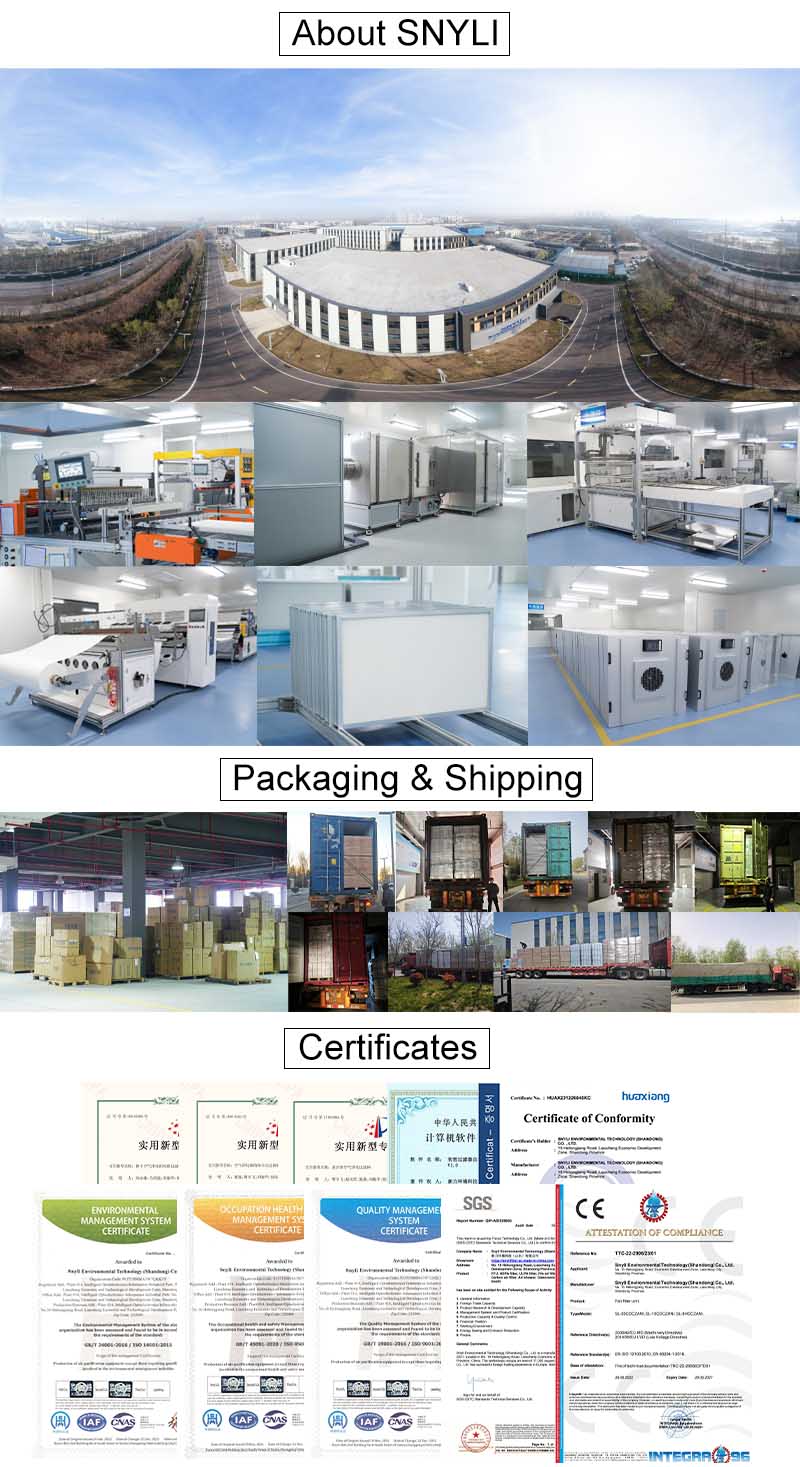

Snyli Environmental Technology (Shandong) Co., Ltd was established in 2010 and has an independent factory of more than 20,000 square meters in Liaocheng City. Independent clean production workshops and warehouses ensure high-quality goods and sufficient inventory, rich R&D experience and production experience make SNYLI always walk in the forefront of the purification industry.
