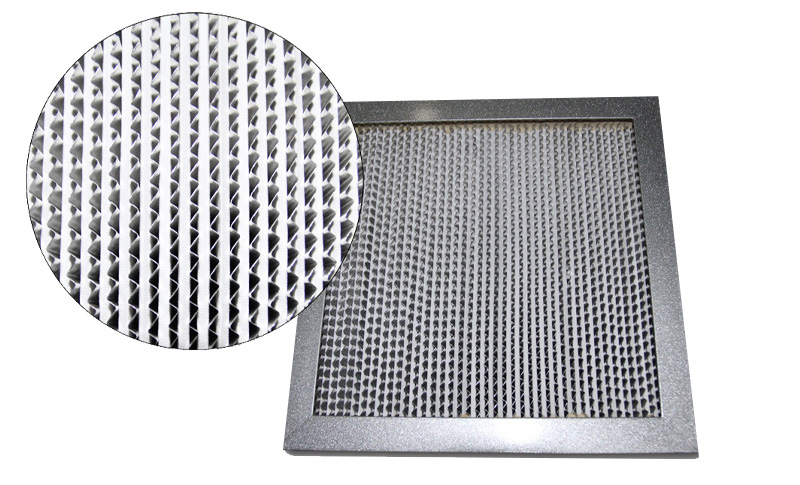

Deep Pleat Medium Efficiency Air Filter

Unique Advantages of Deep Pleat Medium Efficiency Air Filters

1. Separators can distribute the air flow to each filter media, making the air more fully in contact with the filter media and improving the filtration efficiency.

2. The design with separators can prevent the filter media from shifting, prolonging the service life of the filter.

3. Easy to maintain and clean, facilitating regular cleaning and maintenance, keeping the equipment running effectively and ensuring a long service life.

Contact Now E-Mail Telephone WhatsApp

Product Details

Introduction:

Deep Pleat Medium Efficiency Air Filters, i.e., separator filters.

The outer frame is usually aluminium, galvanised or stainless steel, the filter media is usually glass fibre and the separators are usually aluminium or paper.

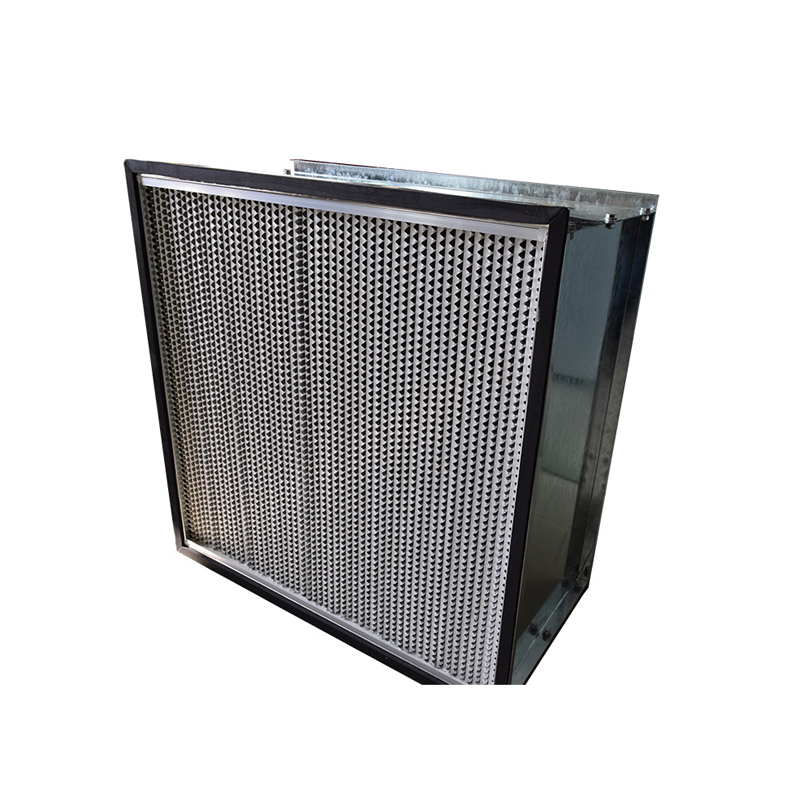

According to customer requirements, it can be made into various styles, such as box type, single flange type, double flange type.

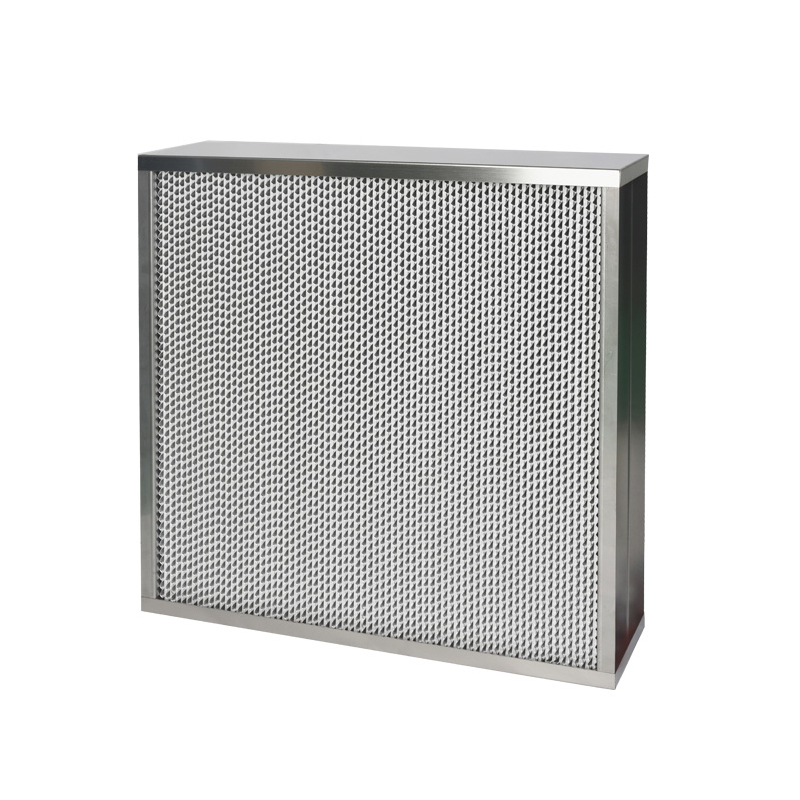

Deep Pleat Medium Efficiency Air Filter

Specification parameters:

Frame	Aluminium / Galvanized
Filter Media Material	Glass Fiber
Maximum temperature:	70ºC
Separator	Aluminium foil
Gasket	Seamless foamed polyurethane
Flame retardant grade	DIN 53438 Class F1
Applications	Suitable for air conditioning, industrial process technology systems, and individual air supply modules

ISO16890	Filtration level-EN779	Width (mm)	Height (mm)	Depth (mm)	Air Flow (m3/h)	Initial resistance (Pa)
ePM10 70%	M6	610	610	150	3400	65
ePM10 70%	M6	305	610	150	1700	65
ePM1 55%	F7	610	610	150	3400	100
ePM1 55%	F7	305	610	150	1700	100
ePM1 70%	F8	610	610	150	3400	130
ePM1 70%	F8	305	610	150	1700	130

Features:

1. Stable and efficient efficiency

The filtration efficiency is the standard for testing the quality of a filter, and the filtration efficiency of a filter is also affected by many factors, including the density of the filtering material, the size of dust particles, and the speed of wind.

The Deep Pleat Medium Efficiency Air Filter mainly uses a filter screen to intercept dust particles, and through electrostatic action, the dust particles adhere to the filter, and finally settle to achieve the purpose of air filtration. The presence of separators prevents secondary pollution caused by the dispersion of particles adhering to them.

2. Low resistance

A filter with a high resistance can have a negative impact on the filtering effect, as some particles do not have the means to adhere to the filter material by inertial or diffusive movement. And the Deep Pleat Medium Efficiency Air Filter has a lower resistance, to improve the filtration effect has some help.

3. High dust holding capacity

Deep Pleat Medium Efficiency Air Filters have a high dust holding capacity, which allows more dust particles to be held per unit area, which reduces the resistance of the filter material.

4. Good wind speed uniformity

Wind speed has a certain influence on the filtration effect.

Excessive wind speed will cause dust particles to pass through the filter material without being adsorbed, which defeats the purpose of filtration.

If the wind speed is too low, the dust particles that do irregular diffusion movement can not reach the surface of the filter material in a short time, and the filter can not do adsorption and settlement of these dust particles, which will also reduce the filtration efficiency.

The wind speed of SNYLI's Deep Pleat Medium Efficiency Air Filters is uniform, which will not cause these problems.

Applications:

Can be used as terminal filtration in cleanrooms with low purification requirements.
Can be used as intermediate filters in central ventilation systems to protect the back-end high-efficiency filters and prolong their service life.
