Glass Fiber Mini Pleat HEPA Air Filter

Advantages:

High filtration efficiency.The HEPA filter filters suspended airborne particles up to 0.3 microns with exceptionally good filtration.

Fine Particle Capture.HEPA filters focus on capturing fine particles such as germs, viruses, pollen, dust, etc. to ensure the cleanliness of indoor air.

Air Quality Enhancement.The use of HEPA air filters can significantly enhance the quality of indoor air and reduce the concentration of harmful particles in the air, which is beneficial to human health.

Contact Now E-Mail Telephone WhatsApp

Product Details

Introduction:

Glass Fiber Mini Pleat HEPA Air Filter is a kind of high-efficiency air filter, whose full name is high-efficiency particulate air filter. Its main function is to filter air suspended particles below 0.3μm, and it is the end filtration of various filtration systems, which can effectively filter airborne bacteria, viruses, pollen and other harmful particles.

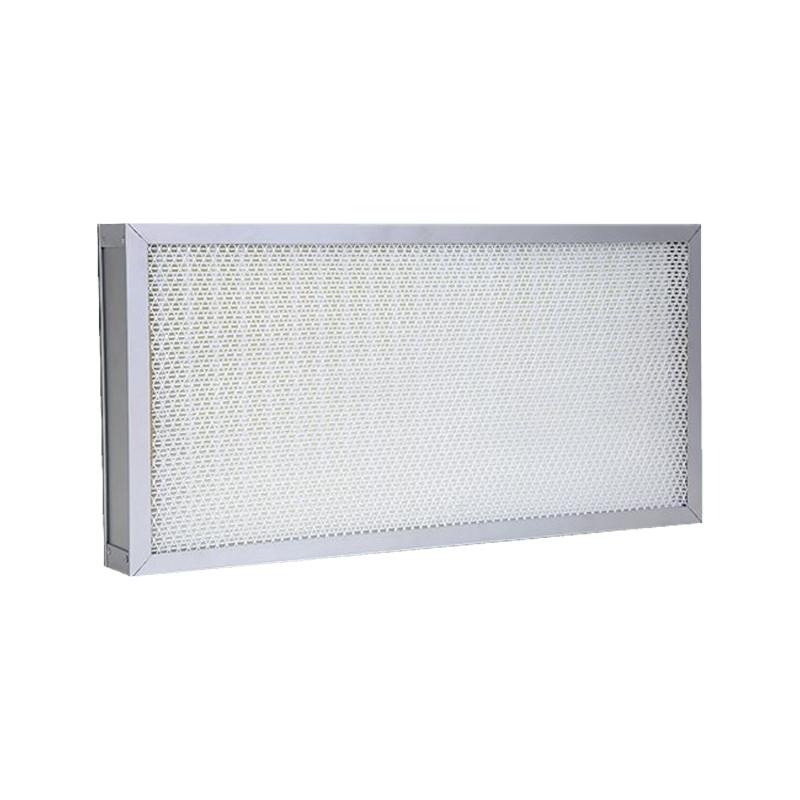

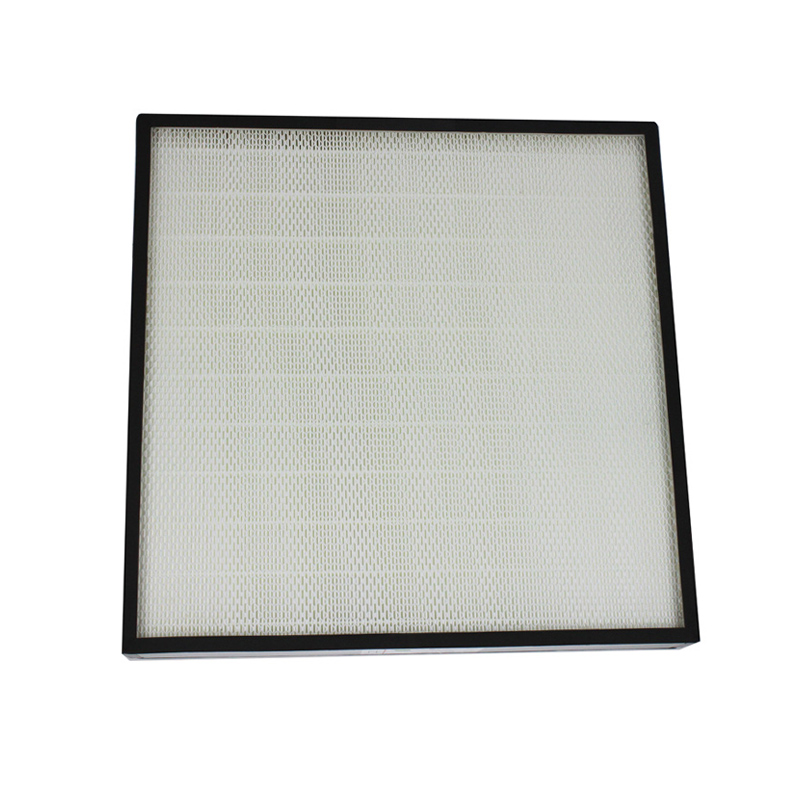

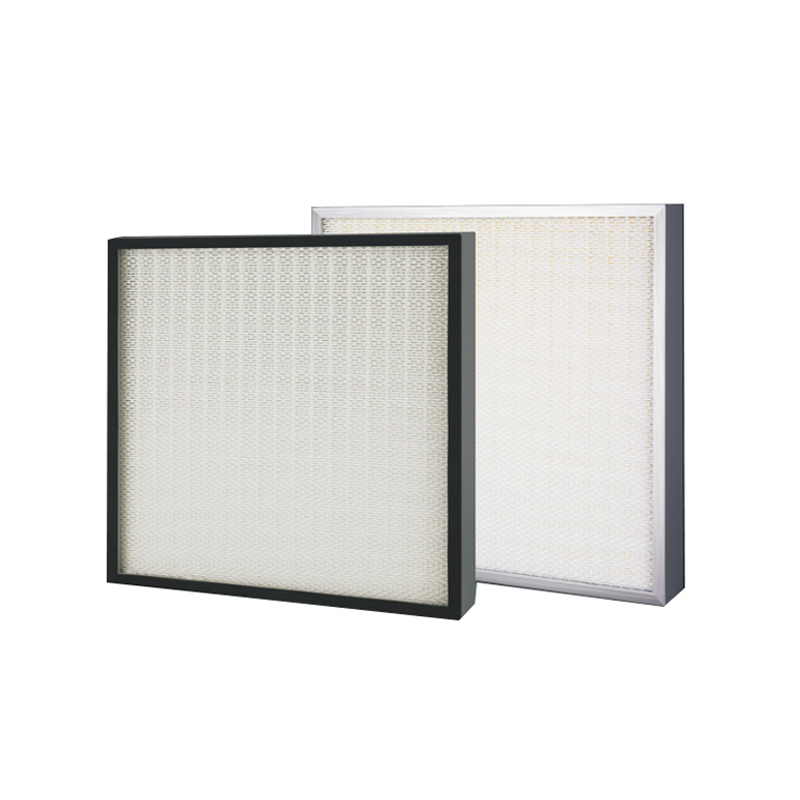

Glass Fiber Mini Pleat HEPA Air Filter

HEPA air filter adopts ultra-fine glass fiber filter paper as filter media, separated by hot melt adhesive, sealed by new polyurethane sealant, and matched with aluminium alloy frame. The fibre grid formed by the filter paper presents a tight structure that prevents fine particles below 0.3μm from entering the filter. In addition, HEPA air filters offer low airflow resistance, long service life and easy maintenance.

Common dimensions:

Nominal size	Actual size W×H×D(mm)	Air flow (m³/h)	Initial pressure drop(Pa)	Final pressure drop(Pa)
20×20×3	484×484×70	630	249Pa Face velocity 0.85m/sec	500Pa *Proposed value
25×25×3	630×630×70	1100	249Pa Face velocity 0.85m/sec	500Pa *Proposed value
23×47×3	570×1170×70	1000	110Pa Face velocity 0.45m/sec	220Pa *Proposed value
47×47×3	1170×1170×70	2100	110Pa Face velocity 0.45m/sec	220Pa *Proposed value
20×20×4	484×484×90	630	220Pa Face velocity 0.85m/sec	440Pa *Proposed value
25×25×4	630×630×90	1100	220Pa Face velocity 0.85m/sec	440Pa *Proposed value
23×70×4	570×1170×90	1000	98Pa Face velocity 0.45m/sec	100Pa *Based on FFU performance
70×70×4	1170×1170×90	2100	98Pa Face velocity 0.45m/sec	100Pa *Based on FFU performance

Maintenance & Replacement:

Air filters should be maintained according to the following standards

Regularly check the inlet surface of the filter for any clogging of debris and any damage to the surface of the filter media.

When the filter is installed, make sure that it is well sealed at the crimp with the frame to prevent leakage.

Do not hit the surface of the filter with heavy objects and do not pull the surface of the filter media with force.

HEPA filters should be replaced when any of the following conditions occur

1. The airflow rate is reduced to a minimum. Even if the primary and medium efficiency air filters are replaced, the airflow rate still cannot be increased.

2. The resistance of the high-efficiency air filter reaches 1.5 times to 2 times of the initial resistance.

3. The high-efficiency air filter has leakage that cannot be repaired.

Applications:

Widely used in places where clean air environment is required, such as medical, pharmaceutical, laboratory, aerospace and other fields.

About us:

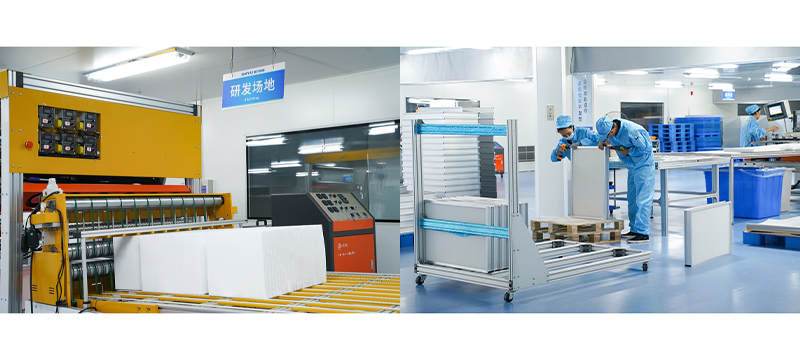

Snyli Environmental Technology (Shandong) Co.,Ltd has been in the air purification industry for more than ten years, and has mastered a number of patented technologies, and has its own unique advantages in the research and development and production of air filtration products. If you are interested in purchasing, please feel free to contact us.

Snyli Environmental Technology (Shandong) Co.,Ltd
