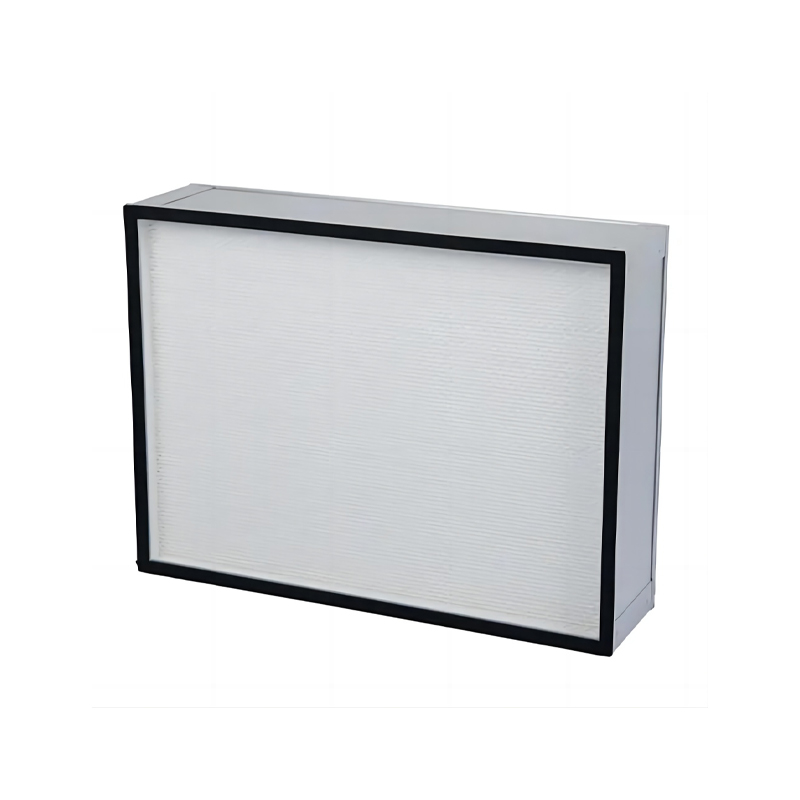

Mini Pleat HEPA Air Filter

Advantage:

Low pressure drop

High efficiency

Low operating costs

Patented technology ensures high dust suppression and low resistance

Contact Now E-Mail Telephone WhatsApp

Product Details

Introduction:

Mini Pleat air filters use adsorption to purify the air. From the outside, these filters are particularly compact, so installation is not a problem even when space is at a premium. At the same time, it has a good filtering effect, not only a large filtering area, but also low resistance, which makes it popular and loved by many customers.

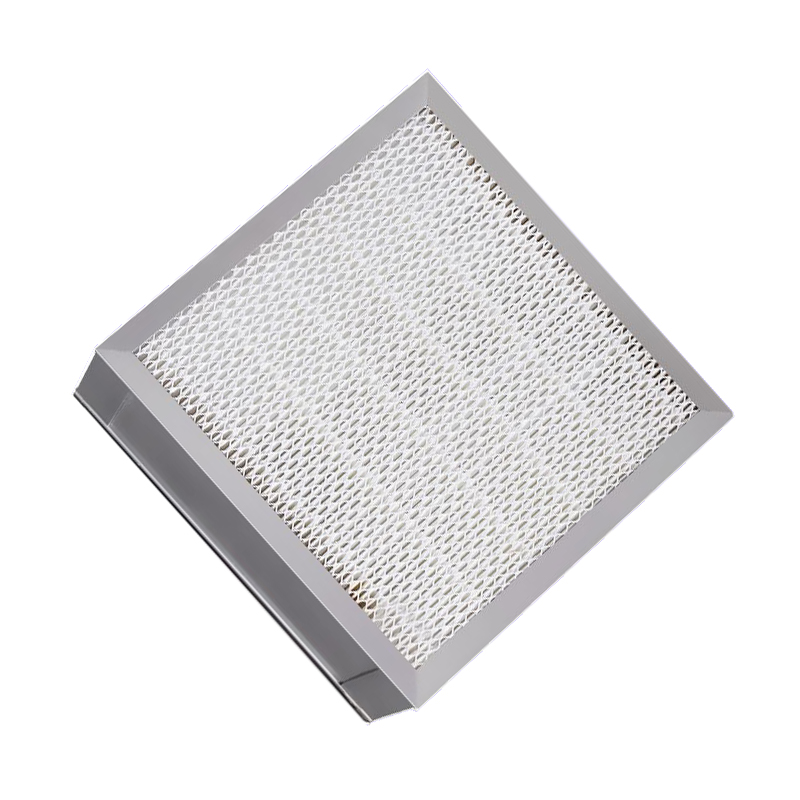

Mini Pleat HEPA Air Filter

The stability of the pleated filter is strong, it can be used for a long time, and has a high cost performance ratio. From the perspective of filter materials, using ultra-fine glass fiber filter materials can meet most of the market's cleaning needs.

Features:

Type	Mini Pleat HEPA Air Filter
Frame	Galvanized iron, aluminum frame, stainless steel frame, paper frame
Filter material	Ultra fine fiberglass filter paper
Divider	Hot melt adhesive
Filter level	H11-H14
DIN 53438 Flammability	F1
Recommended final resistance	500Pa
Maximum air volume	125% of rated air volume
Maximum operating temperature	60℃
Maximum relative humidity	80％
Application	Fine particle filtration in clean rooms

Specifications:

Filter grade	DOP efficiency	Size			Filter area (m²)	Rated air volume (m3/h)	Initial pressure drop (Pa)
Filter grade	DOP efficiency	Length(mm)	Height (mm)	Depth (mm)	Filter area (m²)	Rated air volume (m3/h)	Initial pressure drop (Pa)
H12	99.95％	610	610	50	7	450	110
H12	99.95％	610	610	70	10	600	110
H12	99.95％	610	610	90	14	900	110
H14	99.995％	610	610	50	7	450	130
H14	99.995％	610	610	70	10	600	130
H14	99.995％	610	610	90	14	900	130

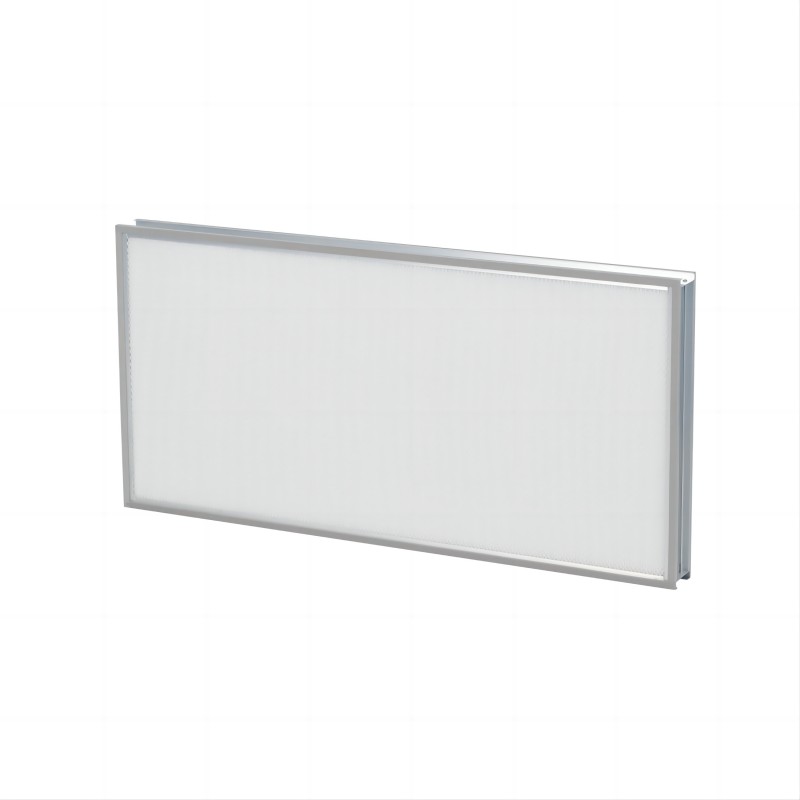

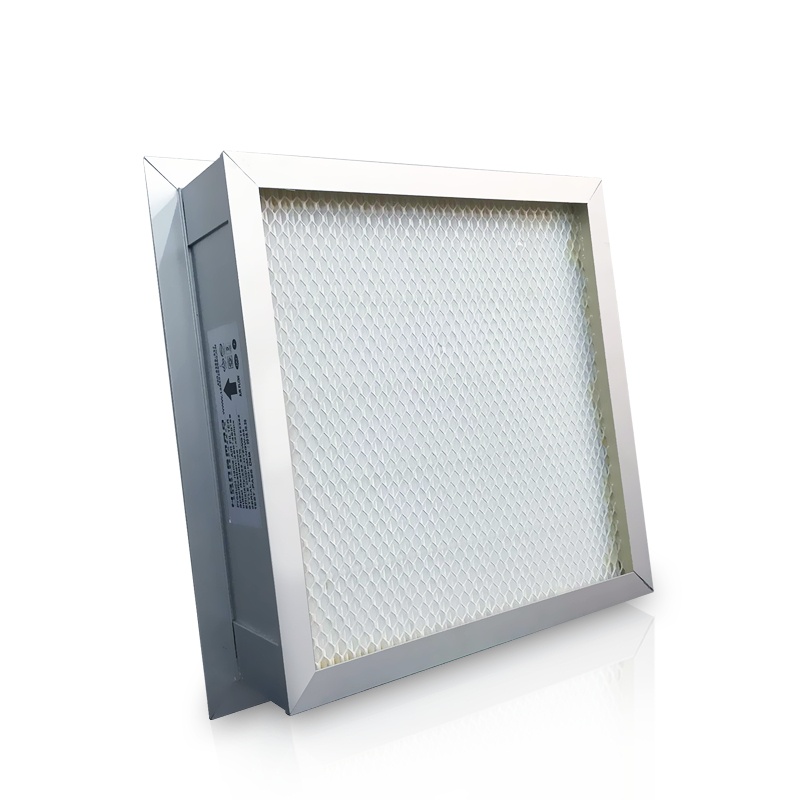

Mini Pleat HEPA Air Filter

Applications:

Widely used for end filtration in civil or industrial purification sites with high cleanliness requirements, such as electronics, semiconductors, pharmaceuticals, hospitals, food and other industries.
