Interlocked Pass Box

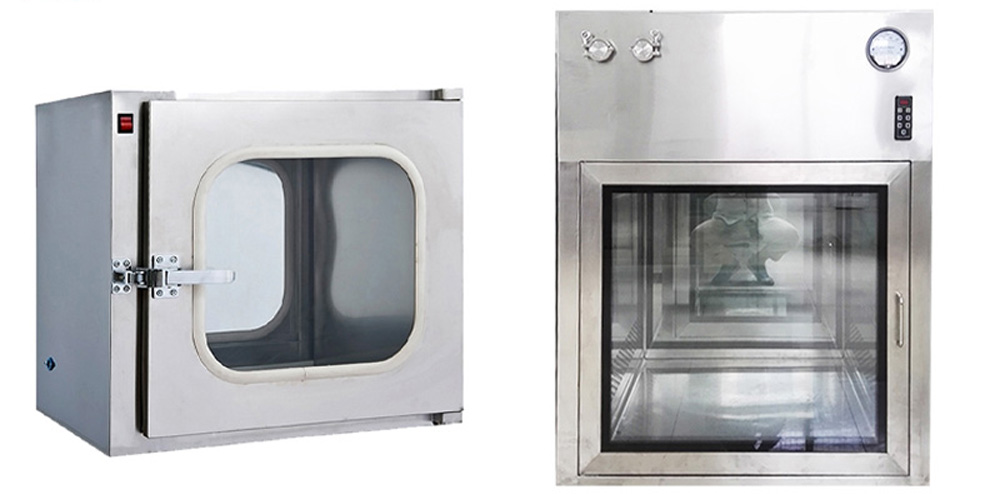

The Interlocked Pass Box is essential for material transfer between cleanroom zones of different cleanliness classifications. Its electronic or mechanical interlocking system prevents both doors from opening simultaneously, avoiding cross-contamination. Can be equipped with HEPA filtration and optional UV sterilization, it ensures safe and clean transfer processes, widely used in pharmaceuticals, biotechnology, and electronics.
Introduction:
The Interlocked Pass Box is an auxiliary equipment used in cleanrooms. It is mainly used for transferring small items between clean areas, as well as between non-clean areas and clean areas, so as to reduce the number of times the cleanroom door is opened and minimize contamination in the clean area. Pass-through boxes are widely used in micro-technology, biological laboratories, pharmaceutical factories, hospitals, food processing plants, LCD manufacturing, electronics factories, and all other places that require air purification.
Type | Size | Description |
Mechanical interlock pass box | Outer size: 780 ×600 ×690mm Working area: 600 ×600 ×600mm | Mechanical interlock Case main material: excellent technology cold rolled steel plate+ surface electrostatic spray treatment+ matter white finish |
Electromagnetic interlock pass box | Outer size: 780 ×600 ×690mm Working area: 600 ×600 ×600mm | Mechanical interlock Electromagnetic main material: excellent technology cold rolled steel plate+ surface electrostatic spray treatment+ matter white finish |
Floor type mechanical interlock pass box | Outer size: 1185 × 1000 × 1045mm Working area: 1000 × 1000 × 1000mm | Mechanical interlock Case main material: excellent technology cold rolled steel plate+ surface electrostatic spray treatment+ matter white finish |
Air shower mechanical interlocking pass box | Outer size: 980 × 700 × 1800mm Working area: 600 × 700 ×600mm | Mechanical interlock Case main material: excellent technology cold rolled steel plate+ surface electrostatic spray treatment+ matter white finish Air speed: above 22m/s 4 pcs of nozzle Shower period: 0.35s adjustable 380V/50HZ 3 phases Power: 0.75Kw |
Common Model:
Dimension(mm)-Mechanically interlocked pass-through box | ||
Model: External 400 | Outer : 400 (W) × 400 (D) × 400 (H) | Inner : 280 (W) × 320 (D) × 320 (H) |
Model: External 500 | Outer : 500 (W) × 500 (D) × 500 (H) | Inner : 380 (W) × 420 (D) × 420 (H) |
Model: External 600 | Outer : 600 (W) × 600 (D) × 600 (H) | Inner : 480 (W) × 520 (D) × 520 (H) |
Model: External 700 | Outer : 700 (W) × 700 (D) × 700 (H) | Inner : 580 (W) × 620 (D) × 620 (H) |
Model: External 800 | Outer : 800 (W) × 800 (D) × 800 (H) | Inner : 680 (W) × 720 (D) × 720 (H) |
Model: Internal 400 | Inner : 400 (W) × 400 (D) × 400 (H) | Outer : 520 (W) × 470 (D) × 480 (H) |
Model: Internal 500 | Inner : 500 (W) × 500 (D) × 500 (H) | Outer : 620 (W) × 570 (D) × 580 (H) |
Model: Internal 600 | Inner : 600 (W) × 600 (D) × 600 (H) | Outer : 720 (W) × 670 (D) × 680 (H) |
Model: Internal 700 | Inner : 700 (W) × 700 (D) × 700 (H) | Outer : 820 (W) × 770 (D) × 780 (H) |
Model: Internal 800 | Inner : 800 (W) × 800 (D) × 800 (H) | Outer : 920 (W) × 870 (D) × 880 (H) |
Technical Parameters:
1. Cabinet material: Exterior - cold rolled steel with powder coating; Interior-304 stainless steel; or 304 stainless steel for both interior and exterior.
2. Door material: 304 stainless steel
3. Viewing window: tempered glass window
4. Lock: 8mm round steel mechanical interlock or imported electronic interlock
5. Optional configurations:
Available in all 304 stainless steel construction
UV germicidal lamp
Buzzer
Intercom
Product Advantages:
The Interlocked Pass Box provides a robust barrier against contamination during material transfer, offering distinct operational and safety advantages.
1.Mechanical Interlock Device:
The mechanical interlock prevents both doors from being opened at the same time, ensuring safety and peace of mind.
2.Transparent and Wide Glass Window:
The large viewing window provides a clear, unobstructed view for easy observation, ensuring safety and reliability.
3.Sealing Gasket:
Full-perimeter sealing gasket made of safe, non‑hazardous material. Qualified and reliable for airtight performance.
4.Power Interface:
Convenient to use and easy to replace.
5.UV Germicidal Lamp:
Built‑in UV germicidal lamp provides full‑coverage irradiation with no blind spots, effectively eliminating bacteria.
Application Areas:
Designed for critical controlled environments, the Contamination Control Pass Box is deployed across industries where material integrity and zone isolation are non-negotiable.

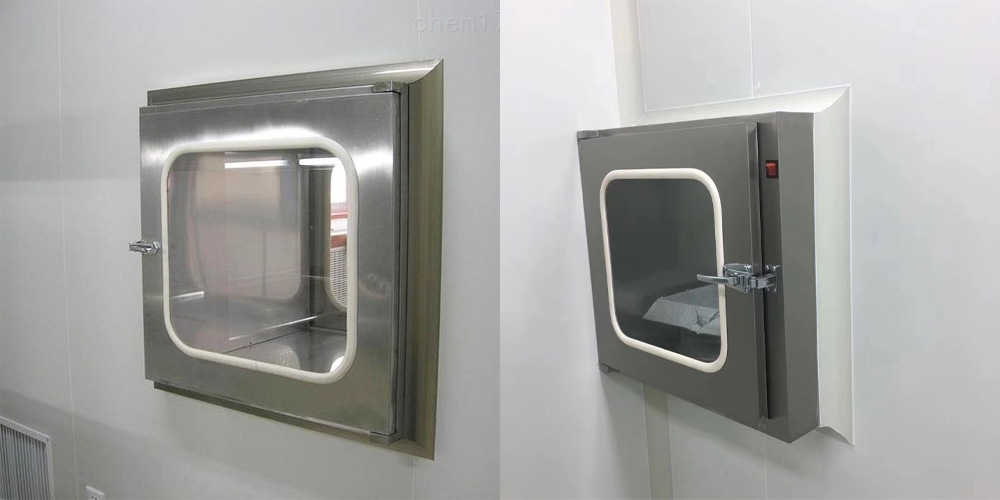

The cleanroom pass-through boxes are widely used in microtechnology, biological laboratories, pharmaceutical factories, hospitals, food processing plants, LCD manufacturing, electronics factories, and all other places that require air purification.
