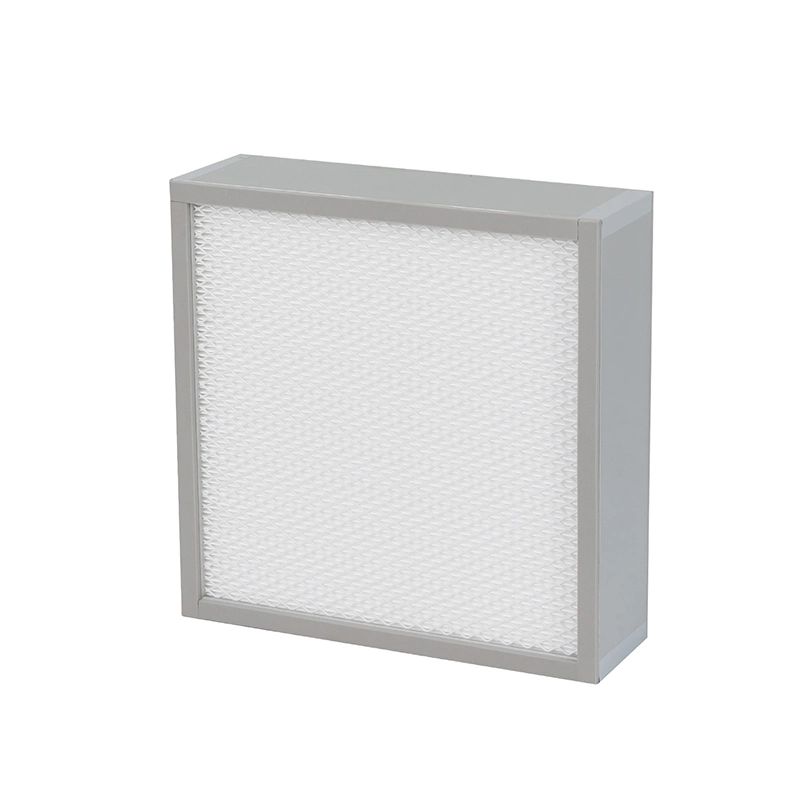

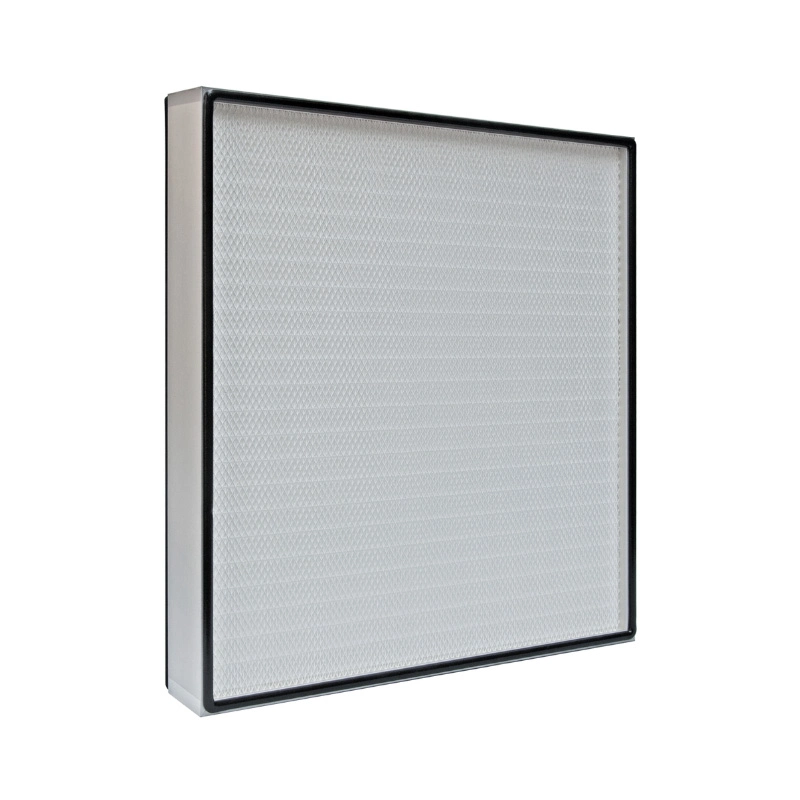

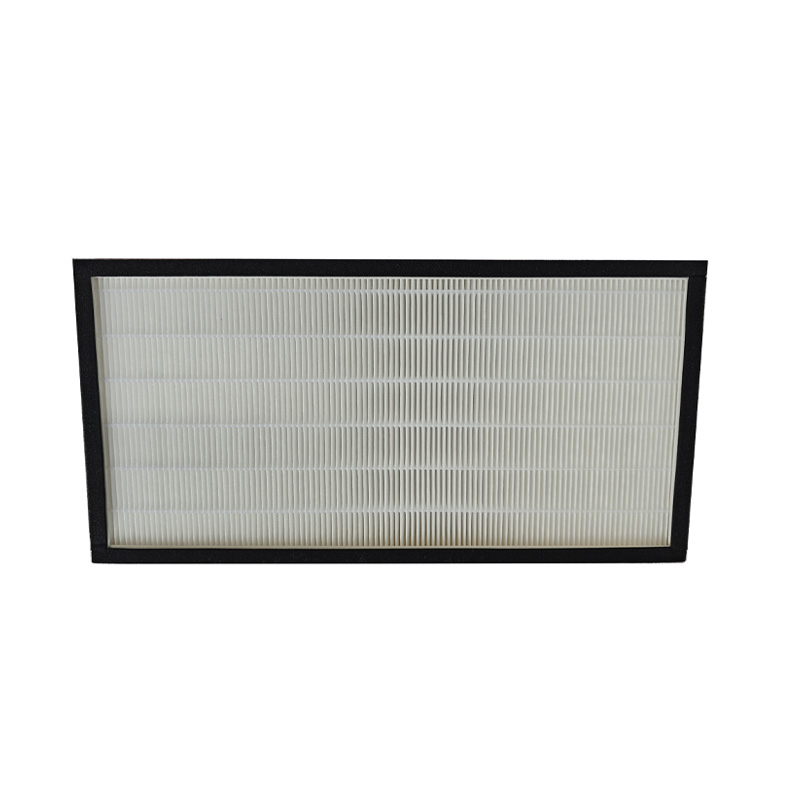

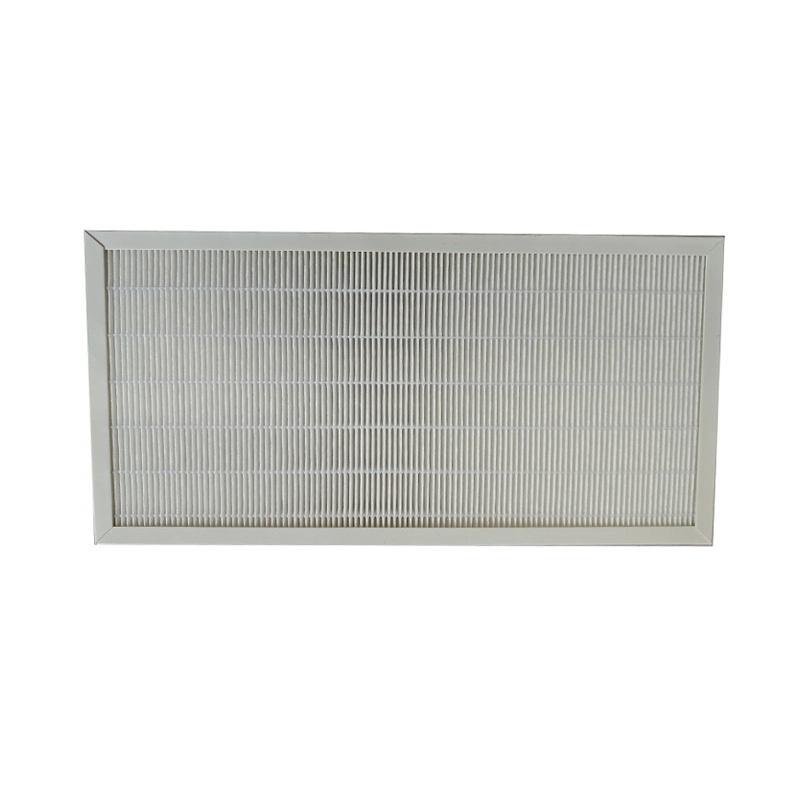

Mini Pleated Panel Filter

Advantages:

1. Compact structure: Mini pleat design, smaller size, save installation space, suitable for space-restricted occasions.

2. High efficiency and low resistance: Utilizing high-quality filter materials, it features a relatively high filtration efficiency (such as F6-F9 grades) while maintaining a low air resistance, achieving energy conservation and consumption reduction.

3. Lightweight: Compared with the separator filter, it is lighter in weight, making it easier to handle and install.

4. Large dust holding capacity: The filter material has a high folding density, which can hold more dust and extend its service life.

Contact Now E-Mail Telephone WhatsApp

Product Details

Introduction:

Mini Pleated Panel Filter adopts compact folded filter media structure, featuring small size, light weight, low wind resistance, etc. It can effectively filter airborne particles (e.g. dust, pollen, etc.), and the filtration efficiency usually reaches F9.

Compared with the separator design, it saves space, holds more dust, saves energy and reduces consumption. Mini pleat air filter is widely used in commercial air conditioning, clean rooms, hospitals, electronic factories and other places with requirements for air cleanliness, and at the same time is easy to maintain and is economical and environmentally friendly.

Basic parameters
Frame	Anodized aluminum profile/cardboard
Media	Ultra fine glass fiber/synthetic fiber
Media guard	Aluminium mesh/Painting fished expanded mesh
Efficiency	M5 (EN 799), 40-60% / MERV 10 (ASHRAE 52.2) M6 (EN 779), 60-80% / MERV 11-12 (ASHRAE 52.2) F7 (EN 779), 80-90% / MERV 13 (ASHRAE 52.2) F8 (EN 779), 90-95% / MERV 14 (ASHRAE 52.2) F9 (EN 779), >95% / MERV 15-16 (ASHRAE 52.2)
Maximum temperature	70℃
Maximum relative humidity	100%
Customized size	Available

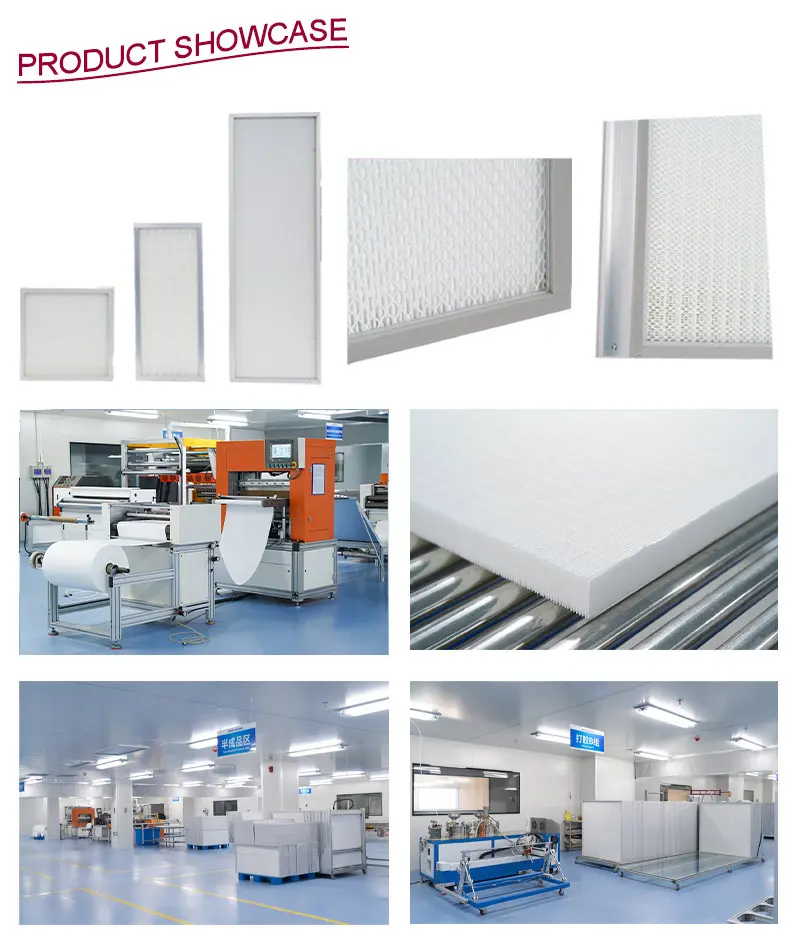

Mini pleat air filter

Common dimensions:

Nominal Size WxHxD (in.)	ActualSize WxHxD (in.)	Filter Rating (EN779:2012)	Air flow (m³/h)	Initial P.D (Pa)	Rec.Final P.D (Pa)
12×24×2	287×592×50	M5	1450	65	350
24×24×2	592×592×50		2900	65	350
12×24×2	305×610×50		1600	65	350
24×24×2	610×610×50		3200	65	350
24×24×4	592×592×96		2900	60	350
24×24×4	610×610×96		3200	60	350
12×24×2	287×592×50	M6	1450	75	350
24×24×2	592×592×50		2900	75	350
12×24×2	305×610×50		1600	75	350
24×24×2	610×610×50		3200	75	350
24×24×4	592×592×96		2900	70	350
24×24×4	610×610×96		3200	70	350
12×24×2	287×592×50	F7	1450	120	350
24×24×2	592×592×50		2900	120	350
12×24×2	305×610×50		1600	120	350
24×24×2	610×610×50		3200	120	350
24×24×4	592×592×96		2900	90	350
24×24×4	610×610×96		3200	90	350
12×24×2	287×592×50	F8	1450	160	350
24×24×2	592×592×50		2900	160	350
12×24×2	305×610×50		1600	160	350
24×24×2	610×610×50		3200	160	350
24×24×4	592×592×96		2900	105	350
24×24×4	610×610×96		3200	105	350

Features:

1. High-efficiency filtration: the filtration efficiency reaches F6-F9 (EN 779 standard), which can effectively intercept PM2.5, pollen, dust and other particles.

2. Low wind resistance design: optimised filter structure, ensuring filtration efficiency while reducing airflow resistance and energy consumption.

3. Large dust capacity: High-density folded filter media structure, prolonging the service life and reducing the frequency of replacement.

4. Lightweight and compact: no partition design, small size, light weight, easy to install and maintain.

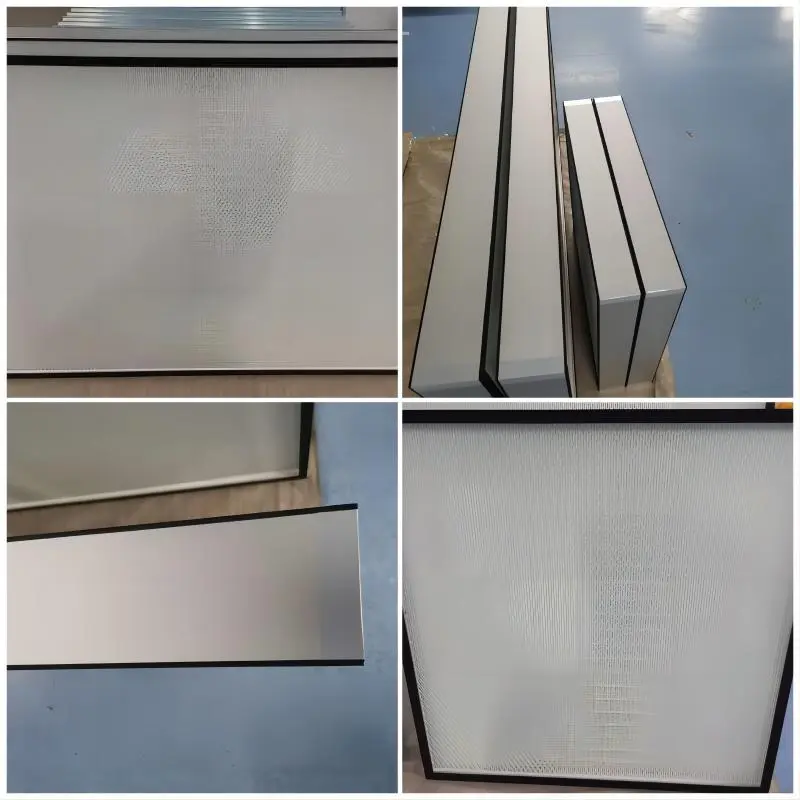

Mini pleat filter

Applications:

1. Commercial and office buildings: Mini pleat filter can be applied in central air conditioning system to improve indoor air quality.

2. Hospitals and laboratories: Mini pleat air filter can be applied in operating theatres, clean corridors, etc. to prevent bacterial and particle pollution.

3. Electronic and pharmaceutical workshops: Mini Pleated Panel Filter can be used in clean room pre-filtration to protect the production environment.

4. Industrial plants: Used in air purification for spraying, food processing and other industries.

5. Public places: Used in schools, hotels, shopping malls, etc., to improve the filtration effect of ventilation system.

Applications

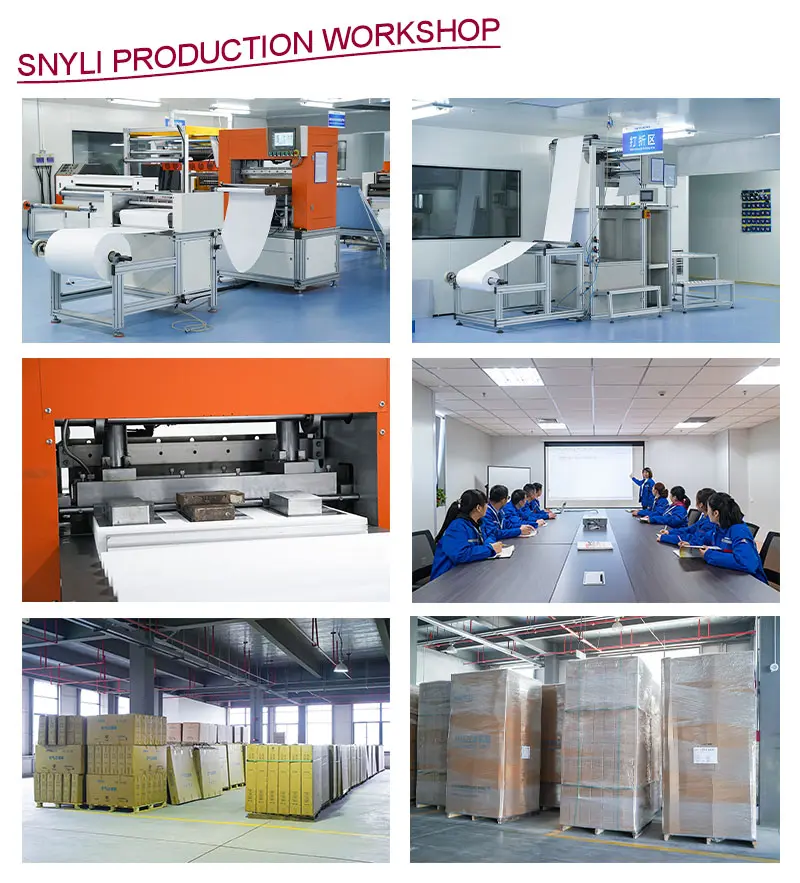

SNYLI Production Workshop:

SNYLI factory is located in Liaocheng City, Shandong Province, China, with several independent clean production workshops, including FFU workshop, primary filter workshop, bag filter workshop, HEPA filter workshop and so on.

Professional technical team, independent warehouse and perfect service make SNYLI's popularity in the air filtration industry increasing.
