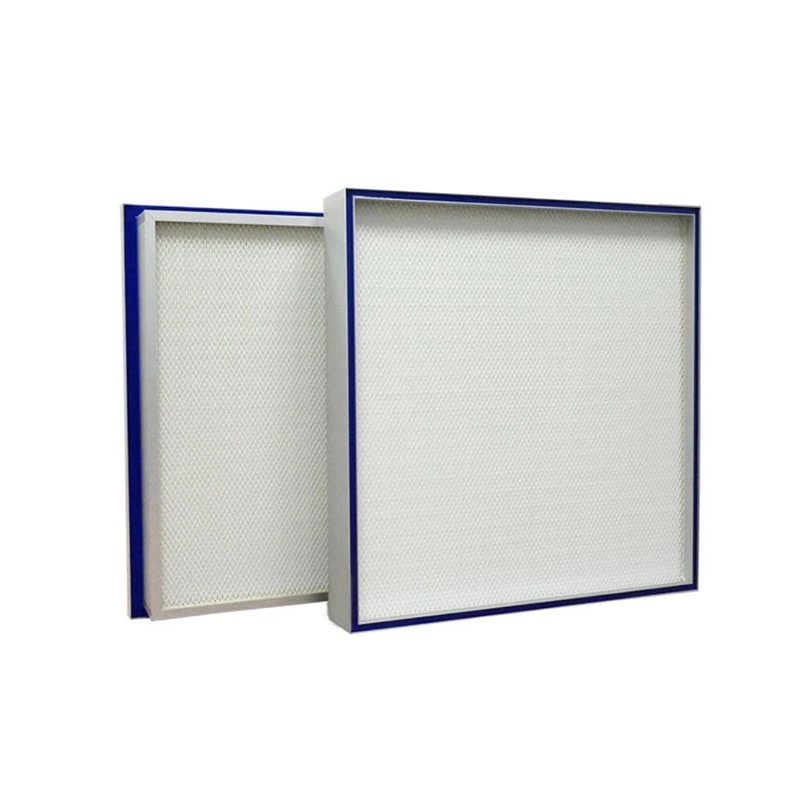

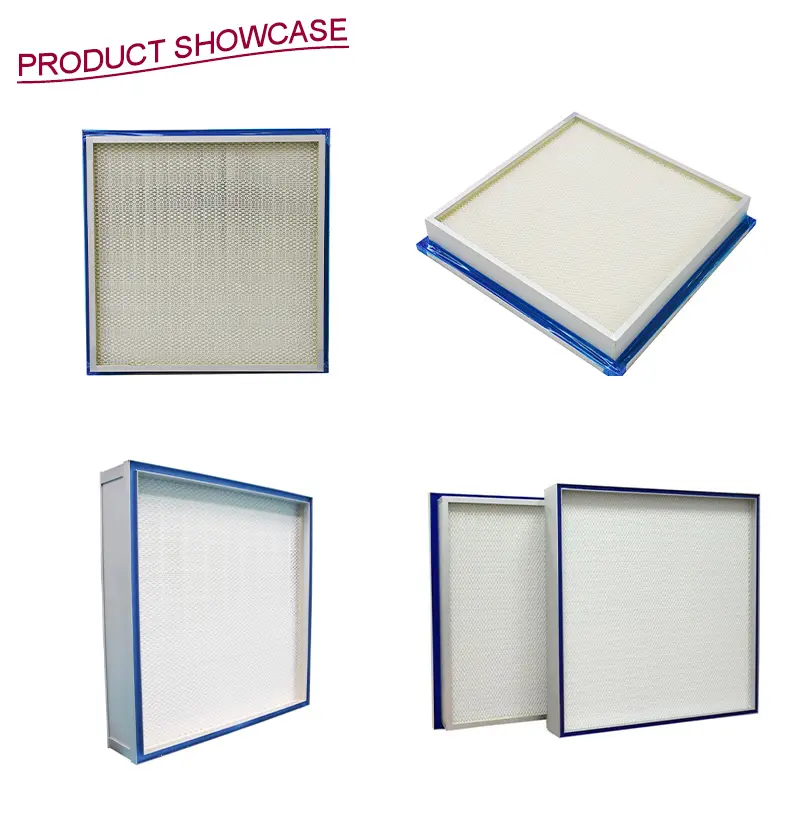

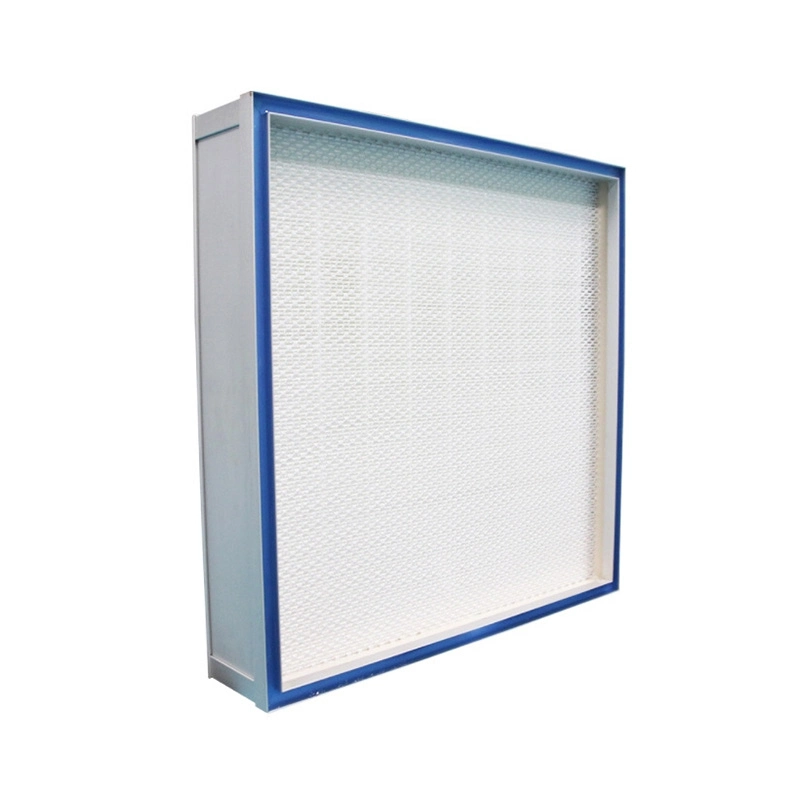

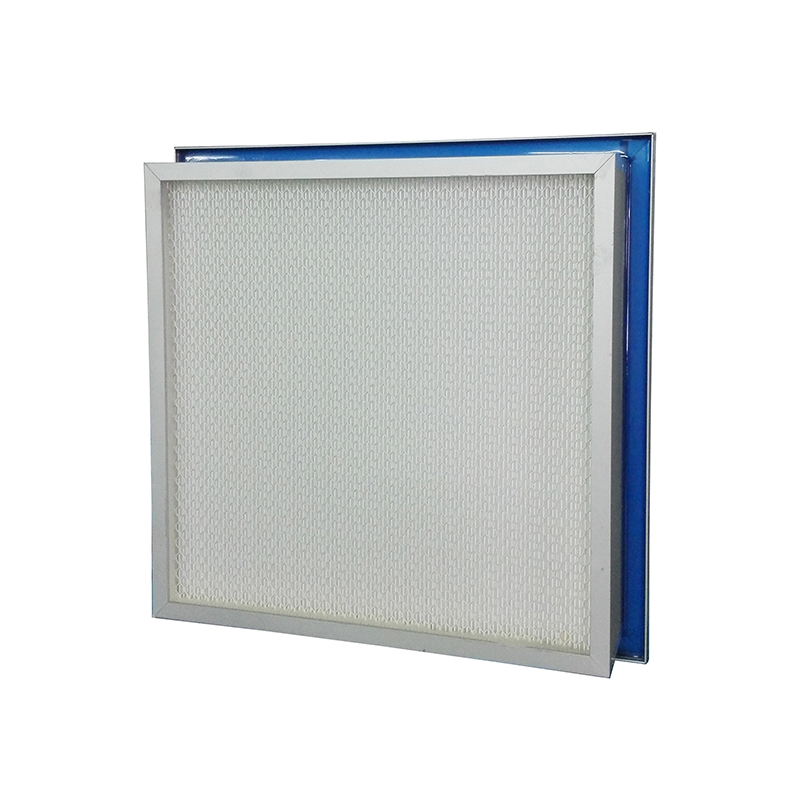

HEPA Gel Seal Filter

Advantages:

1.The design of Gel Seal can provide better sealing performance, prevent leakage and improve filtration efficiency.

2. It can maintain stable sealing performance for a long time without seal failure due to aging and deformation.

3. It can adapt to different installation environments and temperature changes, maintain good sealing performance and not be affected by environmental factors.

Product Details

Introduction:

HEPA Gel Seal Filter is mainly used to capture tiny particles in the air, including dust, pollen, etc. Its filtration efficiency is usually able to reach more than 99.97%, which can effectively purify the air, provide a clean environment and reduce the impact of air pollution on human health.

HEPA Gel Seal Filter

Frame

Anodized aluminum profile

Protective net

Double-sided

Std. EN1822:2009

H13 / H14 / U15

Efficiency

99.99%,99.999% at 0.3μm,

99.9995% at 0.12μm

(DOP/PSL/PAO Counting method)

Sealant

Urethane gel sealant

Filter media

Ultrafine Glass Fibre

Separator

Hot melt

Maximum temperature

80℃

Maximum relative humidity

100% RH (non-condensing condition)

Gasket

EPDM

Customized size

Available

Style

Top gel seal, side gel seal

Tested one by one before leaving the factory and can be delivered only after passing the test. Reliable quality, stable performance, can be customised with non-standard size.

The HEPA Gel Seal Filter is a widely used air filtration device in high cleanliness environments. Its unique Gel Seal design not only improves filtration efficiency, but also enhances sealing performance.


Common dimensions:

 Dimensions

(mm)

Gel Seal Method

Rated Air flow

(m³/h)

Initial Resistance

(Pa)

H14U15

412*412*93

Side gel seal

500

240

260

631*631*93

1200

240

260

758*631*93

1500

240

260

1026*631*93

2000

240

260

610*305*95(85+15)

Top gel seal

500

240

260

610*610*95(85+15)

1200

240

260

762*610*95(85+15)

1500

240

260

915*610*95(85+15)

1800

240

260


Different structures:

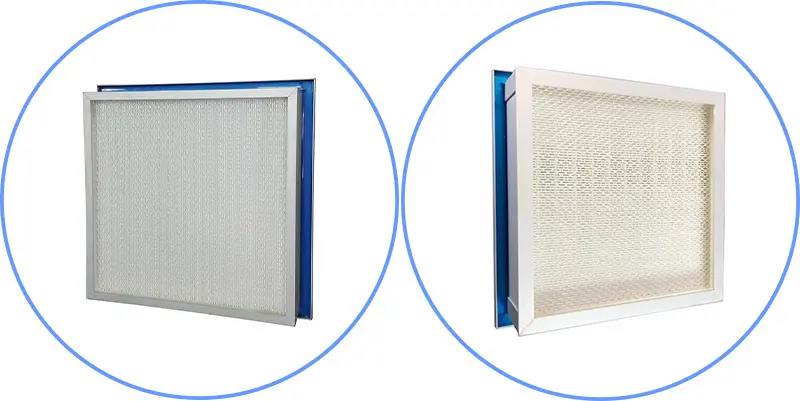

Side Gel Seal type

Side Gel Seal HEPA Filter

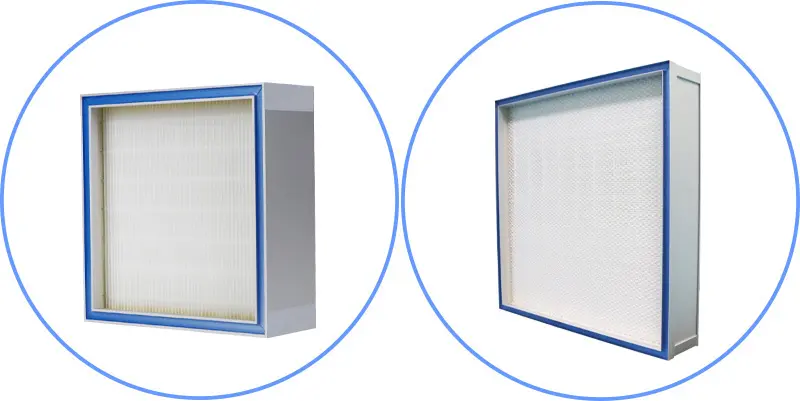

Top Gel Seal type

Top Gel Seal HEPA Filter


Performance Features:

1.High-efficiency filtration capacity: HEPA Gel Seal Filter can efficiently capture tiny particles in the air, and the filtration efficiency usually reaches more than 99.97%, which can effectively isolate dust, pollen and other tiny particles to ensure clean air.

2. Provide a clean environment: Through efficient filtration, HEPA Gel Seal Filter can effectively purify the air and provide a clean indoor environment, allowing people to breathe fresh air and reduce the health impact of harmful substances in the air.

3. Reduce air pollution: HEPA Gel Seal Filter can effectively reduce the concentration of tiny particles in the air, reduce the degree of air pollution, protect the human respiratory system and prevent respiratory diseases.


Application places:

1. Healthcare: In hospitals, laboratories, pharmaceutical factories and other places, HEPA Gel Seal Filter is used to ensure that airborne microorganisms and particles are effectively captured, providing a sterile environment.

2. Industrial production: In industrial environments such as electronic plants, clean rooms, spraying shops, etc., HEPA Gel Seal Filter is used to control airborne particles and ensure product quality.

3. Commercial buildings: In commercial buildings, HEPA Gel Seal Filter is used in central air-conditioning systems and ventilation systems to ensure indoor air quality and provide a clean working and living environment.

Application places

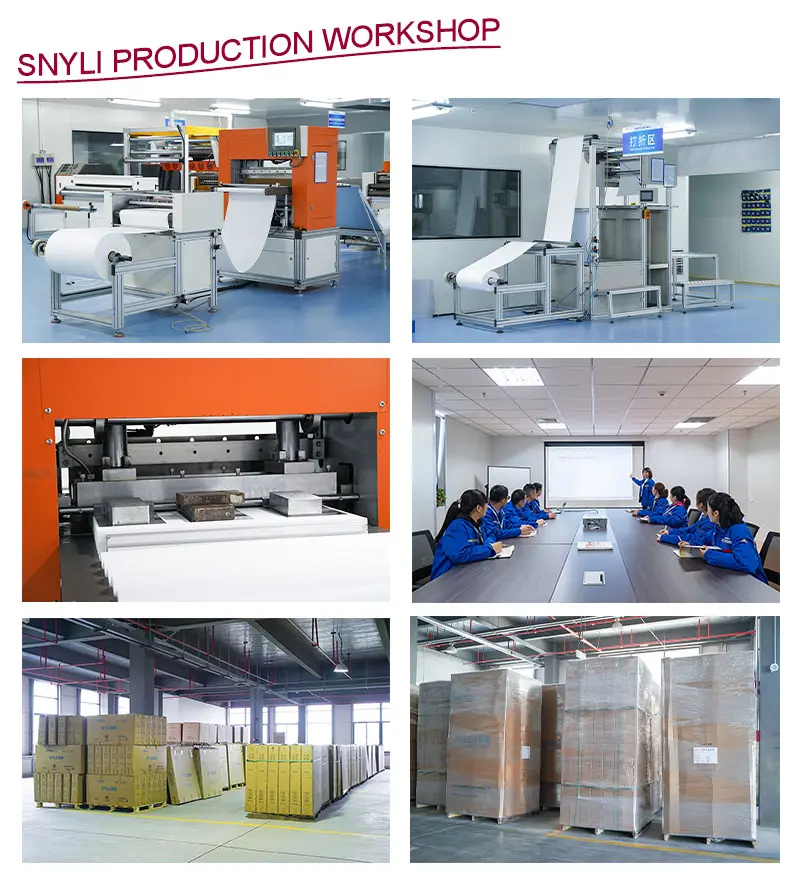

SNYLI Production workshop:

SNYLI factory is located in Liaocheng City, Shandong Province, China, with several independent clean production workshops, including FFU workshop, primary filter workshop, bag filter workshop, HEPA filter workshop and so on.

Professional technical team, independent warehouse and perfect service make SNYLI's popularity in the air filtration industry increasing.

SNYLI Production workshop

About us:

Snyli Environmental Technology (Shandong) Co.,Ltd was established in 2010, registered in Liaocheng City, Shandong Province, mainly engaged in air filtration products. Since the establishment of our company, we have been continuously deepening our research and development to improve our strength, and now we have mastered many patents and obtained ISO/CE certificates.

After more than ten years, SNYLI has set up branches in many places in China and a trading company in Jinan City, Shandong Province. At present, SNYLI products have been exported to both home and abroad, and we have signed long-term co-operation agreements with customers in many countries.

We always put the interests of customers in the first place, regularly follow up customer feedback, and strive to improve our own strength, and the constant pursuit of progress.

Giving us a chance to co-operate will be a decision that benefits both parties! SNYLI welcomes your enquiry!
