Introduction:

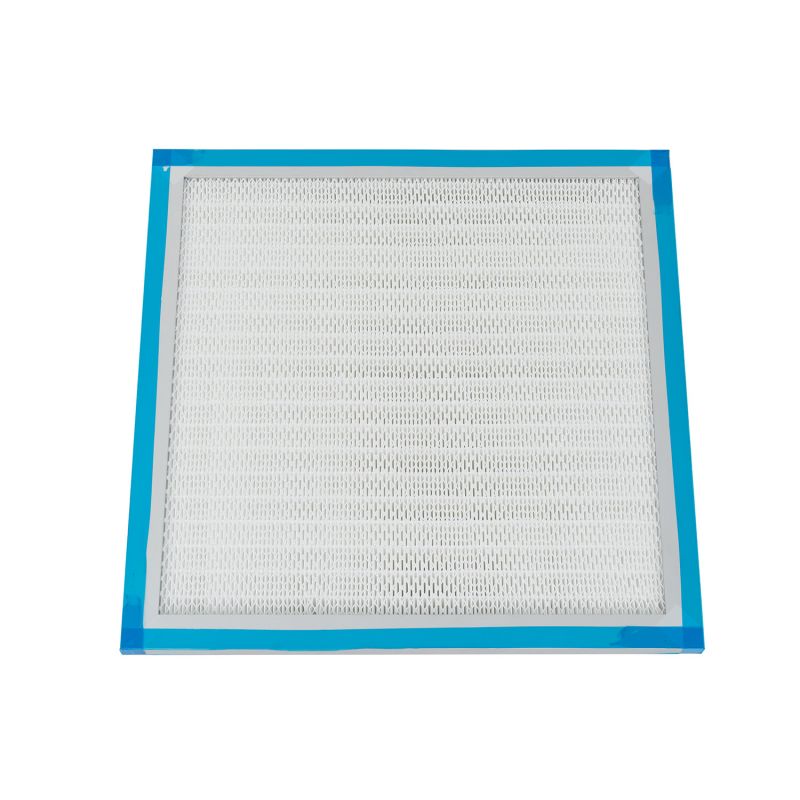

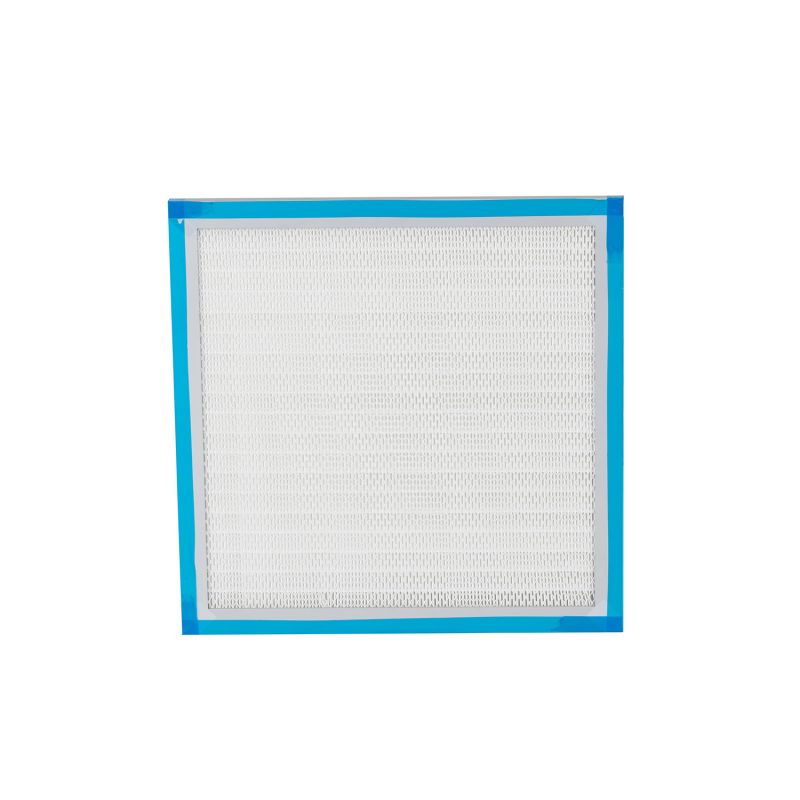

Gel Seal Mini Pleat HEPA air filter is a kind of sealed high efficiency filter, which is mainly used in pharmaceutical, clean room, hospital, food hygiene, microbiology and other advanced sealed space purification end. It adopts ultra-fine glass fibre filter paper as the filter material, which can effectively remove particles and microorganisms in the air.
The Gel Seal Mini Pleat HEPA filter is divided into two types: side gel seal and top gel seal, and the outer frame can be made of aluminium alloy with various thickness specifications.

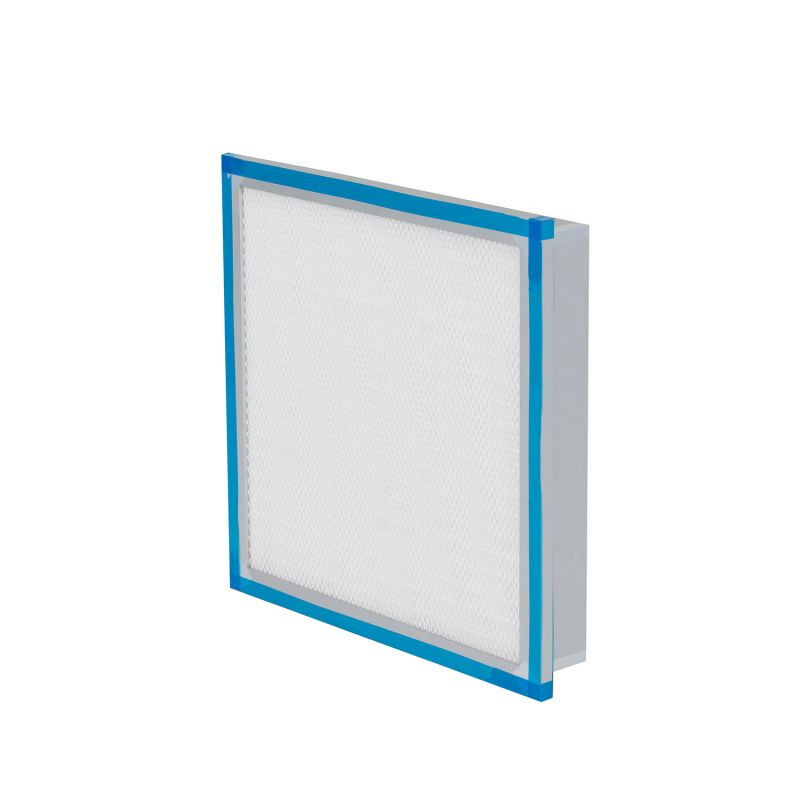

![Gel Seal Mini Pleat HEPA filter]( "Gel Seal Mini Pleat HEPA filter")
Characteristics:
Frame: Anodized aluminum
Media: Glass fiber
Efficiency:
H11 (EN 1822) / MERV 16 (ASHRAE 52.2)
MPPS:≥95% / DOP: ≥99.9%@0.3 μm
H13 (EN 1822) / MERV 17-18 (ASHRAE 52.2)
MPPS: ≥99.95% / DOP: ≥99.99%@0.3 μm
H14 (EN 1822) / MERV 19 (ASHRAE 52.2)
MPPS: ≥99.995% / DOP: ≥99.999%@0.3 μm
Common dimensions:
Nominal Size W*H*D(in.) | Actual Size W*H*D(mm) | Rated Airflow(m³/h) | Initial P.D.(Pa)
|
H13 | H14 | U15 |
Side Gel Seal Type |
15*15*4
| 370*370*93 | 500 | 200 | 210 | 249 |
20*20*4 | 510*510*93 | 1000 |
24*24*4 | 610*610*93 | 1500 |
20*20*4 | 510*1020*93 | 2000 |
Top Gel Seal Type
|
15*15*4
| 370*370*105 | 500 | 200 | 210 | 249 |
20*20*4 | 510*510*105 | 1000 |
24*24*4 | 610*610*105 | 1500 |
20*20*4 | 510*1020*105 | 2000 |
Available with H10, H11, H12, H13, H14, U15, U16 efficiency.
|
Applications:
Be installed in the terminal HEPA boxes which are specially applied to clean room of pharmaceutical plant.
Used as a matching HEPA/ULPA filter for FFU products in clean room.
Be applied in Class A GMP pharmaceutical plant.
About us:
Snyli Environmental Technology (Shandong) Co.,Ltd (hereinafter referred to as SNYLI) was founded in 2010, in-depth research in the air purification industry for more than ten years, has been recognised by the state as a high-tech enterprise.
Since its establishment in 2010, SNYLI has experienced the expansion of the factory, the establishment of the Jinan branch and the establishment of the trading company, SNYLI is constantly ushering in its own changes.
![SNYLI]( "SNYLI")
The main business: FFU, all levels Air filter, liquid tank filter, chemical filter, spiral filter, HEPA box, laminar flow hood, air shower, transfer window, clean booth, clean engineering, provide indoor air quality control solutions, provide air quality control equipment OEM, etc.

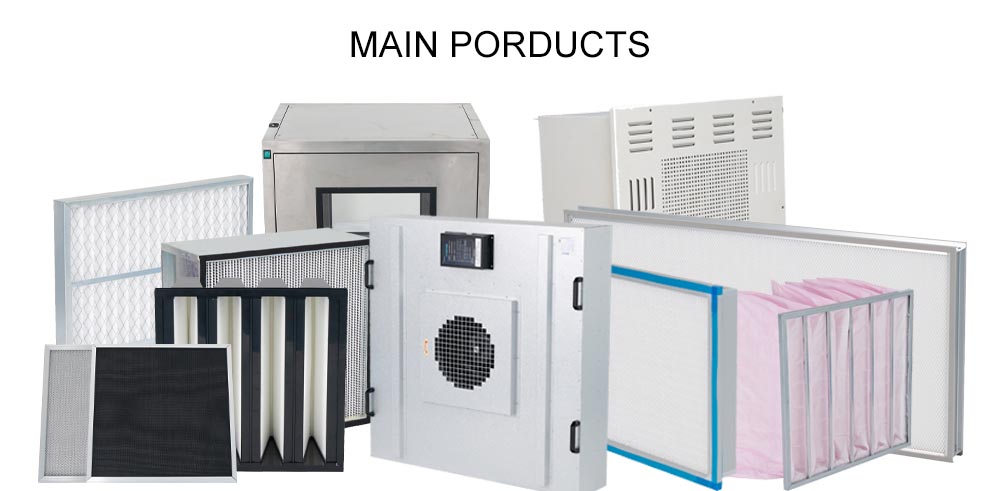

![SNYLI Main Products]( "SNYLI Main Products")
Shandong Snyli has advanced concepts and technologies, and a professional design team to meet customer needs.
Packaging & Shipping:
SNYLI adopts export standard packaging, which can be changed according to customers' requirements to ensure that the goods are intact when customers receive them.
![SNYLI Packing and Shipping]( "SNYLI Packing and Shipping")
Certificates:
All the qualifications are perfect, customers do not need to worry about the quality.
Due to the actual demand, many specifications need to be customised, and for these products we can also provide CE certificates.
![SNYLI Certificates]( "SNYLI Certificates")
Why choose us:
SNYLI is a renowned manufacturer in the air purification industry, with extensive production experience and mature technology.
SNYLI provides perfect after-sales service, if any problem occurs with the product, you can contact the sales staff at any time until you are satisfied that we will not stop the service.
All certificates are complete, including ISO/CE, and there are many R&D patents.
Timely delivery. With our own factories and independent warehouses, deliveries are usually completed before the customer's specified delivery time.
