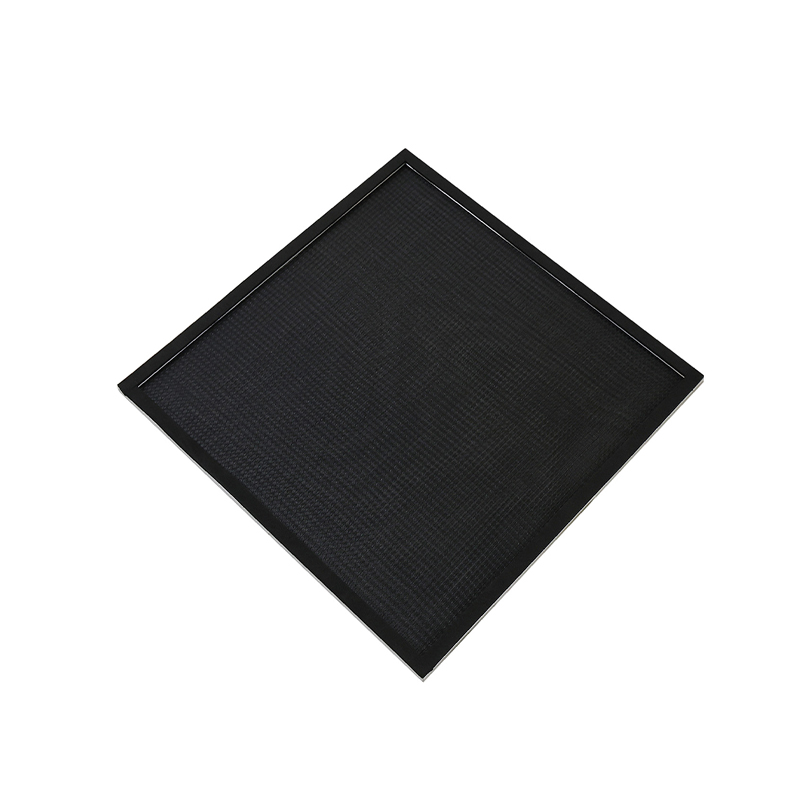

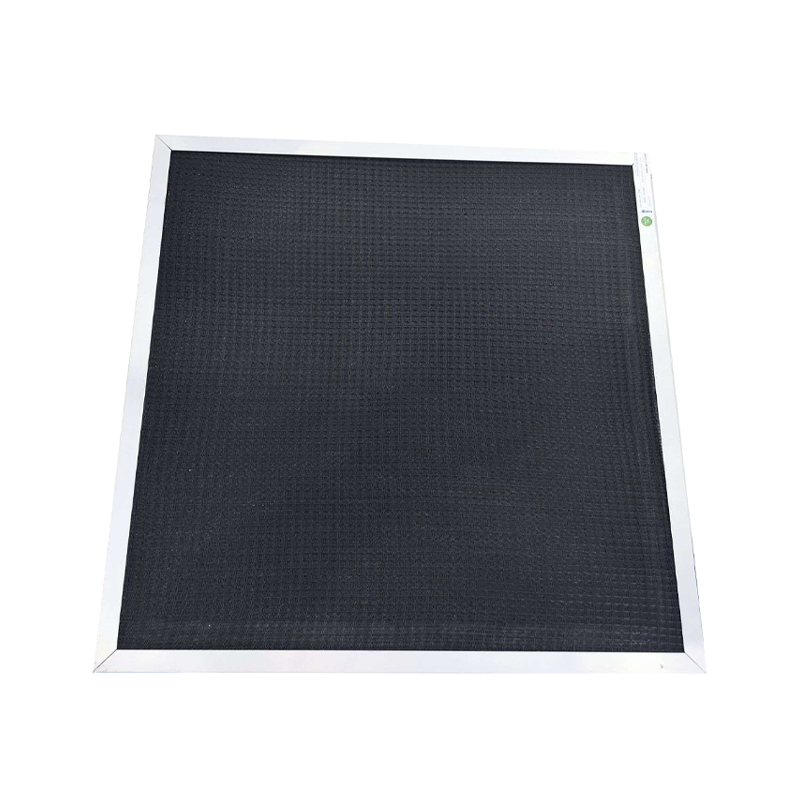

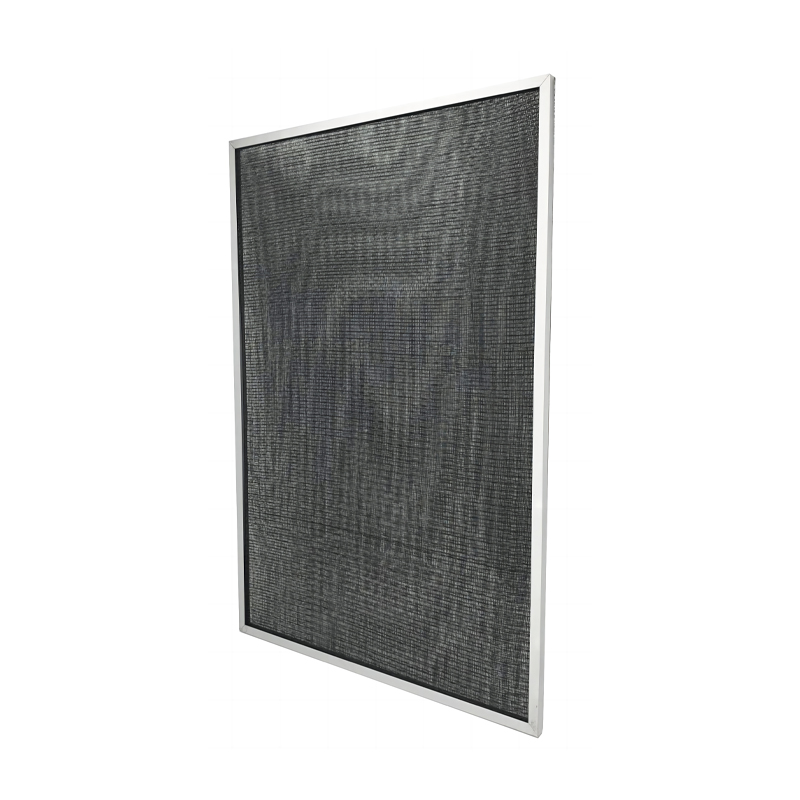

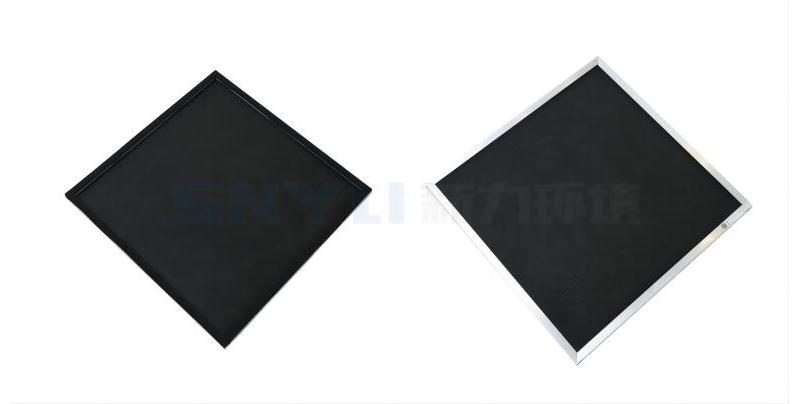

Washable Nylon Mesh Air Filter

Advantages:

1. Good filtration effect: nylon mesh has a fine mesh structure, which can effectively capture particulate matter and impurities in the air and improve air quality.

2. Strong durability: nylon mesh has good abrasion resistance and stretch resistance, long service life, not easy to be damaged, which can reduce the frequency of filter replacement.

3. Good air permeability: washable nylon mesh air filters usually have good air permeability, which can ensure smooth air circulation and not affect the normal work of the equipment.

4. Lightweight and convenient, applicable to a variety of air treatment equipment and systems.

Contact Now E-Mail Telephone WhatsApp

Product Details

Introduction:

Washable nylon mesh air filter belongs to one kind of primary air filter, which is mainly used to capture large solid particles, dust, bacteria and other impurities in the air. Its filter media adopts nylon mesh, which has good tensile and abrasion resistance and can effectively filter large particles.

Washable Nylon Mesh Air Filter

Frame	Aluminium alloy, stainless steel or galvanised iron
Media	Polyamide monofilament woven fibres
Gasket	3mm EVA or 5mm EPDM
Design	Panel
Std. EN779: 2012	G1,G2
Thickness	10mm, 21mm,46mm,96mm
Maximum temperature	80ºC
Maximum relative humidity	100%
Customized size	Available
Application	Suitable as pre-filter in ventilation systems of office buildings, conference rooms,hospitals,shopping malls ,gymnasium,airports and other huge civil architectures.

Washable Nylon Mesh Air Filter

Nylon mesh air filters are usually used in air conditioning systems, ventilation systems and other equipment in industrial environments or commercial buildings, which can prevent dust and impurities from entering the air circulation system and keep the indoor air clean. These filters usually need to be replaced periodically to ensure their filtration effect and air quality. Generally speaking, they need to be replaced every 3-6 months, but the exact replacement time needs to be decided according to the air quality of the application place.

Common dimensions:

Model	Actual size W×H×D(mm)	Air flow (m³/h)	Initial P.D.(Pa)
Model	Actual size W×H×D(mm)	Air flow (m³/h)	G1	G2
CG1B-24L-NA10B	493×493×10	2400	35	63
CG1B-28L-NA10C	493×595×10	2850	35	63
CG1B-34L-NA10D	595×595×10	3400	35	63
CG1B-17L-NA21A	290×595×21	1700	35	63
CG1B-24L-NA21B	493×493×21	2400	35	63
CG1B-28L-NA21C	493×595×21	2850	35	63
CG1B-34L-NA21D	595×595×21	3400	35	63
CG1B-17L-NB46A	290×595×46	1700	35	63
CG1B-24L-NB46B	493×493×46	2400	35	63
CG1B-28L-NB46C	493×595×46	2850	35	63
CG1B-34L-NB46D	595×595×46	3400	35	63

Performance Features:

1. Good filtration efficiency: washable nylon mesh primary air filter can effectively capture large solid particles, dust and other impurities in the air and improve air quality.

2. Low resistance: the nylon mesh material is good in permeability, which can maintain low air resistance and reduce the load on the air conditioning system or ventilation system.

3. Durability: nylon mesh has good abrasion resistance and stretch resistance, long service life, not easy to damage.

4. Easy to clean and maintain: nylon mesh air filters are relatively easy to clean, can be regularly cleaned or blowing dust, easy maintenance, reducing maintenance costs.

5. Lightweight and convenient: nylon mesh filters are lightweight, easy to install and replace, and are suitable for a variety of air treatment equipment and systems.

6. Environmentally sustainable: nylon mesh air filters are environmentally friendly and recyclable, meeting the requirements of environmental protection.

7. Variety of choices: nylon mesh primary air filters are available in different specifications and sizes to meet the needs of different air conditioning or ventilation systems.

Application Scenario:

Nylon mesh primary air filter can be applied in various places:

1. Factories and workshops: used in ventilation, dust removal and air treatment systems during industrial production.

2.Commercial buildings: such as office buildings, shopping centers, restaurants, etc., used in air conditioning systems to keep indoor air clean.

3. Medical institutions: such as hospitals, clinics, etc., used in operating rooms, clean rooms and other environments to ensure air hygiene.

4. Laboratories and research organizations: used in laboratory ventilation systems to ensure dust-free experimental environments.

5. Schools and educational institutions: used in air conditioning systems in classrooms, libraries and other places to provide clean air.

6. Catering industry: such as restaurants, fast food stores, etc., used in air conditioning and ventilation systems to provide a good indoor environment.

7. Hotels and guesthouses: used in air handling systems for guest rooms, meeting rooms and other places to provide a comfortable environment.

8. Entertainment places: such as theaters, gymnasiums, etc., used in air conditioning systems to provide clean air.

In general, washable nylon mesh air filters are suitable for various places and facilities where preliminary filtration of air and removal of large particles of impurities are required.
