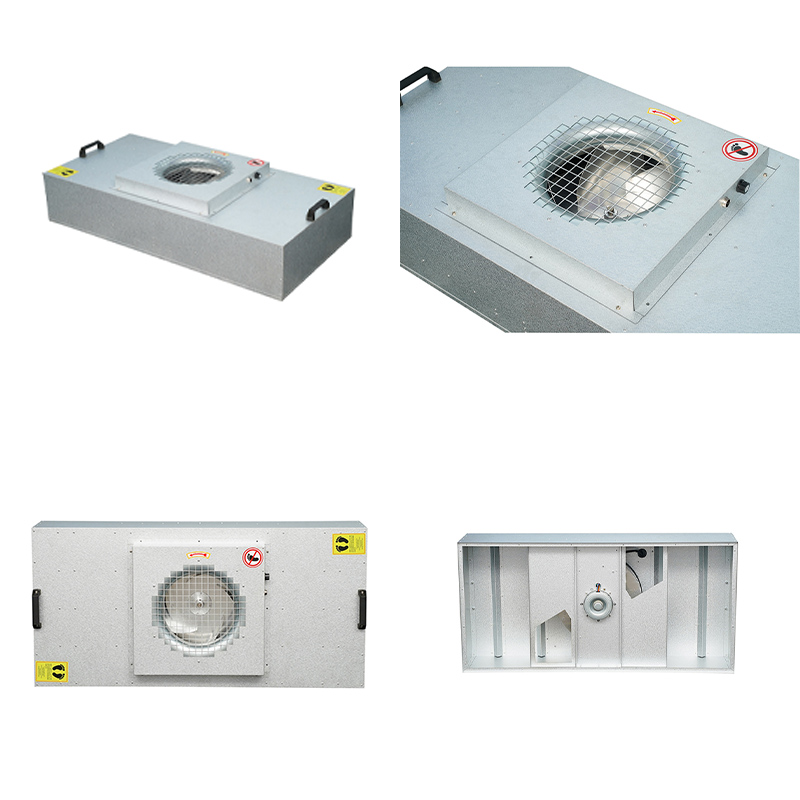

Alternating Current Fan Filter Unit

Introduction:

In a clean room, the fan filter unit is one of the very important equipments, which is mainly used to control the concentration of airborne particles, microorganisms and other hazardous substances, so as to maintain the air quality in the clean room.

The FFU creates a clean air environment by inhaling the surrounding air, filtering it through the built-in filter, and then blowing the purified air evenly into the workshop.

AC motors have simple structure, no commutation spark, reliable operation and easy maintenance, therefore, some customers who have little demand for FFU favour this kind of AC motors.

Component:

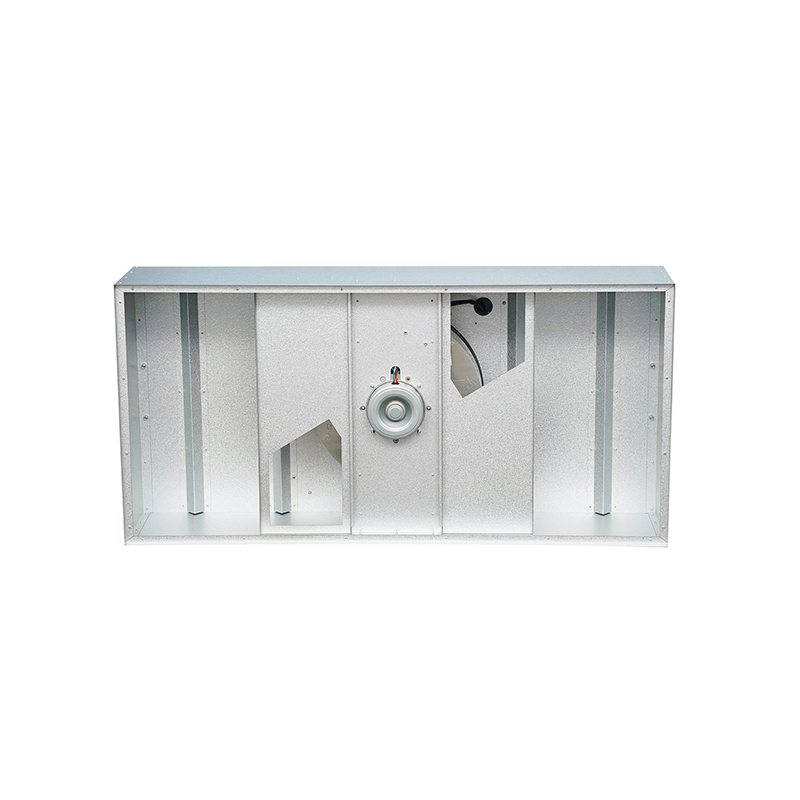

1) Box

Its material is commonly used galvanised aluminium alloy coated steel, aluminium alloy, stainless steel. The role of one is to support the fan and wind guide ring, the second is to support the deflector;

2）Deflector

Equalising device for airflow, placed inside the box, around the perimeter below the fan;

3）Fan

Three types are available: single AC (AC/1Phase), DC (EC/1Phase), and triple AC (AC/3Phase);

4）Control components

For AC FFU, five-speed governor or infinitely variable governor is commonly used; the control chip of DC system is embedded inside the motor, and remote control is achieved with the help of special control software, computer, control gateway and network line.

4) Filter

Pre-filter: Filter large dust particles, non-woven fabric, primary efficiency net filter, filter net frame;

High efficiency filter: HEPA/ULPA (high efficiency/ultra high efficiency);

Example: H14, The efficiency is 99.999%@0.3um;

Chemical filter (Chemical Filter): in addition to ammonia, boron, organic gases, etc., generally installed in the air inlet, the same as the pre-filter installation method.

Common dimensions:

Applications:

1. Places with high cleanliness requirements: such as semiconductor, optoelectronics, precision instruments and other industries in the production workshop, need to strictly control the dust particles in the air to ensure product quality and production efficiency.

2. Places with high air quality requirements: such as hospital operating theatres, laboratories, biopharmaceuticals and other industries, need to provide clean air to protect products and personnel health.

3. Constant temperature and humidity environment: such as data centres, communication rooms and other places, need to maintain a constant temperature and humidity to ensure the normal operation of equipment.

About us:

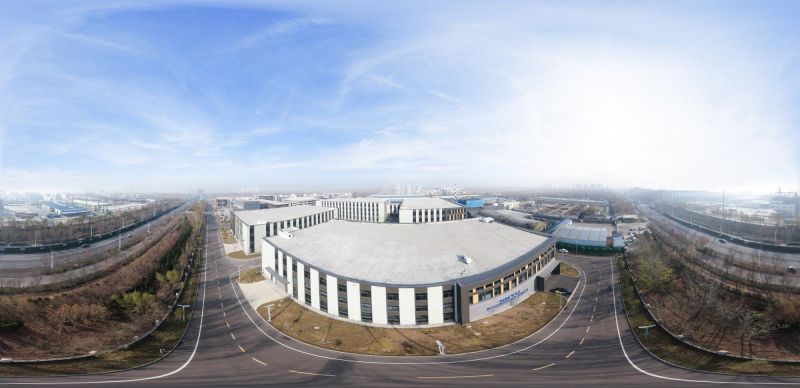

Founded in 2010, Snyli Environmental Technology (Shandong) Co.,Ltd is a high-tech enterprise focusing on research, development, production and sales of FFU and air filtration products. The factory is set up in Liaocheng City, Shandong Province and a branch office in Jinan City, Shandong Province. The company has strong technical and R&D strength, and is constantly progressing with the times.

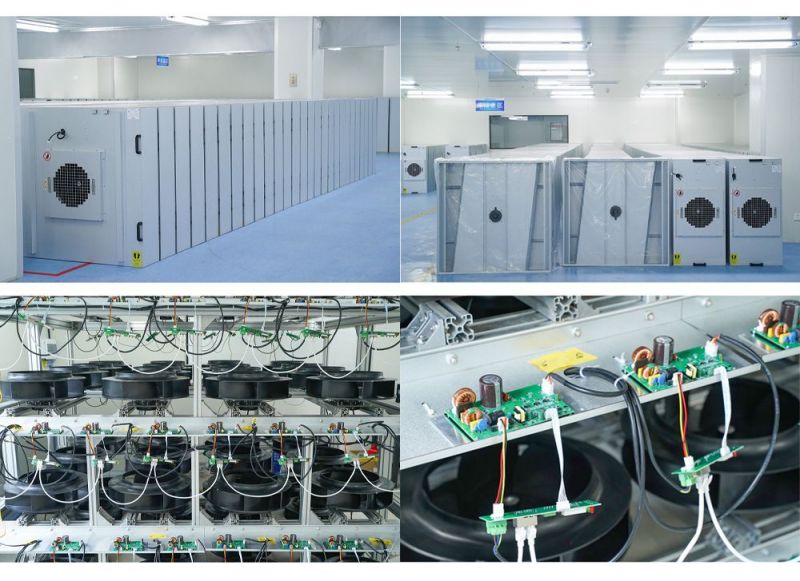

SNYLI has a special FFU workshop and warehouse, and also has an independent workshop for the production of primary filters and HEPA filters.

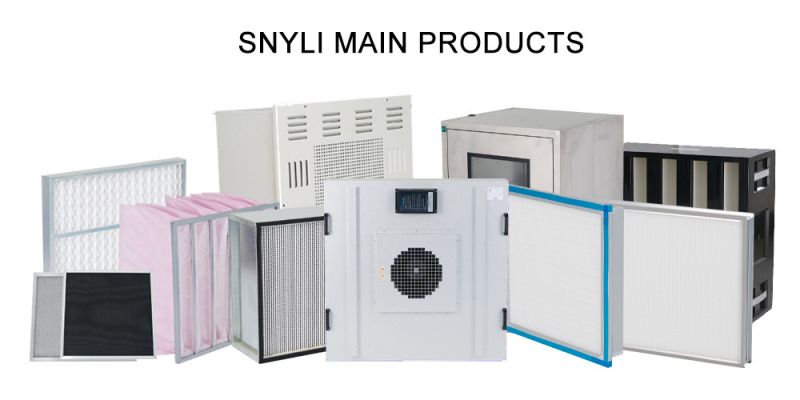

SNYLI Main Products: Fan filter unit, panel air filter, washable air filter, nylon mesh air filter, metal mesh air filter, pocket air filter, v cell air filter, high temperature resistant air filter, hepa air filter, ulpa air filter, mini pleat air filter, deep pleat air filter, gel seal air filter, chemical air filter, auto roll air filter, clean bench, clean booth, air shower, pass box, etc. SNYLI also provides indoor air quality control solutions, offers OEM of air quality control equipment.

SNYLI Packing and Shipping:

All are packed in export standard packaging. According to the products purchased by the customer, choose the most suitable transport mode.

Certificates:

All products produced by SNYLI can provide ISO and CE certificates according to customers' requirements, and will continue to track the use of customers to give customers a good purchasing experience.

Why choose us:

Since its inception, SNYLI has always adhered to the talent-based, integrity-based business principles, with a high level of management and production skills, so that the enterprise always adhere to the competitiveness of the fierce competition in the market, to achieve rapid and stable development of enterprises.

We attach importance to the company's reputation, and always insist on providing customers with quality products and services. At present, we have long-term partners in many countries and regions in the world, and we are looking forward to your joining us!
