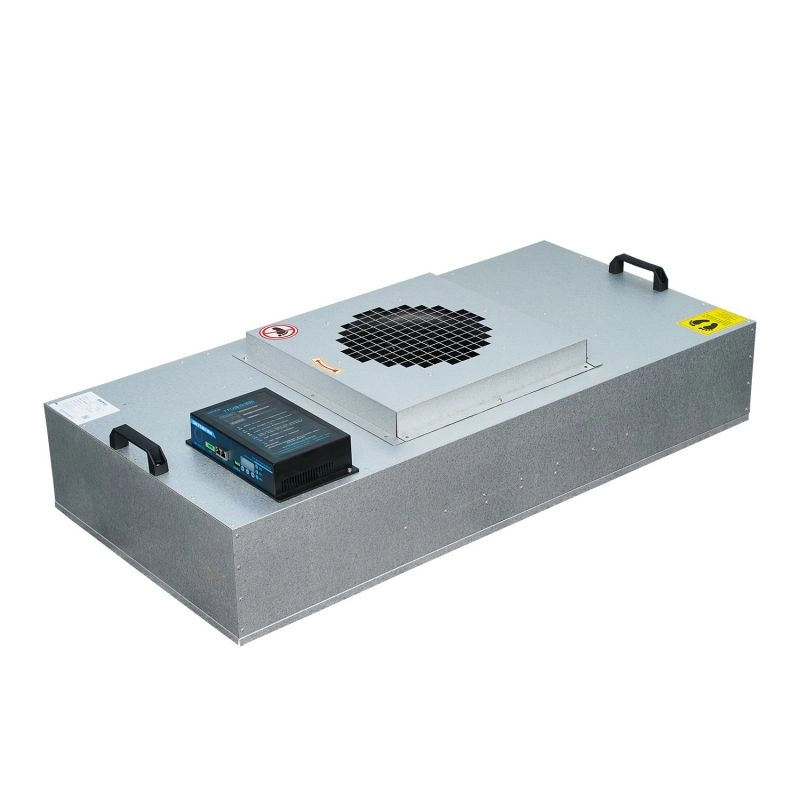

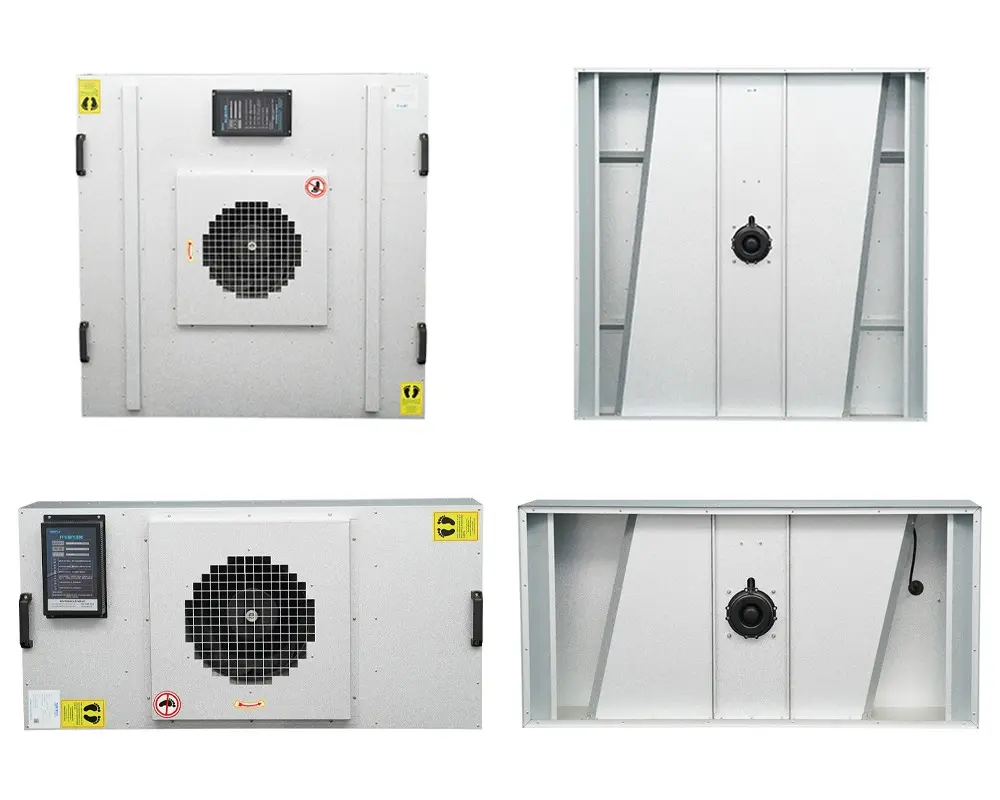

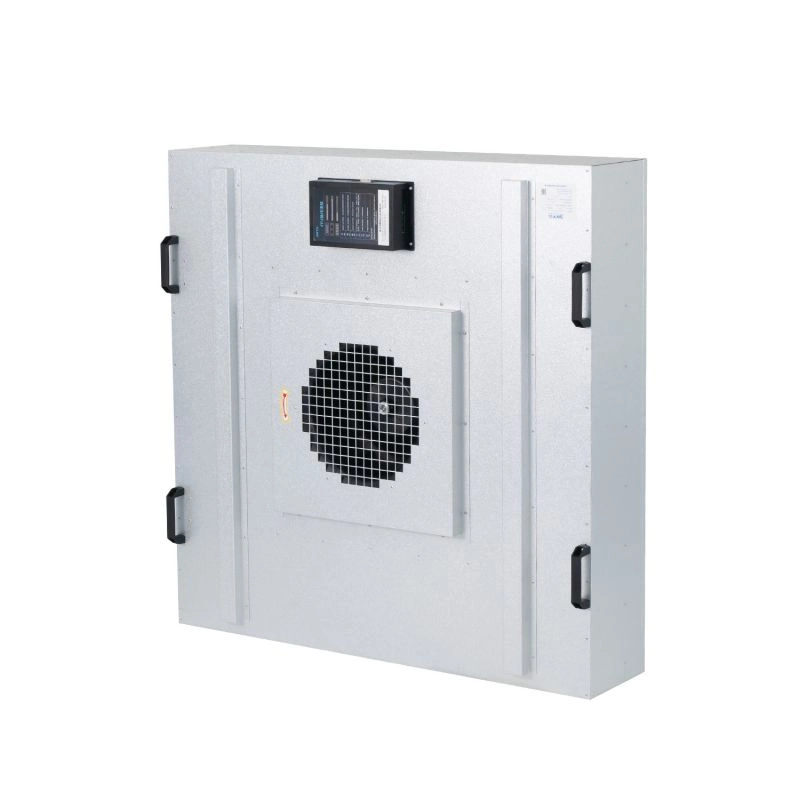

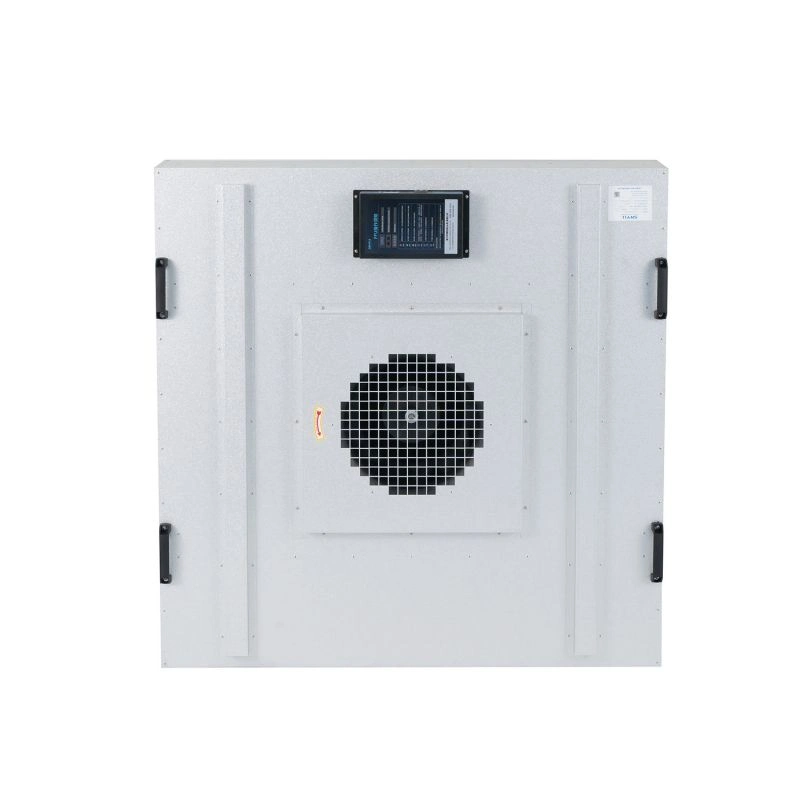

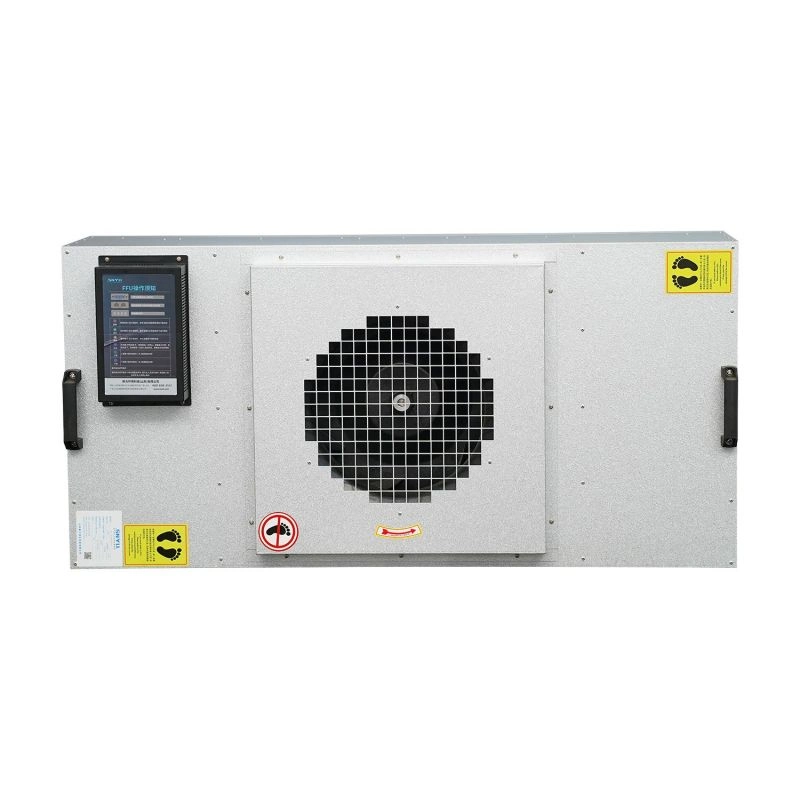

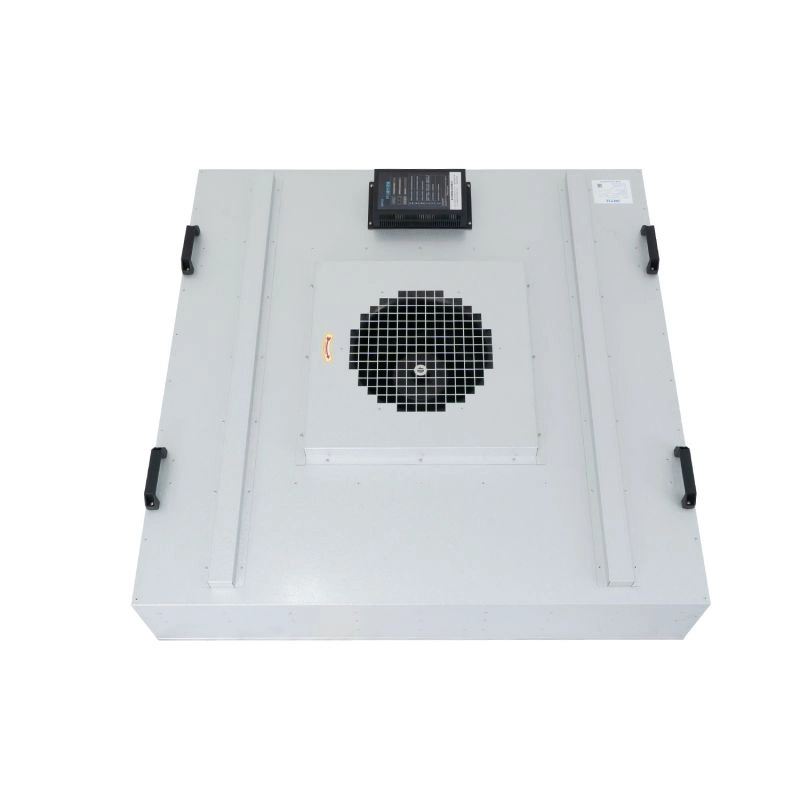

Direct Current Fan Filter Unit

Introduction:

FFU (Fan Filter Unit) is the filtration equipment used in the clean room purification return air system, it is a kind of self-powered air supply filtration device with modular filtration efficacy of the end air supply device.

Clean rooms with a cleanliness level of 1000 (FS209E standard) or ISO6 or above usually use FFU layouts, and partially purified environments or clean cabinets, clean benches, etc. are also usually realised with FFUs.

In clean room applications, FFUs are usually available in alternating current motor systems (referred to as AC FFUs ) and direct current motor FFU systems (referred to as DC FFUs), which are two different types of motorised operating controls.

Characteristics:

Frame：Galvanized Plate, Stainless Steel

Media：Glass fiber、PTFE

Efficiency：

H13 (EN 1822) / MERV 17-18 (ASHRAE 52.2)

MPPS: ≥99.95% / DOP: ≥99.99%@0.3 µm

H14 (EN 1822) / MERV 19 (ASHRAE 52.2)

MPPS: ≥99.995% / DOP: ≥99.999%@0.3 µm

Separator：Hot melt

Gasket：EPDM

Max. Temperature：≦ 70°C

Max. Humidity：≦ 100% RH Rec.

Common dimensions:

Features:

• Lower energy consumption: DC fan can really achieve smooth voltage wave line, to achieve the purpose of energy saving;

• Intelligent control: Lisa remote automatic control system can be set up, intelligent monitoring and control, to achieve the perfect match between mechanical components and electronic control system;

• Soft start and soft stop: the starting current is only 1/5 of the AC fan, which can be started at the same time by many wind turbines; good braking performance, truly soft start and soft stop;

• Small heat generation: DC fan itself has high energy efficiency ratio and small heat generation, which can further reduce the heat generation in the additional working area.

Applications:

DC FFU is widely used in semiconductor, electronics, flat panel display, disk drive manufacturers and optical and biological industries, etc., clean production lines, clean benches, clean rooms, assembled clean rooms and laminar flow hoods.

About us:

Since its establishment, Snyli Environmental Technology (Shandong) Co.,Ltd has been continuously improving its own strength, paying attention to scientific and technological innovation, and taking product quality and customer service as the first priority.

Over the past ten years, SNYLI has obtained a number of patents for the research and development of FFU and air filtration products, and the products sold at home and abroad are highly favoured by customers.

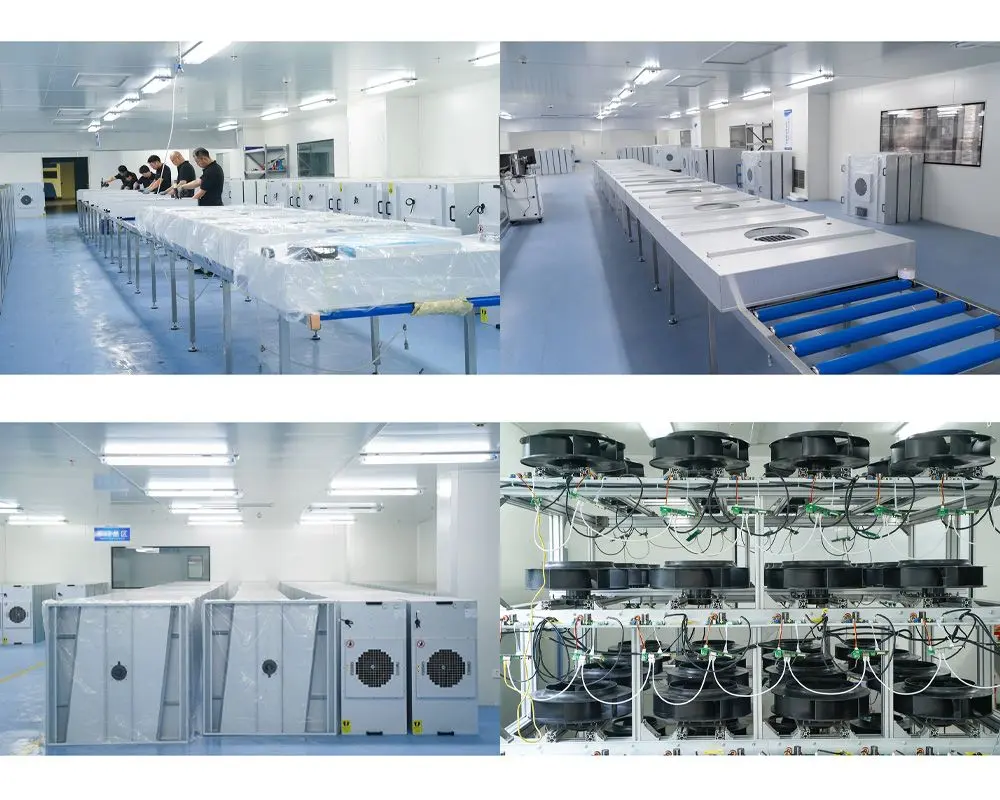

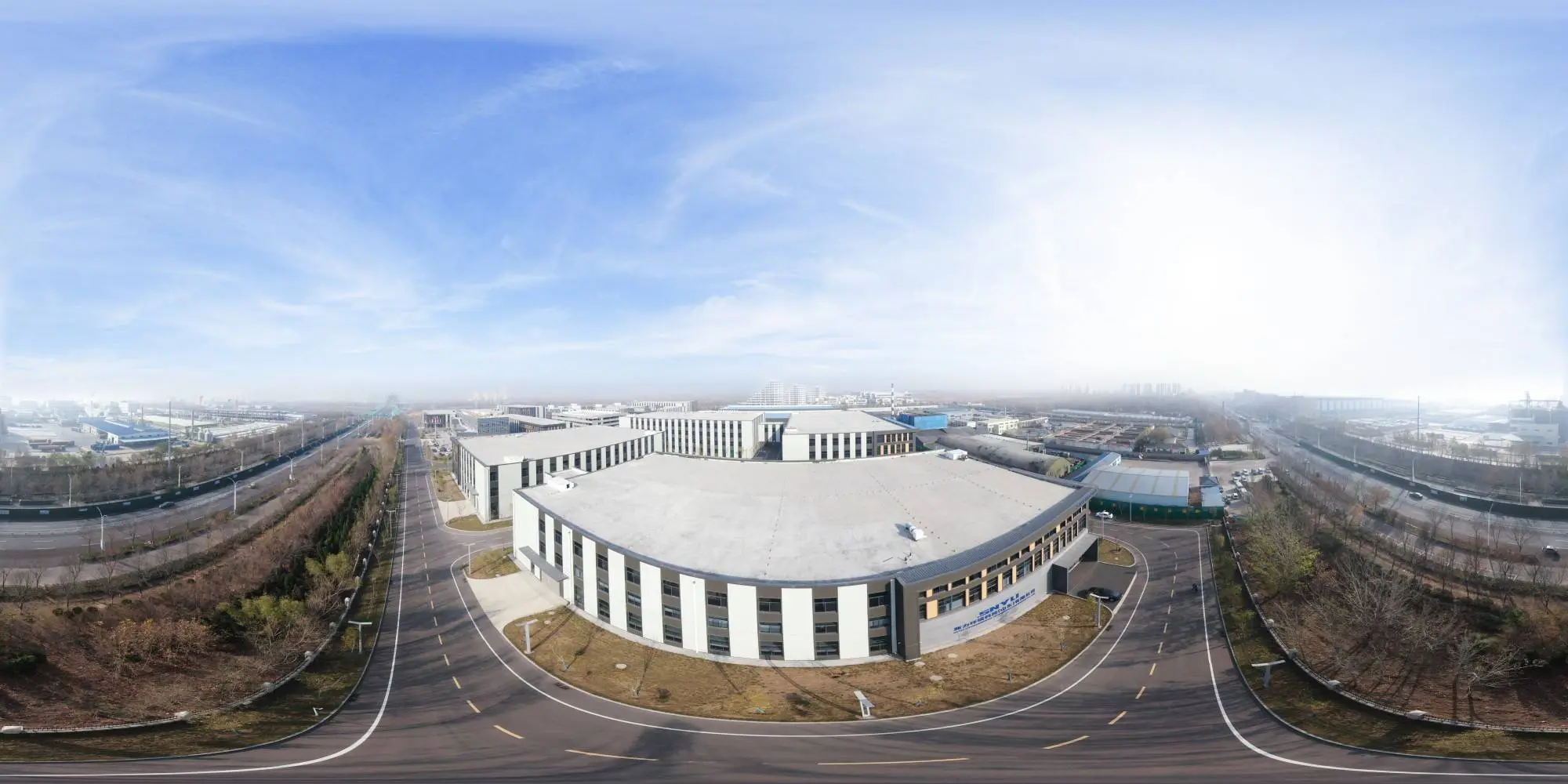

SNYLI firstly built the factory in Zibo City, Shandong Province, and later moved the factory to Liaocheng City, Shandong Province. At present, it has more than 20,000 square metres of factory area. It has many modern workshops, such as FFU workshop, primary efficiency air filter workshop, medium efficiency air filter workshop, high efficiency air filter workshop and so on. We have an independent warehouse to keep regular models in stock.
