Introduction:
Medium Efficiency Synthetic Fiber Air Filter Roll Media is a commonly used filtration material, mainly used in air filtration system in the medium efficiency filtration link, can efficiently filter particles with a diameter of 1-5 microns, with environmental protection, health and safety features.
Reasonable three-layer design makes the product have excellent performance. The firm hot-melt technology avoids the leakage because of wind pressure. The network avoids the pockets from staying close to each other, reducing the resistance and maximizing the dust holding capacity.
The filter pocket adopts a more reasonable incremental structure, so that the filter pocket has uniform air supply, less resistance and long service life;Materials have different colors according to different filtration efficiency. Comforming to European DIN53438-F1.

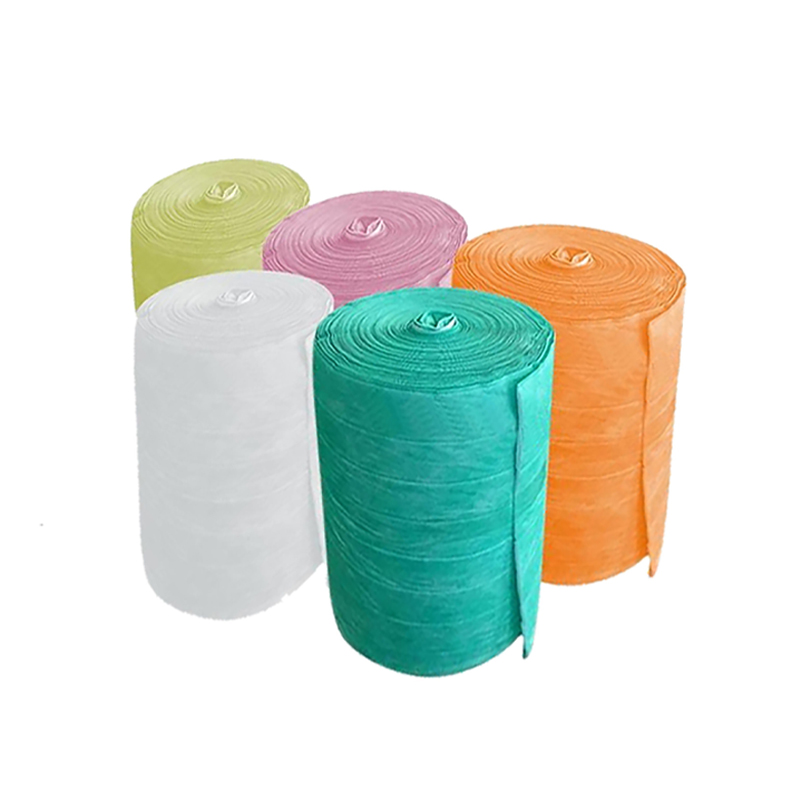

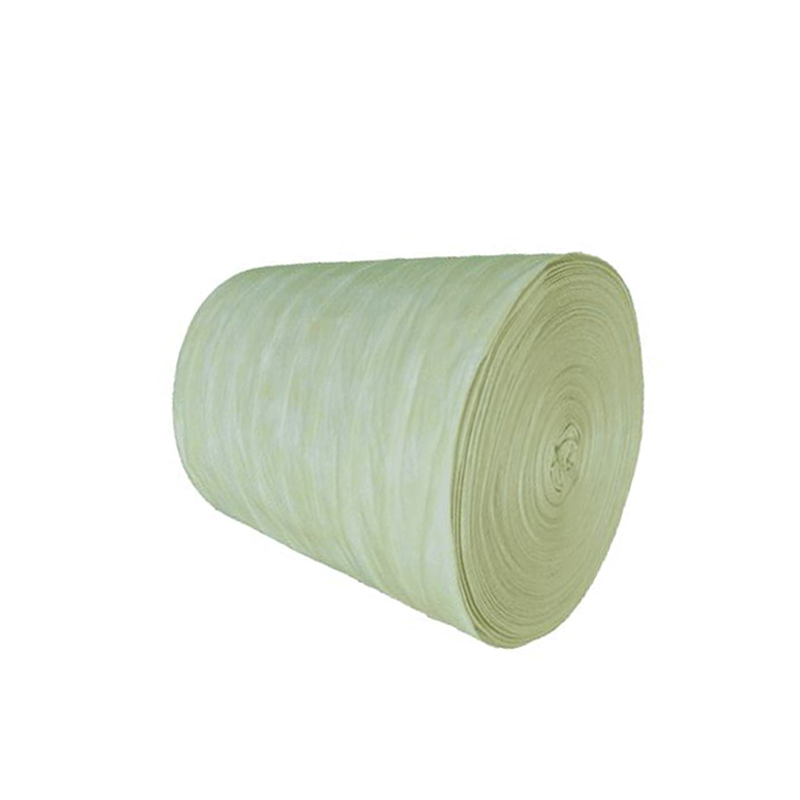

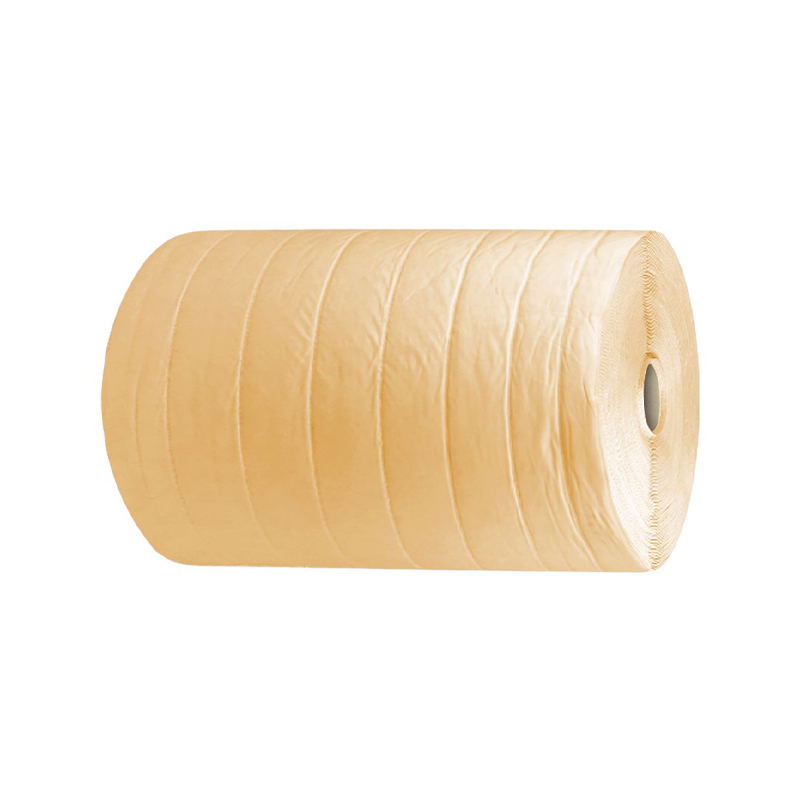

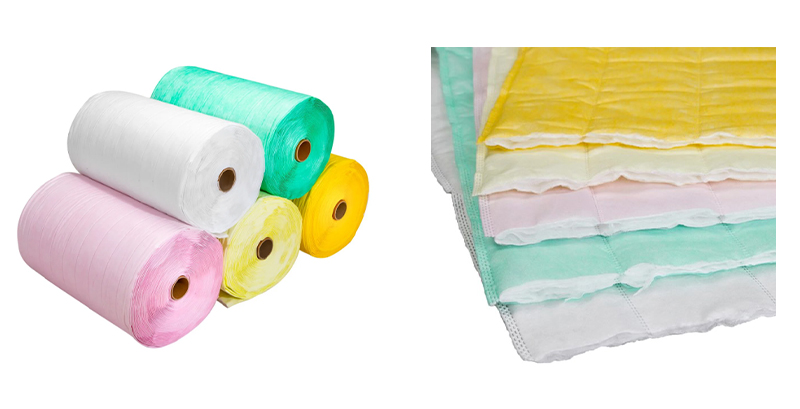

![Medium Efficiency Synthetic Fiber Air Filter Roll Media]( "Medium Efficiency Synthetic Fiber Air Filter Roll Media")
Common dimensions:
Filtration Class | EFF. | Weight
(g/m2) | Thickness | I.N.P (Pa) | Dust capacity
(g/m2) | Length
(m) | Color |
M5 | 45 | 170±3 | 6±1 | 6±2 | 180±10 | 150 | White |
M6 | 65 | 195±3 | 6.5±1 | 10±2 | 190±10 | 150 | Green |
F7 | 85 | 205±3 | 6.5±1 | 15±2 | 210±10 | 150 | Pink |
F8 | 90 | 220±3 | 6.5±1 | 22±2 | 220±10 | 150 | Yellow |
F9 | 95 | 235±3 | 6.5±1 | 28±2 | 230±10 | 150 | White |
Features:
1. Material: high quality synthetic fibre filter media, with excellent filtration performance and adsorption capacity.
2. Colour: according to different filtration grades, we can make different colours of filtering media, which is convenient for differentiation.
3. Size: Medium Efficiency Synthetic Fiber Air Filter Roll Media can be made into different sizes according to customers' requirements, applicable to different air filtration facilities.
4. Installation: Adopting bag-type installation structure, convenient and quick, effortless installation.
5. Environmentally friendly and healthy: adopting environmentally friendly materials, harmless to the environment and human health.
Applications:
The application range of Medium Efficiency Synthetic Fiber Air Filter Roll Media is quite wide, mainly used in the following fields:
1. Medical institutions: air purification in operating theatres, consultation rooms, wards and other places, to ensure the health and health of the medical environment.
2. Electronic factories: in the production of electronic products, the use of bag-type medium efficiency air filtration cotton can effectively remove particles and dust in the air, to protect the quality of electronic products.
3. Catering industry: in hotels, restaurants and other places, the use of bag air filter element can effectively remove odours, smoke and dust in the air, to provide consumers with a clean, healthy dining environment.
4. Office: can improve the quality of indoor air, improve the working environment of employees, improve work efficiency.
In short, bag air filter media is a widely used, effective, easy to install, environmentally friendly and healthy filtration materials. Its characteristics and advantages can meet the needs of different industries, to provide people with a cleaner, healthier, safer living and working environment.
