Introduction:
The 450℃ High Temp HEPA Filter is a kind of air purification equipment designed for extreme high temperature environments, which is widely used in industrial fields, such as metallurgy, chemical industry, electric power, ceramics manufacturing and so on. This filter is able to work normally at temperatures up to 450°C, ensuring effective removal of airborne particles and pollutants under high temperature conditions.
| Frame | Stainless Steel |
|---|
| Header | Box type, Single/ Double header |
|---|
| Media | High temp resistance Glass fiber |
|---|
| Separator | Aluminum foil |
|---|
| Sealant | Ceramic adhesive |
|---|
| Max operating Temperature | ≦ 450°C |
|---|
1.Main features
Sealant: Ceramic adhesive is usually used as sealing material. Ceramic adhesive has excellent high-temperature resistance and can remain stable in environments above 450°C without melting or releasing harmful substances.
Frame: Made of stainless steel. Stainless steel is not only high temperature resistant, but also has good corrosion resistance and mechanical strength, and can withstand long periods of high temperature work.
Adopting high performance filter media - high temperature resistant ultra-fine glass fibre material, which can effectively capture airborne particles, including dust, smoke and other fine particles.
The high filtration efficiency, which can reach the HEPA (High Efficiency Particulate Air) standard, ensures that the purified air quality meets the relevant industry standards.
The structure is robust and durable, able to withstand thermal and mechanical stresses in high temperature environments.
Compact design for easy installation and maintenance.
Usually equipped with a highly efficient sealing system to prevent unfiltered air from bypassing the filter and entering the system.
Suitable for various high temperature environments, such as hot air circulation systems, combustion exhaust gas treatment, high temperature ovens, etc.
Filters of different specifications and sizes can be customised according to specific application requirements.

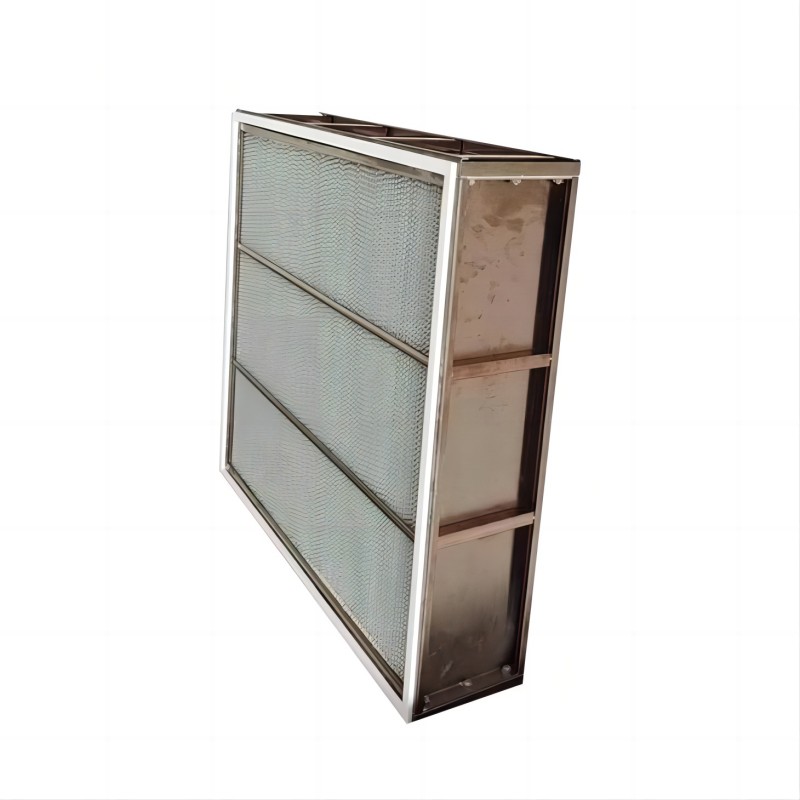

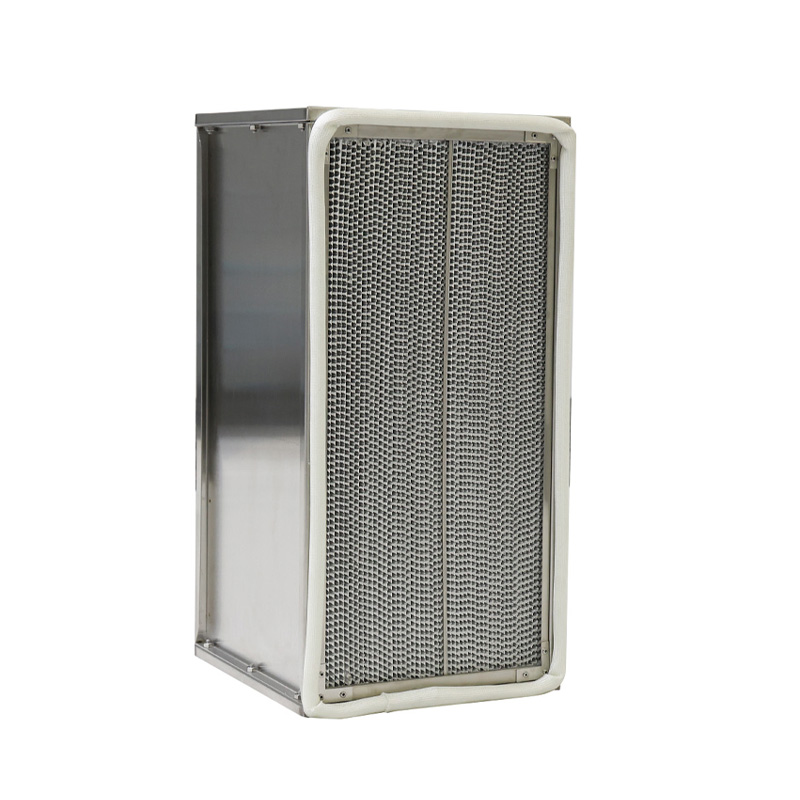

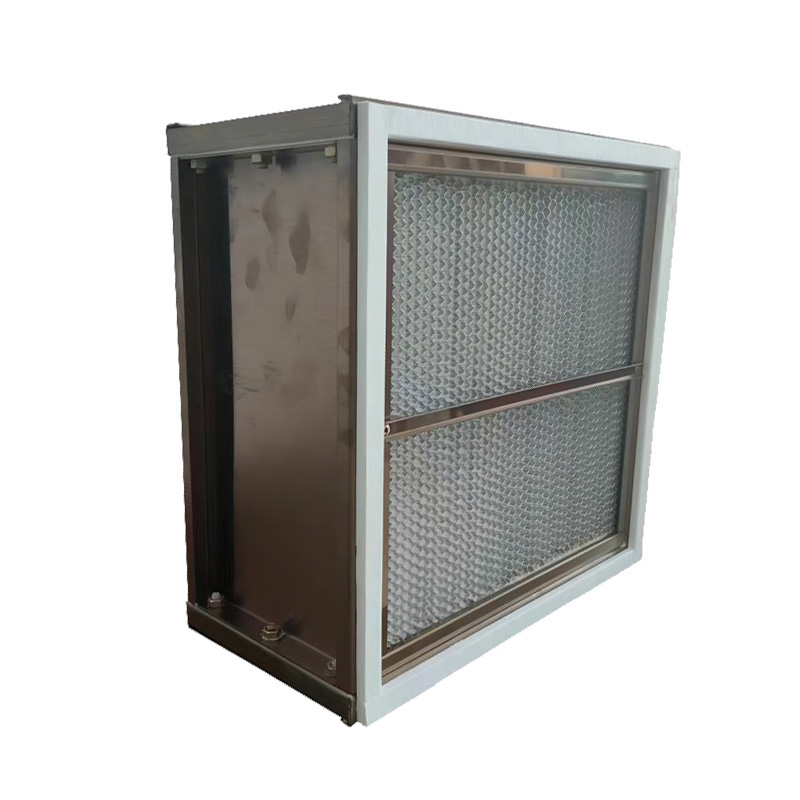

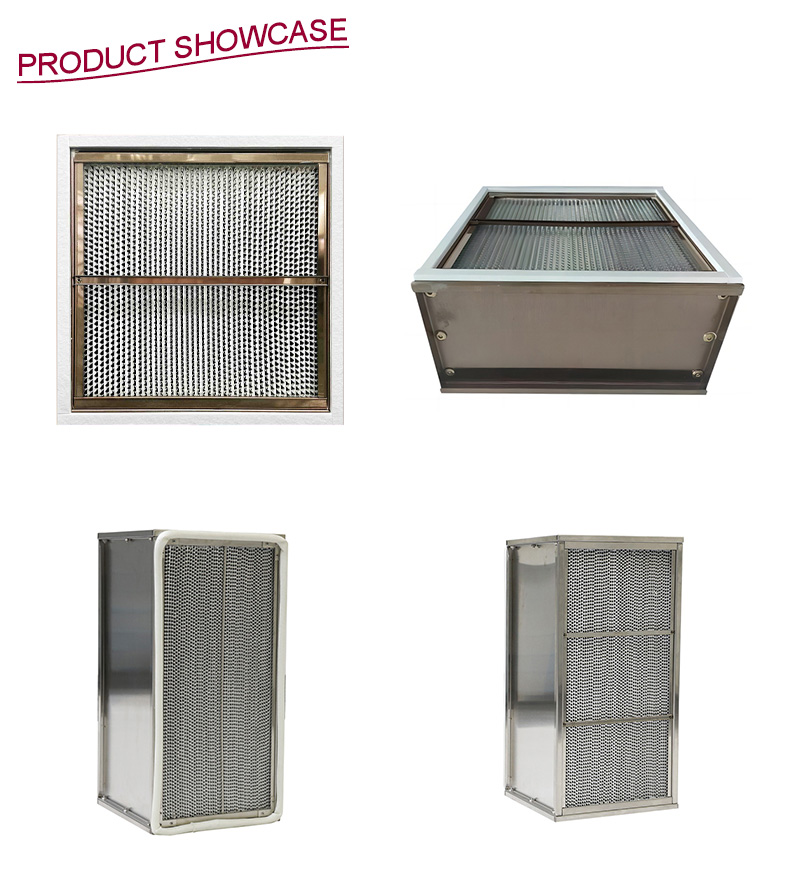

![450℃ High Temp HEPA Filter]( "450℃ High Temp HEPA Filter")
2.Common dimensions:
Dimensions | Media Area (m2) | Rated Air Flow (m3/h) | Initial Pressure Drop (Pa) |
W×H×D (mm) | Standard | High Capacity | Standard | High Capacity | H12 | H13 | H14 |
320×320×220 | 4.1 | 6.1 | 350 | 525 | ≤200 | ≤235 | ≤255 |
484×484×220 | 9.6 | 14.4 | 1000 | 1500 |
726×484×220 | 14.6 | 21.9 | 1500 | 2250 |
968×484×220 | 19.5 | 29.2 | 2000 | 3000 |
315×630×220 | 8.1 | 12.1 | 750 | 1200 |
630×630×220 | 16.5 | 24.7 | 1500 | 2250 |
945×630×220 | 24.9 | 37.3 | 2200 | 3300 |
1260×630×220 | 33.4 | 50.1 | 3000 | 4500 |
305×305×150 | 2.4 | 3.6 | 250 | 375 |
305×610×150 | 5.0 | 7.5 | 500 | 750 |
610×610×150 | 10.2 | 15.3 | 1000 | 1500 |
915×610×150 | 15.4 | 23.1 | 1500 | 2250 |
1220×610×150 | 20.6 | 30.9 | 2000 | 3000 |
305×610×292 | 10.1 | 15.1 | 1000 | 1500 |
610×610×292 | 20.9 | 31.3 | 2000 | 3000 |
3.Application fields
Exhaust purification of high-temperature furnace, smelting furnace and other equipment.
Air filtration of heat treatment workshop.
Exhaust gas treatment of chemical reactor, drying tower and other high temperature equipment.
Purification of corrosive gases.
Boiler exhaust treatment of thermal power plants.
Pre-filtration of steam turbine air intake system.
Exhaust purification of ceramic sintering furnaces.
Air filtration for high temperature kilns.
High-temperature baking equipment for the food processing industry.
Furnace exhaust treatment in glass manufacturing industry.
![Applications]( "Applications")
4.Maintenance and upkeep
Regular inspection: Regularly check the sealing condition of the filter and the state of the filter media to ensure its normal operation.
Replacement: When the filter media reaches the service life or is damaged, it should be replaced in time to ensure the filtering effect.
In conclusion, 450℃ High Temp HEPA Filter has become an indispensable air purification equipment in many high temperature industrial environments by virtue of its excellent high temperature performance, high efficiency filtration capacity and wide applicability.
About us:
Snyli Environmental Technology (Shandong) Co., Ltd has the strength and experience in R&D and production to provide a wide range of air filtration products to our customers. Since SNYLI has been engaged in foreign trade export, we have been constantly praised by customers from various countries, and we are always proud of the quality products we have provided to our customers. In the future, we will always keep our original intention, continue to develop and innovate, and provide even better products and services to customers from all over the world.

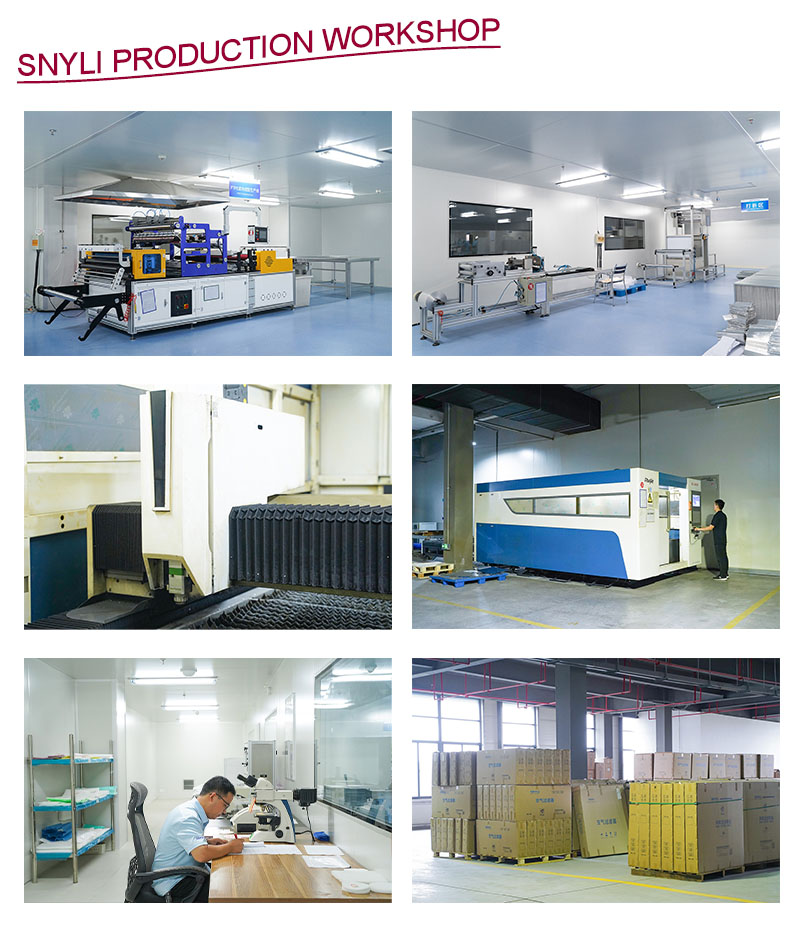

![SNYLI PRODUCTION WORKSHOP]( "SNYLI PRODUCTION WORKSHOP")
