Introduction:
Bag air filters are widely used in various occasions due to their efficient filtration performance and convenient maintenance characteristics. Choosing the right bag filter can significantly improve air quality and provide users with a healthier and more comfortable environment.

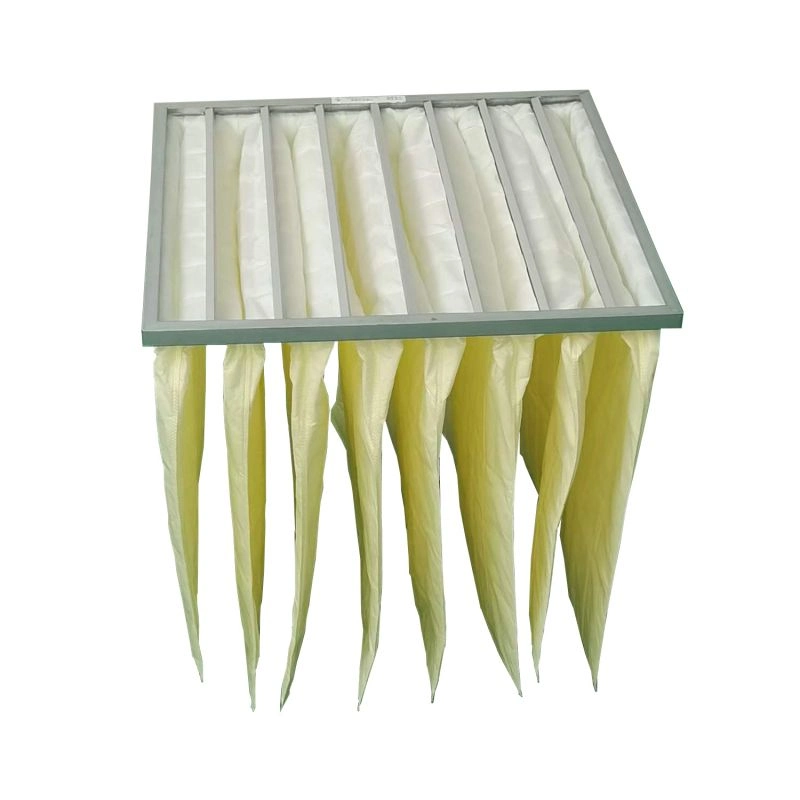

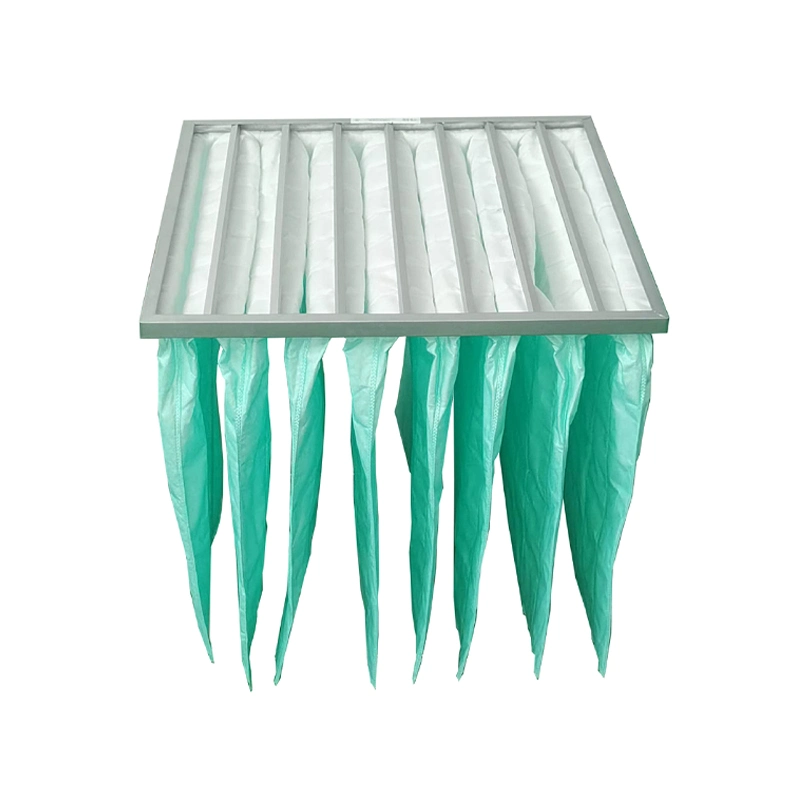

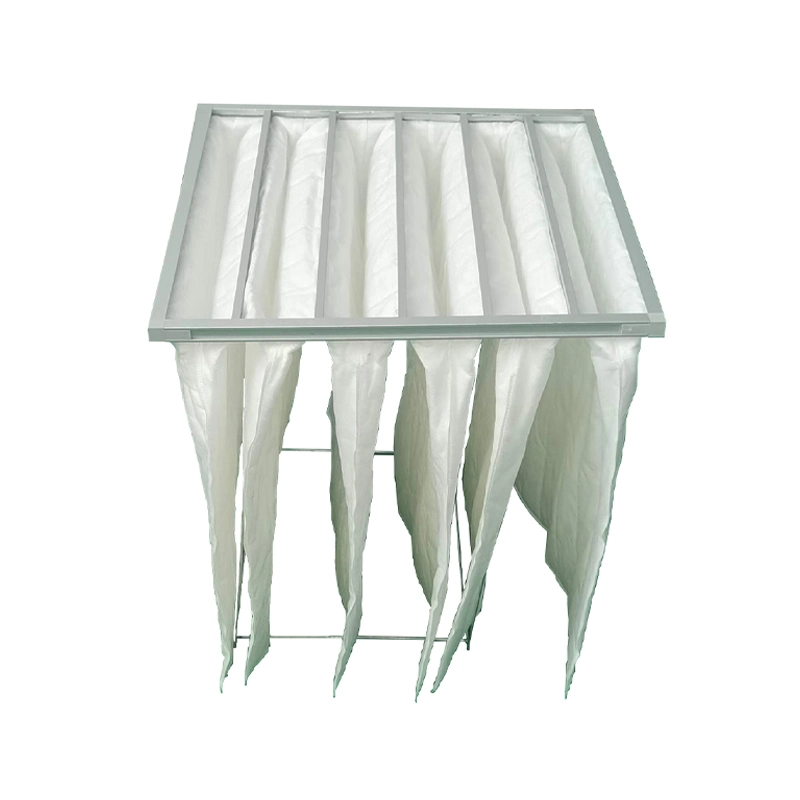

Bag design: The core of the bag filter is a number of filter bags made of synthetic fibre or glass fibre, which can be selected with different efficiencies according to customers' needs.
Frame: The bags are fixed on a sturdy metal or plastic frame to ensure the stability and durability of the whole filter.

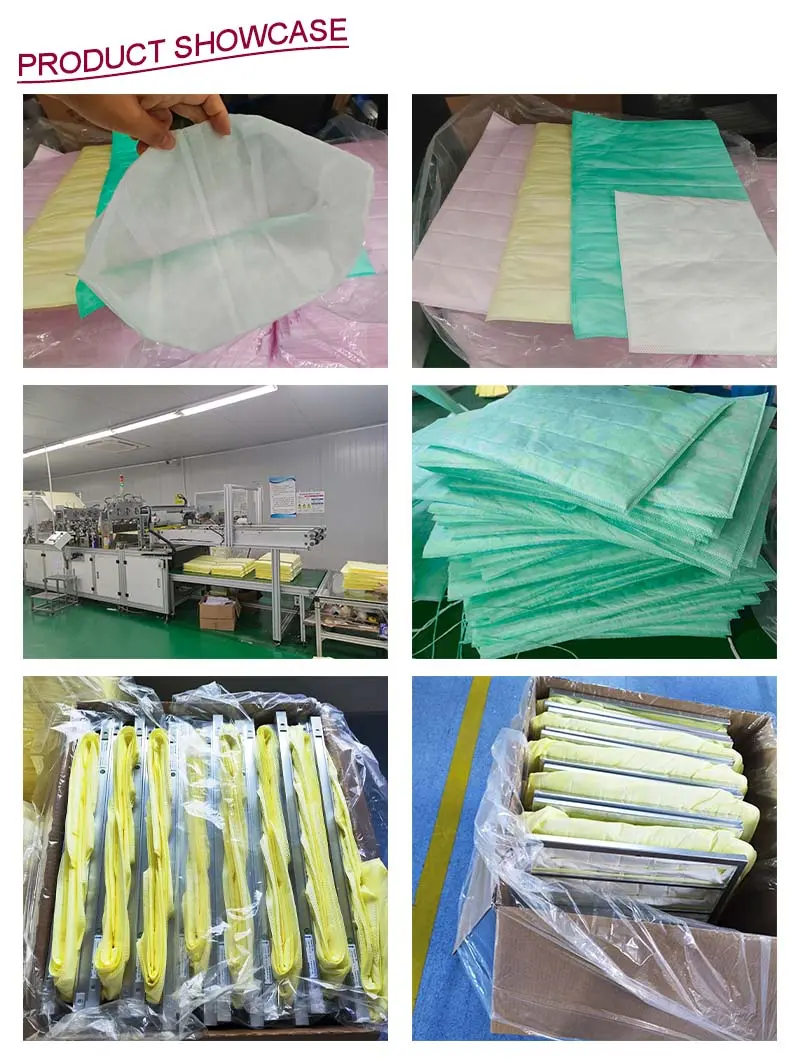

![Bag air filter]( "Bag air filter")
| Frame | Galvanized steel /Aluminium alloy /Stainless steel |
|---|
| Media | Snythetic fiber or glass fiber |
|---|
| Design | Pocket type |
|---|
| Std. EN779:2012 | G4-F9 |
|---|
| Maximum temperature | 80℃ |
|---|
| Maximum relative humidity | 100% |
|---|
| Customized size | Available |
|---|
Common dimensions:
Nominal Size (inches)
| Actual Size
(mm) | Bags | Filtration area
(m2) | Air flow /initial resistance (m3/h / Pa) | Efficiency
EN779 |
Width
| Height
| Depth
|
24 x 24 x 15 | 592 | 592 | 380 | 8 | 3.6 | 1950 / 40
| 2450 / 50
| 3200 / 70 | F5 |
20 x 24x 15 | 490 | 592 | 380 | 6 | 2.7 | 1500 / 40
| 2350 / 50
| 2850 / 70 | F5 |
12 x 24x15 | 287 | 592 | 380 | 3 | 1.4 | 950 / 40
| 1080 / 50
| 1500 / 70 | F5 |
20x 20x 15 | 490 | 490 | 380 | 5 | 2.0 | 1150 / 40
| 1650 / 50
| 2180 / 70 | F5 |
20 x 16 x 15 | 490 | 390 | 380 | 4 | 1.6 | 850 / 40
| 1450 / 50
| 2150 / 70 | F5 |
12x 12 x 15 | 287 | 287 | 380 | 2 | 0.44 | 350 / 40
| 400 / 50
| 650 / 70 | F5 |
24 x 24 x 19 | 592 | 592 | 480 | 8 | 4.6 | 2150 /40 | 2850 / 50
| 3400 / 70 | F5 |
20 x 24x 19 | 490 | 592 | 480 | 6 | 3.4 | 1800 / 40
| 2600 / 50
| 3050 / 70 | F5 |
12 x 24x19 | 287 | 592 | 480 | 3 | 1.7 | 1050 /40
| 1350 / 50
| 1700 / 70 | F5 |
20x 20x 19 | 490 | 490 | 480 | 5 | 2.35 | 1350 /40
| 1850 / 50
| 2350 / 70 | F5 |
20 x 16 x19 | 490 | 390 | 480 | 4 | 1.5 | 1050 /40 | 1650 / 50
| 2350 / 70 | F5 |
12x 12 x 19 | 287 | 287 | 480 | 2 | 0.5 | 450 /40 | 500 / 50
| 850 / 70 | F5 |
24 x 24 x 21 | 592 | 592 | 534 | 8 | 4.74 | 2380 /40
| 3200 / 50
| 4200 / 70 | F5 |
20 x 24x 21 | 490 | 592 | 534 | 6 | 4.3 | 2150 /40
| 2850 / 50
| 3200 / 70 | F5 |
12 x 24x 21 | 287 | 592 | 534 | 3 | 1.8 | 1250 / 40
| 1500 / 50
| 1950 / 70 | F5 |
20x 20x 21 | 490 | 490 | 534 | 5 | 2.5 | 1550 / 40
| 2280 / 50
| 2500 / 70 | F5 |
20 x 16 x 21 | 490 | 390 | 534 | 4 | 1.6 | 1250 / 40
| 1850 / 50
| 2650 / 70 | F5 |
12x 12 x 21 | 287 | 287 | 534 | 2 | 0.6 | 500 / 40
| 650 / 50
| 950 / 70 | F5 |
24 x 24 x25 | 592 | 592 | 600 | 8 | 5.7 | 2650 / 40
| 3600 / 50
| 4500 / 70 | F5 |
20 x 24x 25 | 490 | 592 | 600 | 6 | 4.3 | 2450 / 40
| 3100 / 50
| 3800 / 70 | F5 |
12 x 24x25 | 287 | 592 | 600 | 3 | 2.2 | 1450 / 40
| 1700 / 50
| 2100 / 70 | F5 |
20x 20x 25 | 490 | 490 | 600 | 5 | 2.94 | 1700 / 40
| 2450 / 50
| 2950 / 70 | F5 |
Performance Features:
High dust holding capacity: the bag design increases the filtration area, improves the dust holding capacity and extends the replacement cycle.
High efficiency filtration: it can effectively remove many kinds of particles in the air and improve indoor air quality.
Stable structure: the sturdy frame design enhances the stability of the overall structure and has a long service life.
Medium efficiency filtration: bag filters are usually used in the medium efficiency filtration section (e.g. F5-F9 grade), which can effectively remove dust, pollen, fibres and other tiny particles from the air.
Application places:
Industrial environment: suitable for factories, workshops and other places that need a lot of purified air.
Commercial buildings: such as office buildings, shopping malls, hotels, etc., which can improve indoor air quality.
Medical facilities: hospitals, clinics and other places that require high air quality.
![Applications]( "Applications")

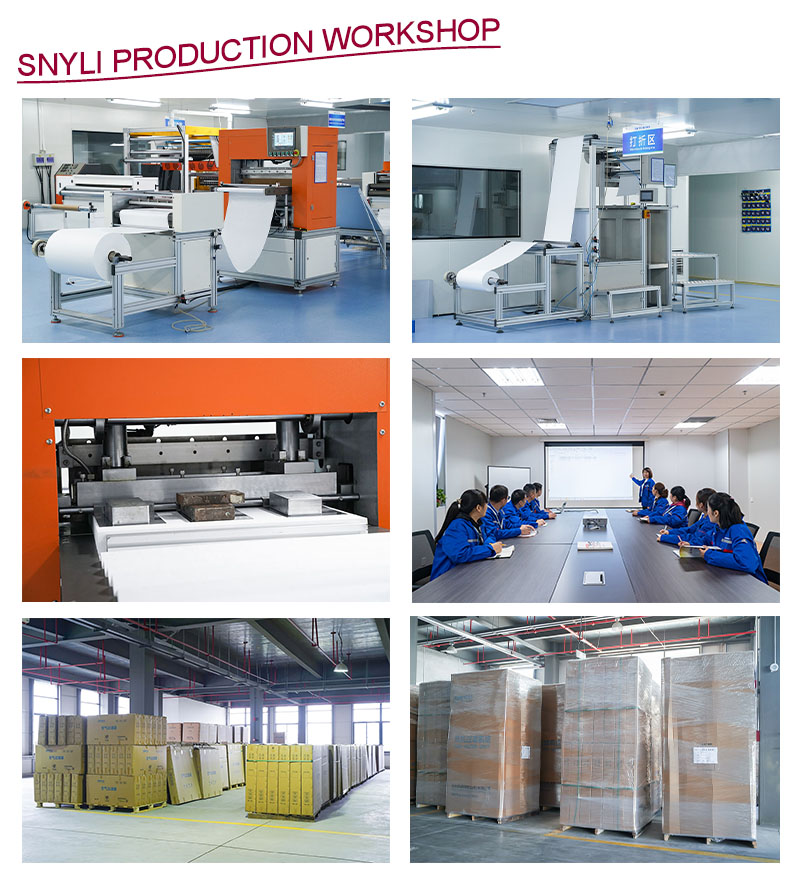

SNYLI Production workshop:
SNYLI factory is located in Liaocheng City, Shandong Province, China, with several independent clean production workshops, including FFU workshop, primary filter workshop, bag filter workshop, HEPA filter workshop and so on.
Professional technical team, independent warehouse and perfect service make SNYLI's popularity in the air filtration industry increasing.
![SNYLI Production workshop]( "SNYLI Production workshop")
About us:
Snyli Environmental Technology (Shandong) Co.,Ltd was established in 2010, registered in Liaocheng City, Shandong Province, mainly engaged in air filtration products. Since the establishment of our company, we have been continuously deepening our research and development to improve our strength, and now we have mastered many patents and obtained ISO/CE certificates.
After more than ten years, SNYLI has set up branches in many places in China and a trading company in Jinan City, Shandong Province. At present, SNYLI products have been exported to both home and abroad, and we have signed long-term co-operation agreements with customers in many countries.
We always put the interests of customers in the first place, regularly follow up customer feedback, and strive to improve our own strength, and the constant pursuit of progress.
Giving us a chance to co-operate will be a decision that benefits both parties! SNYLI welcomes your enquiry!
