Introduction:

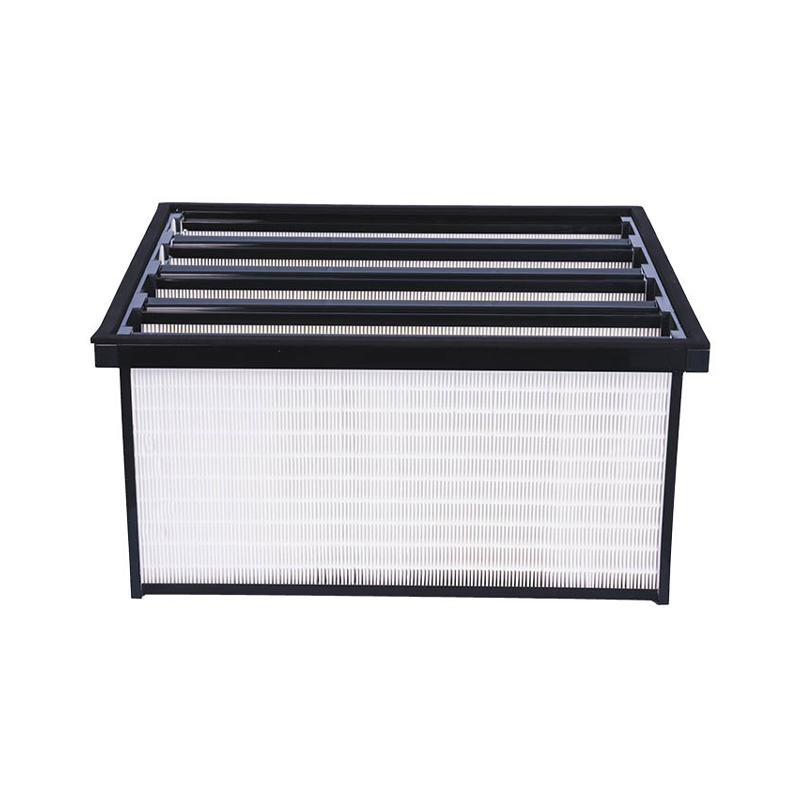

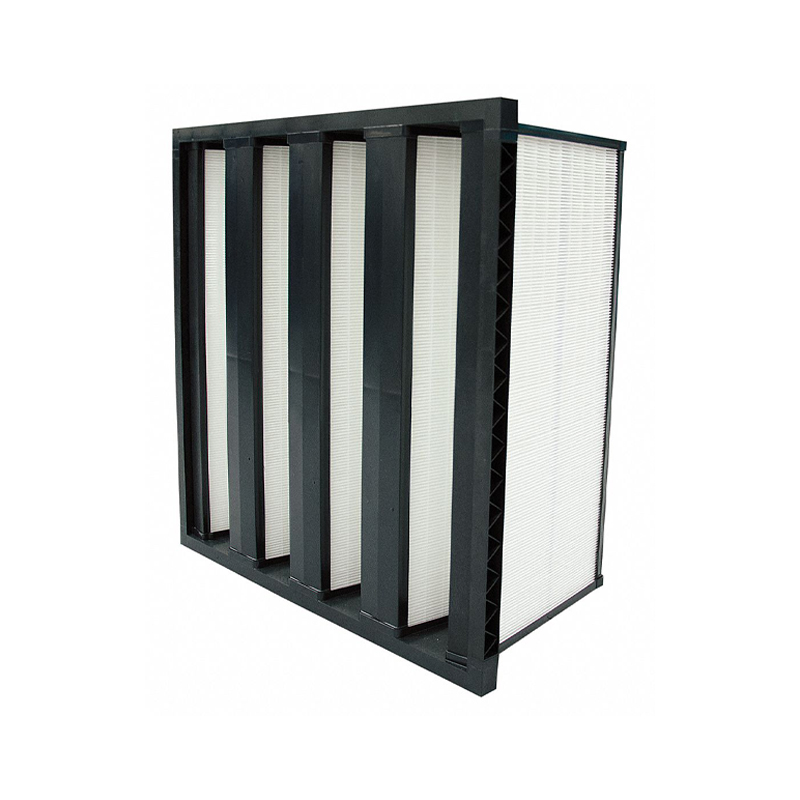

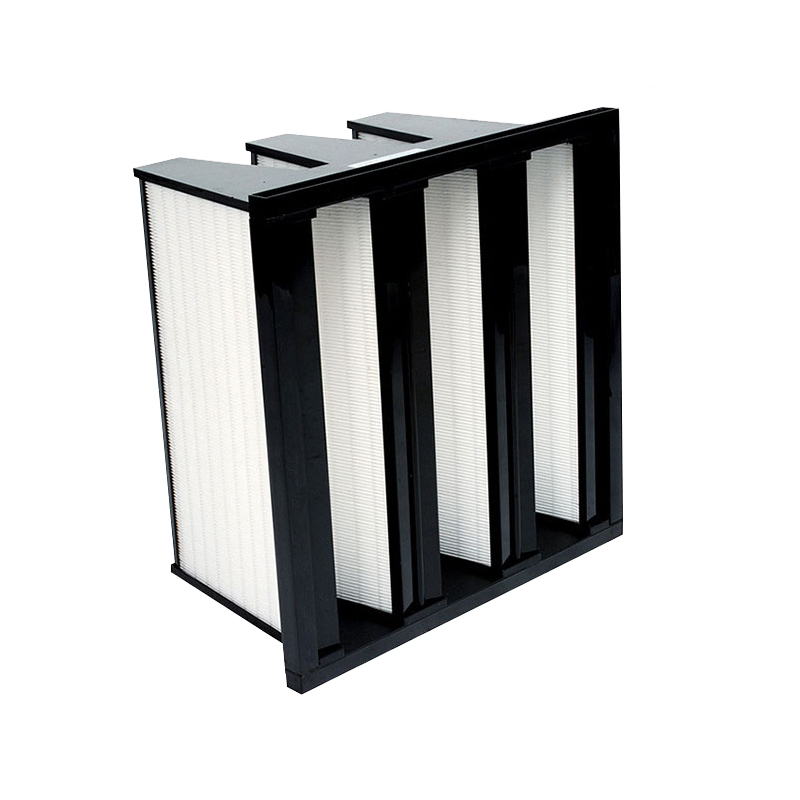

V Bank Mini Pleat Medium Efficiency Air Filter is a common plastic frame high air volume air filter, using ultra-fine glass fibre filter paper as the filter media, capable of efficiently removing dust particles of 0.5 microns, and is suitable for the mid-range filtration section. It is characterised by high filtration efficiency, compact structure and easy installation, as well as excellent moisture resistance, which can effectively extend the service life of the filter.
![V Bank Mini Pleat Medium Efficiency Air Filter]( "V Bank Mini Pleat Medium Efficiency Air Filter")
Common dimensions:
Size
(mm) | CMH | I.N.P
(Pa) | F.N.P
(Pa) | EFF. (%) | Filter object (μm) | Filtration
Class | Filtration
Area
(m2) | Header thickness
(mm) |
610*610*292-5V | 2200/4200 | <65/120 | <450/600 | 90≤E<95 | 0.5 | F8 | 23.82 | 20/25 |
610*610*292-4V | 1800/3600 | <65/120 | <450/600 | 90≤E<95 | 0.5 | F8 | 19.06 | 20/25 |
610*305*292-4V | 1000/2000 | <65/120 | <450/600 | 90≤E<95 | 0.5 | F8 | 9.41 | 20/25 |
610*610*292-5V | 2200/4200 | <75/135 | <450/600 | 95≤E | 0.5 | F9 | 23.82 | 20/25 |
610*610*292-4V | 1800/3600 | <75/135 | <450/600 | 95≤E | 0.5 | F9 | 19.06 | 20/25 |
610*305*292-4V | 1000/2000 | <75/135 | <450/600 | 95≤E | 0.5 | F9 | 9.41 | 20/25 |
Features:
1. High filtration efficiency: adopting ultra-fine glass fibre filter paper as the filter material, it can efficiently remove dust particles of 0.5 microns, and the filtration effect can reach more than 95%.

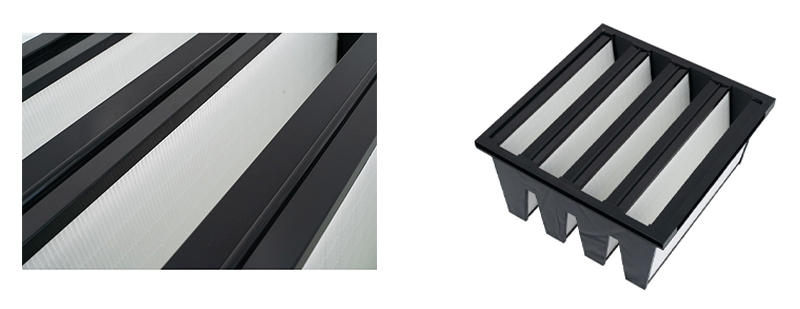

2. Compact structure: the outer frame is made of ABS frame, and the inner set has V-shape structure, compact structure, high space utilisation and easy installation.
3. Good moisture-proof performance: the V Bank Mini Pleat Medium Efficiency Air Filter is made of moisture-proof ultra-fine glass fibre filter paper, which can reduce the accumulation of moisture inside the filter to improve the filtration efficiency and prolong the service life of the filter.
4. Low resistance: As the filter material is made of ultra-fine glass fibre, the air inside the filter flows smoothly and is not easy to generate resistance, which improves the efficiency of the system.
Applications:
Usually used in the mid-end filtration section of various clean systems, such as food manufacturing, pharmaceutical, medical, biopharmaceutical and other fields. Due to the advantages of easy installation, long service life and good moisture-proof performance, V Bank Mini Pleat Medium Efficiency Air Filter has become an indispensable part of various clean systems.
About us:
Snyli Environmental Technology (Shandong) Co., Ltd has strong technical strength and rich production experience, and has many certificates, including but not limited to various patent certificates and ISO/CE certificates. Our strength has been praised by many domestic and foreign partners.
