Introduction:

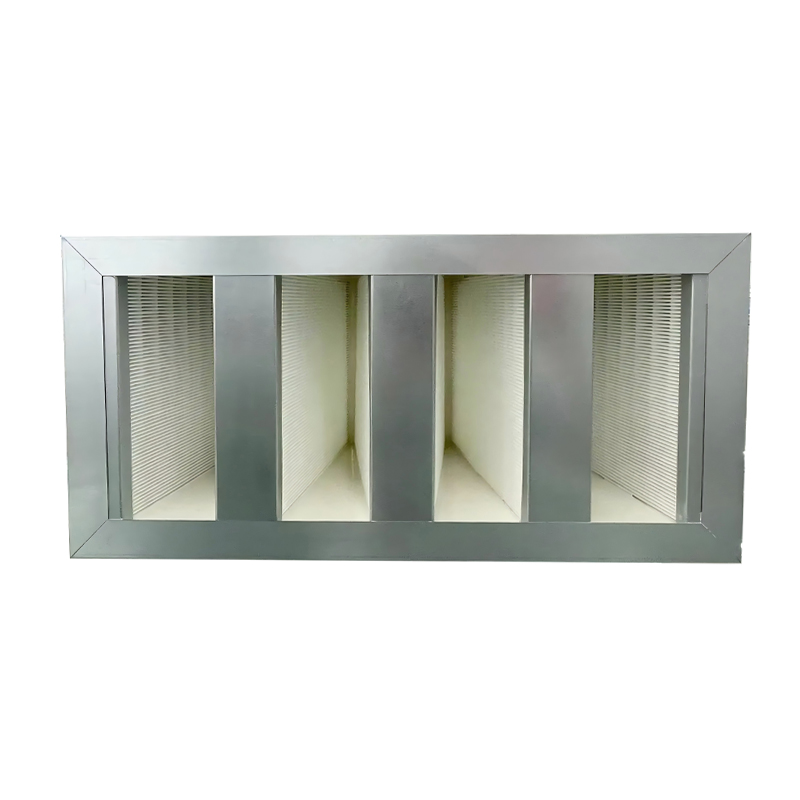

V bank HEPA filter is a professional air filtration equipment, which is characterised by a V-shaped structure, with a larger filtration surface area and a higher air handling capacity. These filters are usually made of high efficiency filter media, such as glass fibre, and are used to filter airborne particles, bacteria, viruses and other harmful substances, thus providing a clean and healthy indoor air environment.
V bank HEPA filters are commonly used in medical institutions, laboratories, electronic plants, pharmaceutical factories and other places with high air quality requirements, which can effectively improve the air filtration effect and protect the health of personnel.
V-Bank HEPA filters usually consist of the following main components:
| Outer frame | Usually made of aluminium alloy, galvanized steel or ABS plastic, the main function of the outer frame is to support and fix the whole filter. |
|---|
| Filter media | Filter Media: The main part of V-bank HEPA filter is the filter media, which is usually made of high-efficiency filter material, such as glass fibre, with high filtration efficiency and particle trapping capacity. |
|---|
| Separator material | Hot melt adhesive is used to separate the filter media to ensure that the air passes evenly through the whole filter, avoiding the accumulation and bypassing of fine particles in the filtration process. |
|---|
| Sealing strip | Sealing strip(material: EVA/EPDM) on the outer frame to ensure airtightness. |
|---|
| Max. temperature | 70℃ |
|---|
| Max. humidity | 100% RH |
|---|

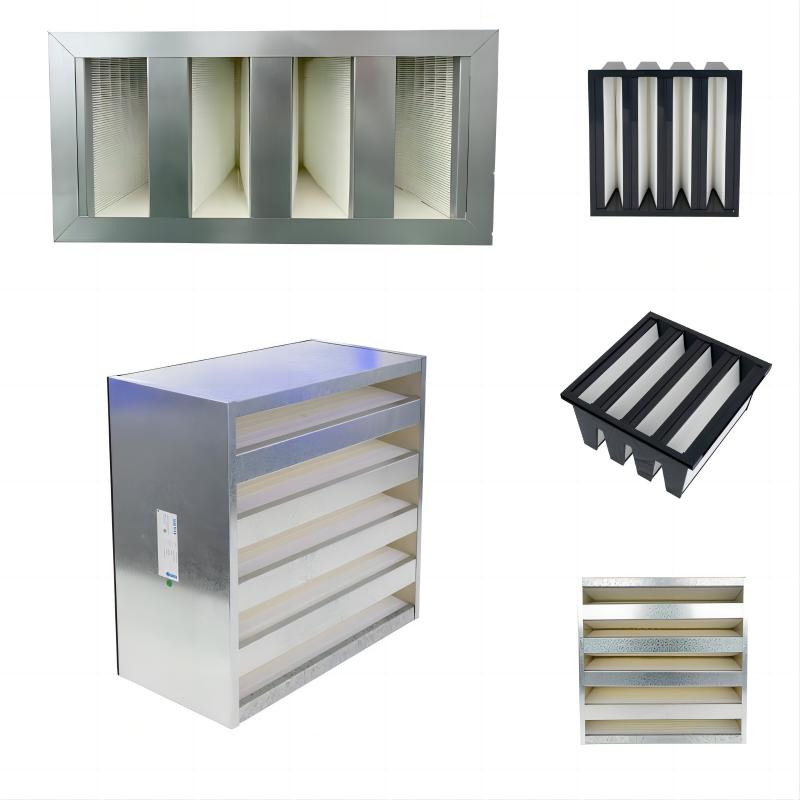

![SNYLI V-Bank HEPA Filter]( "SNYLI V-Bank HEPA Filter")
Common dimensions:
Model | Actual size
W×H×D(mm) | Air flow
(m³/h) | Initial
pressure drop(Pa) | Final
pressure drop(Pa) |

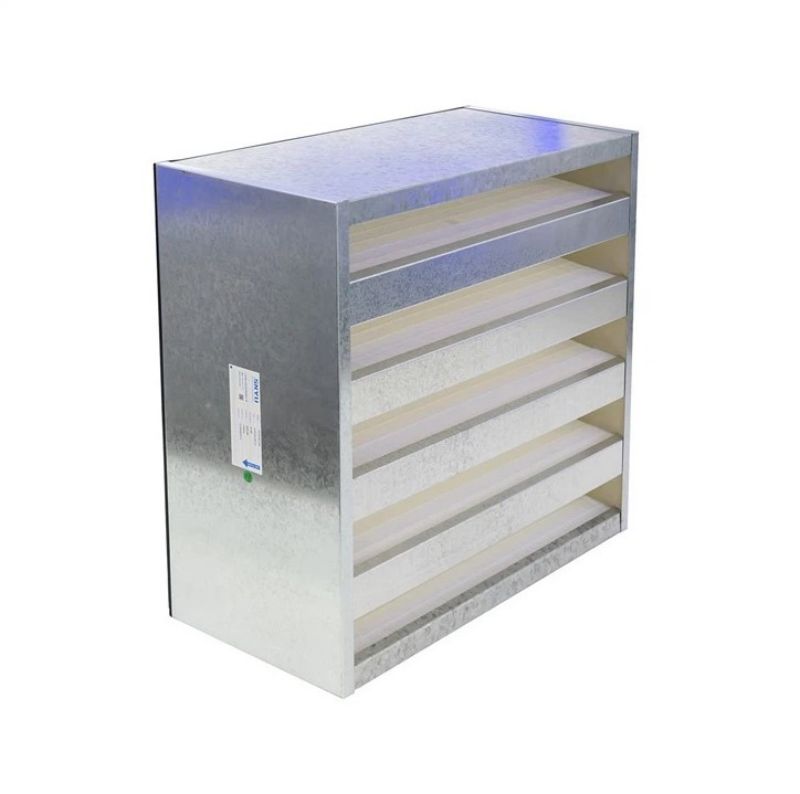

Box type | H4VH305610292 | 305×610×292 | 1700 | 249Pa
Face velocity 0.85m/sec | 500Pa
*Proposed value |
H4VH610610292 | 610×610×292 | 3400 |
Single flange type | H4VH287592292 | 287×592×292 | 1700 | 265Pa
Face velocity 0.45m/sec | 220Pa
*Proposed value |
H4VH592592292 | 592×592×292 | 3400 |
Performance Characteristics:
1. Larger filtration area.
The design of the V-shaped structure makes the filter's filtration area larger compared to traditional style filters, which can more effectively capture tiny particles and pollutants in the air and improve the filtration efficiency.
2.High quality glass fibre filter media.
Ultra-fine glass fibre is a efficient air filtration material that can effectively filter fine particles and pollutants and provide clean air.
3. A variety of outer frames are available.

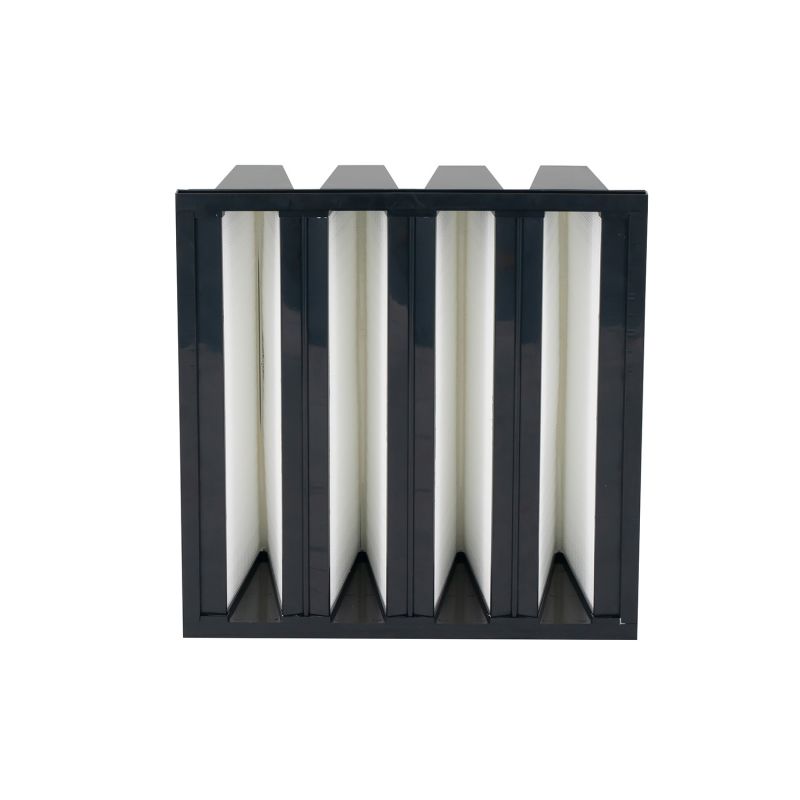

Depending on the application environment, a variety of frame materials can be selected, including metal frames (galvanised frames, aluminium frames) or ABS plastic frames. Metal frame is high temperature and pressure resistant, ABS plastic frame is lightweight and easy to install, users can choose according to their needs.
4. Excellent filtration effect.
Combining the V-shaped structure, ultra-fine glass fibre filter media and suitable frame material, V-bank HEPA filter has an excellent filtration effect, which can efficiently filter fine dust, bacteria, viruses and other harmful substances in the air, providing high-quality air purification effect.
5. Widely used in many industries.
V-bank HEPA filters have a wide range of applications in many industries, such as medical and health care, laboratories, electronic plants, commercial offices, food processing and other fields, which bring a clean and healthy air environment to these industries.
![SNYLI V-Bank HEPA Filter]( "SNYLI V-Bank HEPA Filter")
Precautions for use:
1. Regular maintenance and replacement: regularly check whether the V-bank HEPA filter is damaged or clogged, and replace the filter in time to ensure its filtration effect.
2. Selection of installation location: To select a suitable installation location according to the actual demand, and make sure the installation is correct and firm to avoid air leakage or other problems.
Application Scenarios:
1. Medical and health places: hospital operating rooms, sterile rooms and other places with high requirements for air quality.
2. Laboratories: various laboratories with strict requirements for air purification.
3. Electronic plant and clean workshop: the production and assembly plant that needs to filter fine dust and particles.
4. Commercial offices: office buildings, shopping malls and other places with air quality requirements.
5. Food processing: food processing plants which have high air quality requirements and need to be kept clean.
![Applications]( "Applications")
About us:
Snyli Environmental Technology (Shandong) Co.,Ltd has always insisted on putting customers' interests in the first place, since its establishment, SNYLI has gone through more than ten springs and autumns, and successfully established long-term co-operation with hundreds of domestic and foreign enterprises. In addition, SNYLI always adheres to the principle of advancing with the times, and has already obtained a number of R&D patents, and has been cooperating closely with industry associations, university research institutes, and third-party laboratories for a long time.
SNYLI is committed to the field of dust-free purification, and has rich experience and deep technical strength in this industry. If you have such needs, please feel free to enquire!
