Introduction:
Washable polyester synthetic fibre pre air filter is a kind of air filter that can be re-cleaned 2~3 times and can be reused. It removes large particles, dust and impurities from the air, and at the same time extends the service life of the high efficiency filter.
The outer frame of the washable panel air filter is sturdy and removable. It adopts a sturdy panel aluminium alloy frame with aluminium alloy corners, which has a sturdy and smooth structure to ensure that the filter will not be deformed or damaged under poor working conditions, and the outer frame adopts a removable design, which makes it easy to replace the filter material for the purpose of reusing the frame. Lightweight panel structure, high quality polyester synthetic fibre filter material, low initial resistance and good fire resistance.
Frame | Galvanized steel /Aluminium alloy /Stainless steel/Plastic |
Filter Media | Polyester synthetic fiber |
Sealant | Polyurethane |
Design | Panel |
Std. EN779: 2012 | G3,G4,F5 |
Maximum temperature | 98℃ |
Maximum relative humidity | 100% RH Rec. |
Customized size | Available |

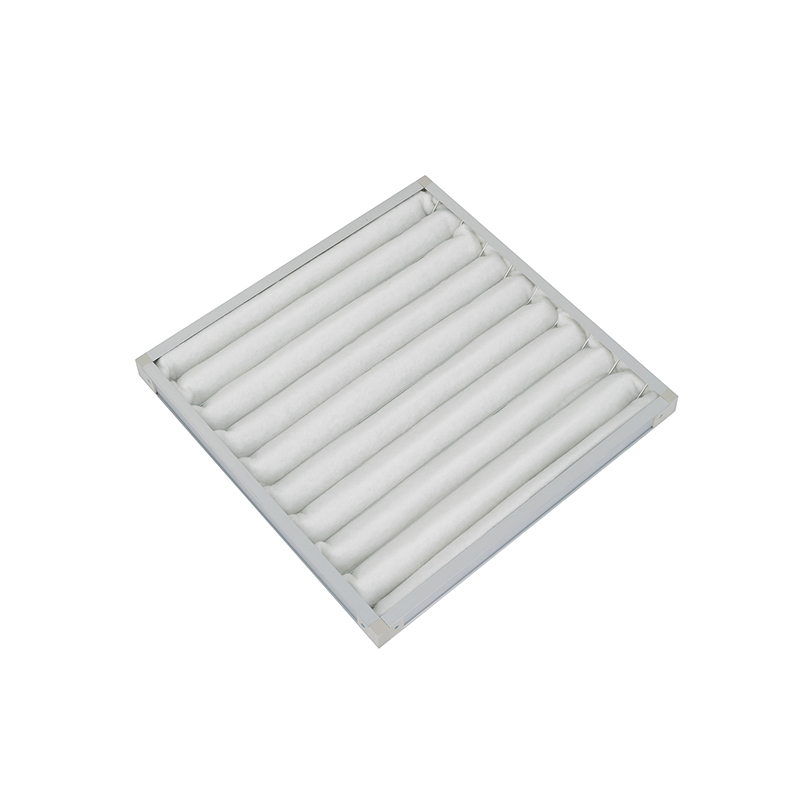

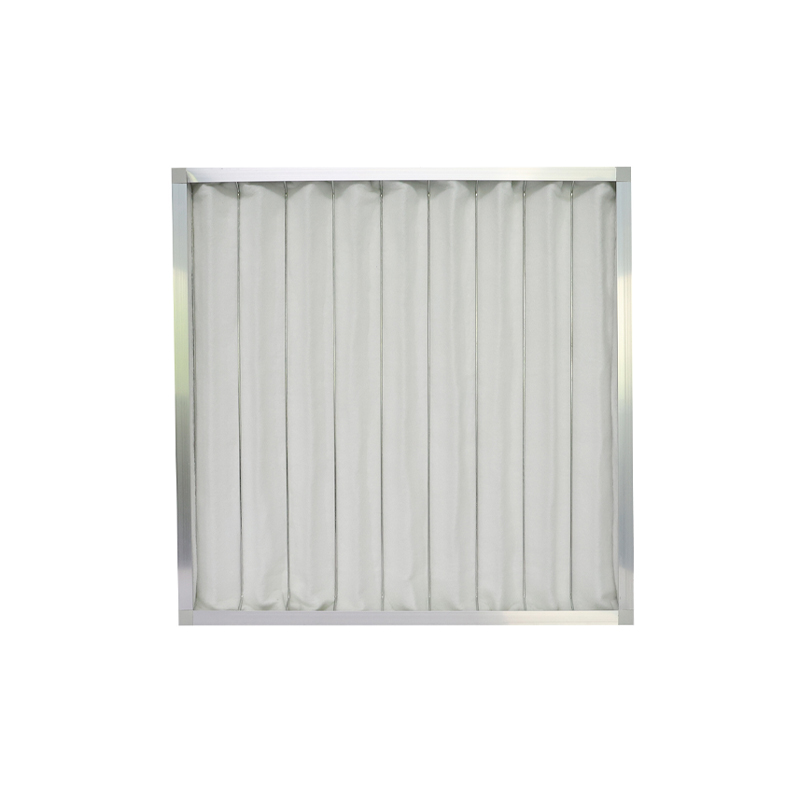

![Washable Polyester Synthetic Fiber Pre Air Filter Washable Polyester Synthetic Fiber Pre Air Filter]()
Common dimensions:
Model | Actual size W×H×D(mm) | Air flow(m³/h) | Initial P.D.(Pa) |
G3 | G4 | F5 |
CG3B-17KX-ZM10A | 290×595×10 | 1700 | 73 | 89 | -- |
CG3B-28KX-ZM10C | 493×595×10 | 2850 | 73 | 89 | -- |
CG3B-34KX-ZM10D | 595×595×10 | 3400 | 73 | 89 | -- |
CG3B-17KX-ZM21A | 290×595×21 | 1700 | 73 | 89 | 129 |
CG3B-24KX-ZM21B | 493×493×21 | 2400 | 73 | 89 | 129 |
CG3B-28KX-ZM21C | 493×595×21 | 2850 | 73 | 89 | 129 |
CG3B-34KX-ZM21D | 595×595×21 | 3400 | 73 | 89 | 129 |
CG3B-17KX-ZM46A | 290×595×46 | 1700 | 65 | 78 | 110 |
CG3B-28KX-ZM46C | 493×595×46 | 2850 | 65 | 78 | 110 |
CG3B-34KX-ZM46D | 595×595×46 | 3400 | 65 | 78 | 110 |
CG3B-17KX-ZM96A | 290×595×96 | 1700 | 58 | 67 | 92 |
CG3B-28KX-ZM96C | 493×595×96 | 2850 | 58 | 67 | 92 |
CG3B-28KX-ZM96D | 595×595×96 | 3400 | 58 | 67 | 92 |
Performance characteristics:
1. Frame material: the outer frame of the washable primary air filter is usually made of aluminium or galvanized frame, which are strong and not easy to be deformed.
2. Filtration efficiency: the filter is made of polyester synthetic fibre material, and the filtration efficiency can be selected from G3, G4, F5, which can meet most of the customers' requirements.
3. Repeatable cleaning: the washable primary air filters made of polyester synthetic fibre can be rewashed 2~3 times, so they have a longer life span, which saves the cost for customers.
4. Wide range of application: washable primary air filters can be used as pre-filters for most filtration systems and extend the service life of higher efficiency filters. Due to its good filtration efficiency, it is suitable for hospitals, laboratories and other highly demanding clean areas, and can also meet the needs of aviation, electronics, pharmaceuticals and other fields.
Applications:
Washable polyester synthetic fibre pre air filters are used in a variety of places, including: hospitals, laboratories, aviation, electronics, pharmaceuticals and other fields. In addition, for some families or enterprises, washable primary air filters can also be used as indoor air purification filters to remove dust, bacteria and other pollutants in the air and keep the indoor environment clean and hygienic.
Washable polyester synthetic fibre pre air filter is a cost-effective, environmentally friendly and energy-saving air filter. Its long life, cheap price, high filtration efficiency and wide range of applications have been favoured by our customers. In the future, washable primary air filters will have a wider range of applications, creating a cleaner and healthier environment for people.

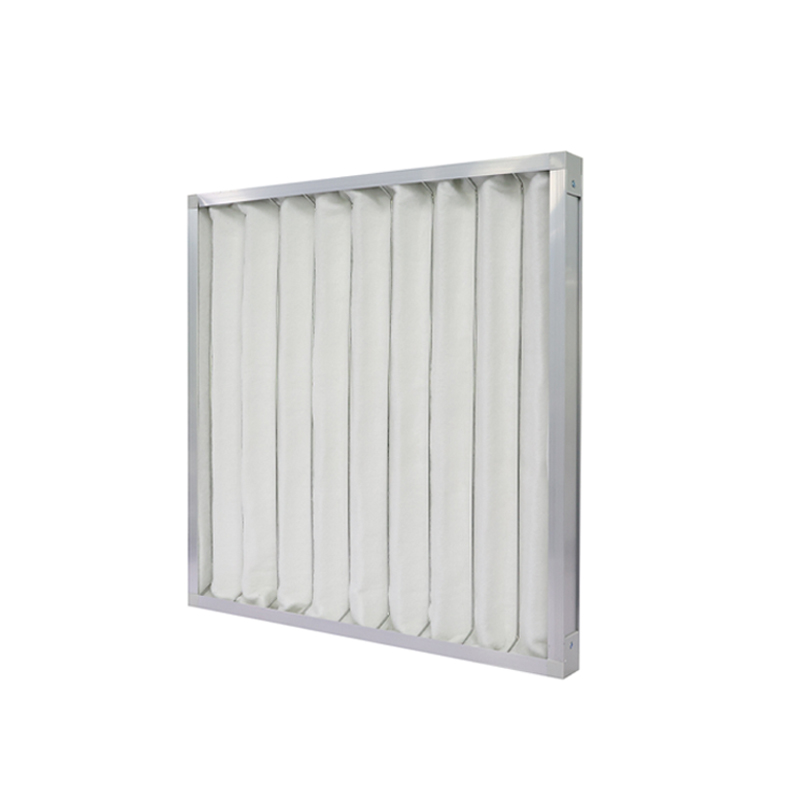

![Washable Polyester Synthetic Fiber Pre Air Filter Washable Polyester Synthetic Fiber Pre Air Filter]()
