Introduction:
With industrial development and urban expansion, the concentration of harmful gases in the atmosphere has increased, and so has the demand for pure air. Therefore, the demand for chemical filters is gradually increasing. The current chemical filters are mostly activated carbon air filters.
Activated carbon V Bank air filter adopts highly adsorbable activated carbon granules or activated carbon fibres as filter material, with highly developed microporous structure, large adsorption capacity, fast adsorption and desorption speed, good purification effect, and has unique advantages in removing odourous gases and higher density of gas-phase pollutants.
Frame | ABS plastic frame, Galvanized frame |
Filter media | Granular Carbon, Fibre Carbon |
Sealant | Polyurethane |
Airtight seal | EVA、EPDM(Option) |

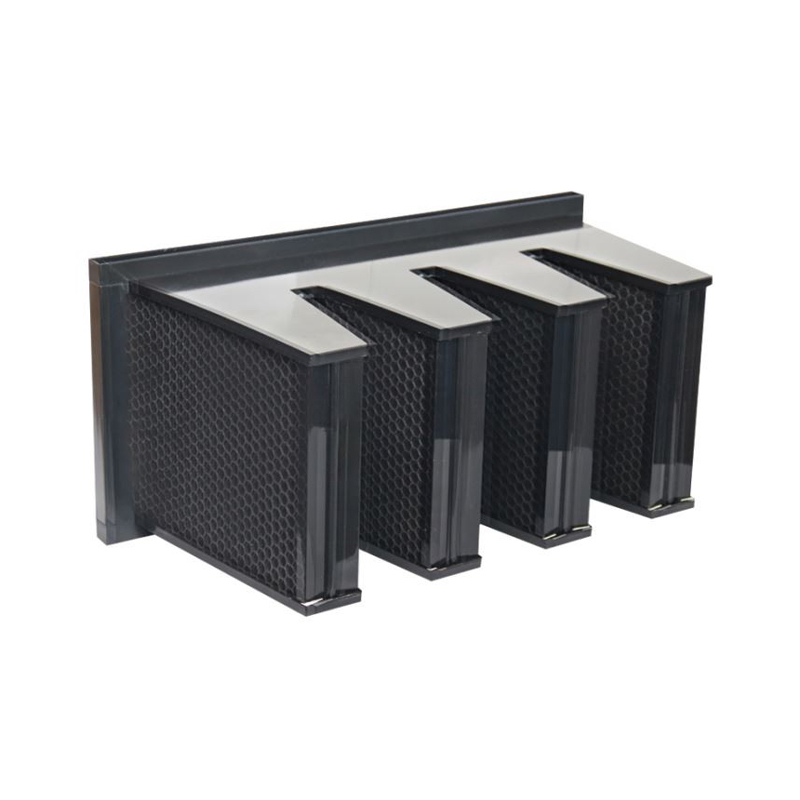

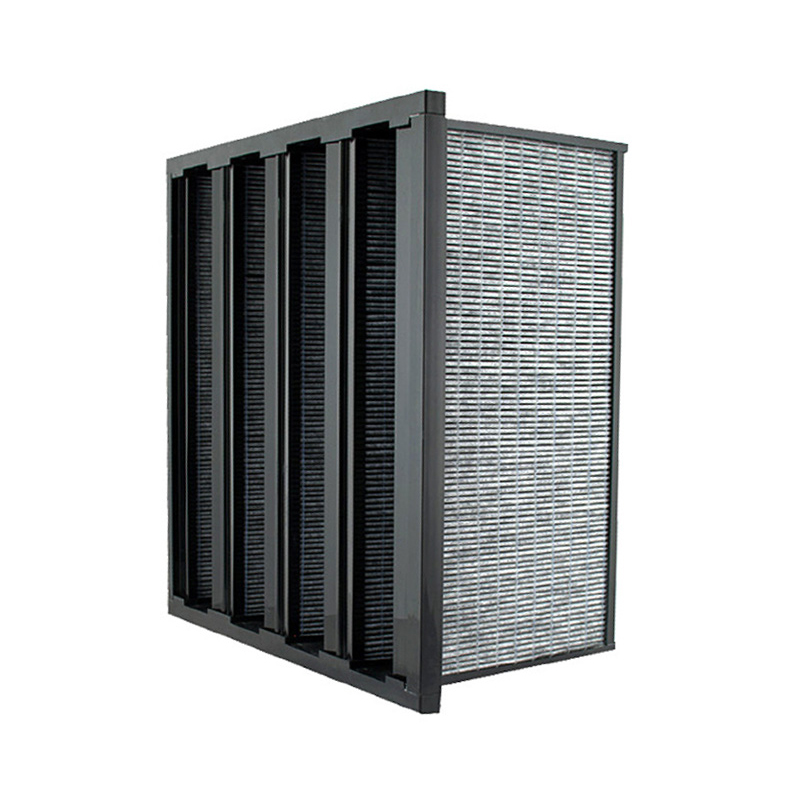

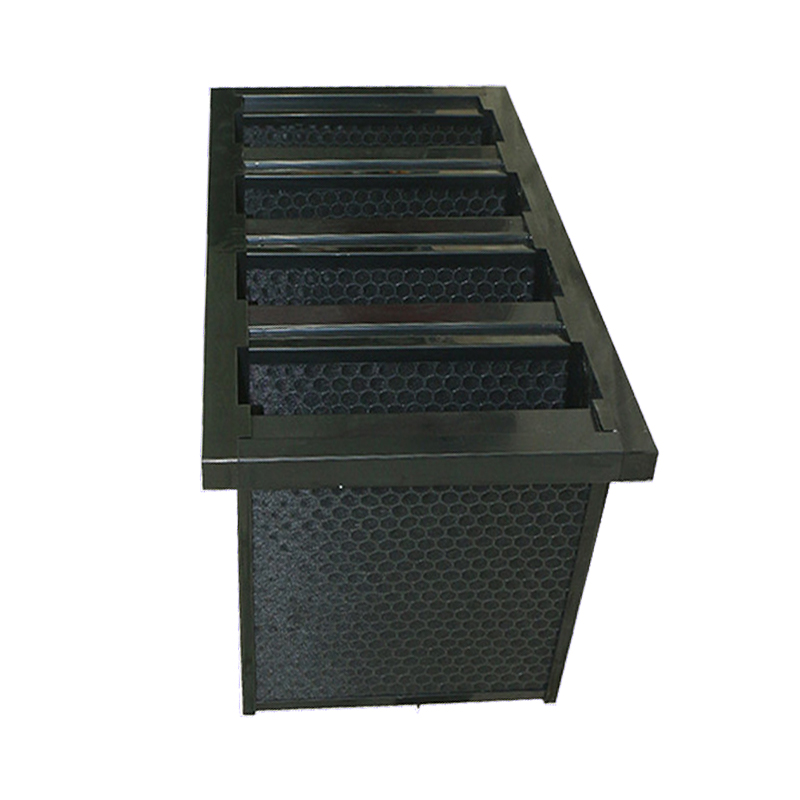

![V Bank Activated Carbon Air Filter]( "V Bank Activated Carbon Air Filter")
Common dimensions:
Size (mm) | CMH | I.N.P (Pa) | Comprehensive adsorption Rate (%) | CTC (%) | Benzene (%) | Deodorizing Performance (30mins) | Frame material | Structure |
592*592*292-4V | 2000/3400 | <55/90 | >90% | >50% | >60% | >95% | Plastic | Single flange |
592*492*292-4V | 1500/2800 | <55/90 | >90% | >50% | >60% | >95% | Plastic | Single flange |
592*287*292-4V | 1000/1800 | <55/90 | >90% | >50% | >60% | >95% | Plastic | Single flange |
610*610*292-5V | 2600/4200 | <55/90 | >90% | >50% | >60% | >95% | Galvanized | Single flange |
610*610*292-4V | 2000/3400 | <55/90 | >90% | >50% | >60% | >95% | Galvanized | Single flange |
610*305*292-4V | 1000/1700 | <55/90 | >90% | >50% | >60% | >95% | Galvanized | Single flange |
610*610*292-5V | 2600/4200 | <75/120 | >90% | >50% | >60% | >95% | Galvanized | Box |
610*610*292-4V | 2000/3400 | <85/130 | >90% | >50% | >60% | >95% | Galvanized | Box |
610*305*292-4V | 1000/1700 | <95/140 | >90% | >50% | >60% | >95% | Galvanized | Box |
Performance Characteristics:
1. Highly developed microporous structure: activated carbon V Bank air filter has a highly developed microporous structure, which can effectively adsorb gas-phase pollutants and ensure clean and fresh air.
2. Fast adsorption and desorption speed: The activated carbon V Bank air filter has a fast adsorption and desorption speed, which can quickly purify the air and provide a fresh indoor environment.
3. Good purification effect: Due to the high adsorption of activated carbon particles, the activated carbon V Bank filter has excellent purification effect and can effectively remove odours and harmful gases.
Applications:
1.Family: for family kitchen, bathroom and other spaces, can effectively remove smoke, odour and bacteria, improve the quality of living environment.
2. Commercial places: used in restaurants, offices, shopping malls and other places to keep the air fresh and improve customer experience.
3. Medical institutions: can be used in hospitals, clinics and other places to purify the air and help prevent the spread of infectious diseases.

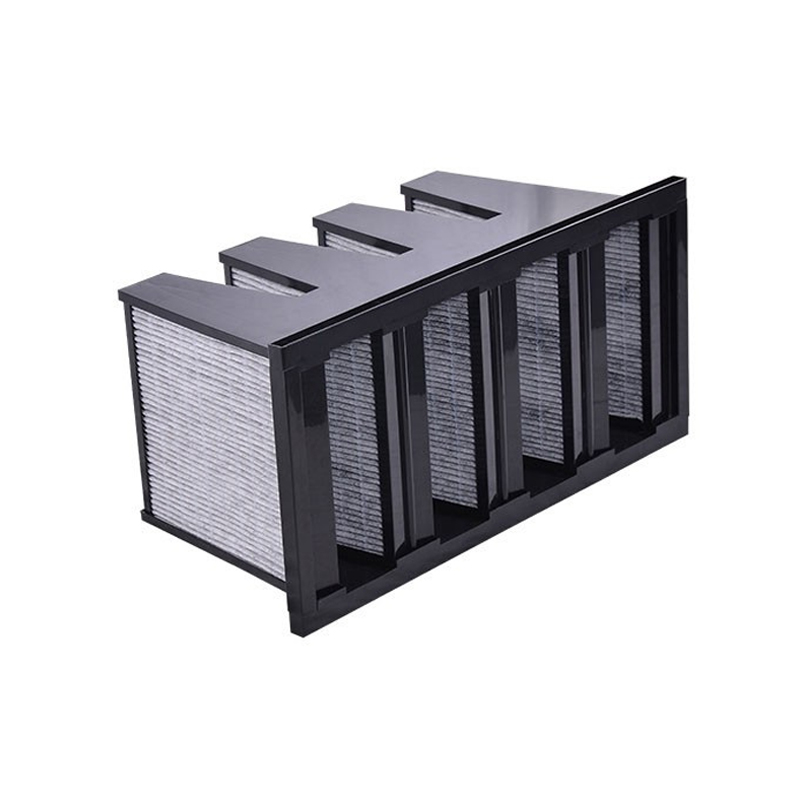

![Activated Carbon V Bank Air Filter]( "Activated Carbon V Bank Air Filter")
Precautions for use:
1. Regular replacement: activated carbon has the characteristic of adsorption saturation and needs to be replaced regularly to ensure the purification effect.
2. Increase the air speed when the odour is heavy: when the odour to be handled is heavy, the operating air speed of the activated carbon V bank Air filter can be increased appropriately to improve the purification effect.
3. Avoid humid environment: activated carbon is easy to absorb moisture, humid environment will affect its adsorption performance, need to maintain a dry environment.
4. Select the model according to the actual situation: when selecting the activated carbon V-type air filter, you need to select the appropriate model and specifications according to the actual size of the space, the use of demand and other factors.
In conclusion, activated carbon V bank air filter plays a positive role in improving air quality and protecting people's health with its high efficient adsorption capacity, fast purification speed and wide range of application places. Pay attention to maintenance in the process of use, appropriate selection of models, can better play its purification effect.
About us:
Snyli Environmental Technology (Shandong) Co., Ltd has been researching in the field of air purification for more than 10 years and owns a number of R&D patents. Since the development of foreign trade business in 2021, a continuous stream of foreign customers began to trust SNYLI and take SNYLI as the preferred supplier. We know that this trust is not easy to come by, so we treat the R&D and production of our products more and more rigorously in order to provide our customers with high quality services.
