Introduction:
The Activated Carbon Pocket Filter is composed of high-efficiency adsorptive activated carbon fiber compounded with filter cotton. It is suitable for various air conditioning and ventilation systems, effectively removing dust, odors, formaldehyde, and other air pollutants, and serves as an excellent adsorbent. And it features good air tightness and bonding strength.
Frame | Cardboard/Aluminium/Galvanized/ABS plastic |
Media | Polyester + active carbon |
Sealant | Polyurethane |
Max. Temperature | 70℃ Max. |
Max. Relative Humidity | 95% RH Rec. |

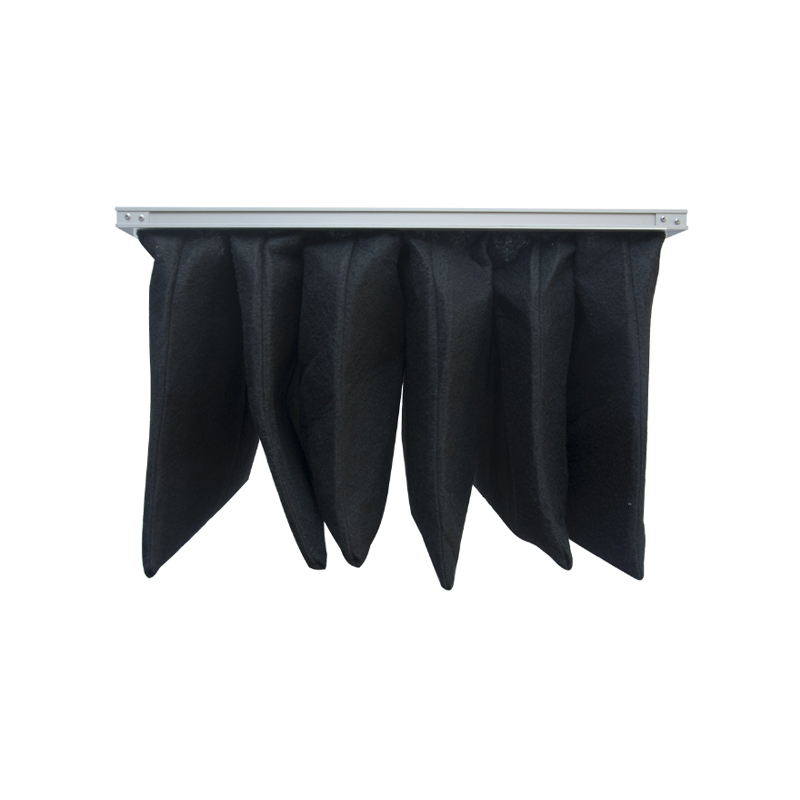

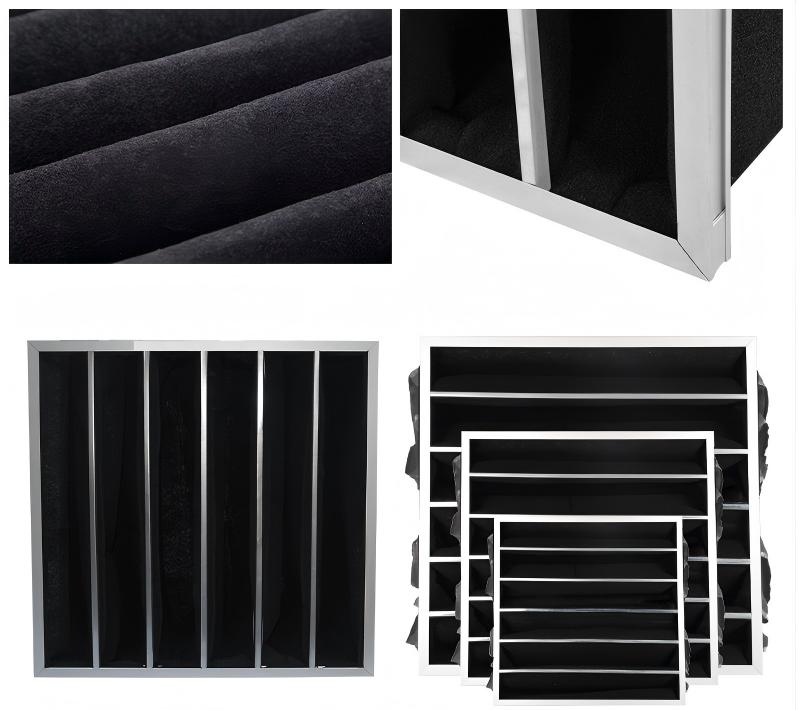

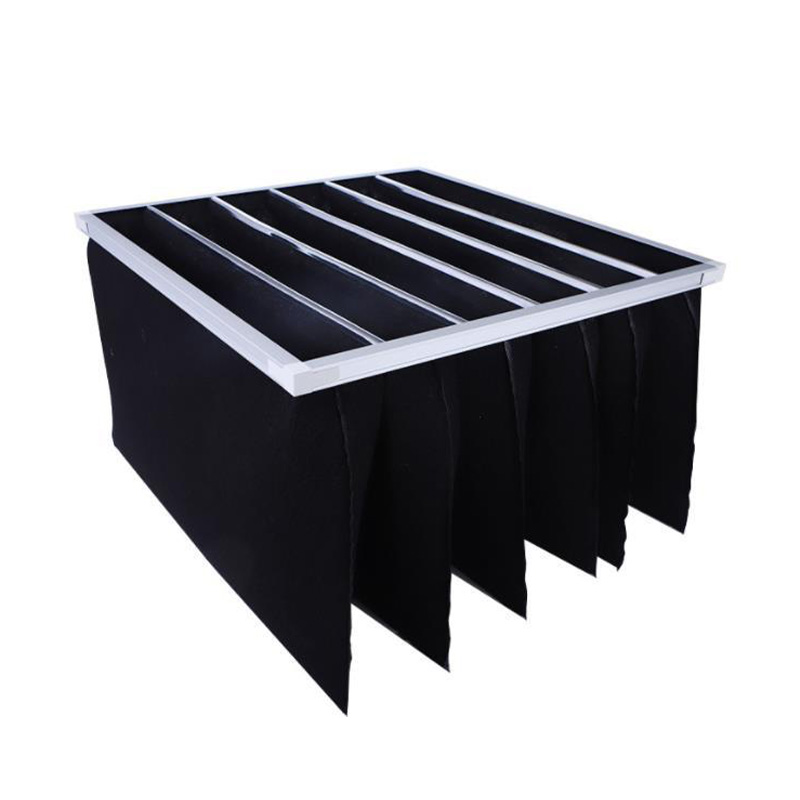

![Activated Carbon Pocket Filter]( "Activated Carbon Pocket Filter")
Common Model:
Dimension | Bag Nos | Filter Area (㎡） | G3 | G4 | F5
|
WxHxD(mm) | Initial pressure drop(Pa) | Airflow (cmh) | Initial pressure drop(Pa) | Airflow (cmh) | Initial pressure drop(Pa) | Airflow (cmh) |
592x592x381 | 6 | 3.3 | 31 | 3400 | 49 | 3400 | 84 | 3400 |
490x592x381 | 5 | 2.7 | 31 | 2900 | 49 | 2900 | 84 | 2900 |
287x592x381 | 3 | 1.6 | 31 | 1700 | 49 | 1700 | 84 | 1700 |
592x592x558 | 6 | 4.6 | 22 | 3400 | 35 | 3800 | 60 | 3400 |
490x592x558 | 5 | 4.1 | 22 | 2900 | 35 | 3200 | 60 | 2900 |
287x592x558 | 3 | 2.3 | 22 | 1700 | 35 | 1900 | 60 | 1700 |
Product Features:
1.High-quality synthetic fiber with strong adsorption capacity
The Activated Carbon Pocket Filter is made of activated carbon filter material with high adsorption value, which has strong adsorption capacity and effectively filters harmful gases and substances in the air.
2.Bag-type structure, large filtration area and high dust holding capacity
The activated carbon bag filter adopts a unique V-shaped ultrasonic sewing process, which provides a large effective filtration area, high dust holding capacity and long service life.
3.Sturdy frame, easy maintenance, and customizable sizes
The frame is available in multiple options (aluminum, galvanized steel, ABS, stainless steel, etc.). It is easy to install and highly versatile.

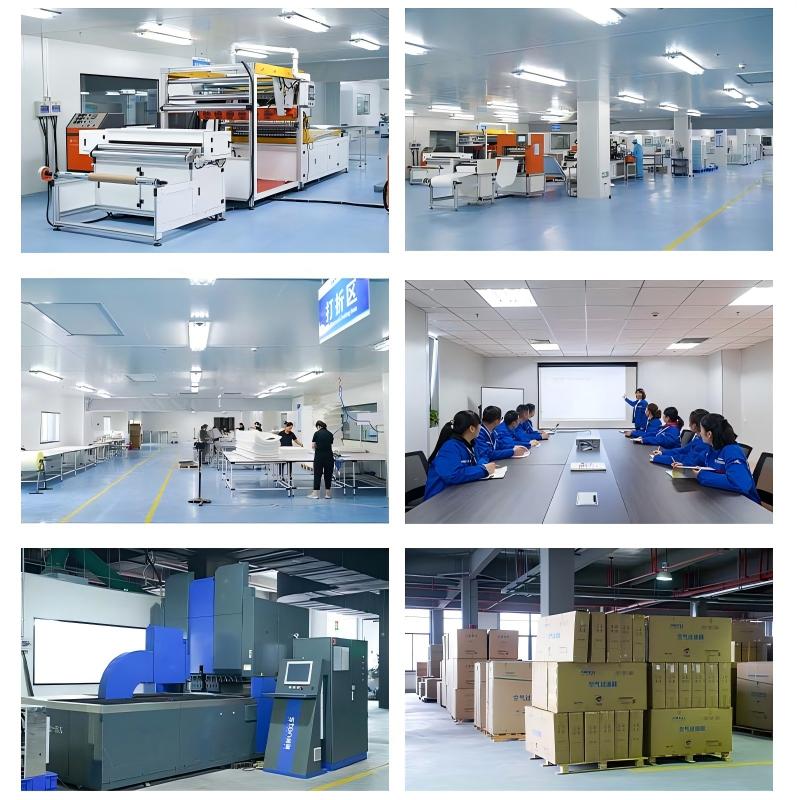

![SNYLI Workshop]( "SNYLI Workshop")

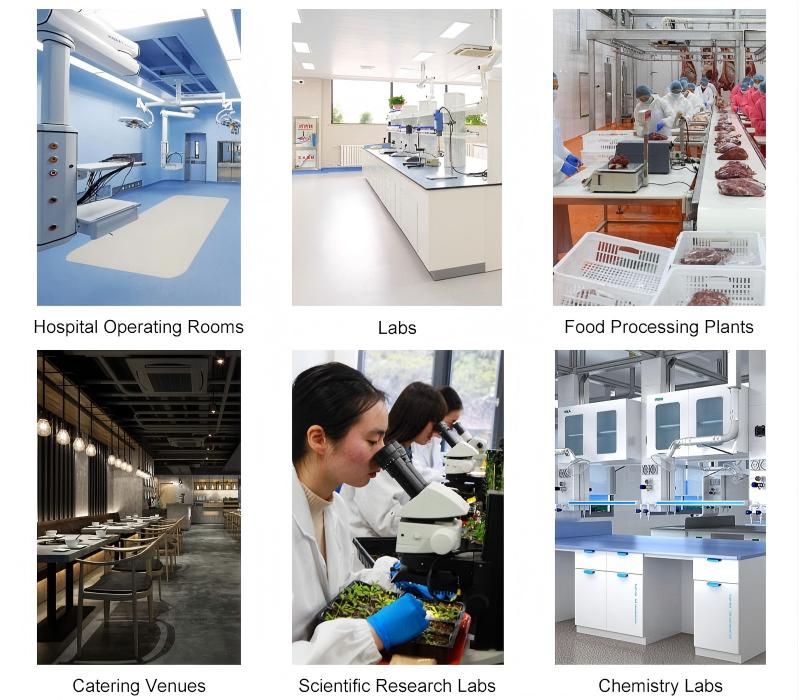

Applications:
Activated Carbon Pocket Filter can be used in various fields.
-Industrial waste gas treatment: VOCs management in chemical, spraying, printing and electronics industries.
-Air purification: Odor control in hospitals, laboratories and food processing plants.
-HVAC systems: Ventilation and purification for commercial buildings and underground parking garages.
-Environmental protection projects: Odor adsorption in waste incineration and sewage treatment plants.
![Applications]( "Applications")
Packaging & Delivery:
1. Each product is individually sealed and packaged to prevent moisture and dust.
2. Packaging specifications can be customized according to customer requirements, offering various packaging methods such as carton + pallet or carton + wooden box.
3. Long-term cooperation with international logistics, providing stable and fast sea and air transportation services, supporting delivery to major ports worldwide.
![Packaging & Delivery]( "Packaging & Delivery")
About us:
Focused Production: SNYLI has 15 years of professional experience in manufacturing activated carbon filters, equipped with advanced production lines and a strict quality control system.
Strong Customization Capability: Supports flexible customization of size, carbon content, weight, etc., meeting OEM/ODM requirements.
Comprehensive Certifications: Products have passed international certifications such as CE and ISO9001, complying with European and American environmental standards.
One-Stop Service: Provides full technical support from material selection and production to after-sales, ensuring worry-free procurement for customers.
![SNYLI Factory]( "SNYLI Factory")
