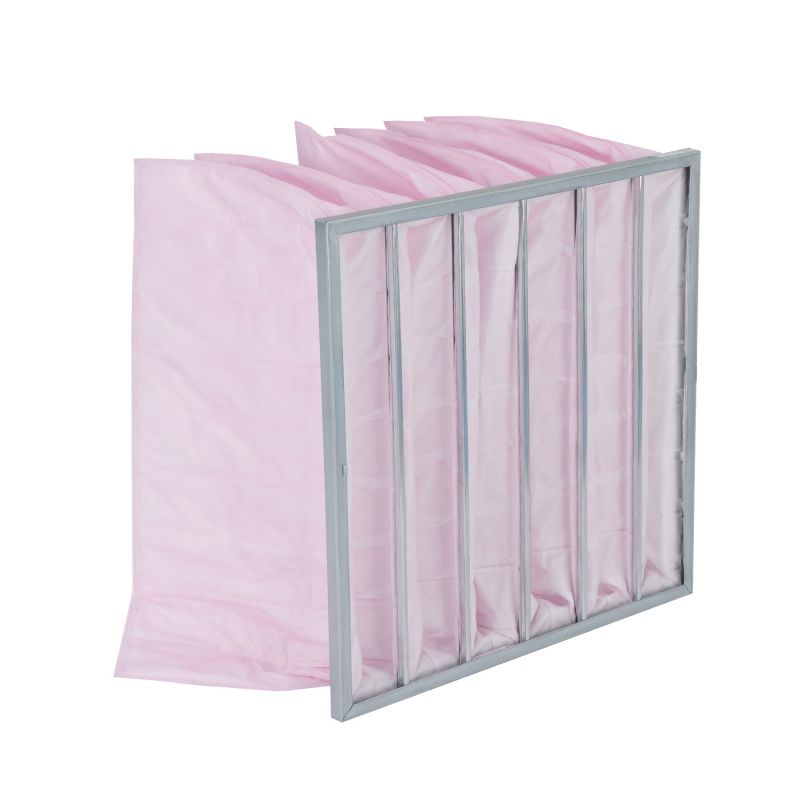

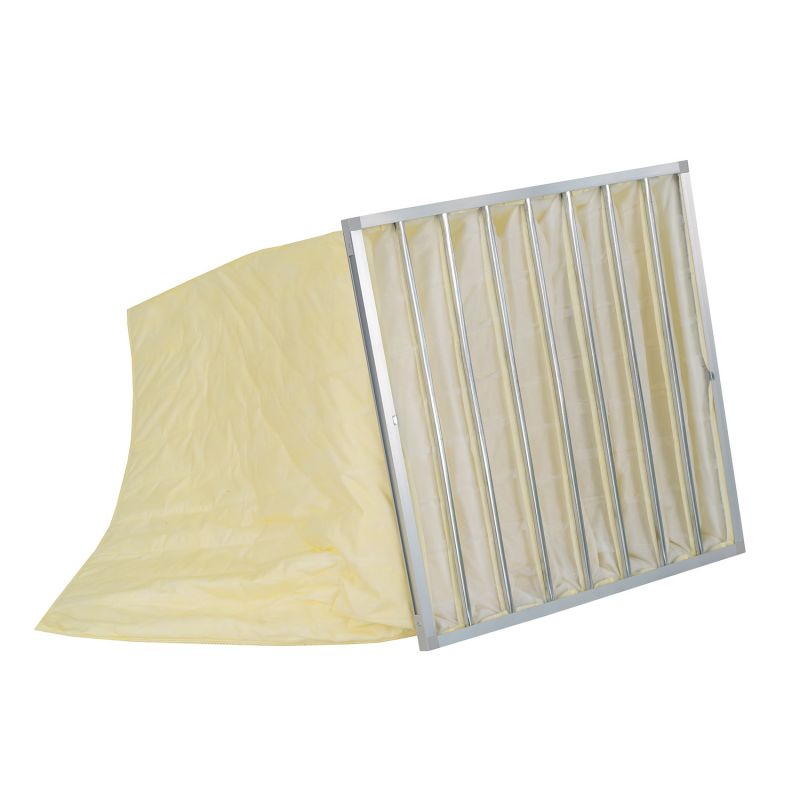

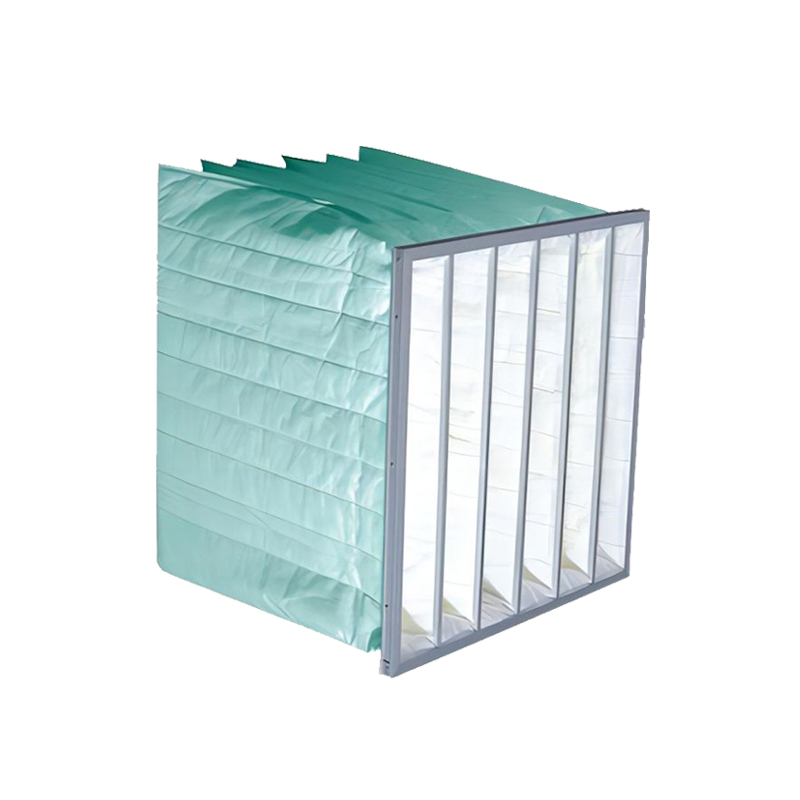

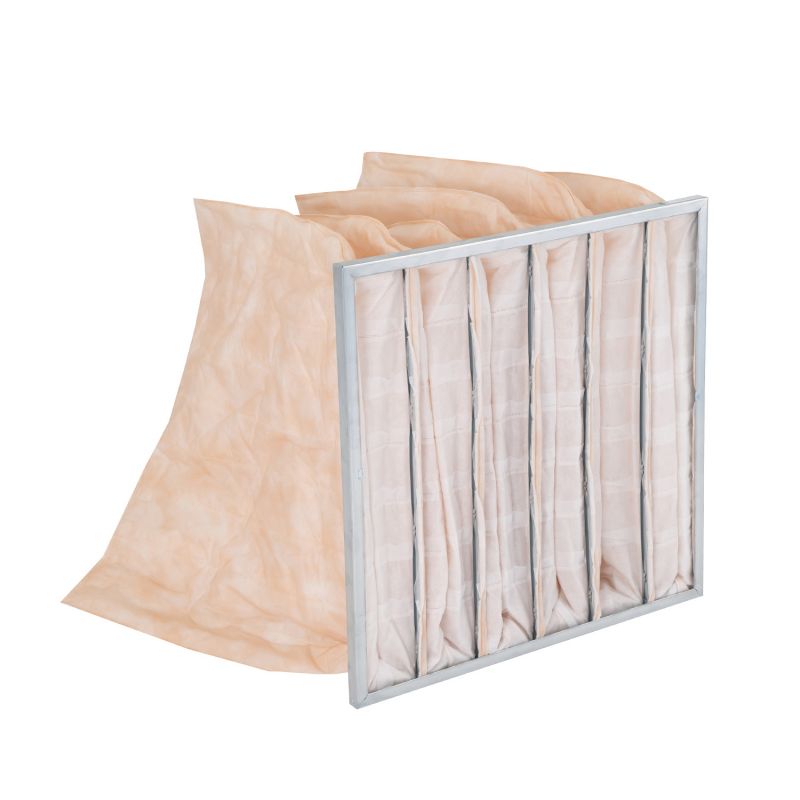

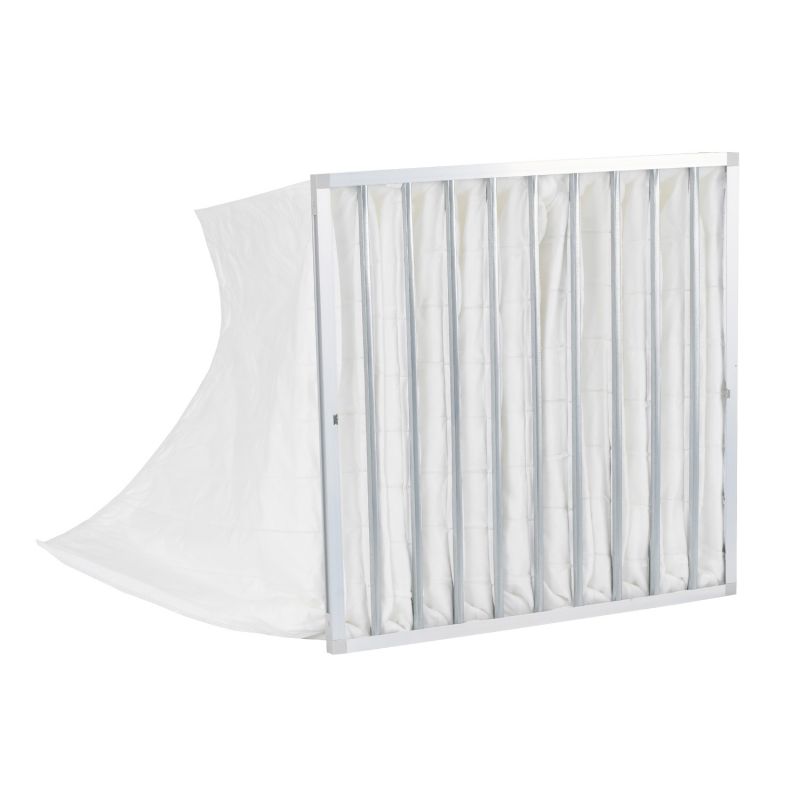

24x24 Bag Filter

Today, in the pursuit of clean air quality, bag air filters, with their outstanding performance and stability, have become the core force in the medium efficiency filtration field.

Its unique bag structure design not only offers a much larger dust holding capacity and an extremely long service life than panel filters, but also achieves higher filtration efficiency and lower operating resistance.

This perfect combination of "high load and low energy consumption" enables bag filters to demonstrate significant advantages in ensuring indoor air cleanliness, protecting back-end equipment, and achieving energy-efficient operation of the system. They are indispensable guardians in harsh environments such as commercial buildings, hospitals, factories, and precision manufacturing.

Contact Now E-Mail Telephone WhatsApp

Product Details

Introduction:

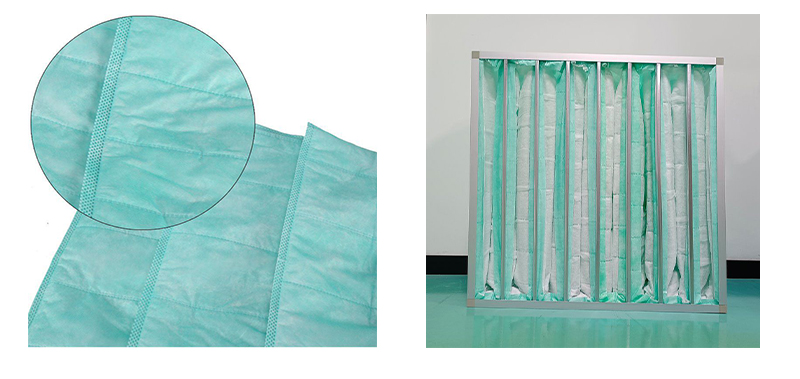

Bag filter is a common and highly efficient medium-efficiency filter.

Its core feature lies in the filtration structure composed of an internal support frame and multiple filter bags. This design not only enables it to have a large filtration area and effectively capture particles of 1-5 microns in the air, but also achieves excellent comprehensive performance through a reasonable structure.

Frame	Galvanized steel /Aluminium alloy /Stainless steel
Media	Snythetic fiber or glass fiber
Design	Pocket type
Std. EN779:2012	G4-F9
Maximum temperature	80℃
Maximum relative humidity	100%
Customized size	Available

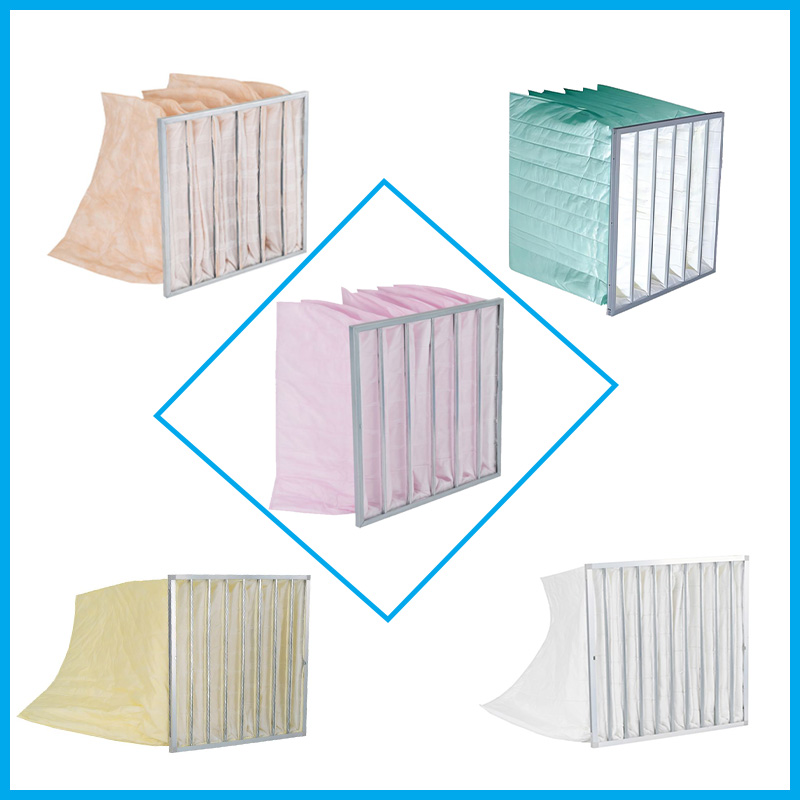

Bag Air Filter

Common Model:

Nominal Size (inches)	Actual Size (mm)			Bags	Filtration area (m2)	Air flow / initial resistance (m3/h / Pa)
Nominal Size (inches)	Width	Height	Depth	Bags	Filtration area (m2)	Air flow / initial resistance (m3/h / Pa)
24 x 24 x 15	592	592	380	8	3.6	1950 / 40
20 x 24x 15	490	592	380	6	2.7	1500 / 40
12 x 24x15	287	592	380	3	1.4	950 / 40
20x 20x 15	490	490	380	5	2.0	1150 / 40
20 x 16 x 15	490	390	380	4	1.6	850 / 40
12x 12 x 15	287	287	380	2	0.44	350 / 40
24 x 24 x 19	592	592	480	8	4.6	2150 /40
20 x 24x 19	490	592	480	6	3.4	1800 / 40
12 x 24x19	287	592	480	3	1.7	1050 /40
20x 20x 19	490	490	480	5	2.35	1350 /40
20 x 16 x19	490	390	480	4	1.5	1050 /40
12x 12 x 19	287	287	480	2	0.5	450 /40
24 x 24 x 21	592	592	534	8	4.74	2380 /40
20 x 24x 21	490	592	534	6	4.3	2150 /40
12 x 24x 21	287	592	534	3	1.8	1250 / 40
20x 20x 21	490	490	534	5	2.5	1550 / 40
20 x 16 x 21	490	390	534	4	1.6	1250 / 40
12x 12 x 21	287	287	534	2	0.6	500 / 40
24 x 24 x25	592	592	600	8	5.7	2650 / 40
20 x 24x 25	490	592	600	6	4.3	2450 / 40
12 x 24x25	287	592	600	3	2.2	1450 / 40
20x 20x 25	490	490	600	5	2.94	1700 / 40

Performance Features:

1.Large dust holding capacity and long service life: The unique bag structure provides a huge surface area, which can accommodate more dust, significantly extending the replacement cycle and reducing maintenance costs.

2.Low operating resistance and energy saving: The increased filtration area enables smoother air flow, with small and stable initial resistance, which helps to reduce the energy consumption of the air conditioning system.

3.Stable filtration efficiency: The multi-bag design effectively utilizes the entire depth of the filter material for filtration, ensuring more lasting efficiency.

4.Sturdy structure and strong applicability: The sturdy metal support frame prevents the filter bag from deforming in strong wind, ensuring the filtration effect and usage safety.

Main application sites:

1.Commercial and public buildings: Medium-efficiency filter sections of central air conditioning systems in office buildings, shopping malls, hotels, and hospitals.

2.In the industrial field: Pre-filtration for process environments with requirements for air cleanliness, such as painting workshops, electronics, pharmaceuticals, and food.

3.Equipment protection: As a pre-filter for high-efficiency filters (HEPA), it effectively extends their service life.

About SNYLI:

Snyli Environmental Technology (Shandong) Co.,Ltd has always insisted on putting customers' interests in the first place, since its establishment, SNYLI has gone through more than ten springs and autumns, and successfully established long-term co-operation with hundreds of domestic and foreign enterprises. In addition, SNYLI always adheres to the principle of advancing with the times, and has already obtained a number of R&D patents, and has been cooperating closely with industry associations, university research institutes, and third-party laboratories for a long time.

SNYLI is committed to the field of dust-free purification, and has rich experience and deep technical strength in this industry. If you have such needs, please feel free to enquire!

Main products:

At Snyli, we focus on the design, development, and production of a wide range of air filtration products, including:

Air Filters:

Our product line features various high-efficiency air filters , such as glass fiber HEPA filters,synthetic fiber HEPA filters,PTFE HEPA filters and Nano HEPA filters, activated carbon filters, and pre-filters. These filters are engineered to effectively capture airborne particles and contaminants, ensuring clean and safe air in environments ranging from homes to industrial facilities.

Cleanroom Equipment:

We manufacture specialized cleanroom equipment designed to maintain stringent cleanliness standards in controlled environments. Our offerings include fan filter unit, HEPA box, laminar flow hood, air shower, pass box, and cleanroom panels, all tailored to meet the specific requirements of industries such as pharmaceuticals, biotechnology, and electronics.

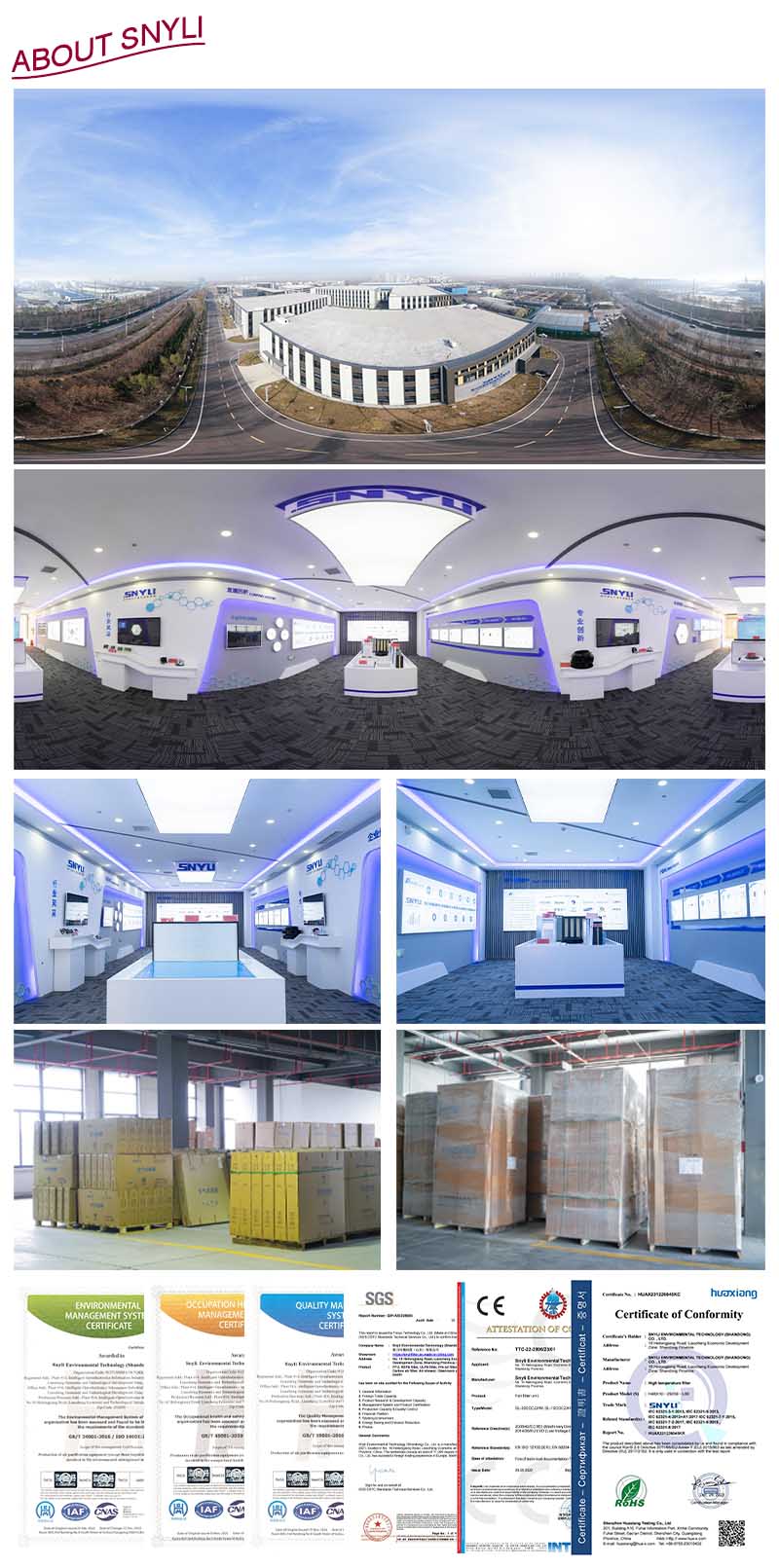

SNYLI factory
