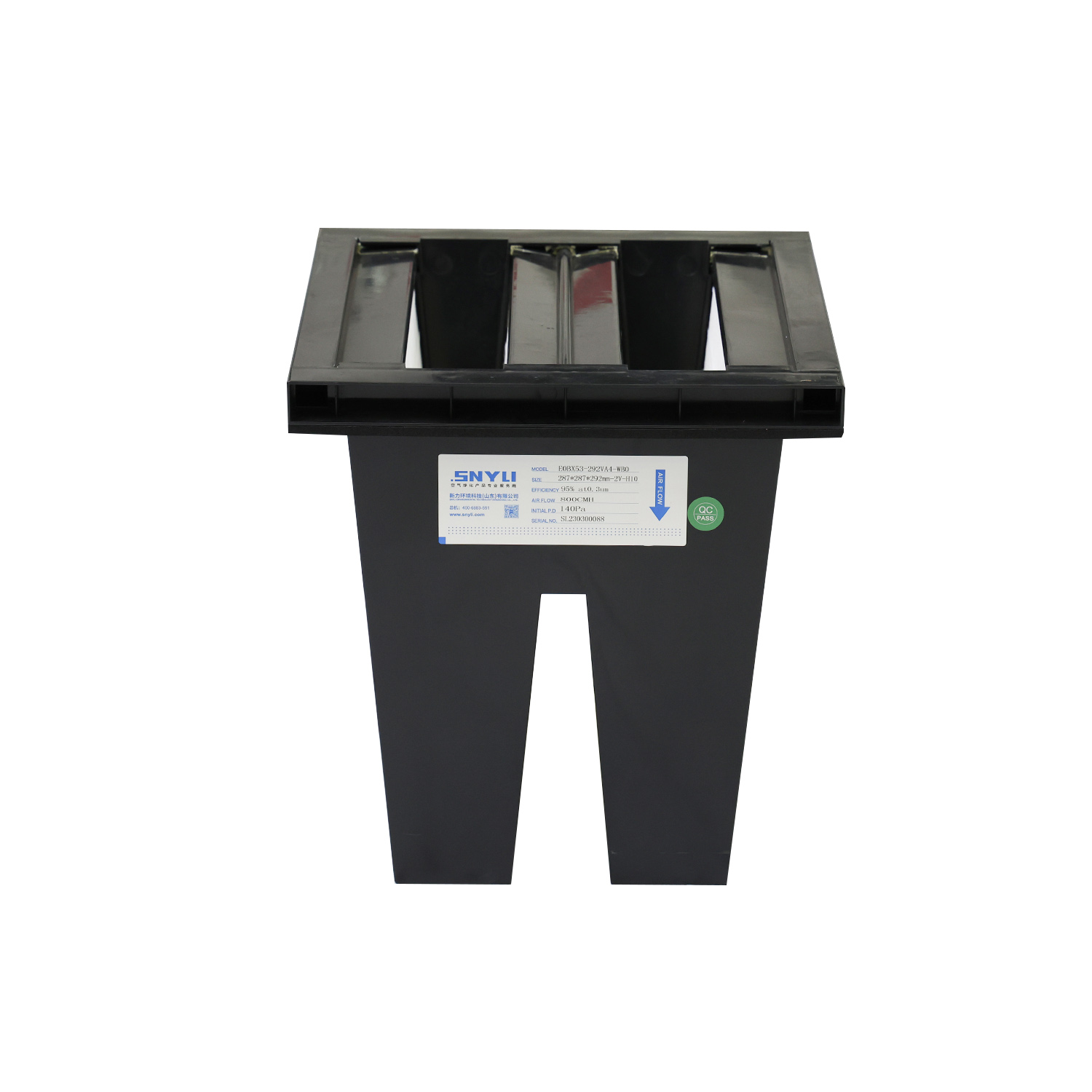

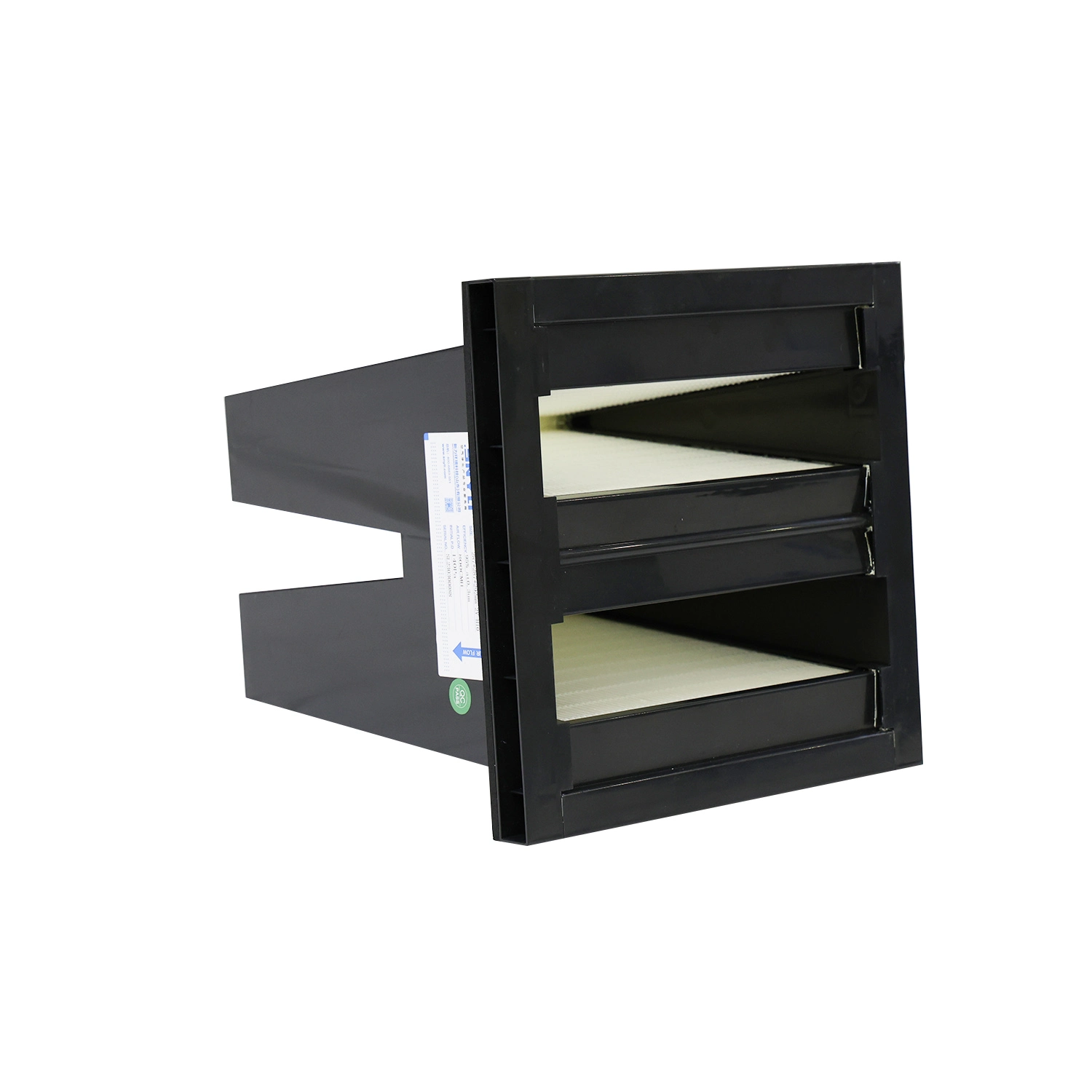

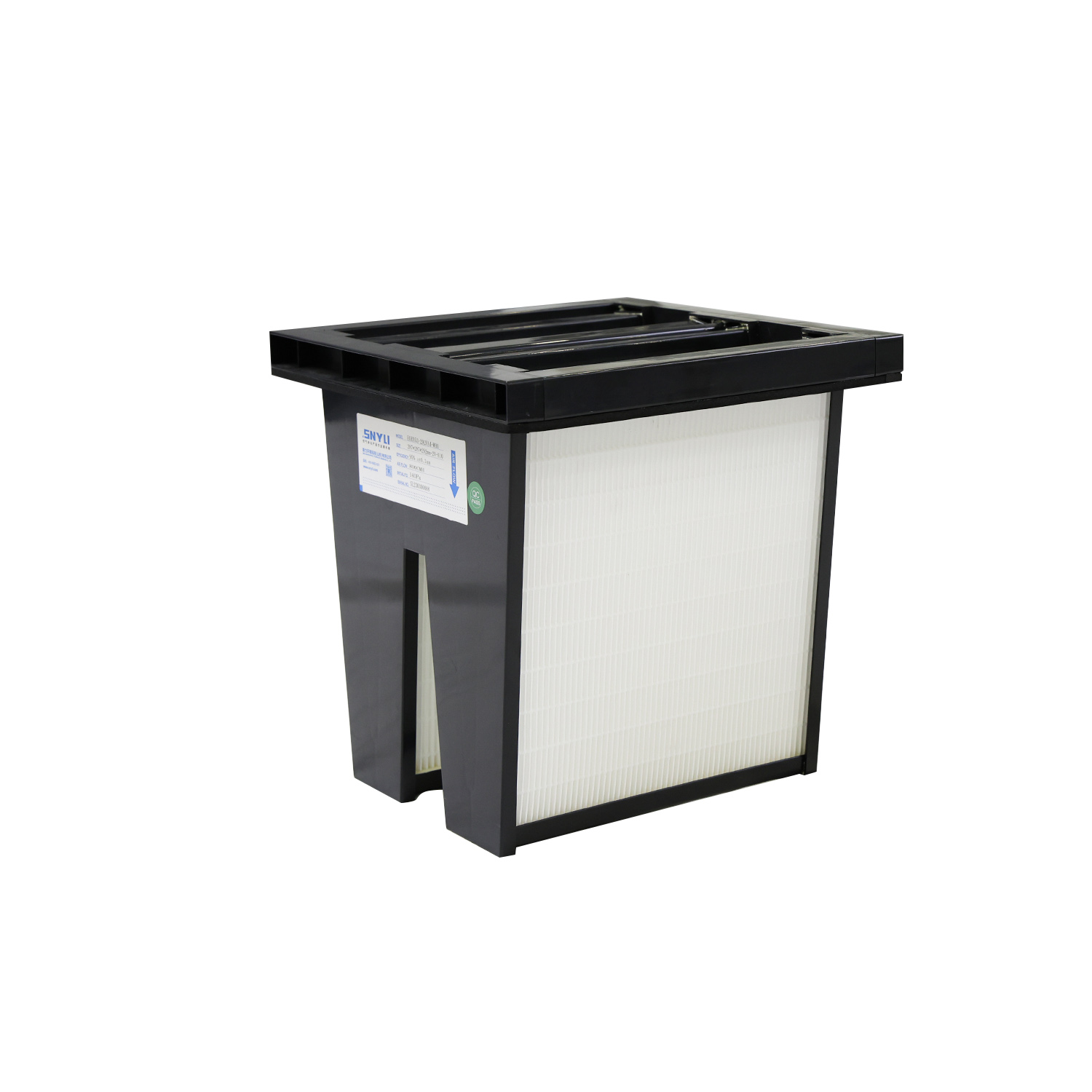

Compact Mini Pleat Filter

Introduction:

The compact mini pleat filter is suitable for a variety of different application scenarios. It increases the filter media area by 50%, providing greater airflow capacity and lower resistance. More filter area extends the service life of the filter, reducing operating costs. It has a wide range of applications and can handle higher air volume. It offers a wide selection range of efficiency, such as M5, M6, F7, F8, F9. The lightweight, separator-free compact structure makes waste disposal simple and environmentally friendly.

Common size:

Performance characteristics:

1.More Effective Filtering Area

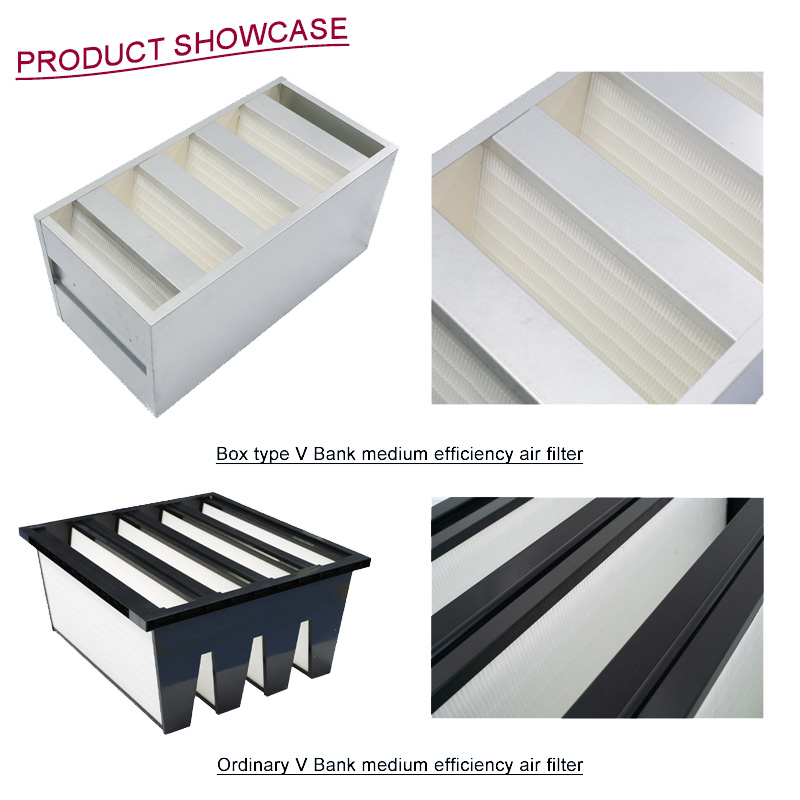

Multiple micro-pleats are assembled into a series of V-banks, increasing the actual filter media area by up to 50% compared to ordinary panel filters. More filtering area corresponds to lower resistance, higher dust holding capacity, and a longer service life.

2.Made of Very Fine, High-Strength, and Moisture-Resistant Glass Fibers

Designed specifically for industrial and commercial heating, ventilation, and air conditioning applications. Compact Mini-Pleat Filter is an ideal choice for humid areas. It can also be applied in other variable air volume systems and turbulent flow systems.

3.Compact Structure, Saves Installation Space

The non-partitioned, airtight design with a plastic frame makes the Compact Mini Pleat Filter lighter and easier to handle and install.

4.Multiple Efficiency Options and Diverse Structures

Compact Mini Pleat Filter offers multiple efficiency options, with a maximum optional efficiency of F9 (EN779) for medium efficiency type. The glass fiber material provides stable and reliable efficiency.

Meanwhile, the V-type structure can also provide customized services for 2V 3V 4V 5V or 6V according to customer and actual application site needs.

Applications:

1.Commercial Buildings

2.Food and Beverage

3.Healthcare

4.Microelectronics

5.Biopharmaceuticals

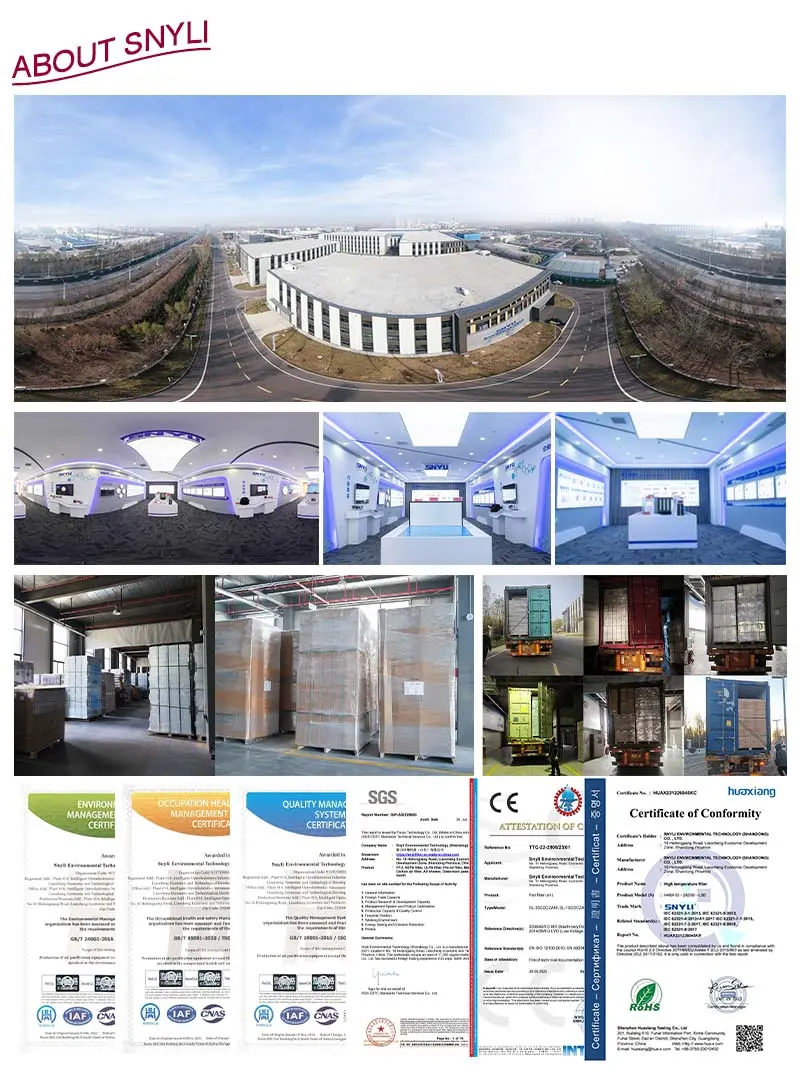

About SNYLI

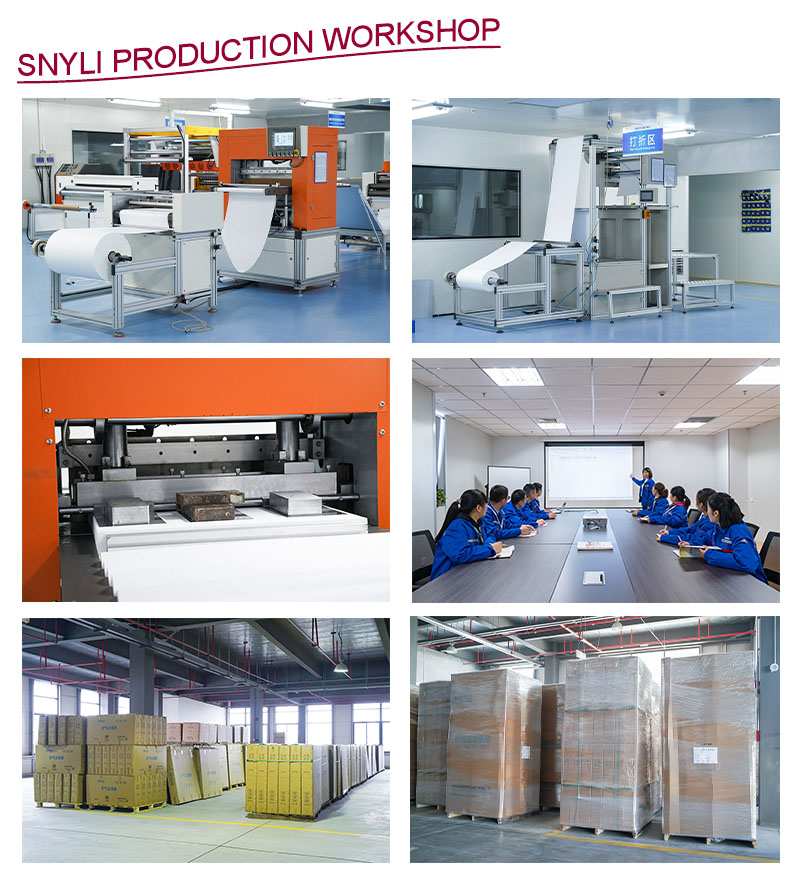

Snyli Environmental Technology (Shandong) Co., Ltd was established in 2010, is a professional service provider of air purification products integrating R&D, production and sales, with registered brand- SNYLI.

The main products are primary, middle and high-efficiency air filters, FFU, air supply, automatic roll filter, laminar flow hood, air shower, etc., product applications involve semiconductor, electronics,automobile, biology, medicine, clean room, textile, food and coating industries, and are committed to the overall clean room solution.

All products are integrated and packed to maximize space utilization. They are packed in wooden cases and on pallets to ensure that the products remain intact after long-distance transportation. From the customer's perspective, the fastest and most economical transportation method will be chosen.

SNYLI Company Advantages:

1.R&D and Manufacturing Expertise: With over 15 years of experience in air filtration, we ensure our filters feature higher dust-holding capacity and lower resistance compared to industry standards.

2.Strict Quality Control: All products undergo rigorous testing (e.g., pressure resistance, filtration efficiency, durability) in compliance with international standards such as ISO 16890 and EN 1822, with full traceability of materials and production processes.

3.Flexible Customization: We tailor filter sizes, material types (e.g., synthetic fiber, anti-static materials), and control systems (integent group control of FFU) to meet specific customer needs, whether for cleanrooms, industrial workshops, or HVAC systems.

4.Sustainable Solutions: Our filters are designed for energy efficiency—low air resistance reduces fan energy consumption—and the recyclable filter materials align with global environmental standards, supporting customers' green operation goals.
