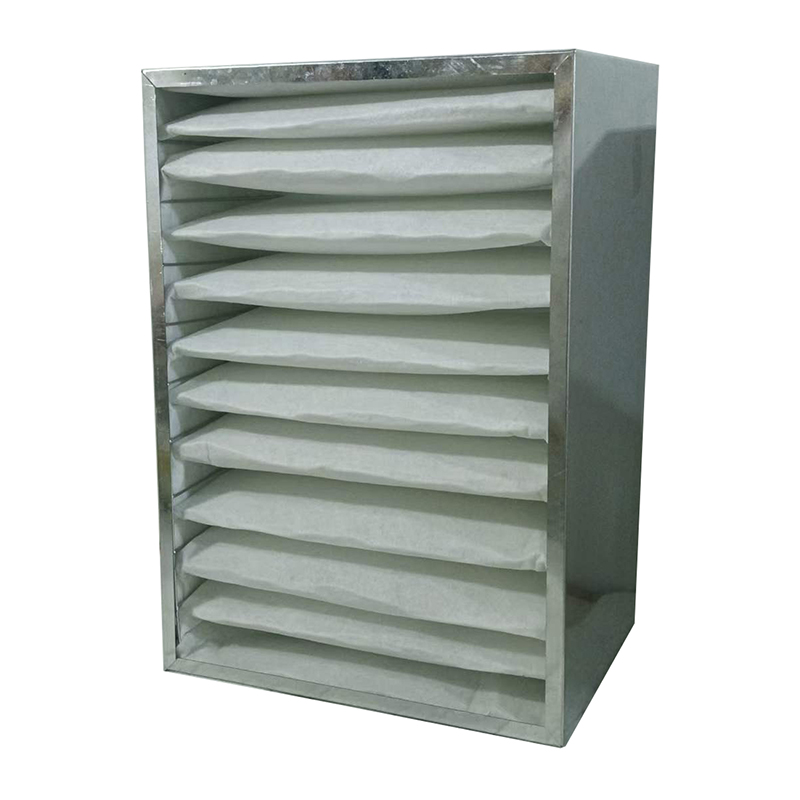

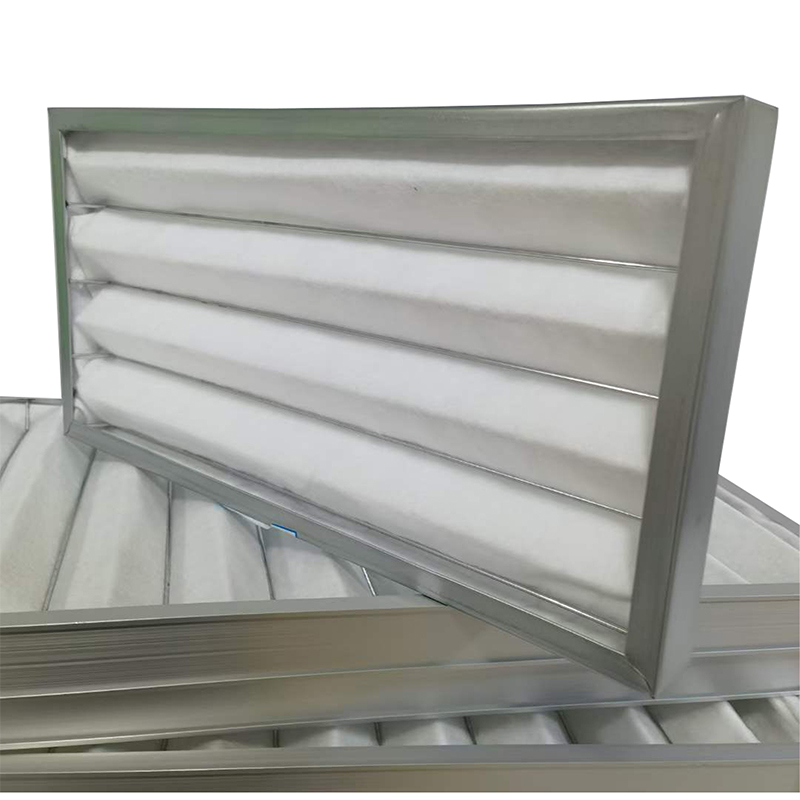

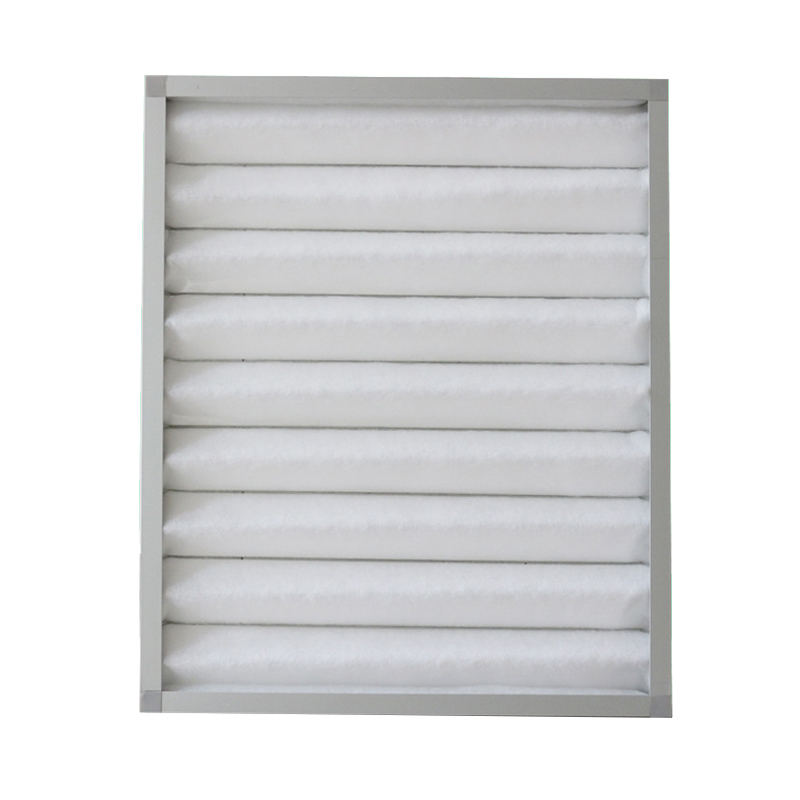

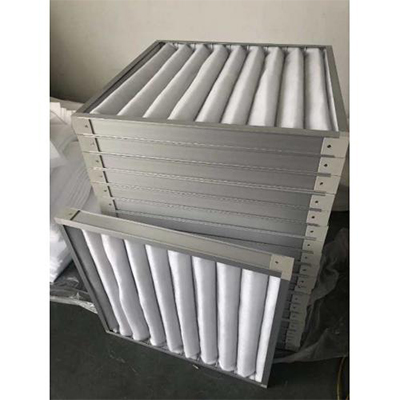

Washable Synthetic Fiber Panel Air Filter

Washable Synthetic Fiber Panel Air Filters are generally supported by baked paint sub-frame, and the outer frame is galvanised or aluminium frame. Compared with general primary filters, the outer frame can be disassembled and the filter media can be washed repeatedly, which saves a certain amount of cost.

Contact Now E-Mail Telephone WhatsApp

Product Details

Introduction:

Washable Synthetic Fiber Panel Air Filter is an environmentally friendly filter, which not only purifies the air in use, but also does not affect the physical and mental health of people. Secondly, the noise generated by the primary filter in operation is small and does not cause noise pollution, and its use in the family, office and industrial production will not adversely affect the environment, and the filtration effect is relatively good.

Frame material: generally galvanised frame or aluminium frame

Filter media material: synthetic fibre (non-woven)

Filtration efficiency: G3,G4,M5 (EN779) / MERV8 (ASHRAE 52.2)

Sealant material: polyurethane

Max. Temperature: 98℃

Max. Relative Humidity: 100% RH Rec

Common dimensions:

Performance Parameters
Structure	Nominal size WHD(inch)	Actual size WHD(mm)	Airflow (CMH)	Initial P.D. (Pa)	Suggested Final P.D.(Pa)
Pleated	12241	29059520	1240	80	105
	20241	49359520	2110	80	105
	24241	59559520	2540	80	105
	12242	29059546	1240	45	60
	20242	49359546	2110	45	60
	24242	59559546	2540	45	60
Special sizes are available on request

Advantages:

Superior performance washable filter media.
The filter media is a washable polyester fibre, which can generally be washed about 2 times, thus its service life is generally more than 3 times that of ordinary primary filters, thus greatly reducing the operating costs.
Robust construction and high dust capacity.
The outer frame is generally made of sturdy aluminium or galvanised iron, which has a high dust capacity and low resistance, and low running costs.
Low maintenance costs.

Applications:

The Washable Synthetic Fiber Panel Air Filter is mainly used to protect the medium-effect filter, but also can reduce some large particles of dust accumulated in the air ducts, fans and other equipment, so as to protect the air conditioning equipment, prolong the life of the equipment and so on.

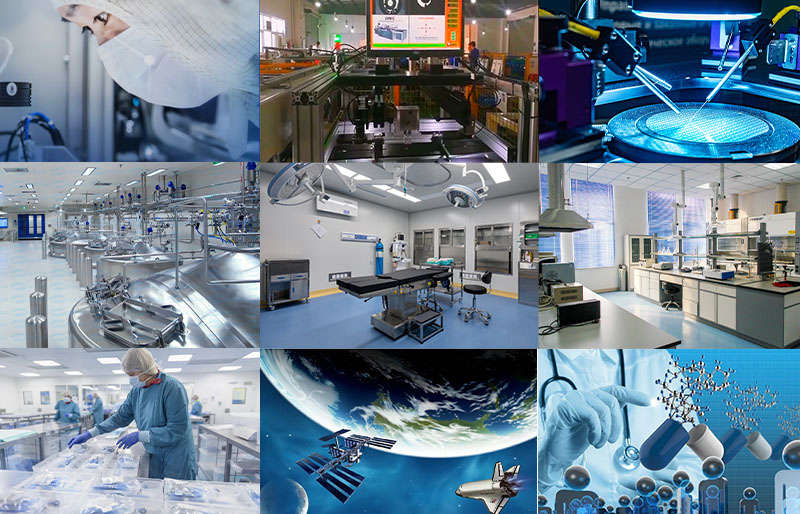

Applications
