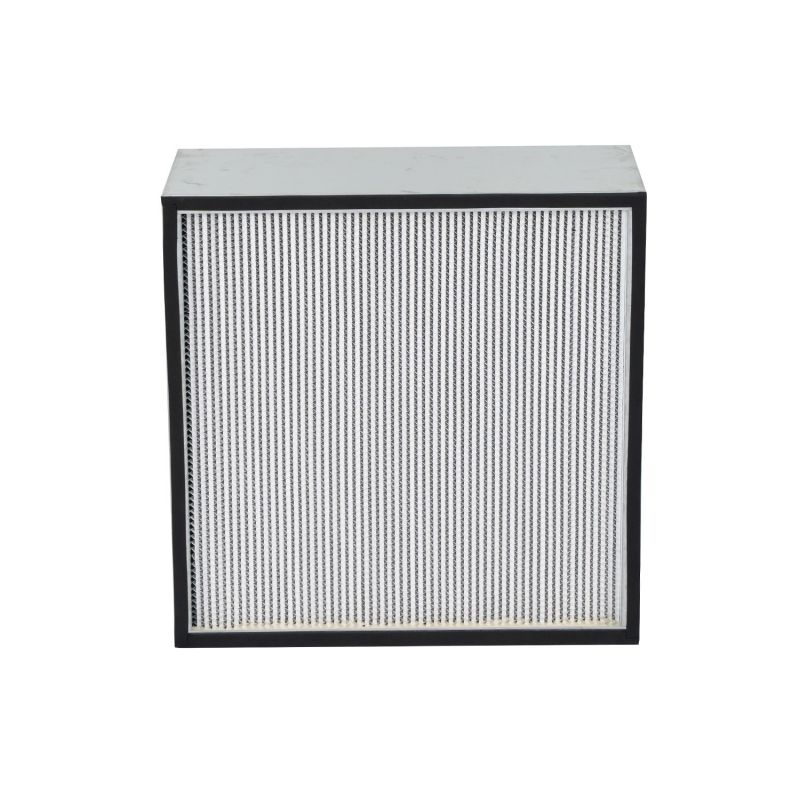

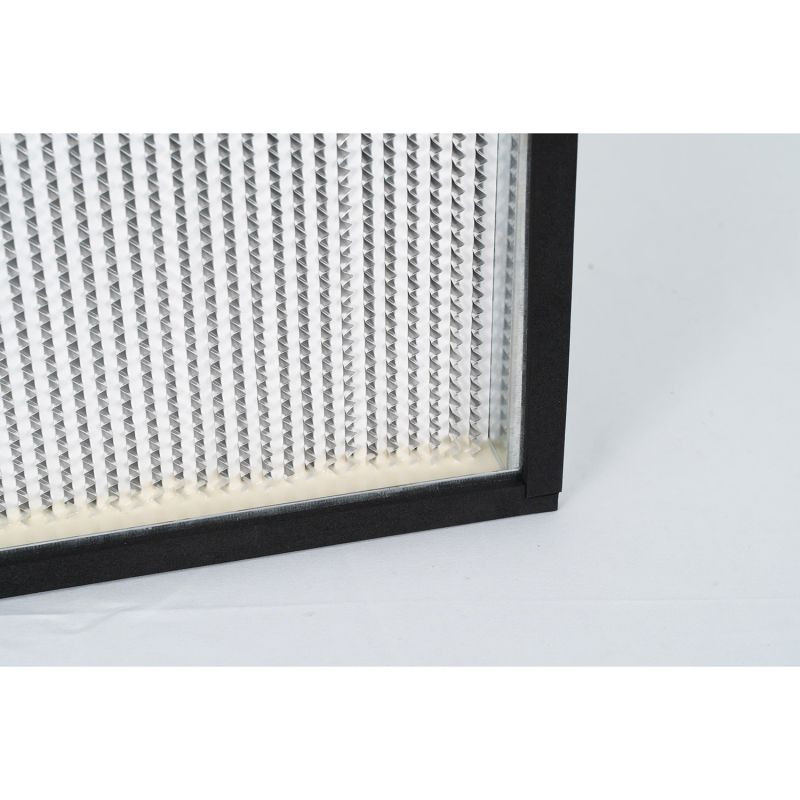

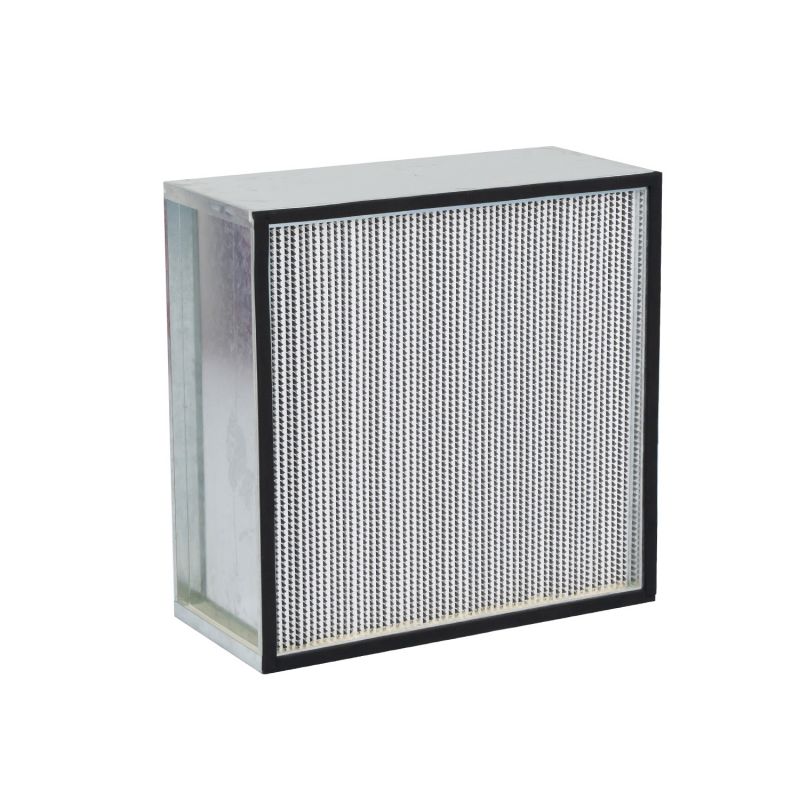

Separator HEPA Air filter

Introduction:

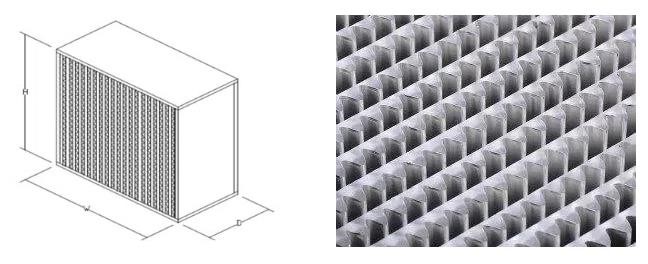

High efficiency filters play a vital role in improving indoor air quality. Separator HEPA Air filters are designs with separating dividers inside the filter. This design effectively increases the area of the filter and improves filtration.

The dividers distribute the air flow to each filter media, allowing the air to come into contact with the filter media more fully, improving filtration efficiency. At the same time, the design of the spacer also prevents the filter media from shifting, prolonging the service life of the filter.

The service life of the separator high-efficiency filter is affected by a variety of factors, including the filter material, the separator material, the working environment, etc. Under normal use conditions, the service life of the high efficiency filter with separator can usually reach 1-3 years. However, it should be noted that when the filter resistance increases significantly and the filtration effect decreases, the filter should be replaced in a timely manner to ensure the air quality of the clean room.

Characteristics:

Frame: Galvanized, Aluminum & Stainless Steel

Header: Box type, Single, Double header

Media: Glass fiber

Efficiency:

H11 (EN 1822) / MERV 16 (ASHRAE 52.2)

MPPS:≥95% / DOP: ≥99.9%@0.3 μm

H13 (EN 1822) / MERV 17-18 (ASHRAE 52.2)

MPPS: ≥99.95% / DOP: ≥99.99%@0.3 μm

H14 (EN 1822) / MERV 19 (ASHRAE 52.2)

MPPS: ≥99.995% / DOP: ≥99.999%@0.3 μm

Separator: Aluminum foil/Paper

Gasket: EPDM

Max. Temperature: ≦ 70°C

Max. Humidity: ≦ 100% RH

Common dimensions:

Applications:

Separator HEPA filters are widely used in industrial production, medical and health care, laboratories, electronics manufacturing, food processing, aviation and other fields, and are the core components of various types of air purification systems.

1.Purification equipment that requires high efficiency filtration such as clean benches.

2.Localised places that require high efficiency filtration.

3.High-efficiency filtration section at the end of ventilation and air-conditioning system.

About us:

Built in 2010, Snyli Environmental Technology (Shandong) Co.,Ltd has always insisted on innovation and research and development, and so far it has got a number of patented technologies and become a famous brand in the field of air purification.

SNYLI Main Products: FFU, air filters of various efficiency grades, gel seal air filter, chemical filter, auto roll air filter, air outlet, laminar flow hood, air shower, transfer window, clean shed, clean bench, provide indoor air quality control solutions, provide air quality control equipment OEM, etc. Shandong Snyli has advanced concepts and technologies, and a professional design team to meet customer needs.

SNYLI FFU, independent research and development design, large air volume, low noise, fully automatic modular control, has been widely used in clean rooms, clean benches, clean production lines and other applications.

We always adhere to the tenet of "customer's interests above all else" to provide you with professional and comprehensive services.

Packaging & Shipping:

SNYLI has served more than a hundred companies and has rich experience in exporting, and provides one-stop transport services, so customers do not have to worry about the transport of goods. We also give full consideration to packaging to ensure that customers receive their goods in good condition. Whether it's a large shipment or a sample, you'll have a great purchasing experience.

Certificates:

SNYLI has always insisted on research and development, growing with the times and making progress, and has now obtained a number of patents and certificates such as ISO9001 and CE.

Why choose us:

We are a manufacturer with 20,000 square metres of factory, specializing in the production of FFUs and air filters of all grades for more than ten years, with rich experience.

1.All our products have passed strict quality inspection and are qualified before being allowed to leave the factory. And the reasonable price also makes us popular with customers.

2.We have various patents and certificates including ISO9001 and CE certificate.

3.All levels of filters are available and non-standard customisation is accepted. European Standard: Primary (G1-G4), Medium (F5-F9), HEPA (H10-H14), ULPA (U15-U17). American Standard: Primary (Merv1-Merv7), Medium (Merv8-Merv14), HEPA (Merv15-Merv19), ULPA (Merv20).

4.Samples can be provided for customer testing.

5.Provide LCL, 20ft, 40GP, 40HQ, transport by sea, air, railway, international express and other ways.

6.Rapid delivery. After confirming the order, according to the quantity of products, we can ship the products within 7-20 working days after receiving the payment from customers.
