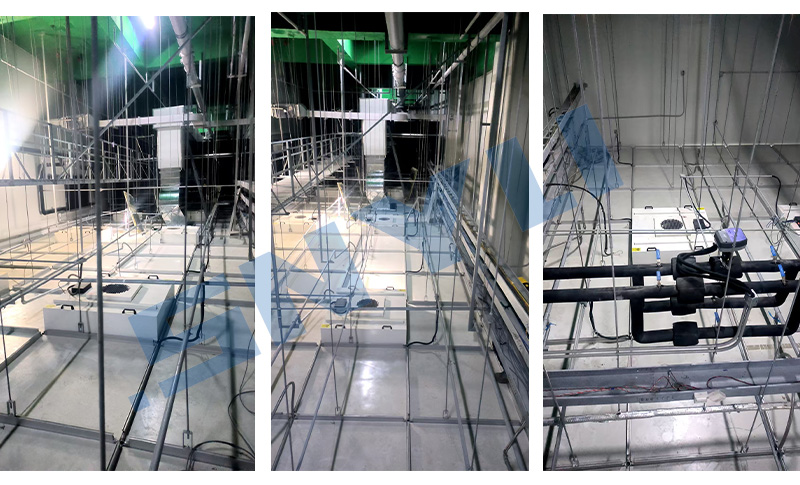

FFU Introduction and Customer Installation Site

FFU (Fan Filter Unit) is a device that combines a fan and a HEPA (High Efficiency Particulate Air) filter (HEPA or ULPA), which is mainly used in clean rooms, laboratories, hospitals, and other places with high requirements for air cleanliness.FFU ensures that particles and pollutants in the environment are effectively removed through high-efficiency filtration and air circulation.

1.Main components:

Fans: Provide the power for air flow, usually brushless DC motors or AC motors, featuring low noise and high efficiency.

Filter: usually HEPA (High Efficiency Particulate Air Filter) or ULPA (Ultra High Efficiency Particulate Air Filter), the filtration efficiency can reach more than 99.99%, which can effectively remove particles, bacteria and viruses in the air.

Housing: usually made of stainless steel or galvanised steel, with good sealing and corrosion resistance.

2.Product Features

High-efficiency filtration: adopting HEPA or ULPA filter, it can effectively remove particles above 0.3 micron, and the filtration efficiency is up to 99.99% or more.

Low-noise operation: adopting high-efficiency low-noise fan, low noise during operation, suitable for noise-sensitive environment.

Energy saving and environmental protection: adopting high-efficiency motor and intelligent control system, it is able to adjust the airflow according to the actual demand and reduce energy consumption.

Easy to install and maintain: modular design, easy to install, easy filter replacement, low maintenance cost.

Widely used: suitable for clean rooms, electronic manufacturing, pharmaceutical production, food processing, laboratories and other places with high requirements for air cleanliness.

3. Technical parameters

Filtration efficiency: HEPA filters are 99.99% for 0.3 micron particles and ULPA filters are 99.999% for 0.12 micron particles.

Noise level: usually between 45-65 dB, depending on airflow and fan type.

Power: usually around 100-300 W, depending on airflow and fan type.

Size: common FFU size is 1175mm x 575mm, can also be customised according to customer requirements.

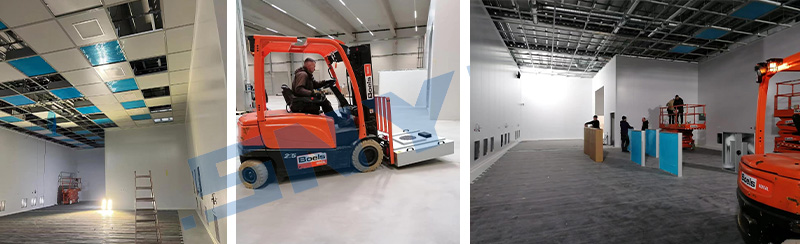

4. Customer Feedback

SNYLI brand FFUs have been exported to various countries around the world and have won unanimous praise and trust.
