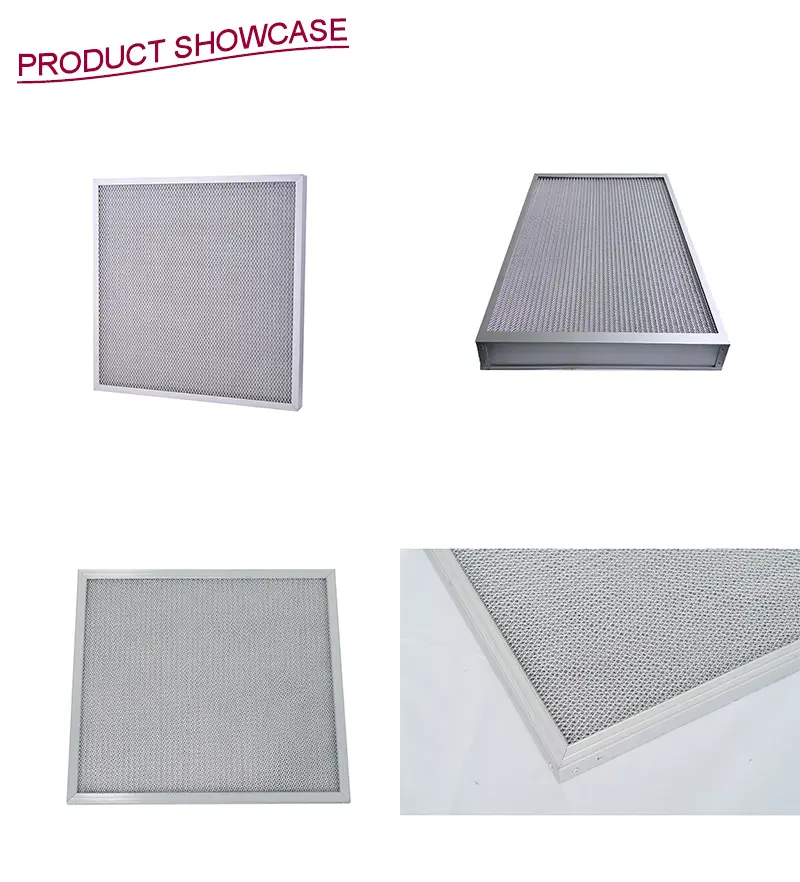

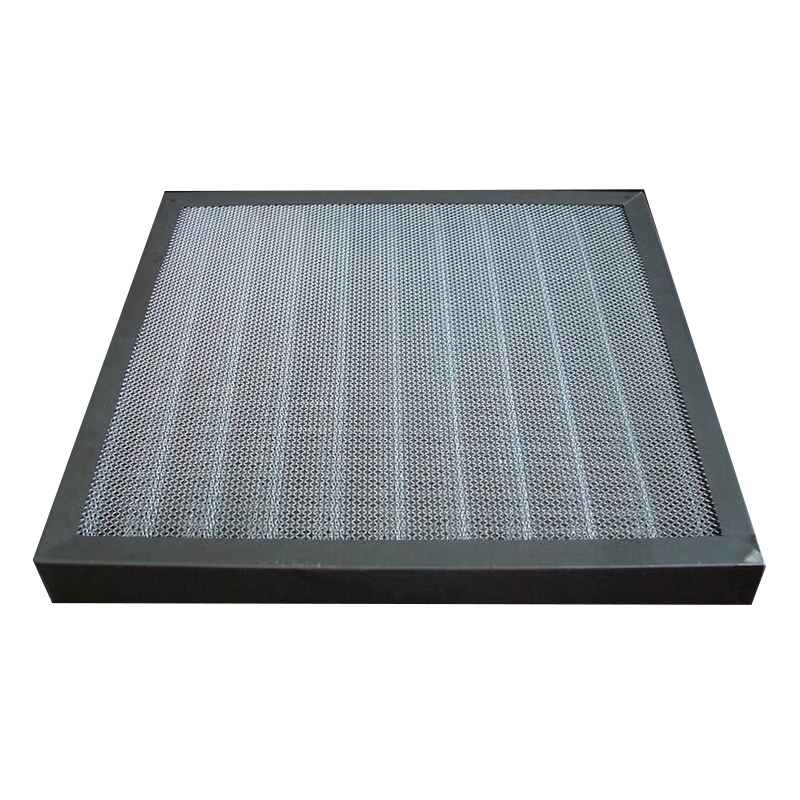

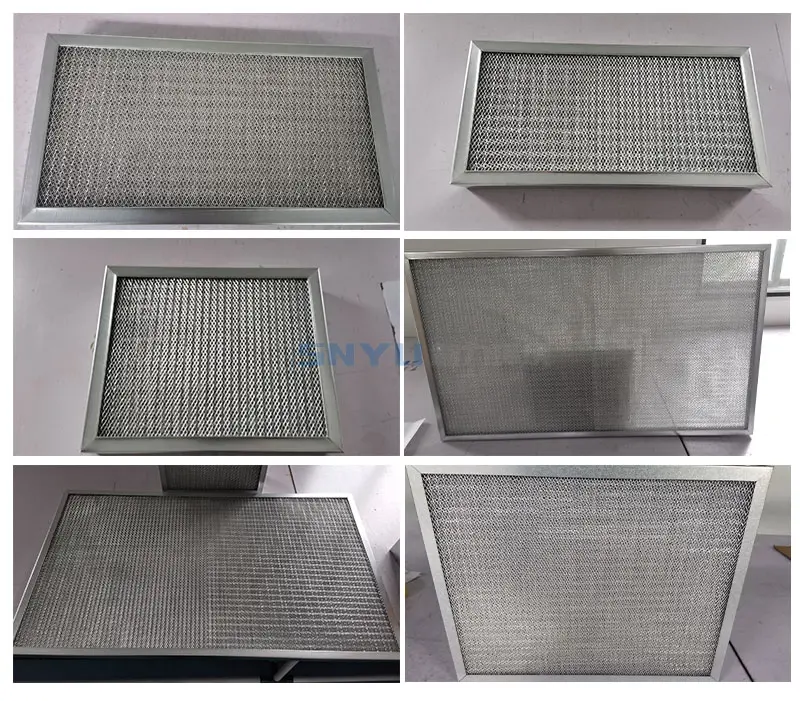

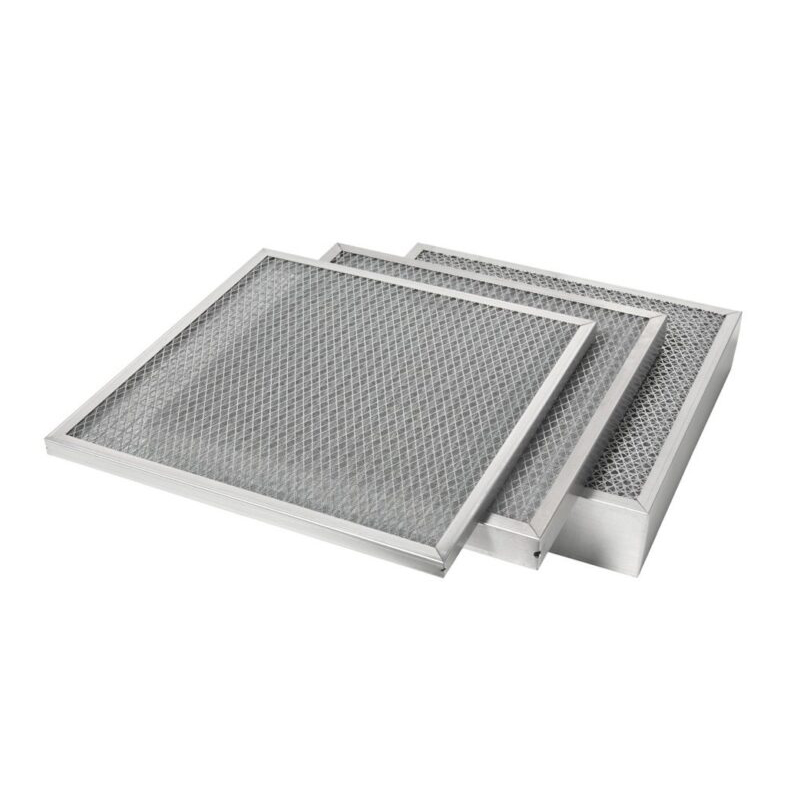

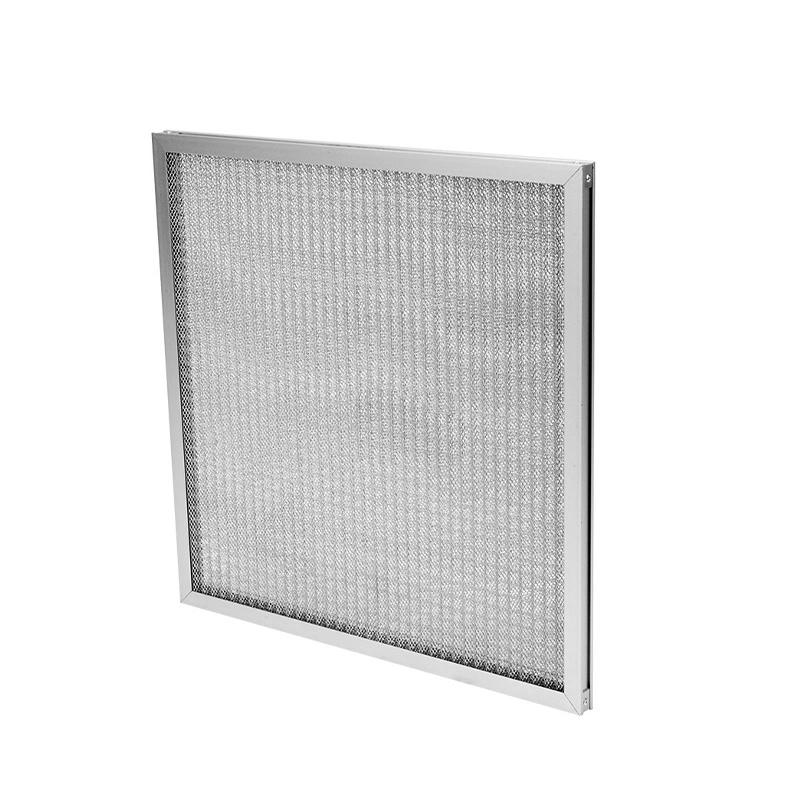

Wire Mesh Air Filter

Introduction:

Wire Mesh Air Filter is a common type of primary air filter, which is mainly used to capture and remove large particles of airborne pollutants, such as dust, fibres and pollen. It is widely used in various ventilation and air conditioning systems.

1. Working Principle

Wire Mesh Air Filter captures large particles in the air by physical interception, using the pore structure of the metal mesh. Its main working principles include:

• Interception: larger particles are directly intercepted by the pores of the metal mesh.

• Inertial collision: when the air velocity is high, larger particles will hit the metal mesh and be captured due to inertia.

• Diffusion: for very small particles, the Brownian motion brings them into contact with the metal mesh and they are adsorbed.

2. Structure and materials

Wire Mesh Air Filters usually consist of the following parts:

• Frame: generally made of strong metal (e.g. galvanised iron, aluminium alloy or stainless steel) to provide a stable support structure.

• Filter material: mainly composed of multi-layer metal mesh, common materials include stainless steel mesh, aluminium mesh and so on. These metal meshes have good mechanical strength and corrosion resistance.

3. Common Size

4. Performance

• Effective filtration: It can effectively capture large particle pollutants in the air and provide initial air purification.

• Low resistance: The large pores of the metal mesh allow air to pass through with relatively low resistance, helping to keep the system running efficiently.

• High durability: Metal materials have high mechanical strength and pressure resistance, enabling long-term use in harsh environments without easy damage.

• Corrosion resistance: Stainless steel or aluminium metal mesh has good corrosion resistance and is suitable for humid or dusty environments.

5. Features

• Washability: It can be cleaned and reused many times, which greatly prolongs its service life and reduces the frequency of replacement and maintenance costs.

• Economical: Due to its long life and washability, the overall cost is lower in the long run.

• Environmentally friendly: Reduced waste generation, in line with the concept of sustainable development.

• Fire resistance: The metal material itself has good flame retardant properties and is not easy to burn, improving the safety of the system.

• Adaptable: Suitable for a wide range of environments, including residential, commercial buildings and industrial plants.

• Easy to install and maintain: Simple structure, very easy to install and dismantle, simple operation for regular inspection and cleaning.

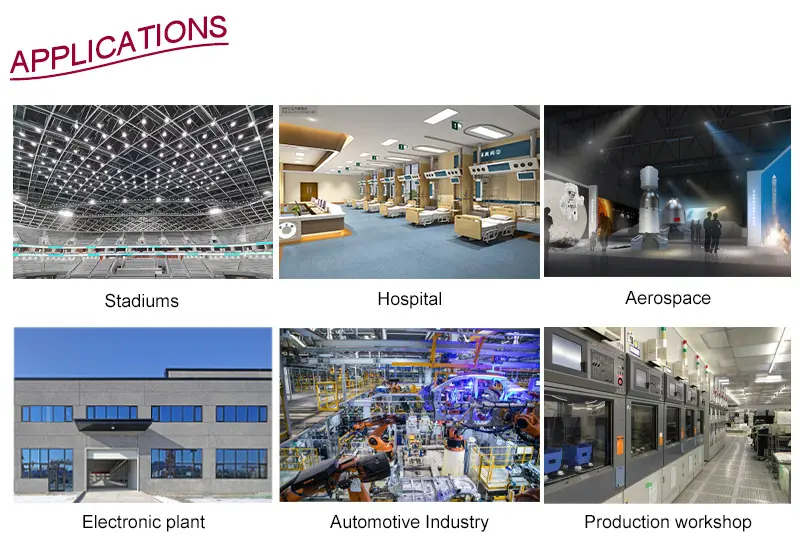

6. Application scenarios

Metal mesh air filters are widely used in various ventilation and air conditioning systems, specifically including:

• Residential buildings: used in home central air conditioning or independent air purifiers to improve indoor air quality.

• Commercial buildings: used in the air conditioning systems of office buildings, shopping malls, hotels and other places to guarantee clean air in public spaces.

• Industrial environments: factory workshops, laboratories and other places where dust pollution needs to be controlled.

• Hospitals and medical facilities: used in pre-filtration to protect finer HEPA filters and medical equipment.

7. Precautions

Choose the right size: choose the right size according to the actual demand.

Through reasonable selection and proper maintenance, metal mesh air filters can effectively improve indoor air quality while reducing long-term operating costs.

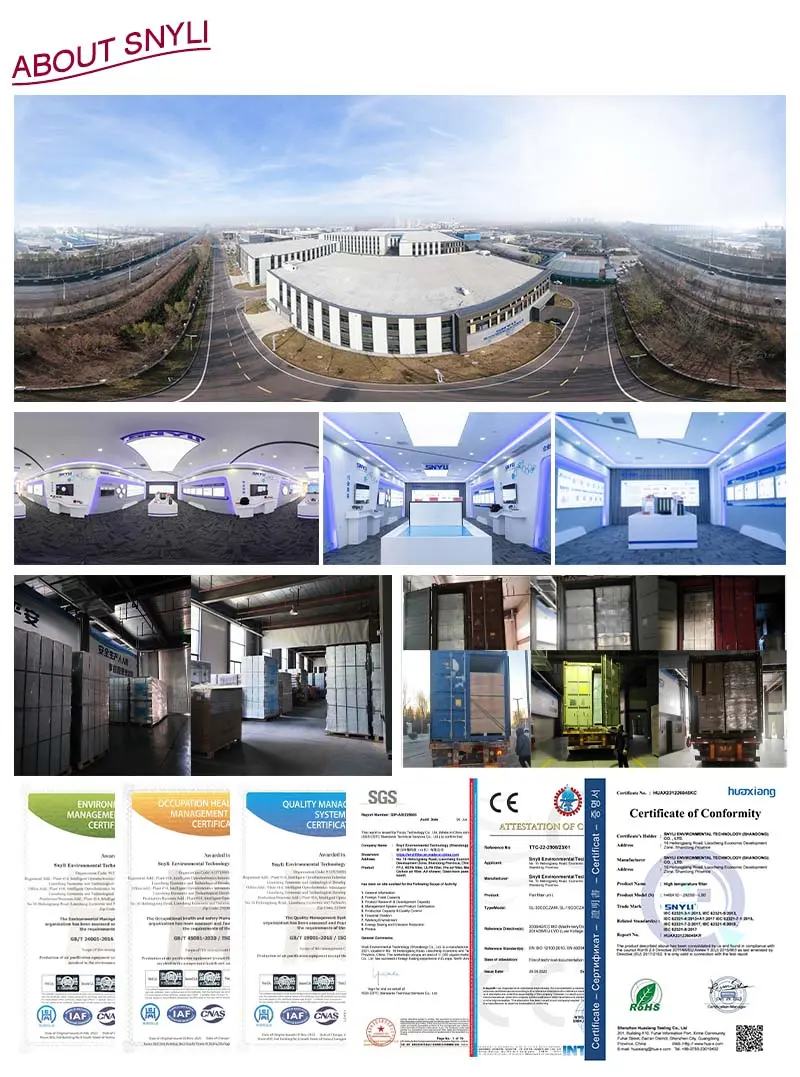

About SNYLI:

Snyli Environmental Technology (Shandong) Co.,Ltd was established in 2010, registered in Liaocheng City, Shandong Province, mainly engaged in air filtration products. Since the establishment of our company, we have been continuously deepening our research and development to improve our strength, and now we have mastered many patents and obtained ISO/CE certificates.

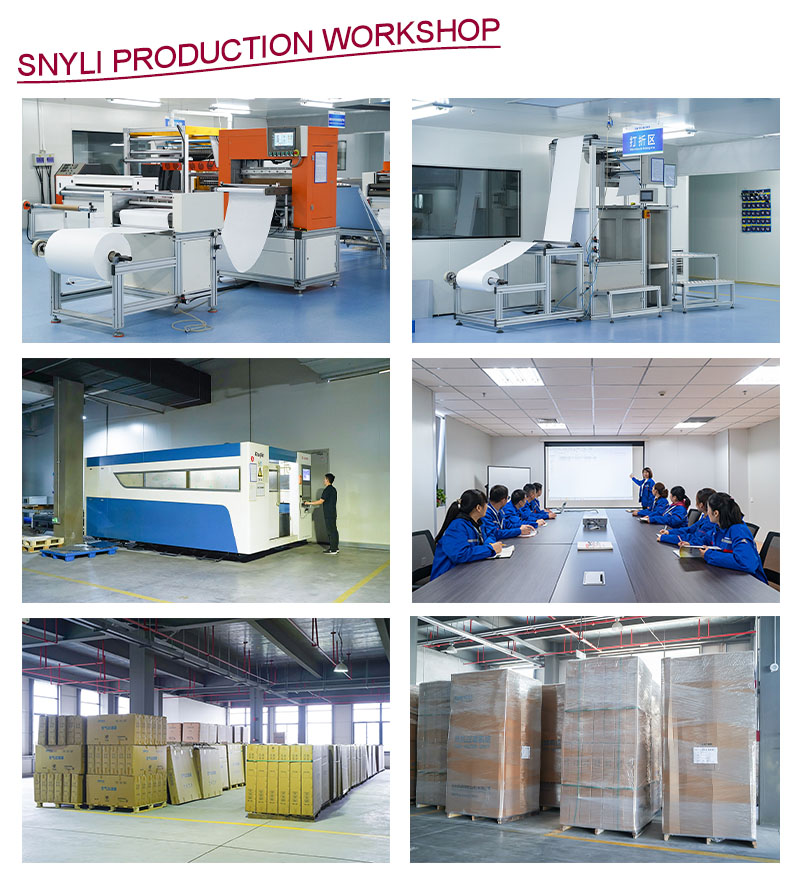

SNYLI factory is located in Liaocheng City, Shandong Province, China, with several independent clean production workshops, including FFU workshop, primary filter workshop, bag filter workshop, HEPA filter workshop and so on.

Professional technical team, independent warehouse and perfect service make SNYLI's popularity in the air filtration industry increasing.

After more than ten years, SNYLI has set up branches in many places in China and a trading company in Jinan City, Shandong Province. At present, SNYLI products have been exported to both home and abroad, and we have signed long-term co-operation agreements with customers in many countries.

We always put the interests of customers in the first place, regularly follow up customer feedback, and strive to improve our own strength, and the constant pursuit of progress.

Giving us a chance to co-operate will be a decision that benefits both parties! SNYLI welcomes your enquiry!
