Introduction:

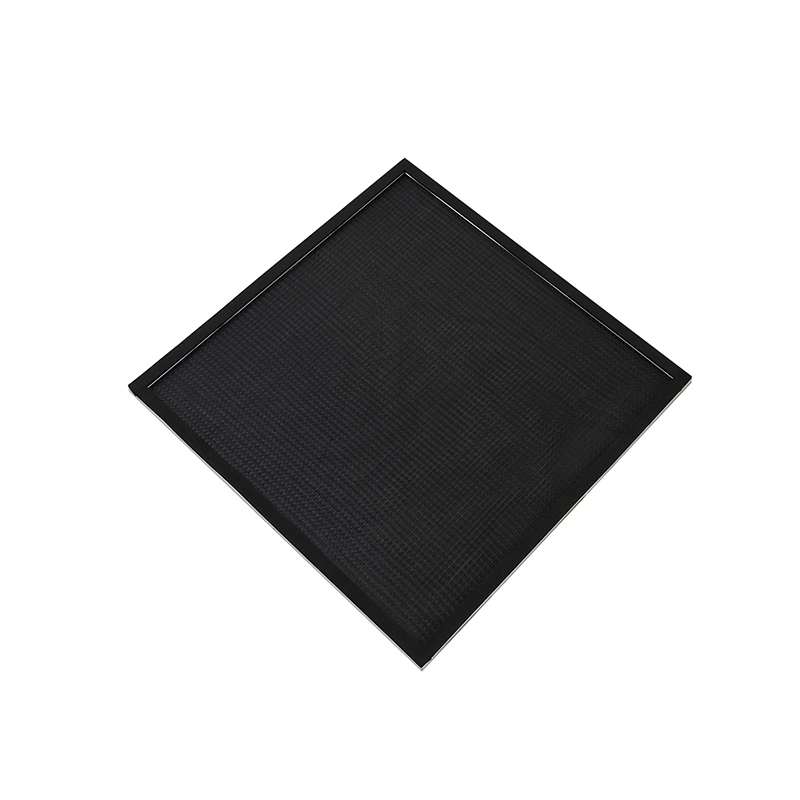

Nylon mesh air filter is a commonly used primary efficiency filter, adopting lightweight plate structure, with optional aluminium frame, stainless steel frame or galvanised iron frame, and the filter media is woven by polyamide monofilament fibre, which has the advantages of wear-resistance, long service life and high strength. It is mainly used in air conditioning system, ventilation system and other fields of air purification treatment.
Frame | Aluminium alloy, stainless steel or galvanised iron |
Media | Polyamide monofilament woven fibres |
Gasket | EVA or EPDM |
Design | Panel |
Std. EN779: 2012 | G1,G2 |
Maximum temperature | 80ºC |
Maximum relative humidity | 100% |
Customized size | Available |
Application | Suitable as pre-filter in ventilation systems of office buildings, conference rooms,hospitals,shopping malls ,gymnasium,airports and other huge civil architectures as well as pre-filter in general factories of clean rooms. |

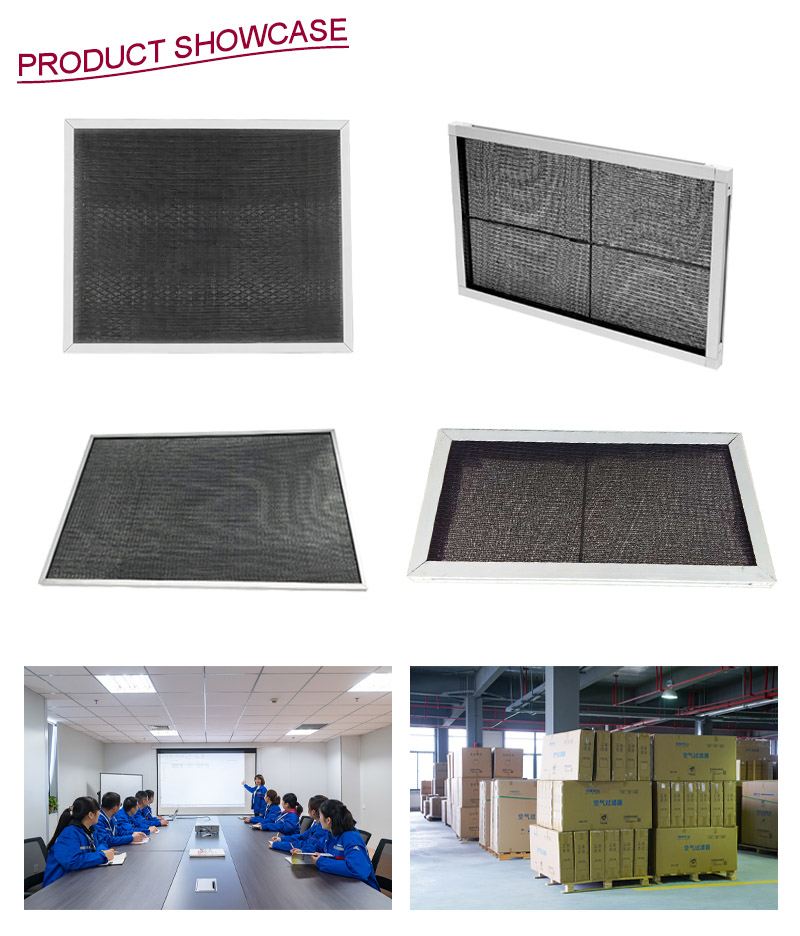

![Nylon mesh air filter]( "Nylon mesh air filter")
Common dimensions:
Model | Actual size W×H×D(mm) | Air flow(m³/h) | Initial P.D.(Pa) |
G1 | G2 |
CG1B-24L-NA10B | 493×493×10 | 2400 | 35 | 63 |
CG1B-28L-NA10C | 493×595×10 | 2850 | 35 | 63 |
CG1B-34L-NA10D | 595×595×10 | 3400 | 35 | 63 |
CG1B-17L-NA21A | 290×595×21 | 1700 | 35 | 63 |
CG1B-24L-NA21B | 493×493×21 | 2400 | 35 | 63 |
CG1B-28L-NA21C | 493×595×21 | 2850 | 35 | 63 |
CG1B-34L-NA21D | 595×595×21 | 3400 | 35 | 63 |
CG1B-17L-NB46A | 290×595×46 | 1700 | 35 | 63 |
CG1B-24L-NB46B | 493×493×46 | 2400 | 35 | 63 |
CG1B-28L-NB46C | 493×595×46 | 2850 | 35 | 63 |
CG1B-34L-NB46D | 595×595×46 | 3400 | 35 | 63 |
Performance Characteristics:
1. Low initial resistance. No significant obstruction to air flow.
2. Good filtration effect. The filtration efficiency can be selected as G1 or G2, effectively filtering dust, pollen, bacteria, smoke and other particles and pollutants.
3. Long service life. The filter media is compiled with polyamide monofilament fibre, which has good abrasion resistance and strength.
4. Wide application environment. Nylon Mesh Panel Air Filter can operate normally in the working environment of up to 80°C. It is suitable for air purification treatment in various air-conditioning systems, ventilation systems and other fields.

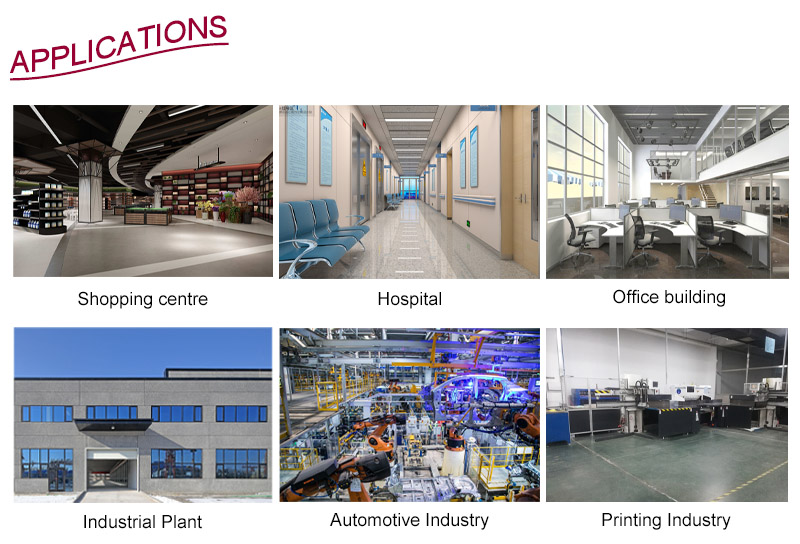

Applications:
Nylon mesh air filters are mainly used in the following environments:
1. Household air purifier: In family life, air purifier is an important equipment to improve indoor air quality, and nylon mesh filter as one of the key components, can effectively filter fine particles in the air to protect the health of family members.
2. Industrial field: In the process of industrial production, air quality is directly related to product quality and production efficiency. Nylon mesh filters are widely used in automobile manufacturing, electronic industry and other fields, used for filtering dust, paint spraying and other links, to ensure a clean production environment.
![Nylon mesh air filter]( "Nylon mesh air filter")
About us:
Snyli Environmental Technology (Shandong) Co.,Ltd was founded in 2010, more than ten years focusing on the research and development of air filtration products, and has obtained a number of patent certificates. Since its establishment in 2010, SNYLI has always been adhering to the customer's needs as the first, in order to provide customers with high-quality products and high-quality service as the standard requirements for itself.
Main products of SNYLI: FFU, Air filters of all classes, gel seal air filter, chemical filter, auto roll air filter, air outlet, laminar flow hood, air shower, transfer window, clean shed, clean bench, provide indoor air quality control solutions, provide air quality control equipment OEM, etc. Shandong Snyli has advanced concepts and technologies, and a professional design team to meet customer needs.
