Introduction:
Equipment EC Fan Filter Unit (Brushless EC Fan Filter Unit) is a highly efficient air purification device typically used in cleanrooms and other environments where high cleanliness air is required. This unit integrates a brushless EC motor and a HEPA filter to provide stable airflow and effective purification.
EC motors are characterised by low noise, low energy consumption and good stability, resulting in more efficient and reliable fan operation. Filter units usually use HEPA (High Efficiency Particulate Air) filters or ULPA (Ultra Low Penetration Air) filters, which can effectively remove particles, bacteria and other harmful substances from the air to ensure the provision of clean air.
This type of fan filter unit is usually mounted on the ceiling of the cleanroom, where the air is sucked in by the fan and purified by the filter, and finally clean air is sent into the room to provide a high-quality working environment.

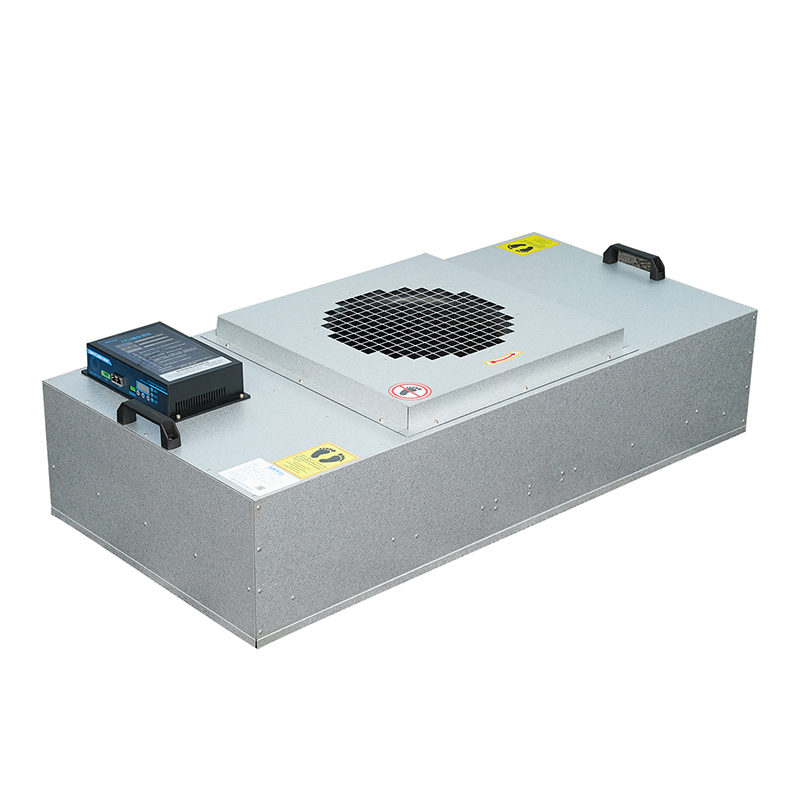

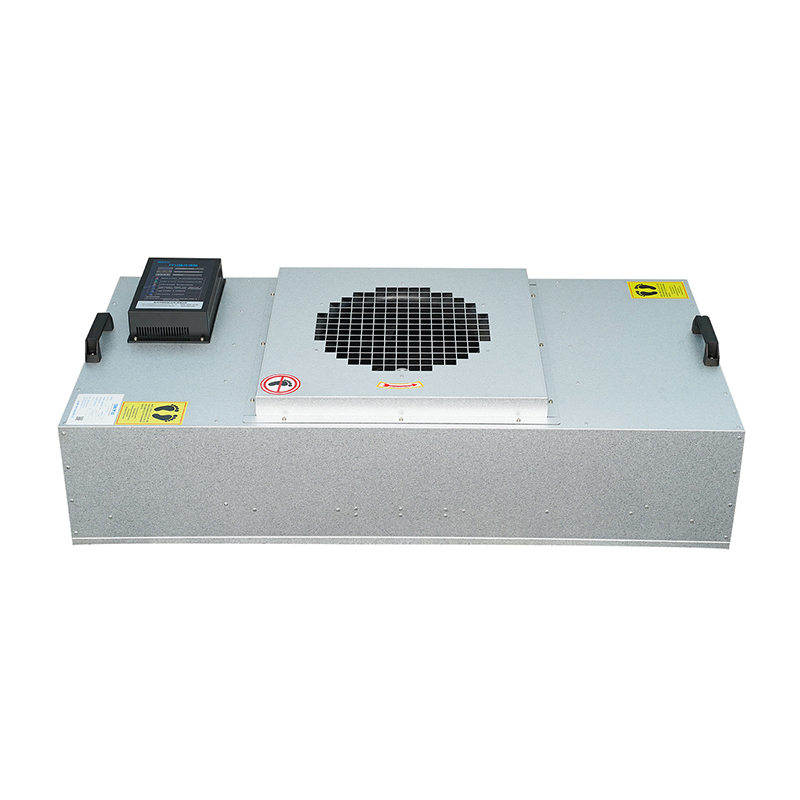

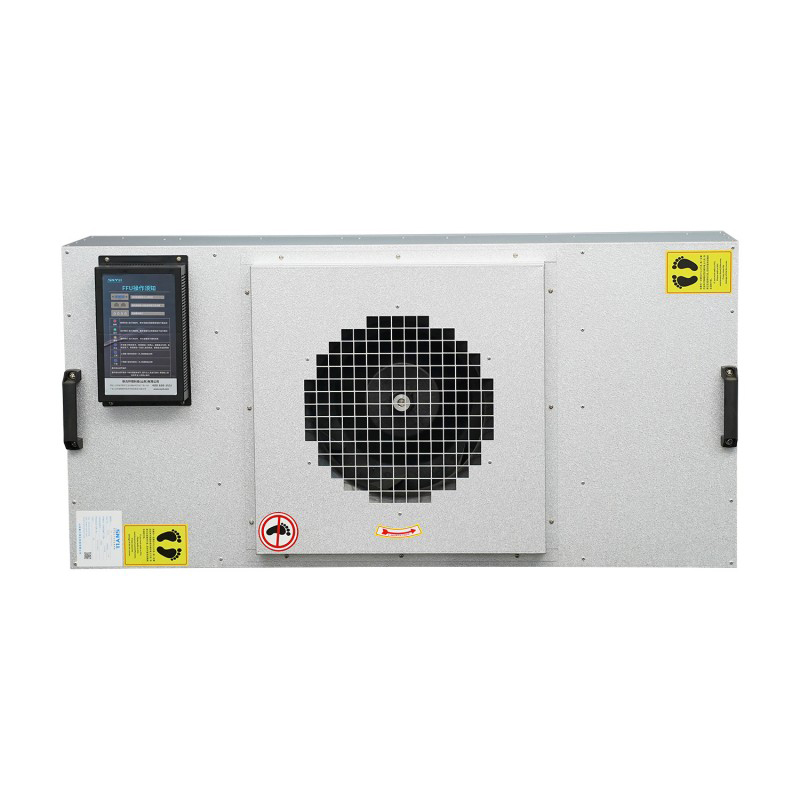

![Equipment EC Fan Filter Unit]( "Equipment EC Fan Filter Unit")
The basic construction of the FFU:
1.Housing: its material is commonly used galvanised aluminium alloy coated steel, aluminium alloy, or stainless steel.
2. Pre-filter. Prevents possible damage to the HEPA filter from debris generated by construction, maintenance, or other conditions.
3. EC motor. Low energy consumption, lower cost in the long run.
4. Mini pleat HEPA filter. Used to capture particles around 0.3 micron dust and various suspended matters.
Common dimensions:
| SIZE(W*L*H)mm | 575*1175*275 | 1175*1175*300 |
|---|
| Material | Galvanised aluminium alloy coated steel, aluminium alloy, or stainless steel. |
|---|
| Air Velocity | 0.36-0.6m/s(THREE SPEED ADJUSTABLE) |
|---|
| HEPA FILTER | 99.99%@0.3um (H13)/99.999%@0.3um(H14)/ULPA |
|---|
| Power Supply | EC (110V , 220V), 50/60HZ, 1PHASE |
|---|
Performance Features:
1.High efficiency: the EC motor has high efficiency, which can achieve higher air speed and larger air volume and provide stable airflow.
2. Energy saving and power saving: compared with traditional AC motors, EC motors can reduce energy consumption and help save energy and protect the environment.
3. Low noise: EC brushless motor fan produces less noise during operation, which can provide a relatively quiet working environment.
4. Strong controllability: EC brushless motor can adjust the running speed and working mode through the controller, which has high controllability.
5. Environmentally friendly and healthy: the use of HEPA filters for air purification can effectively remove dust, bacteria, viruses and other harmful substances in the air, providing a cleaner and healthier air environment.
Overall, Equipment EC Fan Filter Unit has a series of performance characteristics such as high efficiency, energy saving, low noise, long life, controllability, environmental health, etc. It is suitable for clean rooms and other environments with high requirements for air quality.
Applications:
Equipment EC Fan Filter Unit is suitable for many application scenarios that require high cleanliness air, including but not limited to:
Cleanrooms: In cleanrooms in semiconductor manufacturing, biomedical, food processing and other fields, EC motor FFUs can provide stable airflow and efficient filtration to ensure that the air quality in the cleanroom meets the requirements.
Medical field: In operating rooms, laboratories, pharmaceutical production and other medical environments, EC FFU can purify the air and reduce the risk of cross-infection.
Optical instrument manufacturing: In optical instruments, precision instruments and other manufacturing environments, EC FFU can prevent dust, particles and other impurities from contaminating the products to ensure product quality.
Electronic manufacturing: In electronic production line, electronic assembly workshop and other environments, EC FFU can reduce the impact of static electricity on the product, improve production efficiency and product quality.
Laboratory: In scientific research laboratories, chemical laboratories and other environments, EC FFU can provide clean air to ensure the accuracy and reliability of experiments.
Overall, EC FFU is widely used in occasions where high cleanliness air is required, providing solutions for all kinds of industries to safeguard air quality and working environment.
![Applications]( "Applications")

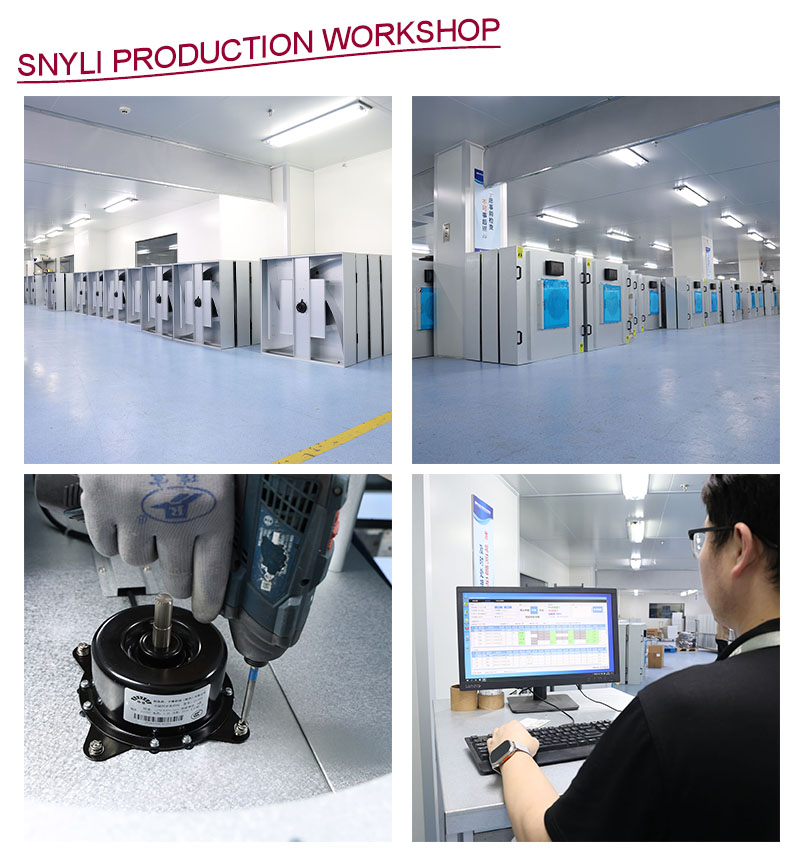

SNYLI Production workshop:
SNYLI factory is located in Liaocheng City, Shandong Province, China, with several independent clean production workshops, including FFU workshop, primary filter workshop, bag filter workshop, HEPA filter workshop and so on.
Professional technical team, independent warehouse and perfect service make SNYLI's popularity in the air filtration industry increasing.
![SNYLI Production workshop]( "SNYLI Production workshop")
