Introduction:
The bag in bag out filter is a filter that combines different functional units as needed, similar to a combined air conditioning unit. This type of filter is commonly used in environments where high efficiency filtration of air or gas is required to provide clean and healthy air.

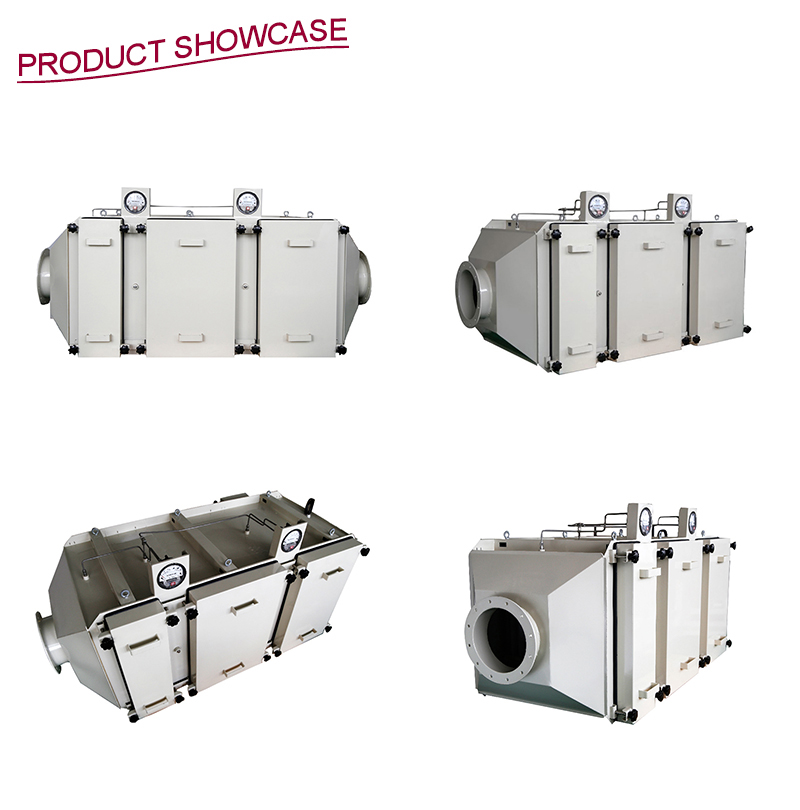

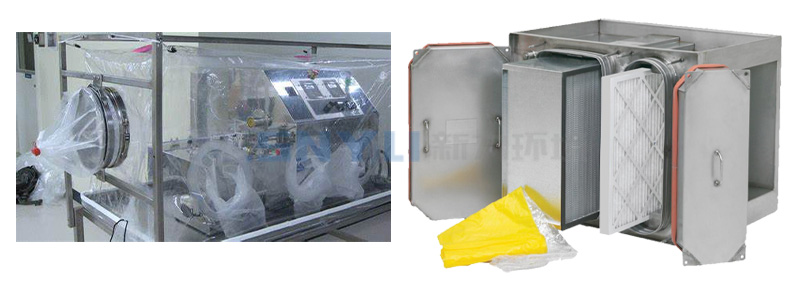

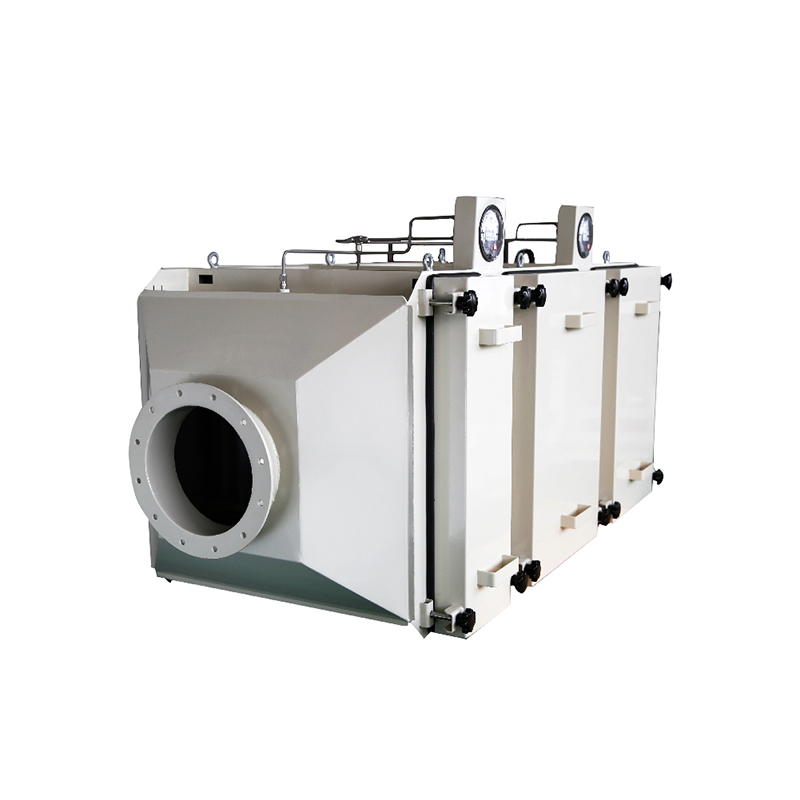

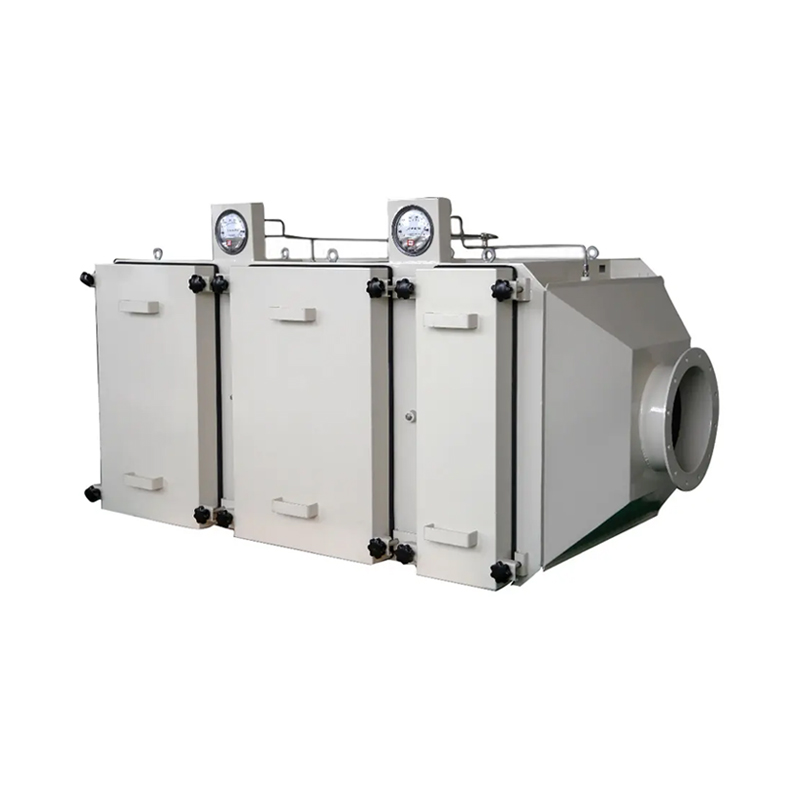

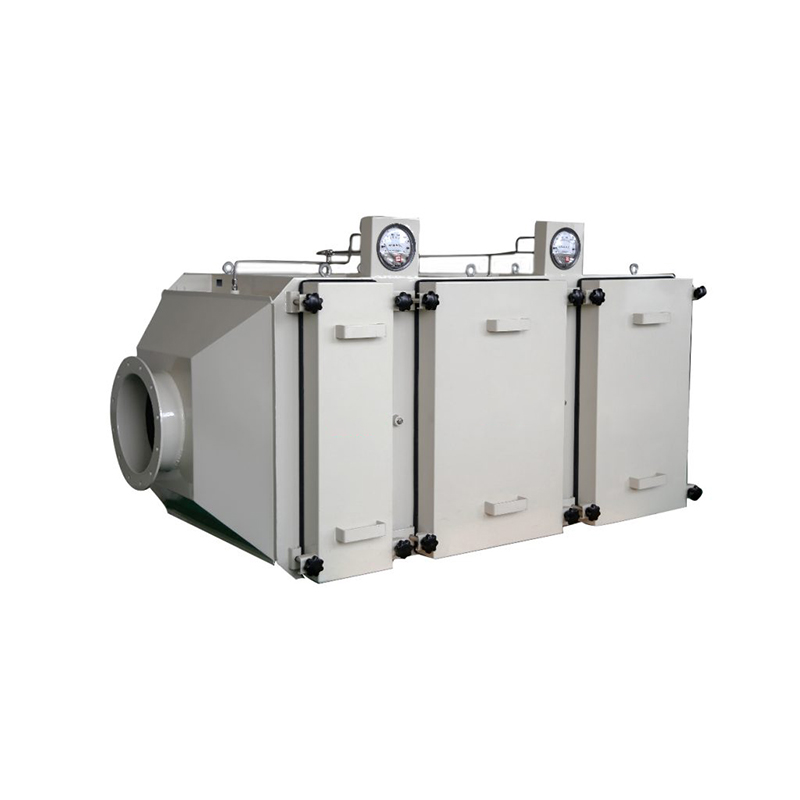

![Bag In Bag Out Filter System]( "Bag In Bag Out Filter System")
![Bag In Bag Out Filter System]( "Bag In Bag Out Filter System")
The composition of bag-in-bag-out filters includes the following common functional units:
Pre-filter: It is used to filter large particles and dust in the air, which can prolong the service life of HEPA filter and protect it from large particle pollution.
High-efficiency particle filter (HEPA): HEPA can filter out more than 99.97% of 0.3 micron particles in the air, including dust, pollen, moulds, etc., effectively purifying the air.
High-efficiency gas adsorption filter (HEGA): High-efficiency gas adsorption filter can adsorb harmful gases in the air, such as formaldehyde, benzene, ammonia, etc., to provide fresher air.
Precision ScanTest Sections: Used to test the performance and effectiveness of the filter to ensure that the filter operates properly and purifies the air effectively.
Through the flexible combination of these functional units, the bag-in-bag-out filter can be adapted to different filtration needs, providing users with a clean and healthy air environment.
Parameter:
| Model | SS-B1 | SS-B2 | SS-B3 |
|---|
External dimensions (H*W*D) | 708*453*532 27.9″*17.9″*21.0″ | 708*708*794 27.9″*27.9″*31.3″ | 1416*1416*1694 55.8″*55.8″*66.8″ |
|---|
| Maximum airflow | 1700m³/h 1000CFM | 3400m³/h 2000CFM | 13600m³/h 8000CFM |
|---|
| HEPA filter section | 99.99%@0.3μm | 99.99%@0.3μm | 99.99%@0.3μm |
|---|
H14@EN1822 | H14@EN1822 | H14@EN1822 |
610*305*292mm-1PCS | 610*610*292mm-1PCS | 610*610*292mm-4PCS |
| Coarse filter section | - | G4@EN779 | G4@EN779 |
|---|
| Chemical filter section | - | - | VOC/Acid/Alkali |
|---|
| Main Material | Steel plate with plastic spraying/SUS304 stainless steel |
|---|
| PAO sampling port | SUS304,φ10mm |
|---|
| Differential pressure gauge | Optional accessory, 0-500 Pa |
|---|
| Pipeline micro-efficiency | Optional accessory |
|---|
| Bioseal valve | Optional accessory |
|---|
| Sterilisation port | Optional accessory |
|---|
| High efficiency PAO scanning system | Optional manual/automatic Scanning mechanism |
|---|
| Net weight | 41kg | 72kg | 362kg |
|---|
| Gross Weight | 52kg | 86kg | 416kg |
|---|
Application places:
1. Medical industry: in operating rooms, wards, clean rooms and other medical environments, bag-in-bag-out air filters can effectively filter airborne bacteria, viruses and other microorganisms to ensure air hygiene and prevent cross-infection.
2. Pharmaceutical industry: in pharmaceutical factories, laboratories and other places, the use of bag-in-bag-out air filters can purify the air, ensure the cleanliness of the production process, and ensure the quality of drugs.
3. Electronic industry: In electronic production lines, electronic assembly workshops and other environments, bag-in-bag-out air filters can help reduce the impact of dust, static electricity and other pollutants on electronic equipment, improve production efficiency and product quality.
4. Laboratories and research institutes: in laboratories, research centres and other places, the use of bag-in-bag-out air filters can reduce particles, microorganisms and harmful gases inside the laboratory, creating a safe and clean working environment.
5. Food processing and packaging industry: in food processing workshops, packaging rooms and other places, bag-in-bag-out air filters help to keep the air clean and prevent the contamination of dust, bacteria etc. on food.
6. Commercial buildings and offices: in commercial buildings, hotels, office buildings and other places, bag-in-bag-out air filters can improve indoor air quality and create a comfortable and healthy working and living environment.

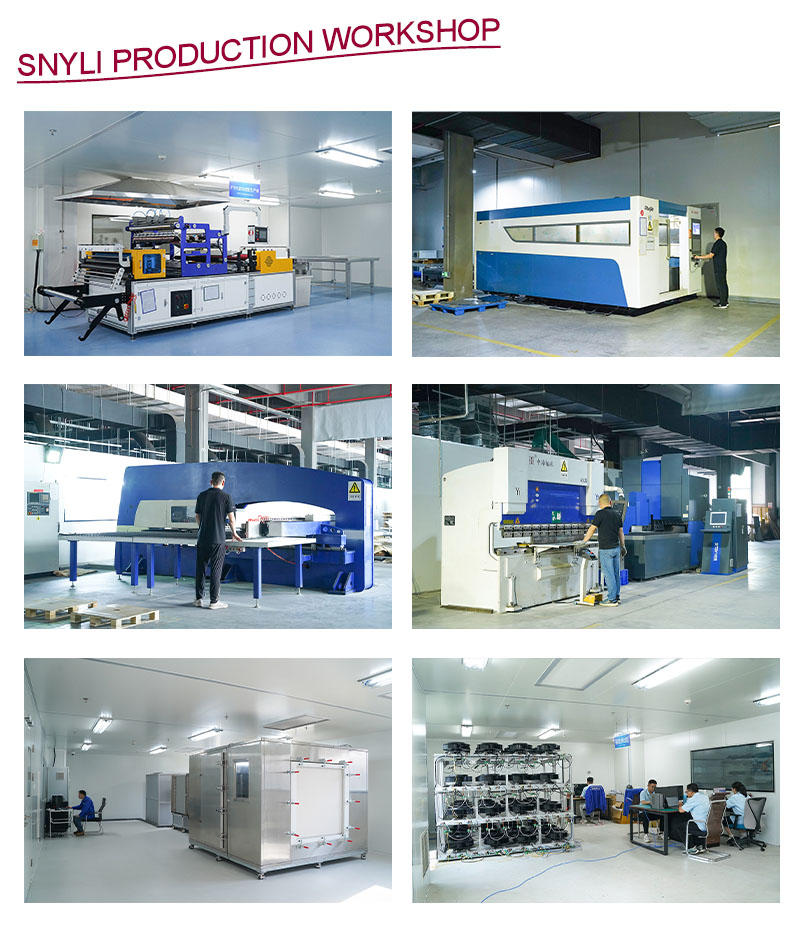

SNYLI Production workshop:
SNYLI factory is located in Liaocheng City, Shandong Province, China, with several independent clean production workshops, including FFU workshop, primary filter workshop, bag filter workshop, HEPA filter workshop and so on.
Professional technical team, independent warehouse and perfect service make SNYLI's popularity in the air filtration industry increasing.
![SNYLI Production workshop]( "SNYLI Production workshop")
About us:
Snyli Environmental Technology (Shandong) Co.,Ltd was established in 2010, registered in Liaocheng City, Shandong Province, mainly engaged in air filtration products. Since the establishment of our company, we have been continuously deepening our research and development to improve our strength, and now we have mastered many patents and obtained ISO/CE certificates.
After more than ten years, SNYLI has set up branches in many places in China and a trading company in Jinan City, Shandong Province. At present, SNYLI products have been exported to both home and abroad, and we have signed long-term co-operation agreements with customers in many countries.
We always put the interests of customers in the first place, regularly follow up customer feedback, and strive to improve our own strength, and the constant pursuit of progress.
Giving us a chance to co-operate will be a decision that benefits both parties! SNYLI welcomes your enquiry!
![Snyli Environmental Technology (Shandong) Co.,Ltd]( "Snyli Environmental Technology (Shandong) Co.,Ltd")
