Introduction:
Pleated primary air filters are suitable for filtering dust particles above 5 microns to keep the air clean. The outer frame material of these filters is usually cardboard, galvanised or aluminium, and the filter material is mostly synthetic fibre, which has a good filtration effect. The main function of the pleated pre air filter is to block the larger particles of dust in the air and create a suitable environment for the subsequent air purification process.

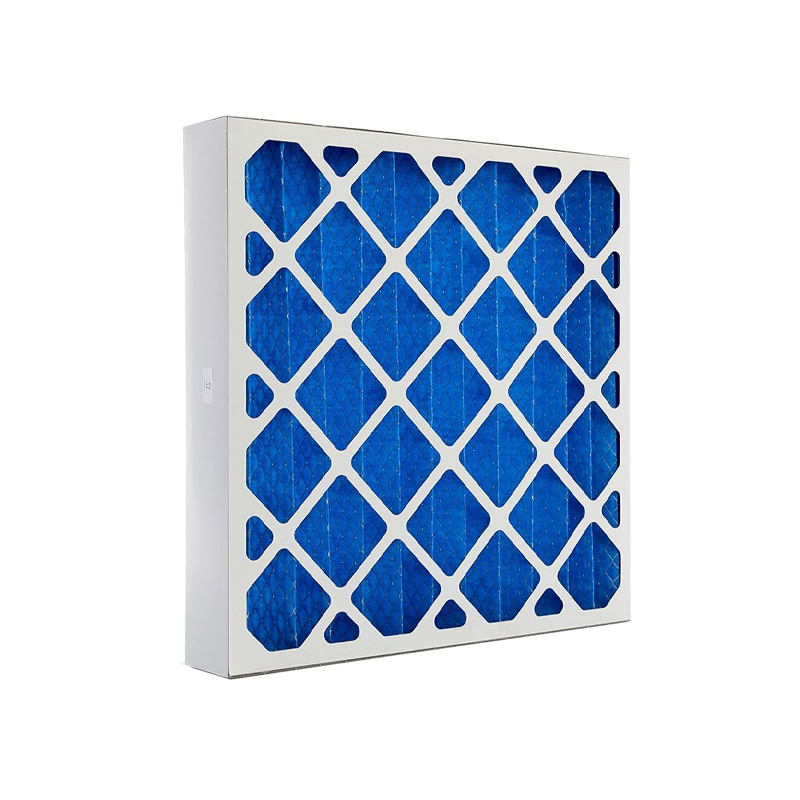

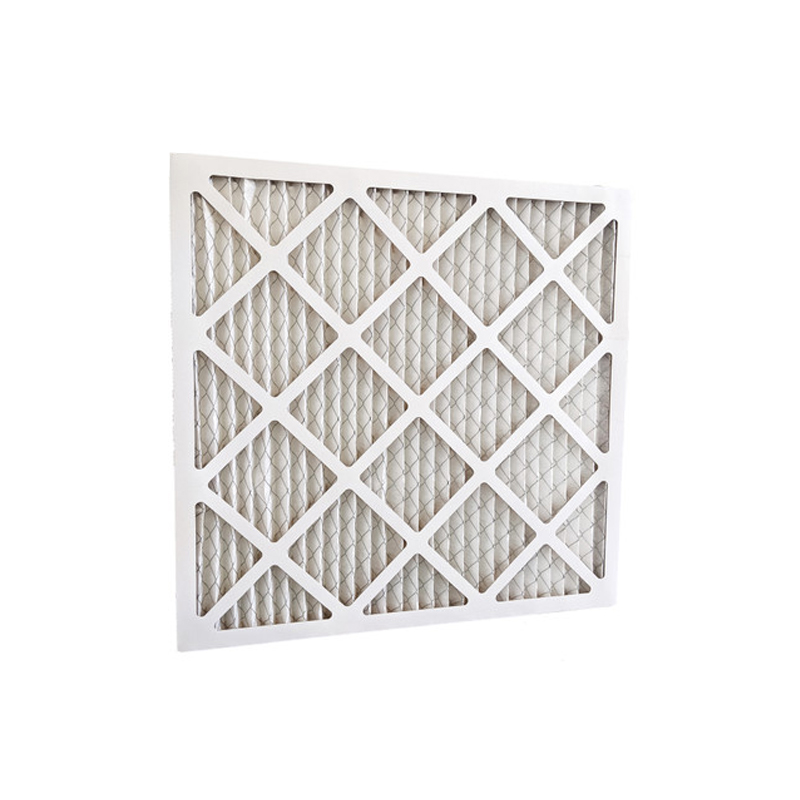

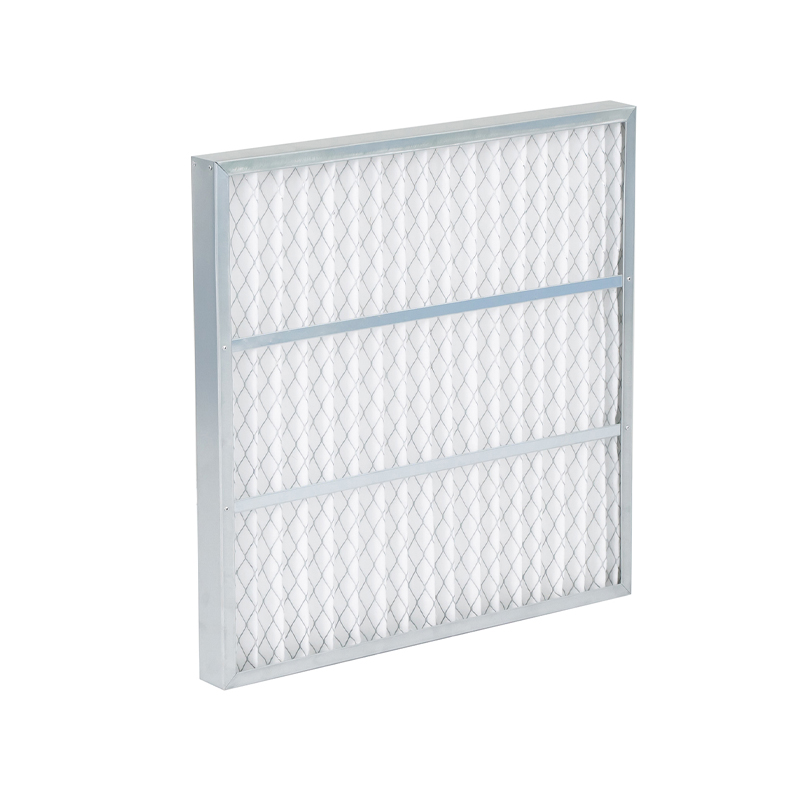

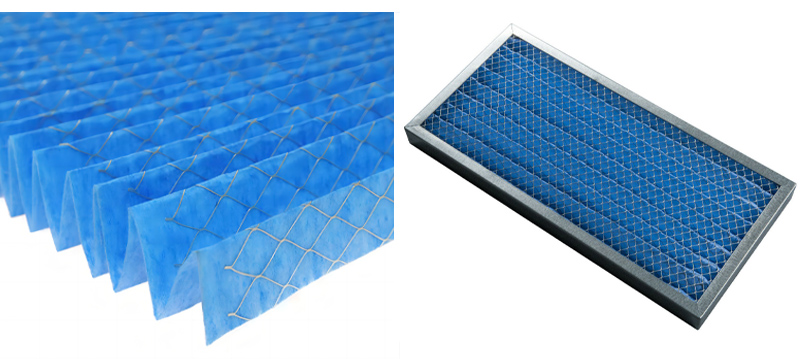

![Pleated Panel Pre Air Filter]( "Pleated Panel Pre Air Filter")
Common dimensions:
Nominal size | Actual size
W×H×D(mm) | Air flow(m³/h) | Initial pressure drop(Pa) |
G3 | G4 | F5 |
12×24×2 | 290×595×45 | 1700 | 55 | 63 | 75 |
20×24×2 | 493×595×45 | 2850 | 55 | 63 | 75 |
24×24×2 | 595×595×45 | 3400 | 55 | 63 | 75 |
12×24×4 | 290×595×95 | 1700 | 50 | 56 | 67 |
20×24×4 | 493×595×95 | 2850 | 50 | 56 | 67 |
Features:
High efficiency filtration. Composed of high-performance synthetic fibre filter media, it can effectively filter out dust and particles from the air and maintain air quality.
Various materials and specifications are available.
Easy to replace. Simple and easy to replace and install, with little impact on the air purification system and no need to suspend production. Replacement can ensure the long-term smooth operation of the air purification system.
Low maintenance cost. Low price and simple operation.
Applications:
Pleated pre air filter is a common air filter, mainly used for filtering dust particles above 5μm, which can be used in a variety of air purification scenarios, such as industrial workshops, hospitals, offices and so on.
Industrial Workshop. In the industrial workshop, there will be a lot of dust and impurities in the air, these particles will cause some impact on the machine, the use of pre air filter can effectively prevent these things from entering the machine, so as to ensure the normal operation of the machine.
Hospital. In hospitals, air quality is very important, the use of primary filters can effectively purify the indoor air, to ensure that the hospital environment is hygienic.
Office. In the office, the impurities in the air will have a negative impact on human health, the use of primary filters can effectively improve air quality, beneficial to the health of employees.
In short, the primary air filter is a kind of air purification equipment widely used in many scenarios, the use of primary filters can well purify the air, maintain the quality of indoor air, beneficial to human health and environmental protection.
