450℃ High Temp Resistant HEPA Air Filter

Advantages:

1.Super high temperature resistance: able to withstand extreme high temperatures up to 450°C, suitable for industrial production environments requiring high temperature filtration.

2.High-efficiency filtration capacity: adopting high-strength glass fibre filter paper, it can effectively filter particles and solid particles in the air.

3.Long-term stability: made of stainless steel outer frame, sturdy structure, long service life and high stability.

4.Environmental protection and energy saving: excellent filtration effect, purifying the air and reducing environmental pollution in the production process.

Contact Now E-Mail Telephone WhatsApp

Product Details

Introduction:

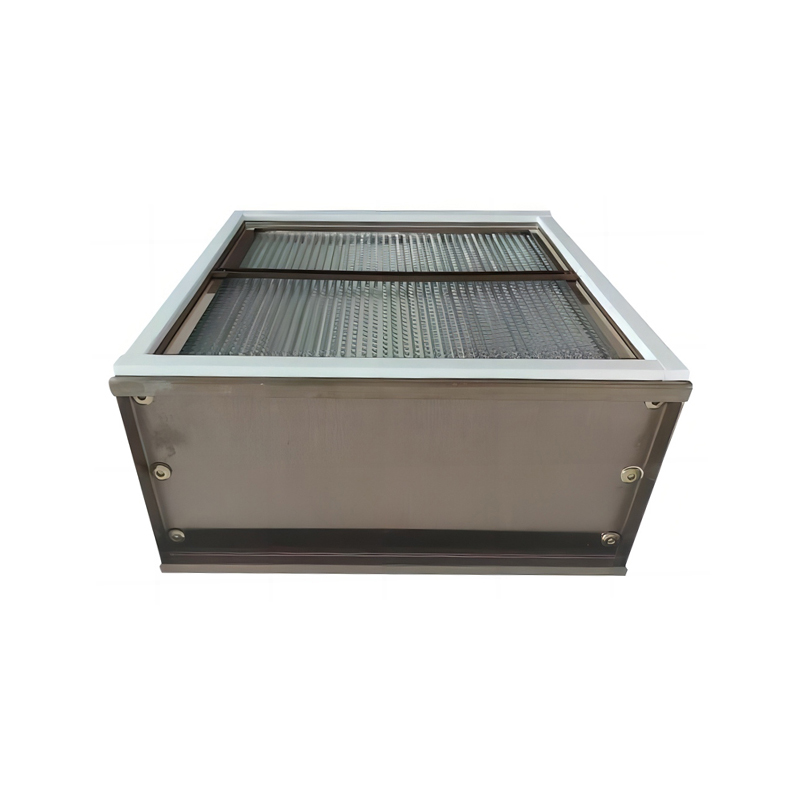

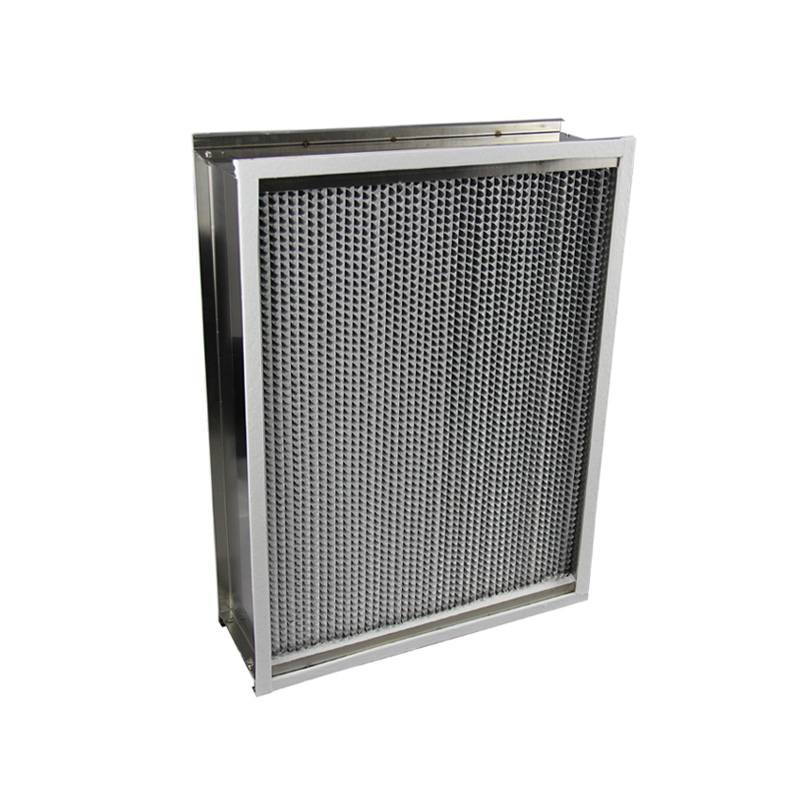

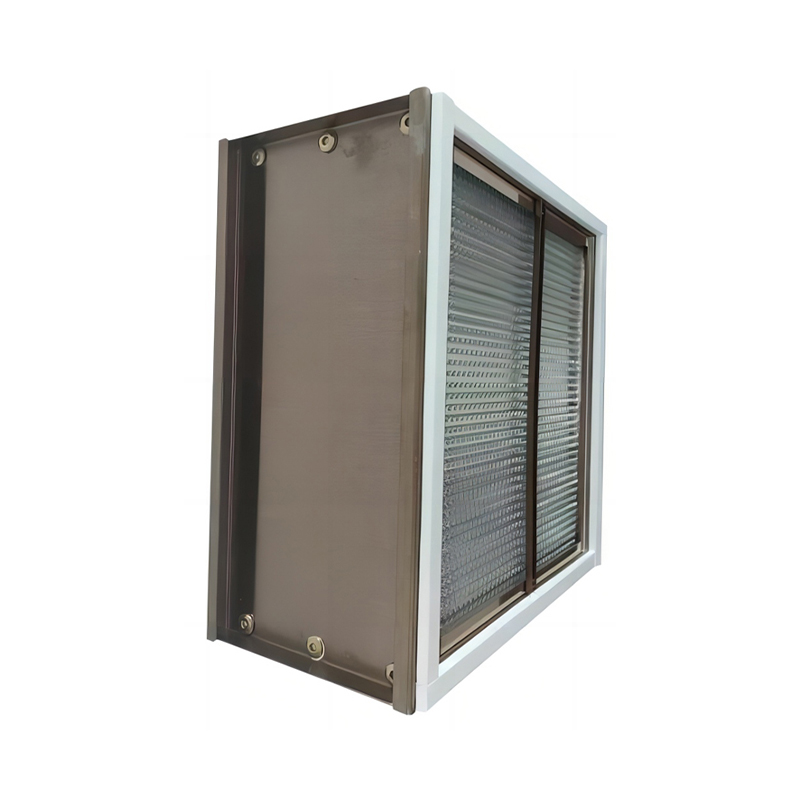

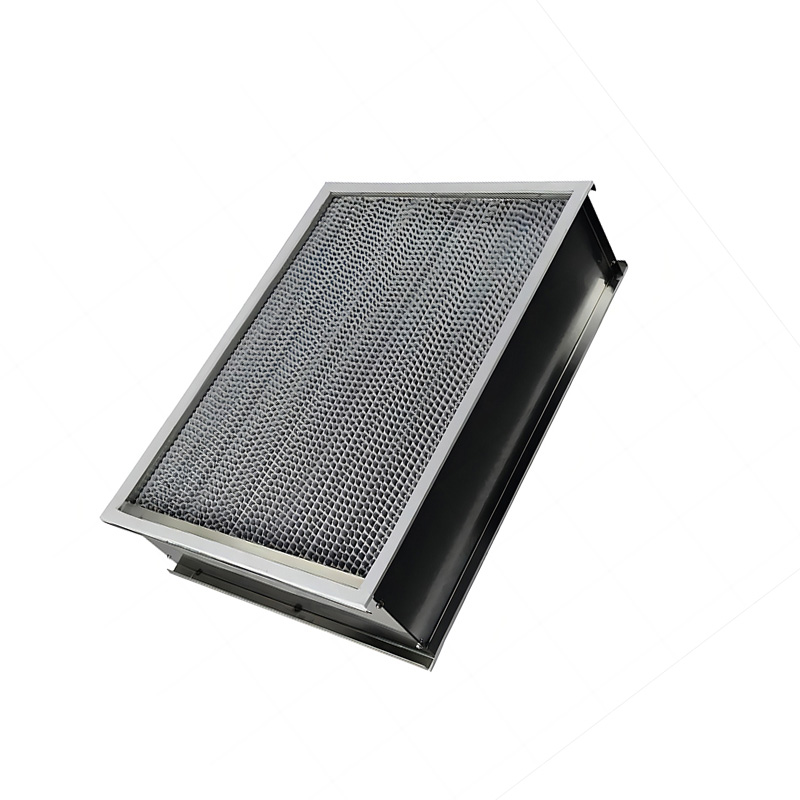

The 450°C high temperature resistant air filter is a specially designed device for filtering air in extreme high temperature environments. It is usually made of stainless steel outer frame and glass fibre filter paper, sealed with ceramic adhesive, with excellent high temperature resistance.

Frame	Stainless Steel
Header	Box type, Single/ Double header
Media	High temp resistance Glass fiber
Separator	Aluminum foil
Sealant	Ceramic adhesive
Max operating Temperature	≦ 450°C

450℃ High Temp Resistant HEPA Air Filter

Common dimensions:

Dimensions	Media Area (m2)		Rated Air Flow (m3/h)		Initial Pressure Drop (Pa)
W×H×D (mm)	Standard	High Capacity	Standard	High Capacity	H12	H13	H14
320×320×220	4.1	6.1	350	525	≤200	≤235	≤255
484×484×220	9.6	14.4	1000	1500
726×484×220	14.6	21.9	1500	2250
968×484×220	19.5	29.2	2000	3000
315×630×220	8.1	12.1	750	1200
630×630×220	16.5	24.7	1500	2250
945×630×220	24.9	37.3	2200	3300
1260×630×220	33.4	50.1	3000	4500
305×305×150	2.4	3.6	250	375
305×610×150	5.0	7.5	500	750
610×610×150	10.2	15.3	1000	1500
915×610×150	15.4	23.1	1500	2250
1220×610×150	20.6	30.9	2000	3000
305×610×292	10.1	15.1	1000	1500
610×610×292	20.9	31.3	2000	3000

Performance Characteristics:

High temperature tolerance: can withstand extreme high temperature environment up to 450℃.
High filtration efficiency: high quality glass fibre filter paper is used to effectively remove particles and other pollutants from the air.
Solid structure: made of stainless steel outer frame, high temperature resistance and corrosion resistance, suitable for harsh environments.
Easy to install: reasonable structure, easy to install and easy to maintain.

Applications:

High-temperature industrial production workshop: air filtration in industrial fields such as metal smelting, glass production, ceramics manufacturing and so on.
Heat treatment plant: for air purification and filtration during high-temperature heat treatment of metals.
Precision electronic manufacturing: it is suitable for high-temperature air filtration in the process of precision manufacturing of semiconductors, electronic components and so on.

450℃ High Temp Resistant HEPA Air Filter

Installation Precautions:

Installation location selection: it should be placed in a well-ventilated location far away from high-temperature radiation sources to ensure normal working effect.
Direction of air flow: Choose the appropriate installation direction according to the direction of air flow to ensure smooth air circulation.
Regular maintenance: Replace the filter regularly to ensure the stability of the filtration effect.
Pay attention to the effect of high temperature: It is strictly prohibited to use the filter in the environment where the high temperature exceeds 450℃ to prevent damage to the filter.

About us:

Snyli Environmental Technology (Shandong) Co., Ltd has the strength and experience in R&D and production to provide a wide range of air filtration products to our customers. Since SNYLI has been engaged in foreign trade export, we have been constantly praised by customers from various countries, and we are always proud of the quality products we have provided to our customers. In the future, we will always keep our original intention, continue to develop and innovate, and provide even better products and services to customers from all over the world.

SNYLI Main Products: FFU, panel air filter, washable air filter, nylon mesh air filter, metal mesh air filter, pocket air filter, v bank air filter, high temp resistant air filter, hepa air filter, ulpa air filter, mini pleat air filter, deep pleat air filter, gel seal air filter, chemical air filter, auto roll air filter, clean bench, clean booth, air shower, pass box, etc. SNYLI also provides indoor air quality control solutions, offers OEM of air quality control equipment.
