Introduction:
Pocket air filter media are usually made of synthetic fibres, but glass fibres are sometimes used at the special request of some customers. These materials have good properties of high temperature resistance, corrosion resistance, antibacterial and mould resistance, and are suitable for applications in various industries.
Typical pocket air filter media construction usually consists of multiple layers of filter media stacked on top of each other. The layers of filter media are held together by means of heat pressing or bonding to form a tightly structured filter pack.
Main material | Synthetic fiber / Glass fiber |
Filtration class | G4,M5,M6,F7,F8,F9 (EN779) |
Filter object | 1μm~5μm coarse dust and foreign matter |
Flammability rating | F1(DIN 53438) |
Temperature resistance | 80℃ |
Humidity resistance | 100% RH |

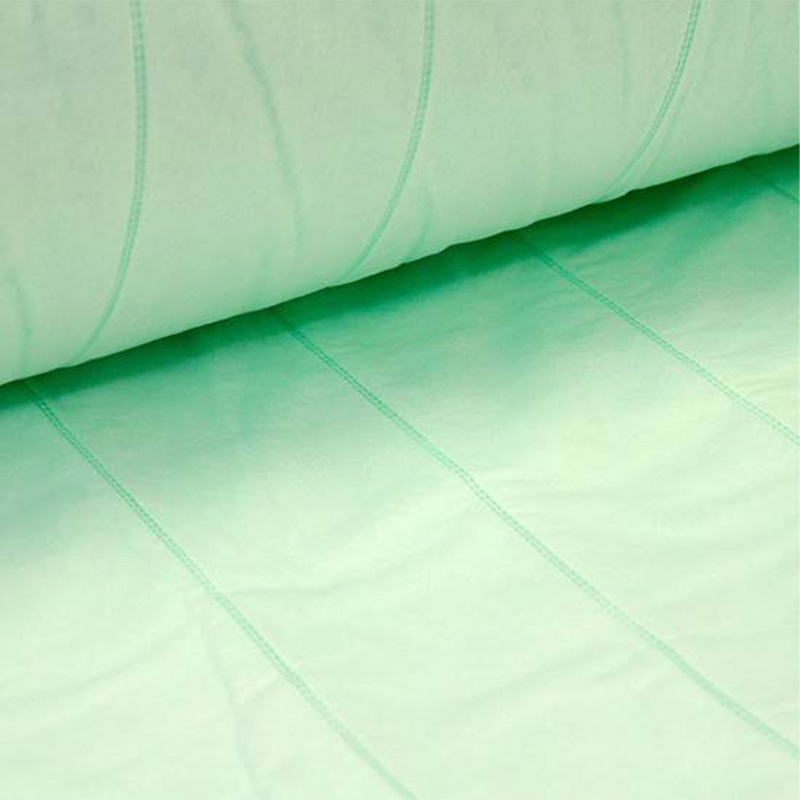

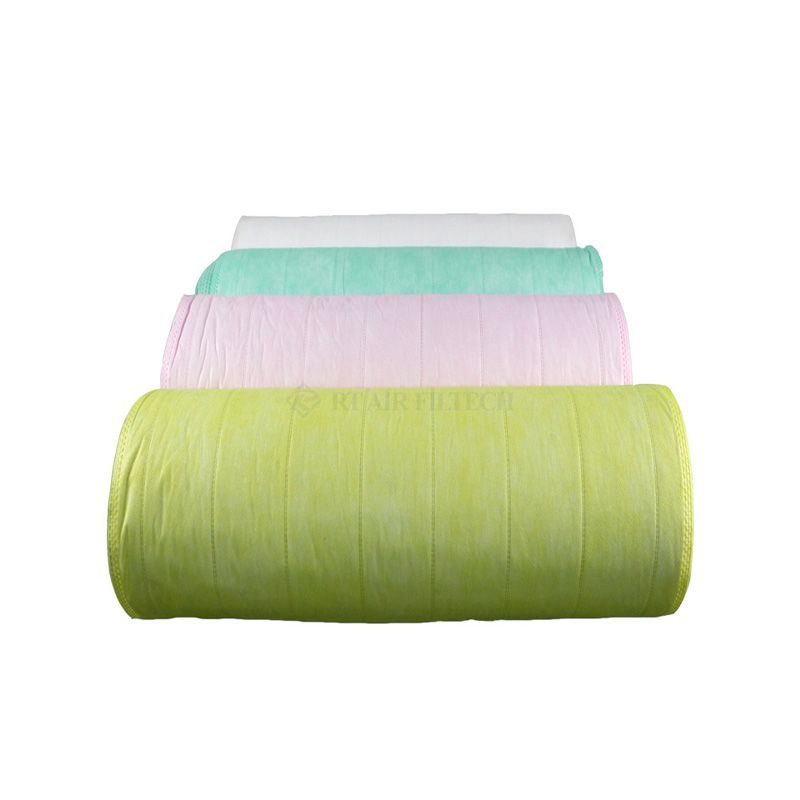

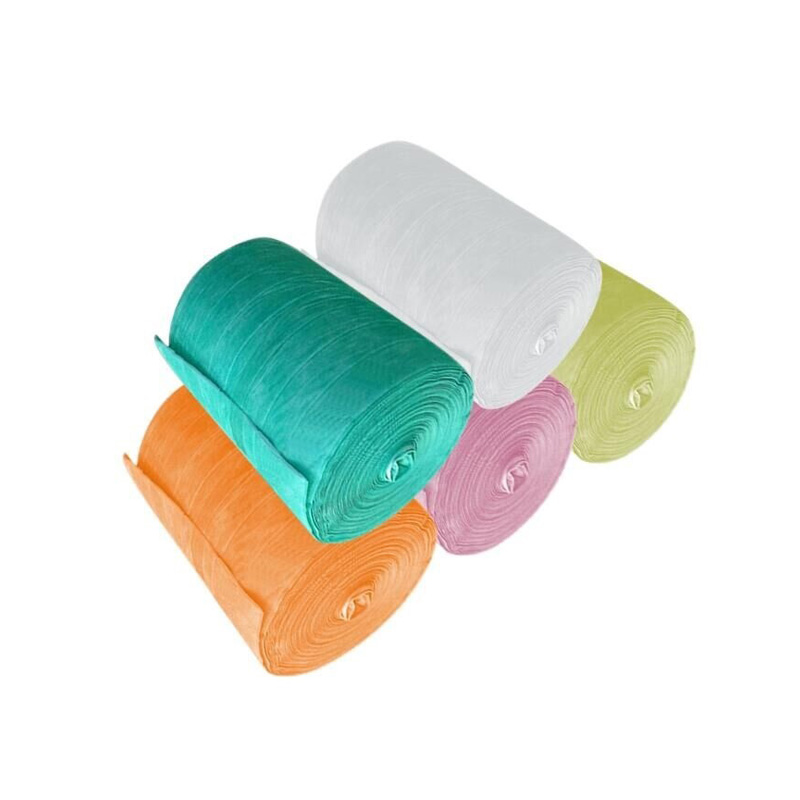

![Pocket Air Filter Media]( "Pocket Air Filter Media")
Common dimensions:
Filtration Class | EFF. | Weight
(g/m2) | Thickness | I.N.P (Pa) | Dust capacity
(g/m2) | Length
(m) | Color |
M5 | 45 | 170±3 | 6±1 | 6±2 | 180±10 | 150 | White |
M6 | 65 | 195±3 | 6.5±1 | 10±2 | 190±10 | 150 | Green |
F7 | 85 | 205±3 | 6.5±1 | 15±2 | 210±10 | 150 | Pink |
F8 | 90 | 220±3 | 6.5±1 | 22±2 | 220±10 | 150 | Yellow |
F9 | 95 | 235±3 | 6.5±1 | 28±2 | 230±10 | 150 | White |
Performance characteristics:
1. High filtration efficiency: different levels of filtration efficiency can be selected according to requirements, such as G4,M5,M6,F7,F8,F9.
2. Good air circulation: maintains good air circulation without causing obvious resistance to the ventilation system.
3. Low resistance: adopting reasonable material and structure design to make the resistance low and not affecting the normal work of the equipment.
Application Scenario:
Hospitals and health institutions: purify the air environment in operating theatres, wards, etc.
Laboratory: to ensure clean air in the laboratory and avoid microbial contamination.
Industrial production places: used in factory workshops and other environments to protect workers' health.
Commercial buildings: such as office buildings, shopping malls, etc., to provide clean and healthy indoor air.
![Pocket Air Filter Media Applications]( "Pocket Air Filter Media Applications")
Precautions for use:
1. Regular replacement: according to the frequency of use and environmental conditions, regularly replace the filter to ensure the filtration effect.
2. Correct installation: install the filter media correctly according to the product manual to ensure its sealing and effectiveness.
3. Avoid damage: avoid damage to the filter media, so as not to affect the filtration effect.
4. Pay attention to safety: when replacing the filter, make sure that the equipment is in the state of shutting down, and operate according to the operating procedures, pay attention to safety protection.
About us:
Snyli Environmental Technology (Shandong) Co., Ltd is a well-known manufacturer in the air purification industry in Northern China and has gained continuous support from many large customers. A number of patents have been obtained as well as ISO/CE certificates.
