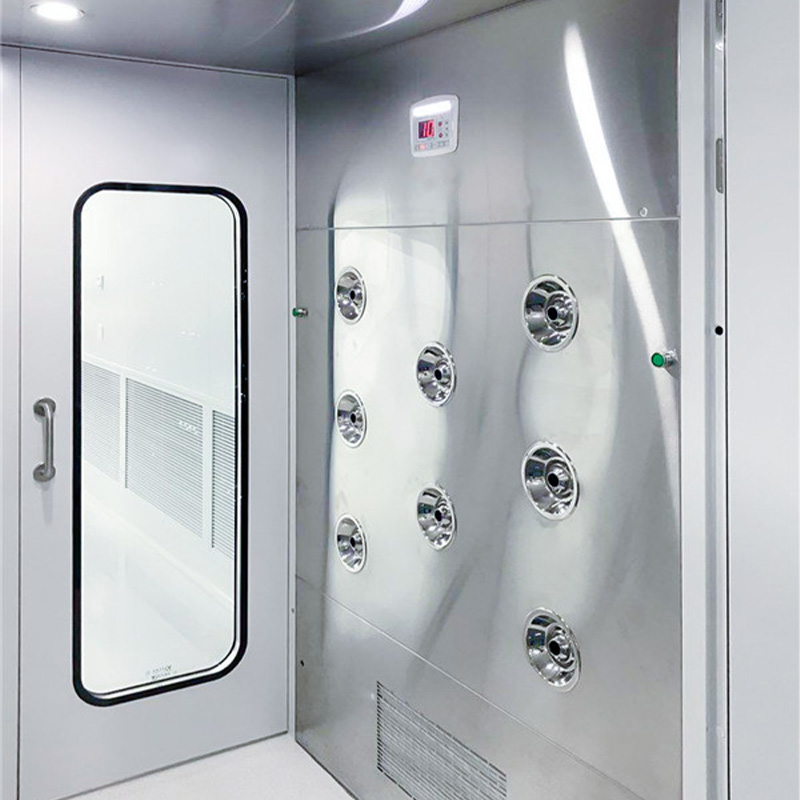

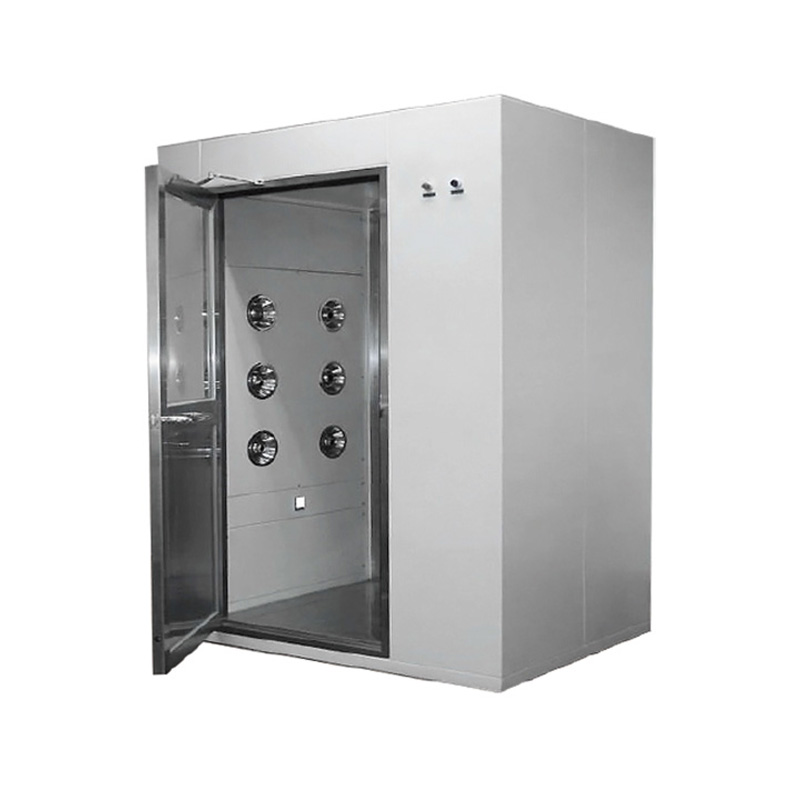

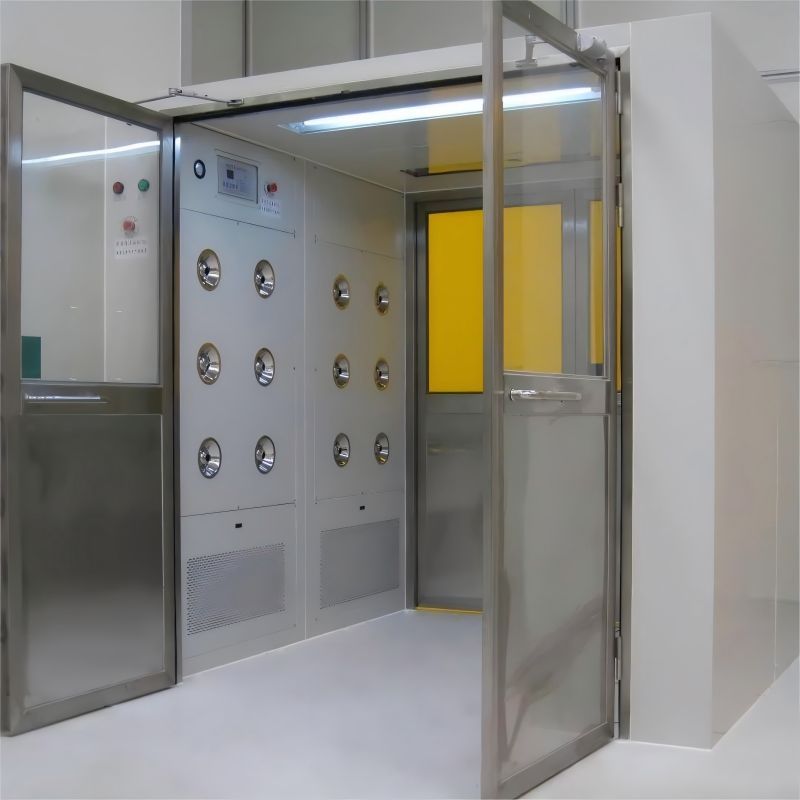

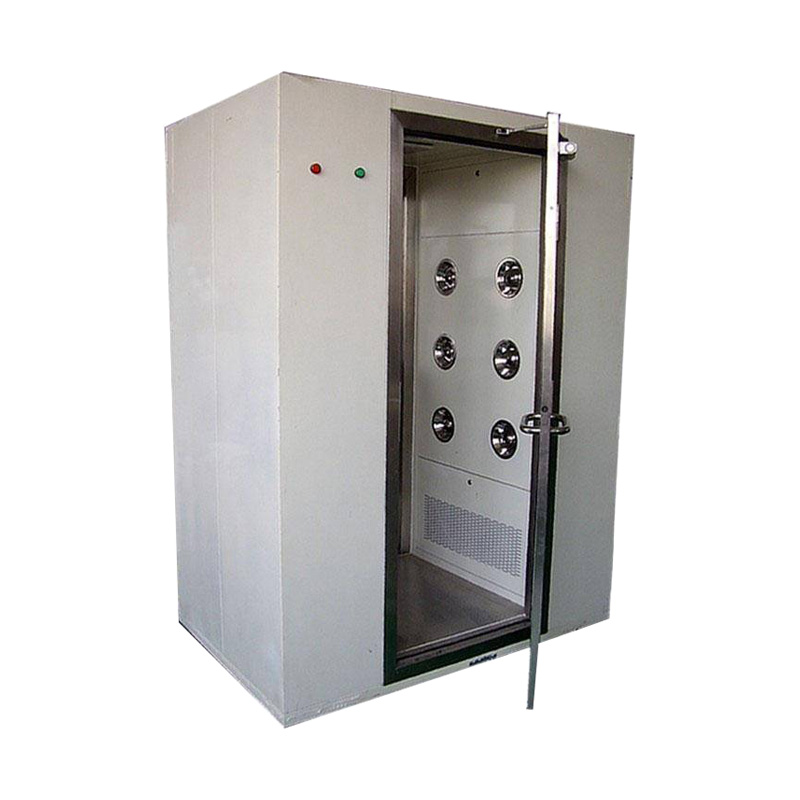

Industrial Air Shower

Introduction:

Air shower room is a kind of local purification equipment. It is a professional equipment used to eliminate particles, bacteria and other harmful substances on the surface of human body and objects. The air shower room is mainly composed of air filter, fan, LED clean light, reinforced glass, control panel and so on.

The air shower room filters the air through the HEPA filter, generates high speed airflow, forms a powerful air jet, sweeps down the pollutants on the surface of human body and objects, and ensures a sterile and clean environment.

Common dimensions:

Performance Characteristics:

1. With all stainless steel multi-angle adjustable nozzle, double vortex shell outer rotor large air volume low noise fan, the wind nozzle outlet wind speed up to 25m/s or more, the wind speed blowing to the person is 18m/s or more.

2. Modular structure, the air shower room box adopts modular design scheme, can be assembled into various lengths of air shower size according to the actual needs. An air shower room consists of one or more sections of air shower unit, for large volume of air shower equipment, can be split into multiple modules, making it very convenient and fast for production, transport and installation.

3. High performance and sealing. Adopting high-quality electronic components, the operation performance is stable and reliable, advanced noise reduction and mute device system, adopting EVA sealing material, high airtight performance.

4. Two levels of filtration, primary filter and HEPA filter, effectively reduce the dust source into the clean area. It is characterised by high efficiency and precision in removing particles and bacteria.

5. Energy-saving and environmental protection: adopting high-efficiency motor and wind power transmission, reducing energy consumption and easily achieving the requirements of energy-saving and environmental protection.

Operating Procedures:

1. Before entering the air shower room, pay attention to wearing clean work clothes.

2. After opening the outer door of the air shower room, both sides of the door will be locked automatically, and the air shower will start automatically under the infrared sensing, and after reaching the preset blowing time, open the door to enter the clean room.

3. Note that when blowing shower, both sides of the door can not be opened due to electronic interlocking control, if it is forced to open, the electronic lock will be damaged.

Installation and maintenance methods:

1. The installation of the air shower room should be evaluated and designed in advance to ensure that it meets the actual needs and achieves the preset cleanliness effect.

2. Follow the necessary equipment maintenance methods to maintain the safety and stability of the equipment.

3. Regularly replace filters and damaged parts.

Applications:

Air shower room is applied to microelectronics, photoelectricity, semiconductor, medicine, food, chemical industry, aviation, automobile, printing, laboratory and other dust-free workshop and non-dust-free workshop, ladder cleanliness workshop, used for removing dust particles larger than 0.3 micron from all parts of the person from the process of low cleanliness room into the high cleanliness room, so as not to bring the contamination after entering the clean room.

About us:

Snyli Environmental Technology (Shandong) Co., Ltd has been in the field of air purification for more than ten years, and has obtained a number of patents as well as ISO/CE certificates, which have been recognised and praised by customers in various countries around the world. In the next step, SNYLI will continue to work hard without forgetting its original intention and take pride in providing better products to our customers.

SNYLI can provide customers with professional air purification solutions, air filters, transfer windows, air showers, FFU and other cleanroom equipment can be supplied in one-stop!
