Introduction:

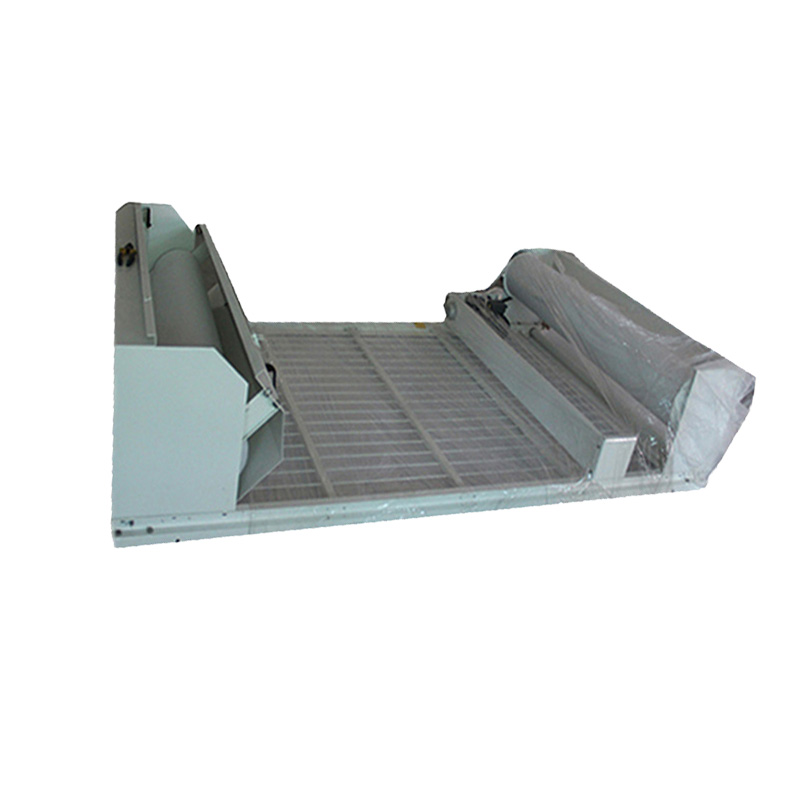

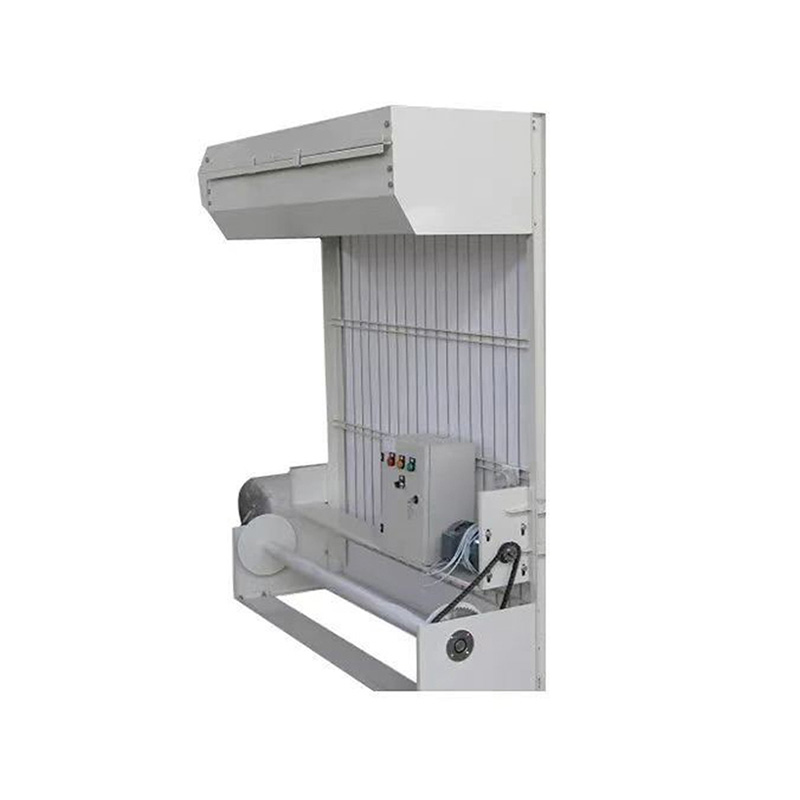

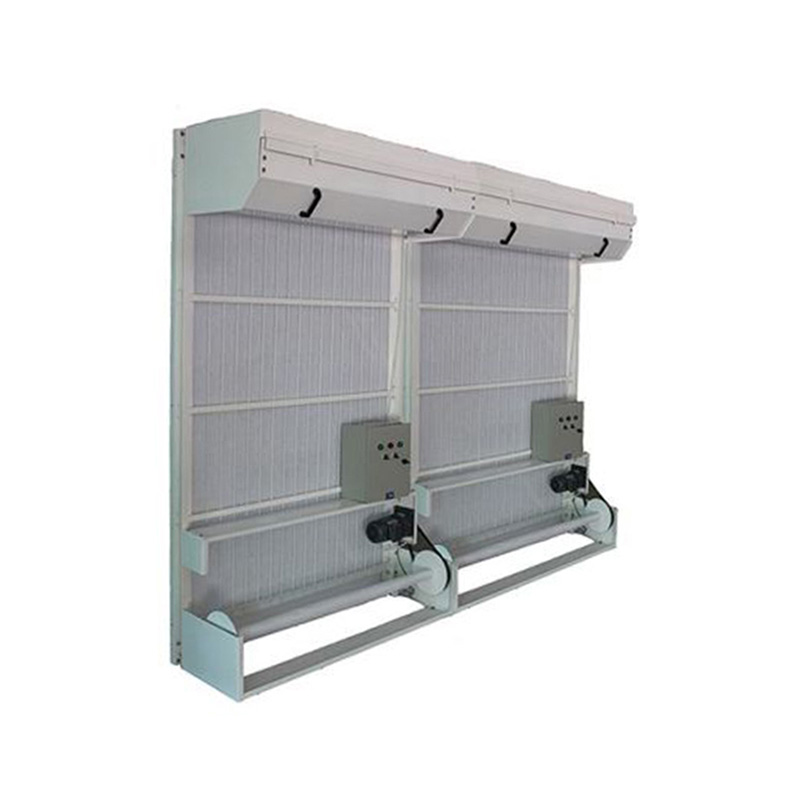

Auto Roll Air Filter is an air filtration device used to filter airborne particles and contaminants. Its main feature is the use of automatic winding technology, which allows for regular replacement of the filter media, thus ensuring the continued efficient operation of the filter.
![Auto Roll Air Filter Auto Roll Air Filter]()
Common dimensions:
| Filter Height(mm) |
| 1524 | 1829 | 2134 | 2438 | 2743 | 3048 | 3353 | 3658 | 3962 | 4267 |
Total width | Rated air flow (m³/h) |
914 | 9200 | 11300 | 13400 | 15500 | 17700 | 19800 | 21900 | 24000 | 26200 | 28300 |
1219 | 12700 | 15000 | 17800 | 20600 | 23600 | 26400 | 29200 | 32000 | 34900 | 37700 |
1524 | 15875 | 18750 | 22250 | 25750 | 29500 | 33000 | 35500 | 40000 | 43625 | 47125 |
1829 | 19050 | 22500 | 26700 | 30900 | 35400 | 39600 | 43800 | 48000 | 52350 | 56550 |
2134 | 22225 | 28250 | 31150 | 36060 | 41300 | 46200 | 51100 | 56000 | 61075 | 65975 |
2438 | 25400 | 30000 | 35600 | 41200 | 47500 | 52800 | 58400 | 64000 | 69800 | 75400 |
2743 | 28575 | 33750 | 40050 | 45350 | 53100 | 59400 | 65700 | 72000 | 78525 | 84825 |
3048 | 33150 | 40000 | 48450 | 56100 | 63750 | 71400 | 79060 | 86700 | 94350 | 102000 |
3353 | 36462 | 44000 | 53295 | 61710 | 70125 | 78540 | 88955 | 95370 | 103785 | 112200 |
3658 | 39780 | 48000 | 68140 | 67320 | 76500 | 85880 | 94860 | 104040 | 113220 | 122400 |
3962 | 43095 | 52000 | 62985 | 72930 | 82875 | 92820 | 102785 | 112710 | 122855 | 132600 |
4267 | 46410 | 56000 | 67890 | 78640 | 89250 | 99960 | 110670 | 121380 | 132090 | 142800 |
4572 | 49725 | 61200 | 72675 | 84150 | 95625 | 107110 | 118575 | 130050 | 141525 | 153000 |
4877 | 53040 | 65280 | 77520 | 89760 | 102000 | 114240 | 126450 | 138720 | 150960 | 163200 |
5182 | 56355 | 67634 | 78913 | 90154 | 108375 | 121380 | 134385 | 147390 | 160395 | 173400 |
5486 | 59661 | 71620 | 83642 | 95443 | 114750 | 128520 | 142290 | 156060 | 169830 | 183600 |
5791 | 62979 | 75583 | 88187 | 100749 | 121125 | 135660 | 150195 | 164730 | 179265 | 193800 |
Performance Features:
1.Highly efficient air filtration capability to filter out small particles and harmful substances.
2.Automatic winding function ensures that the filter stays clean and maintains filtration performance.
3.Low noise operation, will not disturb the indoor environment.
4.Intelligent control system can automatically clean and replace the filter media at regular intervals.
5.Energy saving and environmental protection, in line with the modern green living concept.
Application Places:
![Applications Applications]()
Precautions for use:
Clean and replace the filter regularly to avoid clogging and thus affecting filtration efficiency.
Use and maintain the equipment according to the manufacturer's instructions.
Avoid prolonged idling, try to keep the equipment running normally.
Regularly check the status of the equipment, if there is any abnormality, it should be dealt with in time.
About us:
Snyli Environmental Technology (Shandong) Co., Ltd has been established for more than ten years, always insisting on independent research and development, constantly insisting on innovation, and has obtained a number of patents.
SNYLI always puts the interests of customers first, and provides customers with high-quality products and services.
Support customisation, samples are available.
